Fuel injector assembly Kubota engine D722 – D782 – D902 | Z402(Aixam) – Z482 – Z602 | Nanni | Beta | Schäffer

Description

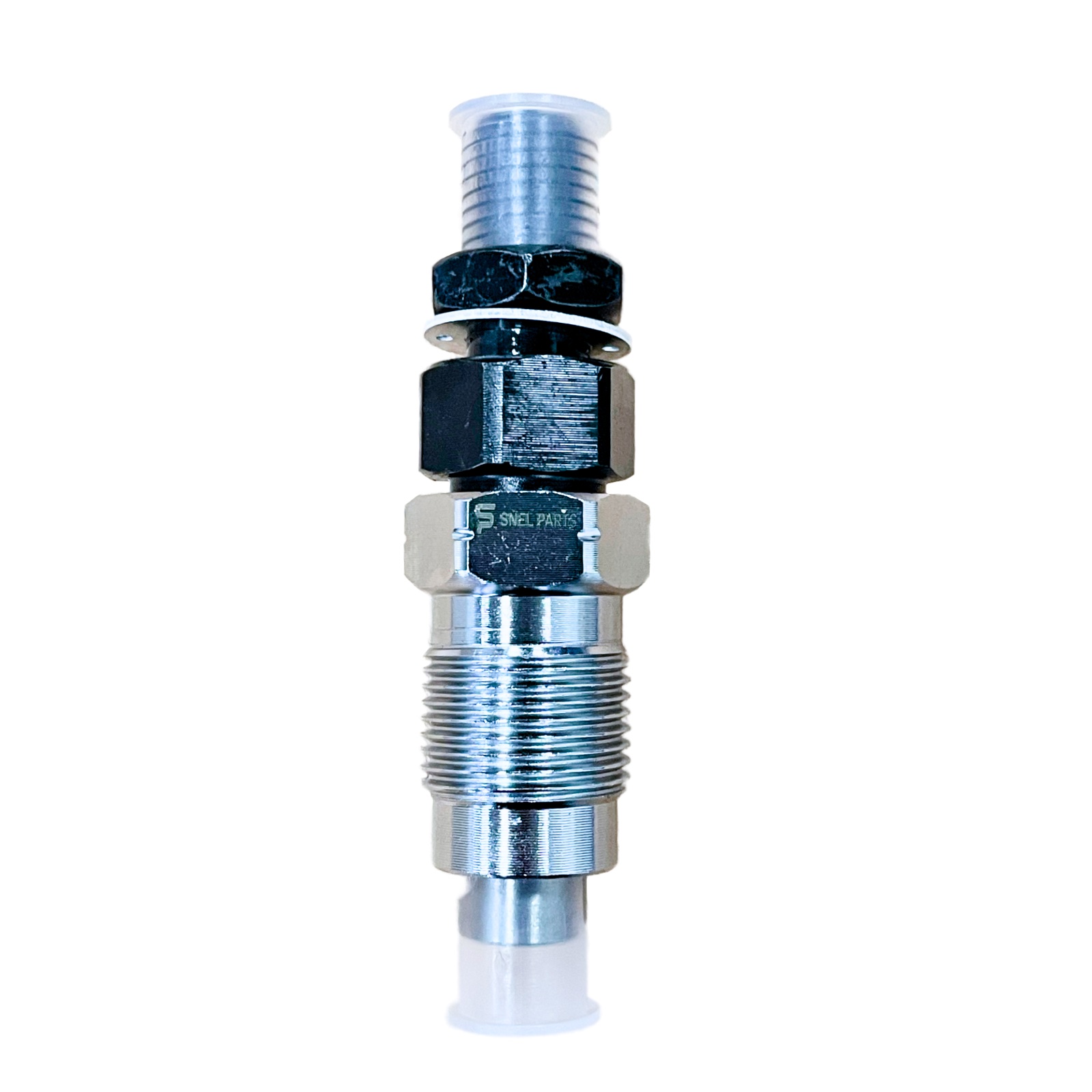

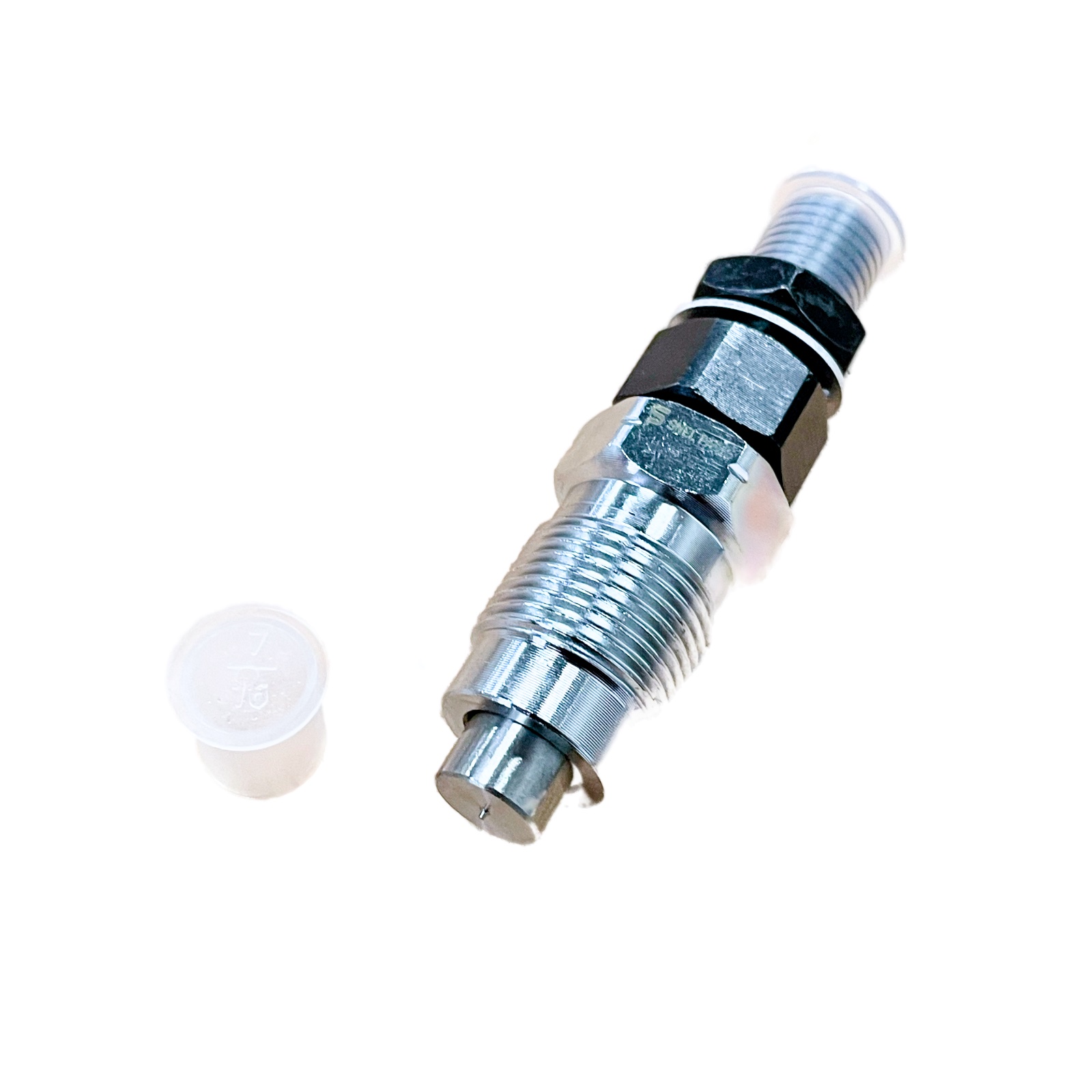

Exclusive from our own production line: a complete fuel injector assembly, fully assembled and set to the correct opening pressure. This ‘Snelparts‘ injector is ready for immediate installation.

Specifically developed for compact Kubota 2- and 3-cylinder engines. These engines often run at high RPMs; a fresh injector immediately results in less smoke, lower fuel consumption, and better starting performance.

expert advice: This injector is widely used in Microcars (such as Aixam).

• Atomization is extremely critical in these small engines. It is best to replace them per set to prevent vibrations.

• Don't forget to replace the copper heat shield beneath the injector (this ensures a compression seal).

technical specifications

• Type: Complete Injector Holder + Nozzle

• Injection: Indirect injection (IDI)

• Engine code: Kubota Super Mini (Z482, Z602, D662, D722, D782, D902)

• System: E-TVCS (Indirect Injection)

• Setting: approx. 135 – 145 Bar

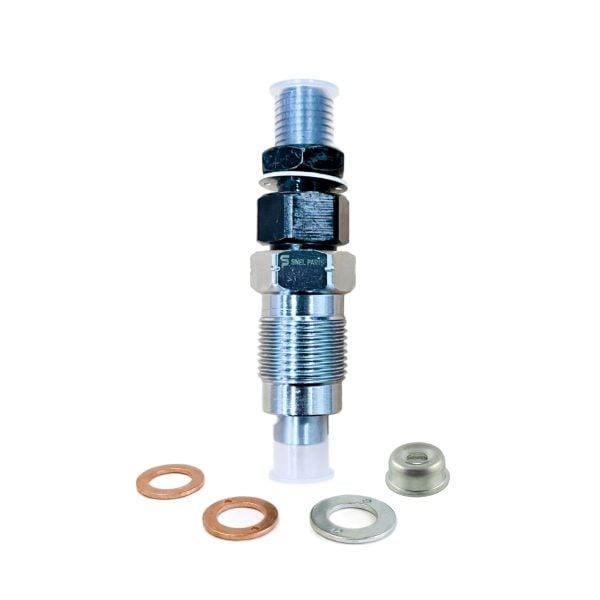

Supplied including complete sealing set for immediate installation! We supply this nozzle standard with all necessary new copper rings. This allows you to get to work safely and leak-free right away. The included set consists of:

• A new heat shield (fire ring) against extreme heat and soot buildup.

• A copper seal for the injector for 100% compression retention.

• A leak-off line seal to prevent fuel leakage.

Kubota

• A-13, A-14
• B52, B1610, B1220D, B1620D, B7300HSD, B7400HSD
• BX23S, BX24, BX25, BX25DLB, BX25DLB-1, BX1800, BX1800D, BX1830D, BX1850, BX1850D, BX1860, BX1860D, BX1870D, BX1880, BX2360, BX2370, BX2370-1, BX2380
• GB14, G1900, G1900S
• GF1800, GF1800E
• GL6000-STD, GL7000-AUS, GL7000-STD, GL7000-USA, GL7000-USA-TM
• GR1600EC2, GR2110, GR2120, GR2120B, GR2120B-2
• J106-AUS, J106-STD, J107-SA, J107-STD
• KC110HR-4
• K008, K008-3, K008-3(KTC/KCL)
• KX018-4, KX019-04, KX41-3
• RTV900, RTV900G, RTV900G9, RTV900R, RTV900T9, RTV900W9, RTV900W9SE, RTV900XTG, RTV900XTR, RTV900XTS, RTV900XTT, RTV900XTW, RTV-X900G, RTV-X900R, RTV-X900W
• T1600H
• TG1860-48, TG1860AAB54, TG186054
• U17
• ZD18, ZD21, ZD1011, ZD1021, ZD221, ZD321, ZD321N, ZD323

Aixam

• 400 (1997-2004), 400.4 (1997-2004), 400 Evolution (1997-2004), 500.4 (1997-2004), 500.4 Minivan (1997-2004), 500.4
• Pick-Up (1997-2004), 721 (2005-2008), 741 (2005-2008), Scouty 2005-2008, Crossline 2005-2008, City 2008-2010,
• Roadline 2008-2010, Crossline 2008-2010, Scouty 2008-2010, City 2010-2013, Crossline 2010-2013,
• Crossover 2010-2013, GTO 2010-2013, Coupe 2010-2013, City 2013-2016,
• Coupe 2013-2016, Crossline 2013-2016, Crossover 2013-2016, MEGA 1, MEGA 2, Pro D-Truck

Ausa

• D150RM 4X2, D150RM 4X4, D150RMA 4X2, D150RMA 4X4, D150RMG 4X2, D150RMG 4X4, D175RMS 4X2, D175RMS 4X4

Avant

• 423, 523
• R20, 320, 320+, 320S, 320S+, 520, 520+, 523+
• 314, 314S, 514

Bobcat

• 316, 323, 320,
• 316, 319, 322, 323, E08, E10, E14, E16, E17, E17Z, E19, 2200D, 2200S, 2300
• MT55

Beta Marine

• Beta 10, Beta 14, Beta 16, Beta 20, Beta 25 (Based on Kubota Super Mini)

Giant

• D204SW, D254SW, D332SWT, D337T

Komatsu

• PC100-5

Takeuchi

• TB210R

Vimek

• 608, 608.2.

Wacker Neuson

• DT15

Toro

• TX525

Mariner

• 560 (B), Mariner 710 (B), IS 7.1,

Nanni Diesel

• N2.10, N2.14, N3.21

Schäffer

• 2020, 2021, 2022, 2024, 2027

Kubota engine

• D722, D782, D902
• Z402, Z482, Z602
• D722-E-BX, D722-E2-BX-2, D722-E3-BX-2, D722-E4-BX-1, D722-E4

OEM for reference:

• 16001-53000, H1600-53000, 16001-53002
• 16871-53000, 16871-53002
