Connecting rod bolt Kubota Z402 | Z482 | Z602 | D662 | D722 | D782 | D902 – BX | KX | ZD | RTV900

Description

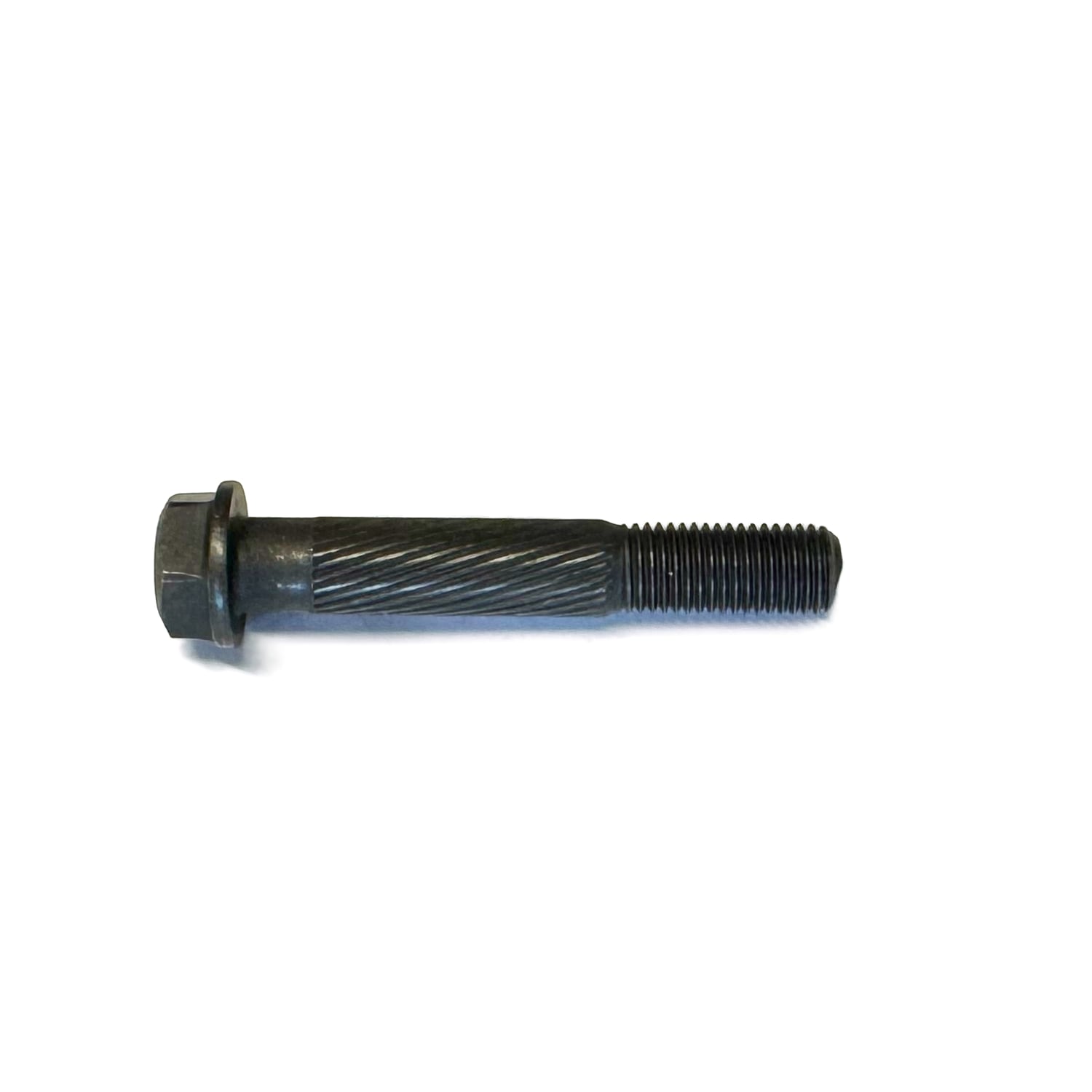

New connecting rod bolt suitable for Kubota 2- and 3-cylinder mini diesel engines (the “Super Mini” series: Z402, Z482, Z602, D662, D722, D782, D902 and variants). The connecting rod bolt clamps the connecting rod cap to the connecting rod and keeps the piston and crankshaft firmly connected under high loads. A direct OEM replacement for Kubota 16851-22140.

✔️ Exact OEM fit — 1-to-1 replacement for Kubota 16851-22140
✔️ High-quality steel — resistant to high torque and engine loads
✔️ Fits the complete Kubota mini series (Z402/Z482/Z602, D662/D722/D782/D902)

Note: always replace connecting rod bolts as a set during an overhaul — never reuse old bolts. Tighten according to the manufacturer’s specified torque.

Technical specifications

• Part: connecting rod bolt
• Material: high-quality steel
• Delivery: per piece
• Engine family: Kubota 2- and 3-cylinder mini diesel (Z/D series, “Super Mini”)

Suitable for — Kubota engines:

• Z402, Z482, Z602
• D600, D662, D722, D782, D902
• DF752, DF972, DG972
• Including variants such as E, E2B, E3B, E4B, BH

Suitable for — machines:

Kubota

• A-13, A-14, A-15, A-17, A-19, A-30, A155, A175, A195
• B20, B26, B40, B52, B72, B1121, B1220D, B1410, B1610, B1620D, B1820, B1820D, B1820DS, B7300HSD, B7400HSD, B7410, B7410D
• GB13, GB14, GB110, GB115, GB130, GB135
• BX1500D, BX1800, BX1800D, BX1830D, BX1850, BX1850D, BX1860, BX1860D, BX1870, BX1870D, BX1880, BX2230, BX2230D, BX2350D, BX2360, BX2370, BX2380, BX24, BX25
• G1700, G1800, G1900, G1900S, G2160, G2460G, GT750, GT850
• GR1600, GR2100, GR2110, GR2120, TG1860, GZD15, GZD21
• GF1800, GF1800E
• K008, K008-3, KC110HR-4, KH-007H, KX015-4, KX016-4, KX018-4, KX019-4, KX36, KX36-3, KX41-3
• U10-5, U15, U17, U17-5
• RTV900G, RTV900R, RTV900T, RTV900W (incl. variants G6/G9/R6/R9/T6/T9/W6/W9/SE), RTV-X900, SCL1000, T1600H
• ZD18, ZD21, ZD221, ZD321, ZD323, ZG332, ZP330
• J106, J107, JB11, JB11X, JB14-PC, JB15X-PC (industrial engine)
• Generators: GL6000, GL7000, GL11000, GL14000

Aixam

• 400, 400.4, 400Evolution, 500, 500.4, 500.4Minivan, 500.4Pick-Up, 500.5, 540Twin, 721, 741, City, Coupe, Crossline, Crossover, GTO, MEGA1, MEGA2, ProD-Truck, Roadline, Scouty

Ausa

• C200H, C250H, C300H, D85, D150RM, D150RMA, D150RMG, D175RMS

Avant

• R20, 314, 314S, 320, 320+, 320S, 320S+, 423, 514, 520, 520+, 523, 523+

Beta Marine

• Beta25

Bobcat

• 316, 319, 320, 322, 323, 425, 428, 443, 453C, 533, 543, 543B, 553, 553B, 2200D, 2200S, 2300
• E08, E10, E14, E16, E17, E17Z, E19, MT55, S70, S100, X220, X320

Cub Cadet

• 782, 782D, 882, 1512, 1572, 1772, 1782, 1782W

Giant

• D202S, D204SW, D204SWTele, D254SW, D254SWTele

Hanix

• H16D, H17D

Hinomoto

• CX13, CX14, CX19

Hyundai

• R17Z-9A

Komatsu

• PC100-5

Mariner

• 560(B), 710(B), IS7.1

Schäffer

• 217, 2020, 2020S, 2021

Takeuchi

• TB210R

Toro

• TX525

Vimek

• 608, 608.2

Wacker Neuson

• DT15

OEM ref:

• 16851-22140, 16851-2214-0
• EG673-22140 – current Kubota version (check before publication)
