Head Gasket Kubota D722 – D782 | 3D66 | BX1830 | K008 | Bobcat

Description

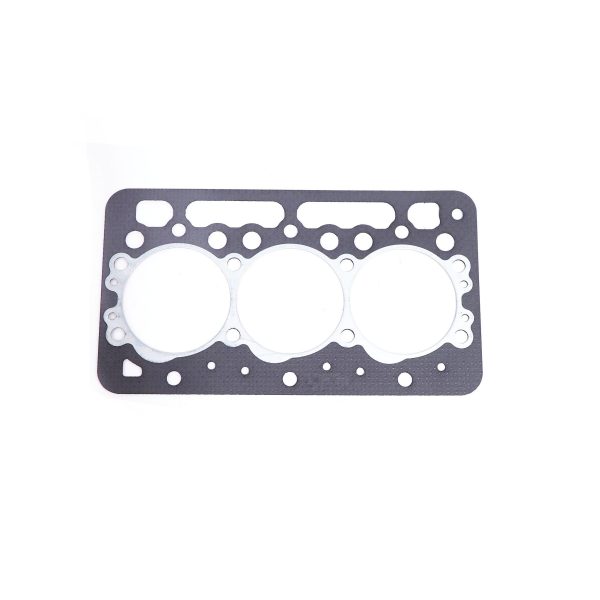

Head gasket for the Kubota D722 three-cylinder diesel engine (719 cc, bore 67 mm). Suitable for the variants D722-E, D722-E-BX, D722-EBH, D722-E2B, and D722-E4B. All models listed below have been individually verified against our own product range.

✔️ Exact OEM fit — 1-to-1 replacement for 16871-03310 and 1J092-03310
✔️ Suitable for the Kubota B1610, BX1880, GB140, K008, TG1860, U10, and ZD18
✔️ Available in graphite and metal — choose the version that was on your engine

Specifications

• Engine: Kubota D722, including the variants D722-E, D722-E-BX, D722-EBH, D722-E2B, D722-E4B
• Cylinders: 3
• Displacement: 719 cc
• Bore: 67 mm
• Stroke: 68 mm

Suitable for

Kubota

• A14, B52, B1161, B1610, B1620, B7300, B7400, BX1800, BX1800D
• BX1830, BX1830D, BX1850, BX1850D, BX1860, BX1860D, BX1870, BX1880, F1900
• G18, G1900, G1900S, GB14, GB140, GB145, GF1800, GF1800E, GL11000
• J106-STD, J107-SA, J107-STD, J112-STD, J114-SA, J114-STD, J116-STD, J119-SA, J119-STD
• J315-STD, J318-STD, J320-STD, J324-STD, JB13, K008, K008-3, K008-5, KC110 HR
• KC110 HR-4, KX008-3, TG1860, TG1860-48, TG1860-54, TG1860B54, U10, U10-3, U10-5
• ZD18, ZD1860AAB54

Avant

• 520, R20

Beta Marine

• Beta 20

Bobcat

• 56, 316, 319, 322, 323, 324, 418, 453, 463
• 2200D, 2200S, E10z, E20Z, MT50, MT52, X320

Canycom

• S100

Doosan

• Solar 015

Egholm

• 2100

Giant

• D202S, D204SW

Hinomoto

• CX14

Hitachi

• HX64B

Huki

• 160R

Jacobsen

• GP400

Neuson

• 2502 K

Schäffer

• 214, 217, 218, 2020, 2021

Takeuchi

• TB210R

OEM for reference

• 16871-03310, 1687103310
• 1J092-03310, 1J09203310
• 16871-03312, 1687103312
• 16871-03313, 1687103313
