Crankshaft kit Kubota D1503-M-E3 60mm – L2900 – L3200 | KX91 | U35 | Hamm | Schäffer

Description

With this crankshaft kit you completely replace the crankshaft of the Kubota D1503-M-E3 three-cylinder diesel engine in one go. Once the crankshaft is removed, the bearings, oil seals, and crankcase are exposed — and anything you do not replace at that point means disassembling it all over again later. Therefore, in addition to the crankshaft, this kit also includes all four main bearings, the connecting rod bearings, new connecting rod bolts, the thrust washers, and the complete gasket set for the D1503 with both crankshaft oil seals.

✔️ All four main bearings — three bearing shells and the main bearing bush
✔️ Six new connecting rod bolts — these stretch during use and must not be reused
✔️ Includes the D1503-gasket set with both crankshaft oil seals, oil pan and timing cover gasket
✔️ For the 60 mm main journal version — please check this before installation

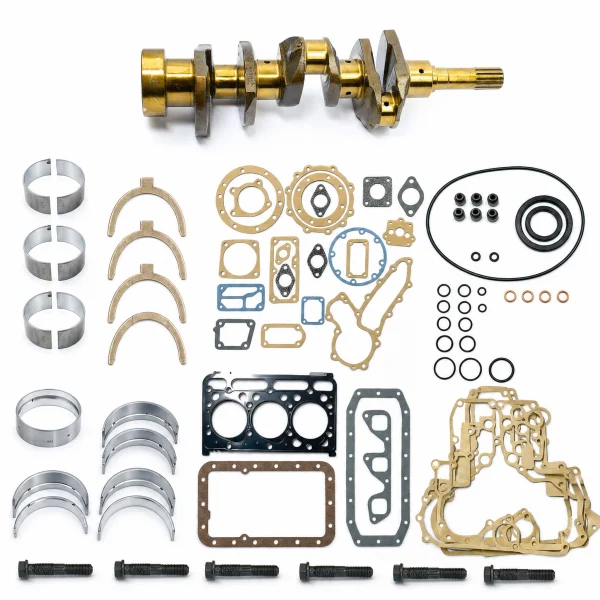

Kit contents

• 1× crankshaft Kubota D1503-M-E3, 60 mm main journal — standard size (STD)
• 3× main bearing / bearing shell — STD
• 1× main bearing bush
• 3× connecting rod bearing / bearing shell — STD
• 6× connecting rod bolt — 2 per connecting rod
• 1× thrust bearing set (washers), 60 mm
• 1× complete gasket set D1503 — incl. head gasket, oil pan gasket, timing cover gasket and front crankshaft oil seal (42×55×9 mm) + rear (84×102×13 mm)

Technical specifications

• Engine: Kubota D1503-M-E3, incl. D1503-M-E3-LB1
• Cylinders: 3
• Displacement: 1,499 cc — bore 83 mm, stroke 92.4 mm
• Main journal: 60 mm
• Bearing size: standard (STD) — the crankshaft is at standard size, so the supplied bearings are STD

Tip: the cause of crankshaft damage is almost always a lack of oil or contaminated oil. Check the oil pump and oil channels before installing the new shaft — a new crankshaft on a worn oil pump will not last long. During an overhaul, also replace the cylinder head bolts; just like the connecting rod bolts, they stretch and should not be reused.

Suitable for

The D1503 engine has been used in the machines listed below, among others. Always check the engine type on the ID plate and the 60 mm main journal of your crankshaft.

Kubota

• L2900, L2900 GST, L3000, L3010, L3010 GST, L3010 HST, L3130, L3200
• KX91, KX91-3a, KX91-3a2, KX101, KX101-3a, KX101-3a2
• U30-3a2, U35-3, U35-3a, U35-3a2
• R420, R420 Alpha, R420 Alpha B, R420B, R420S
• KL27, KL30, KL33, KL36, KL43, KL225, KL245, KL270, KL300, KL330, KL360, KL430
• GL26, GL27, GL29, GL32, GL35, GL260, GL261, GL268, GL277, GL280, GL281
• GL300, GL301, GL320, GL321, GL350
• GT26, GT30, KT27, KT30, KT215, KT235, KT255, KT280, KT300

Hinomoto

• NX27, NX29, NX32, NX260, NX261, NX277, NX280, NX281, NX300, NX301, NX320, NX321
• NZ235, NZ265, NZ305

TYM

• T290, T300, T330 (2WD and 4WD)

Eurocomach

• ES 28ZT, ES 28.2ZT, ES 35ZT, ES 35.2ZT, ES 300SR, ES 350ZT

Hamm

• HD 10, HD 10 VO, HD 10 VT, HD 10 VV, HD 12, HD 12 VO, HD 12 VV
• HD 30 VO, HD 30 VT, HD 30 VV, HD 35 VO, HD 35 VT, HD 35 VV

Schäffer

• 2030, 2033, 2034, 2434

Bomag

• BW115AC-3, BW115AD-3

JCB

• VMT260

Airman

• SDG12S

OEM for reference

• 1A033-23020, 1A03323020 — crankshaft 60 mm
• 1A033-23012, 1A033-23013, 1A033-23015, 1A033-23017 — crankshaft, other versions
• 1A091-23480, 1A091-23482 — main bearing
• 1A091-23470, 1A09123470 — main bearing bush
• 17311-22310, 17311-22312 — connecting rod bearing
• 1A091-23530, 1A091-23532 — thrust bearing set
• 15221-22140, 15521-22140, 1J700-22140 — connecting rod bolt
• 1G726-99360, 1G72699360 — complete gasket set D1503
• 1G720-03310, 1G720-03600 — head gasket D1503
