Alternator Perkins 403D-15 | 404D-22 | Caterpillar C1.1 | C1.5 | C2.2 | T415996 | 12V 40A

Description

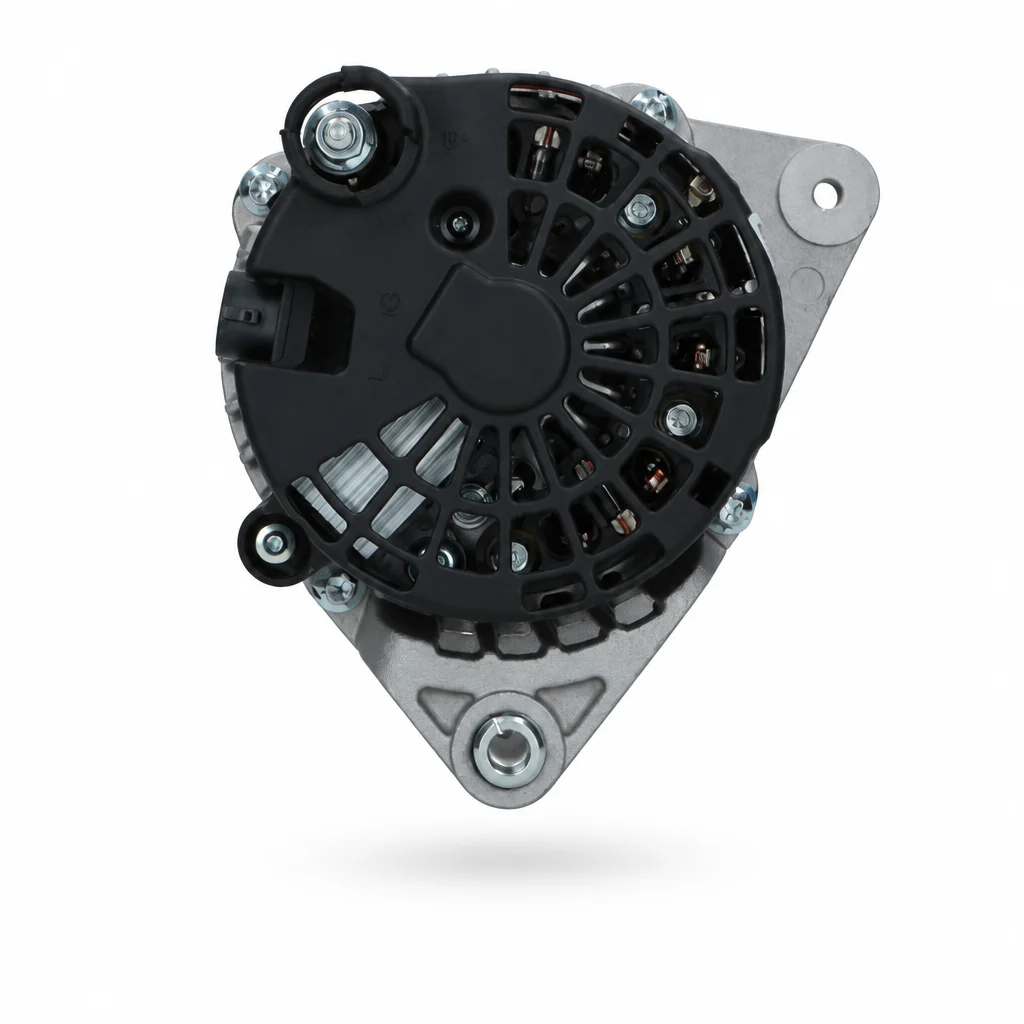

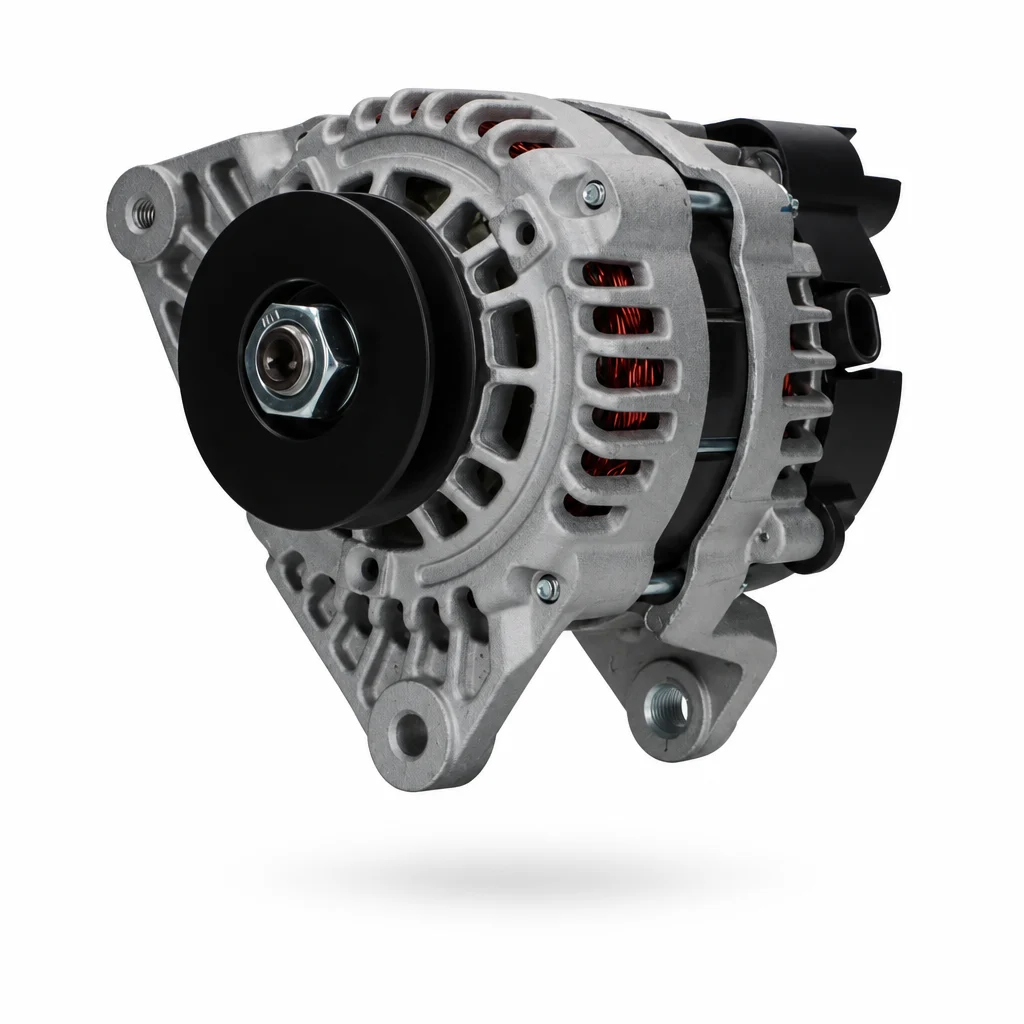

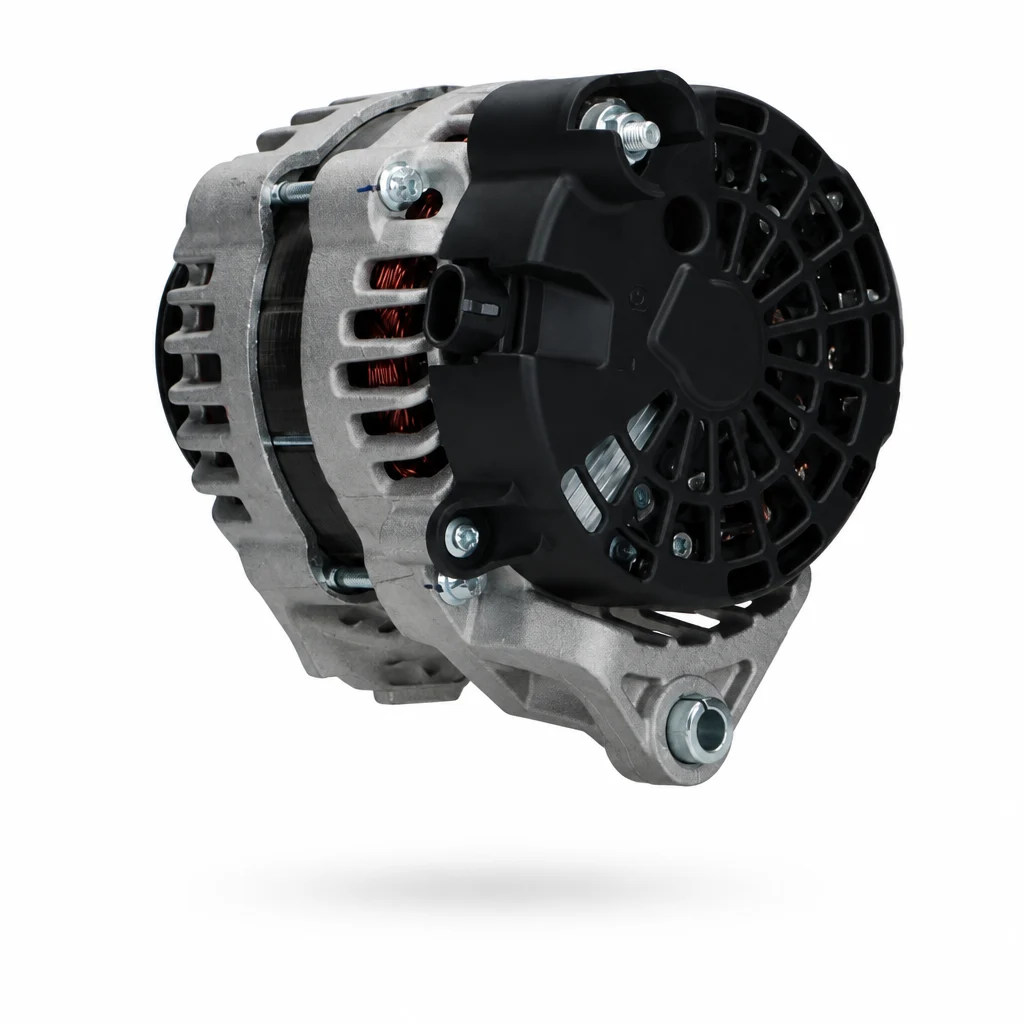

New 12V 40A alternator for the Perkins 400 series (403D-15 and 404D-22) and Caterpillar engines C1.1, C1.5, and C2.2, as used in Caterpillar generator sets and industrial applications. A direct 1-to-1 replacement for Perkins T415996 and Caterpillar 394-3492. This is the Delco Remy 8SI type with a 73 mm pulley and an M8 B+ terminal.

✔️ Exact OEM fit: 3 mounting holes, Ø 73 mm pulley with 1 groove
✔️ 40 amp charging current with internal regulator, B+ M8 and plug connection
✔️ Supplied new without trade-in of your old alternator

Technical specifications

• Type: Delco Remy 8SI (8600568)
• Voltage: 12 Volt (charging voltage 14 V)
• Amperage: 40 A
• Pulley: Ø 73 mm, 1 groove (V-belt), width 12.5 mm, without freewheel
• Connections: B+ (M8) and plug
• Regulator: internal
• Number of mounting holes: 3 (M8x1.25 / 8.5 mm)
• Length (L1): 174 mm
• Condition: new

Suitable for these engines

Caterpillar

• C1.1, C1.5, C2.2

Perkins 400 series

• 403A-15, 403D-15, 404A-22, 404C-22, 404C-22T, 404D-22, 404D-22T, 404D-22TA (versions with alternator T415996)

Machines with this alternator

Caterpillar generator sets

• DE13.5E3 (C1.5), DE18E3 (C2.2), and other generator sets with C1.1, C1.5, or C2.2 engines

This alternator is primarily used on stationary engines and generator sets. Mini excavators, skid steer loaders, and telehandlers with the same Perkins engine usually feature a heavier-duty alternator, see below.

Please note:

• Check the part number and amperage on your old alternator. The Perkins 404D-22 and Caterpillar C1.1 to C2.2 engines also use 65 A and 85 A alternators, featuring a different housing and B+ / D+ / W connections. You can find the 65A version (Perkins 2871A301, Cat 394-3494, including Caterpillar 301.5 to 304 CR) here: alternator Perkins 1004 | 1104C | Cat C1.1 | JCB Loadall 12V 65A. You can find the 85A version (Perkins 2871A303, JCB 8025 to 8055, Caterpillar 216B to 247B) here: alternator Perkins 404D-22 | JCB 8025 – 8055 | Caterpillar 216B – 247B 12V 85A.
• Other Perkins 40A alternators are not interchangeable: the Mitsubishi 40A (Perkins 185046320, JCB 02/631300) has a pulley of approx. 70 mm and B+ M5. You can find it here: alternator Mitsubishi 40A | Perkins 185046320 | Ford 1320 – 2120 | JCB 802 – 804. The Denso 40A on the Perkins 403D-07 and 403D-11 (185046220, 185046430) is also a different type.

OEM for reference:

Perkins

• T415996, 3943492

Caterpillar

• 394-3492, 3943492

Other brands

• Delco Remy 8600568 (8SI), Atlas 13201182, Dixie 166-27202, A-4003
• WAI 22129N, AS-PL A9482S, Casco CAL42135AS, Sando 2042135.0, Kuhner 556003RI, Real 20141531BN, Roberts 240-11018
