Filter Kit TYM T454 | T554 | T555 – Yanmar 4TNV86CT turbo engine (55 hp)

Description

Complete maintenance kit for TYM compact tractors with the Yanmar 4TNV86CT turbo four-cylinder common-rail diesel engine (55 hp). This Filter Kit contains the three filters you need for a full routine service: oil filter, fuel filter, and air filter. We have carefully assembled the kit based on original TYM and Yanmar part numbers, ensuring a perfect 1-to-1 fit.

✔️ Complete for one service — oil filter, fuel filter, and air filter in one order
✔️ Premium air filter with radial-seal technology — exact Donaldson replacement
✔️ Exact OEM fit — based on original Yanmar and TYM part numbers

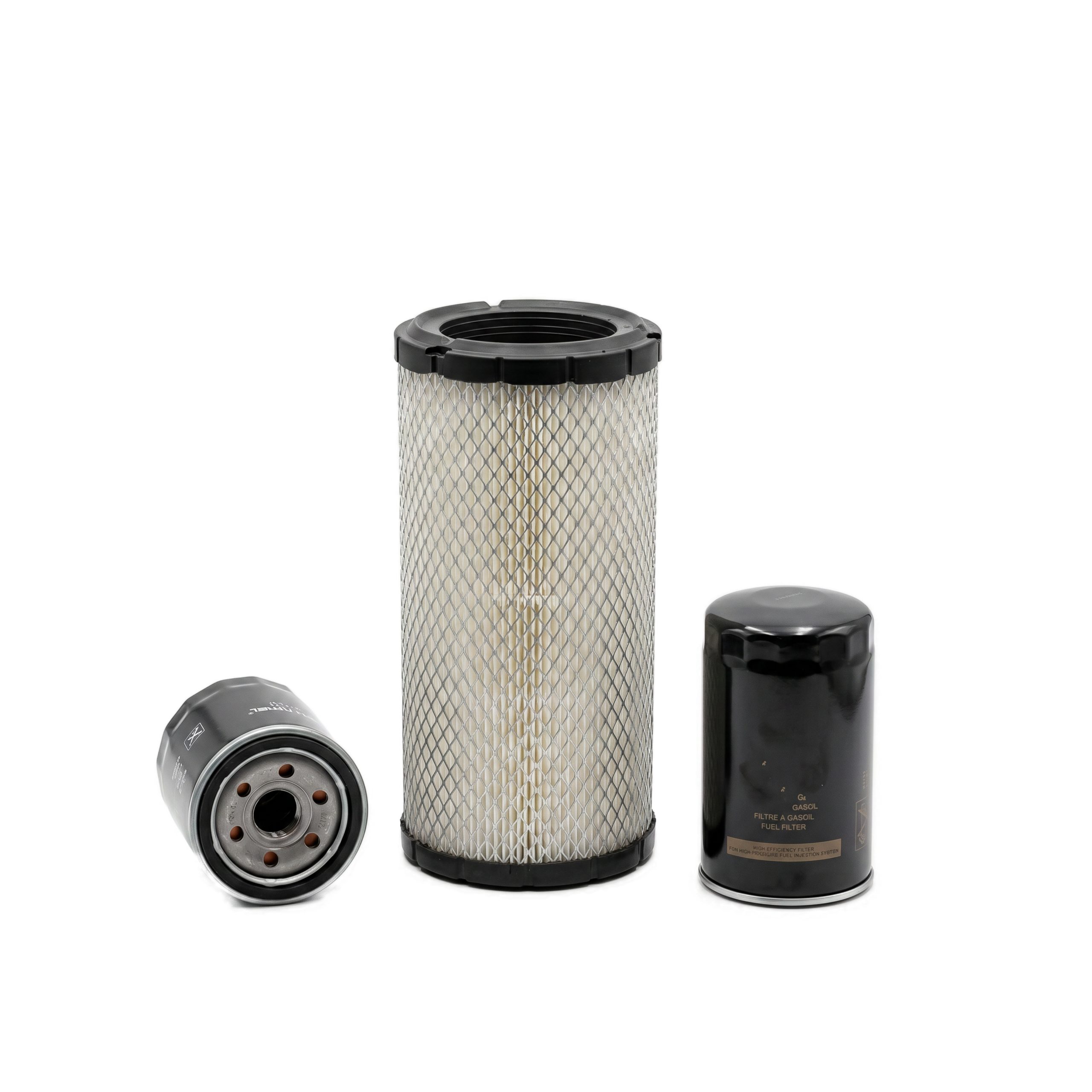

Kit Contents:

Oil filter

• Thread: M20×1.5
• Outer diameter: 80 mm
• Height: 80 mm
• OEM: 129150-35170 / 129150-35153 / 129150-35150

Fuel filter (common-rail spin-on)

• Outer diameter: 84 mm
• Height: 143 mm
• Thread: M22×1.5
• OEM: 129A00-55800 / 129A00-55800-HD

Air filter (radial-seal)

• Outer diameter: 126 mm
• Length: 312 mm
• Type: radial-seal (Donaldson FPG06)
• OEM: P822768 / 129062-12560 / A1190108

Suitable for:

TYM

• T454, T454H
• T554, T554H
• T555

Yanmar engine

• 4TNV86CT, 4TNV86CT turbo
• 4TNV88, 4TNV88-B, 4TNV88-DCR
• 4TNE88, 4TNE88-G1A, 4TNE88-SA

OEM ref:

• 129150-35170, 129150-35153, 129150-35150, 129150-35151 – Oil filter
• 129A00-55800, 129A0055800 – Fuel filter
• 129A00-55800-HD – Fuel filter (heavy-duty variant)
• P822768 – Air filter (Donaldson)
• 129062-12560 – Air filter (Yanmar)
• A1190108, R140142280, 1377080 – Air filter (other refs)

Tip: it is wise to replace all three filters at the same time during every service. A clogged fuel or air filter causes power loss and higher fuel consumption — and an old oil filter allows contaminants into the engine. Don’t forget to change the engine oil when you replace the oil filter. Note for turbo engines: running turbo engines are extra sensitive to contaminated oil — replace the oil filter strictly according to schedule.
