Head gasket Kubota D782 | 3D66 | KX41 | K008 | Komatsu | JCB | Takeuchi

Description

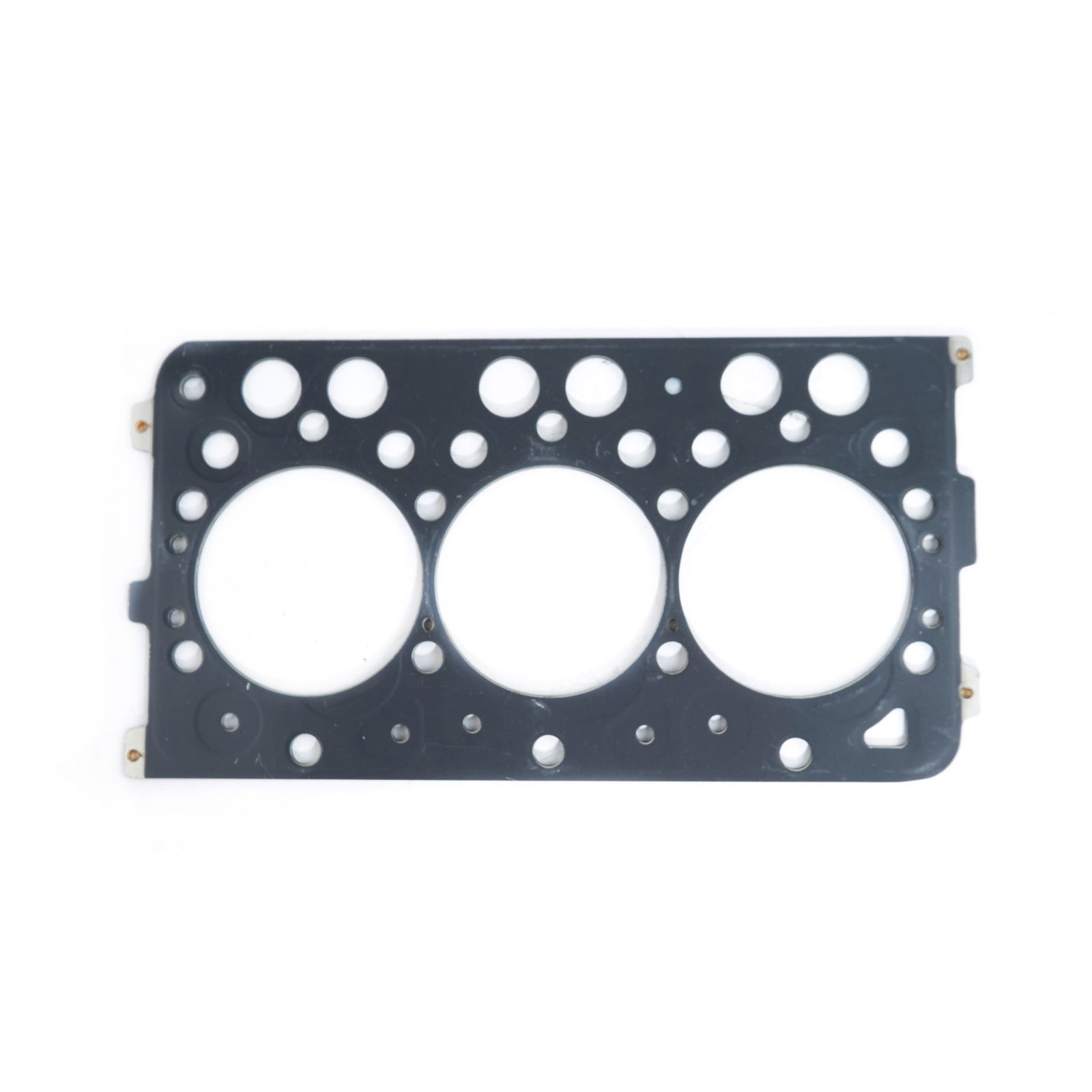

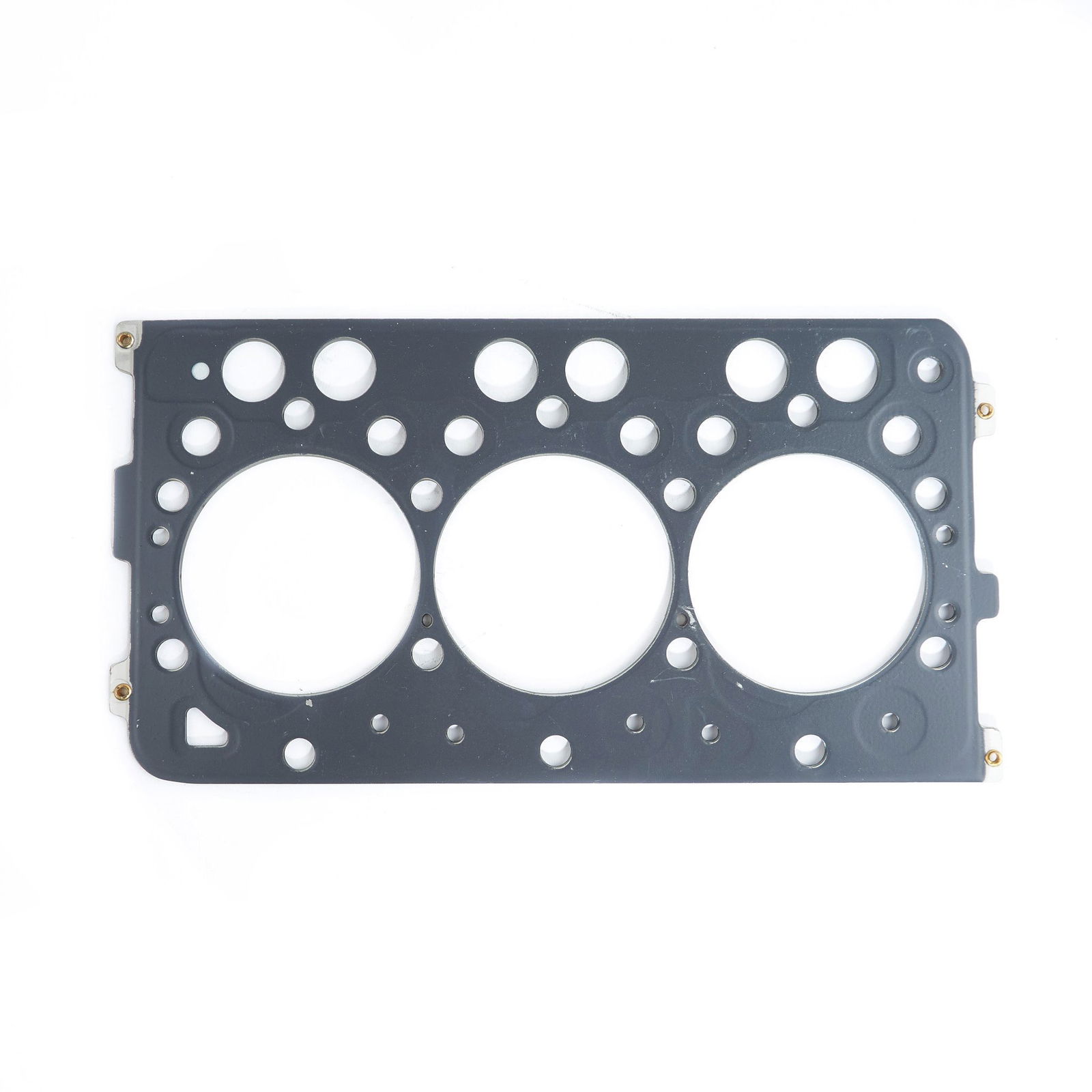

Head gasket for the Kubota D782 three-cylinder diesel engine (778 cc, 67 mm bore), also referred to in the engine series as 3D66. Suitable for variants D782-BH, D782-E-BH, D782-E2, and D782-E3. All models listed below have been individually verified against our own product range.

✔️ Exact OEM fit — 1-to-1 replacement for 16871-03310 and 1J092-03310
✔️ Suitable for Kubota B1820, BX1880, G2160, GR2120, K008-3, KX016-4, U15, and ZD321
✔️ Also replaces older part numbers 16871-03312 and 16871-03313

Specifications

• Engine: Kubota D782 (3D66), including variants D782-BH, D782-E-BH, D782-E2, D782-E3
• Cylinders: 3
• Displacement: 778 cc
• Bore: 67 mm
• Stroke: 73.6 mm

Suitable for

Kubota

• B1181, B1820, B1820DS, B7410, BX1830, BX1850, BX1860, BX1870, BX1880
• G2, G3, G21, G2160, GR2100, GR2110, GR2120, JB14, JB15
• K008-3, K008-5, KX015-4, KX016-4, KX41, KX41-2, TG1860, U10-5, U15
• U15-3, ZD18, ZD21, ZD21F, ZD221, ZD321, ZD1011

Hanix

• H16D, H17D

JCB

• 8016

Komatsu

• PC14R-2, PC14R-3, PC14R-3HS, PC16MR-3, PC16R-2, PC16R-3, PC16R-3HS, PC18MR-2, PC18MR-3
• PC20MR-2, PC22MR-3, PC26MR-3

Takeuchi

• TB014

OEM for reference

• 16871-03310, 1687103310
• 1J092-03310, 1J09203310
• 16871-03312, 1687103312
• 16871-03313, 1687103313
