Complete gasket set Kubota V1505 | V1505-T – B3150 | KX71 | Bobcat S100 | Schäffer | Giant

Description

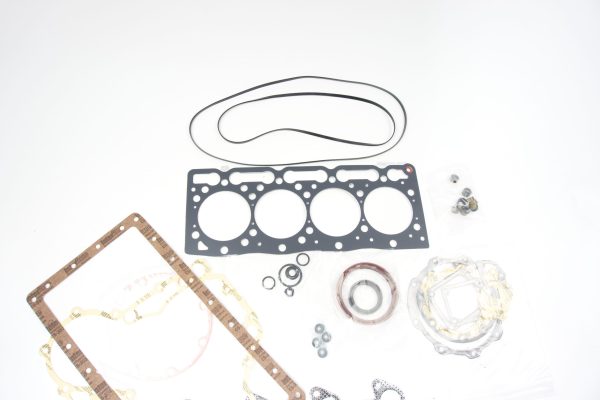

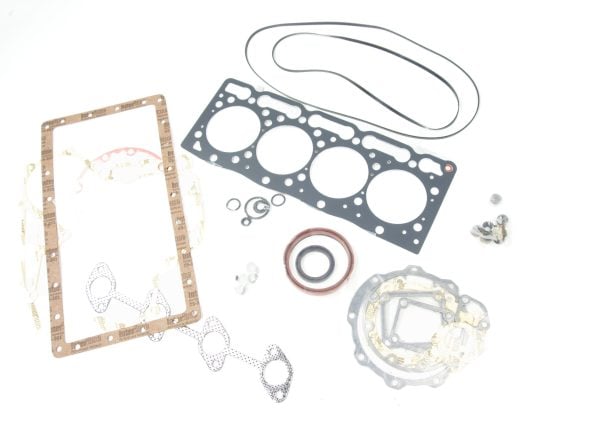

New complete gasket set for the Kubota V1505, V1505-T and V1505-D four-cylinder diesel engine (bore 78mm). This set includes both the upper gasket set and the lower gasket set — all gaskets, valve stem seals, and crankshaft oil seals needed for a complete engine overhaul.

✔️ Complete package — upper + lower gasket set, no need to order separate parts
✔️ Exact OEM fit — replaces Kubota 1G089-99352 (upper) + 1G089-99365 (lower)
✔️ Includes front and rear crankshaft oil seals and valve stem seals

Specifications

• Engine: Kubota V1505 / V1505-T / V1505-D
• Cylinders: 4
• Bore: 78mm

Kit contents:

• Head gasket (cylinder head gasket)
• Valve cover gasket
• Intake manifold gasket
• Exhaust manifold gasket
• Oil pan gasket
• Timing cover gasket
• Valve stem seals
• Front crankshaft oil seal
• Rear crankshaft oil seal (flywheel side)
• Various small gaskets and seals

Suitable for:

Kubota

• B2311, B2910HSD, B3000HSDC, B3030, B3030HSD, B3030HSDC, B3030HSDCC, B3150, B3150HSD, B3150HSDCC, B3150SUHSD, B3200HSD, B3200HSDWO, B3300SUHSD, B3350HSD, B3350HSDC, B3350HSDCC, B3350SUHSD, B7800HSD
• KX027-4, KX030-4, KX61-3, KX71, KX71-2, KX71-2A, KX71-2G, KX71-3, KX71-3S, KX91-2
• RT270, RT270D, RT280, RT280D, GT-5, GT-8, ST-30, ZD1511
• F391, F3680, F3890, F3990
• LX351DR, LX401, LX3520HSD, LX4020HSD

Bobcat

• 425, 428, S100, S100-BCZ, SSL705, SSL706

Schäffer

• 217S, 336S, 338, 2336, 2336 SLT, 2345, 2345 SLT, 2436, 2436 SLT, 2445, 2445 SLT, 2445 T
• 3033S, 3036, 3036e, 3036 SLT, 3038, 3038e, 3038 SLT, 3045, 3045e, 3045 SLT, 3046
• 4048, 4048e, 4050, 4050 T, 4050 Z, 4050 ZL, 4050 ZL T, 5050, 5050 T, 5060, 5060 T
• 660 T, 668 T, 861 T, 963 T, 964 T

Giant

• V361-S040, V361-S068, V362, 3648, V45 Tele, V45 Tele-AS
• V451T, V451T ECO, V451T X-tra, V452T, V452T HD, V452T X-tra, V452T X-tra HD
• V4501T, V4502T, V4502T Tele, V4502T X-tra, D332SWT, D332SWT X-tra, D337T

Holder

• C200, C230, C240, C330, C340, C-Trac 2.34, C-Trac 2.42, C-Trac 3.42

Hitachi

• EX30-2, EX35-2, EX40UR-2, ZX27U-2, ZX30, ZX30U-2, ZX30UR-2, ZX35, ZX35U-2

Hyundai

• HSL500T, HSL680, HSL800, HSL850, R25Z-9AK, R30Z-9AK

Avant

• R35, 635, 640, 745, 750

Ausa

• D85, D100, D120, D150

Jacobsen

• LF550T, LF570, LF3400T, LF3800T, LF4675, LF4677T

Timberwolf

• TW150DHB, TW150VTR, TW190

Hamm

• HD 13, HD 14

Bomag

• BW131ACW-3, BW131AD-3

Beta Marine

• Beta 28, Beta 30, Beta 35, BV1505

Aebi

• TP37, Terracut TT40, Terracut TT50

Kramer

• 118, 120

Iseki

• TLE3410, TLE4550

Hinomoto

• NZ230, NZ260

OEM for reference:

• 16292-03310, 1629203310 — Head gasket
• 16394-03310, 1639403310 — Head gasket
• 16394-03313 — Head gasket
• 1G089-99352, 1G08999352 — Upper gasket set
• 1G089-99365, 1G08999365 — Lower gasket set

Please note for the Kubota B2910

For the B2910HSD, two different head gaskets exist: 16292-03310 and 16394-03313. Which one you need depends on the engine serial number.
