Full gasket set Iseki E3112 – TM3215 | TM3240 | SF370 | Massey Ferguson GC series | AGCO | Challenger

Description

New full gasket set suitable for Iseki E3112 and E3112G three-cylinder diesel engines. This set contains all gaskets and oil seals required for a complete engine overhaul — from head gasket to crankshaft seals. Everything in one set, so you don’t have to order separate gaskets later.

✔️ Complete set — all gaskets and seals for a full engine overhaul in one package
✔️ Suitable for all E3112 / E3112G engine variants (78mm bore)
✔️ Exact OEM fit — 1-to-1 replacement of original

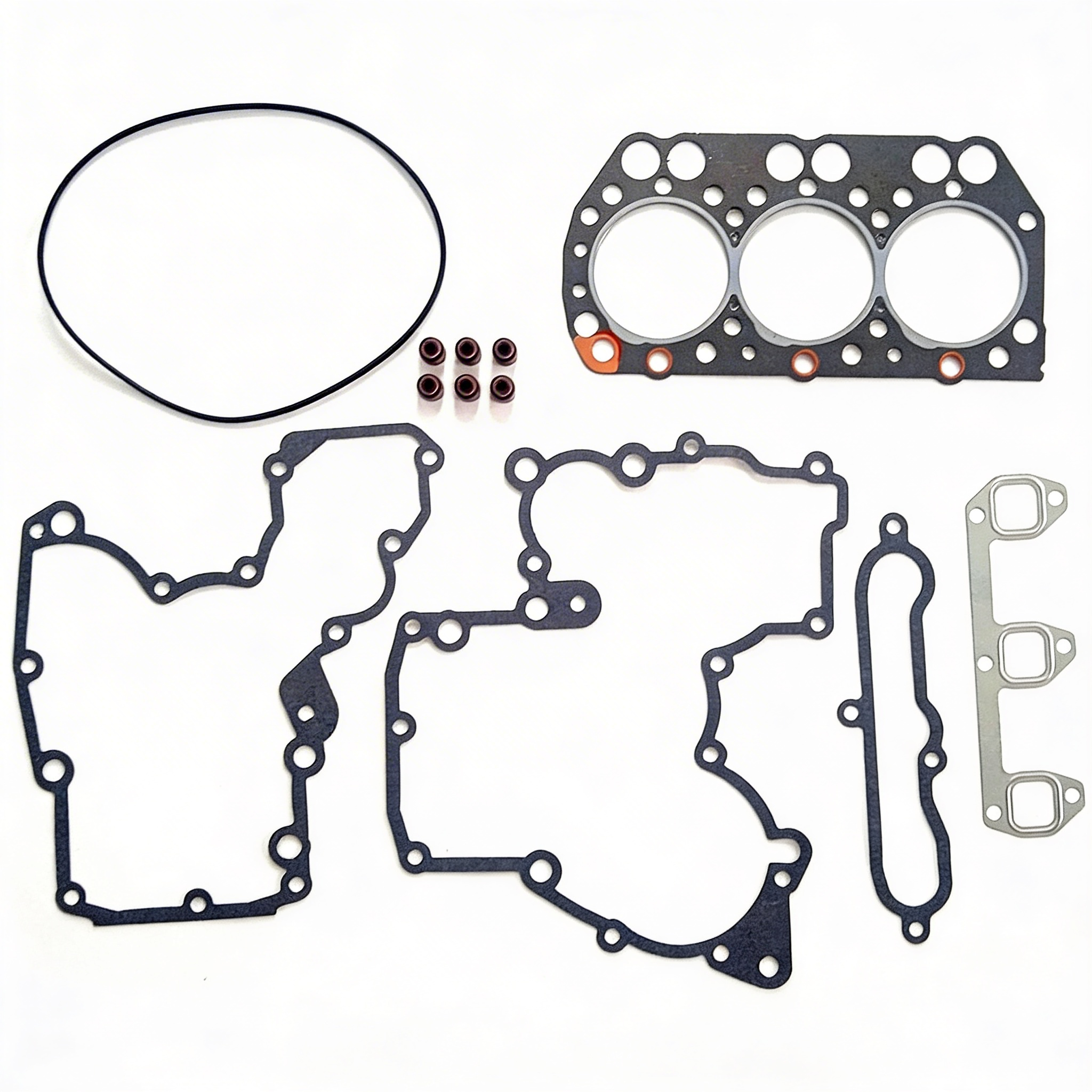

Kit Contents:

• Cylinder Head Gasket
• Valve cover gasket
• Valve stem seals
• Intake manifold gasket
• Exhaust manifold gasket
• Sump gasket (oil pan gasket)
• Timing cover gasket
• Crankshaft seals (front + rear)
• Other gaskets and seals as shown in the photo

Technical engine data:

• Type: Iseki E3112 / E3112G
• Cylinders: 3 (vertical, water-cooled, 4-stroke diesel)
• Bore: 78mm
• Stroke: 78mm
• Displacement: 1123cc (1.1L)
• Power: 18–22 hp

Suitable for:

Iseki tractors

• TM16, TM17, TM18, TM165, TM170, TM185, TM217, TM223
• TM3200, TM3215, TM3217, TM3240, TM3245, TM3247
• TXG23, TXG237
• TU318
• TQ13, TQ15, TQ17
• 3020, 3125

Iseki front mowers & garden machinery

• SF200, SF224, SF230, SF370
• SFH220, SFH240
• SGR22, SGR25
• SXG19, SXG22, SXG323, SXG326, SXH22
• SG17
• HV218, HV220, HV321, HVB217, HVB319, HVG221, HVG323, HVS321

Iseki Sial

• TF17, TF19, TF173, TF193, TF317, TF317F, TF321
• Sial 19, Sial 193, Sial 321, Hunter 173, Hunter 193
• TPC183, TPC213
• TH173, TH185, TH193, THS20

Massey Ferguson

• 1210, 1215, 1220, 1225, 1523
• GC1702, GC1705, GC1710, GC1715, GC1720, GC1723E, GC1725M, GC1750
• GC2300, GC2310, GC2400, GC2410, GC2600, GC2610

AGCO

• ST22A, ST24A, ST25

Challenger

• MT225, MT225B

Mitsubishi

• GSK18, GSK190, GSK205, GSK206

OEM ref:

• 6287-810-015-20, 628781001520 – full gasket set
• 6287-810-015-30, 628781001530 – full gasket set (alternative)
• 6211-141-029-10, 621114102910 – head gasket
• 6211-173-003-00 – gasket
• 6211-258-001-00 – gasket
• 6213-613-002-10 – gasket
• V723-102-005-50 – oil seal
• 6211-292-001-20 – oil seal
• 6213-743-002-10 – gasket
• 6211-312-004-20 – gasket
• 6211-322-002-00 – gasket
• 6214-145-001-30 – gasket
• 6212-569-002-0 – seal
• 6211-411-501-2 – seal
• 6213-614-003-1 – gasket
