Overhaul kit Mitsubishi K4F-DI | 23MM – Direct injection | Deutz | Same

Description

Technical specifications:

• Bore: 78 mm
• Injection: Direct injection (DI)

Engine overhaul kit Mitsubishi K4F-DI, piston pin 23 mm

Complete overhaul kit for the Mitsubishi K4F four-cylinder diesel engine with direct injection (DI) and piston pin 23 mm. Suitable for a complete overhaul in case of oil consumption, loss of power, or loss of compression. All parts are matched to each other and available directly from stock.

Please note: this is the kit for the version with 23 mm piston pin. We have a separate kit for the version with 27 mm piston pin.

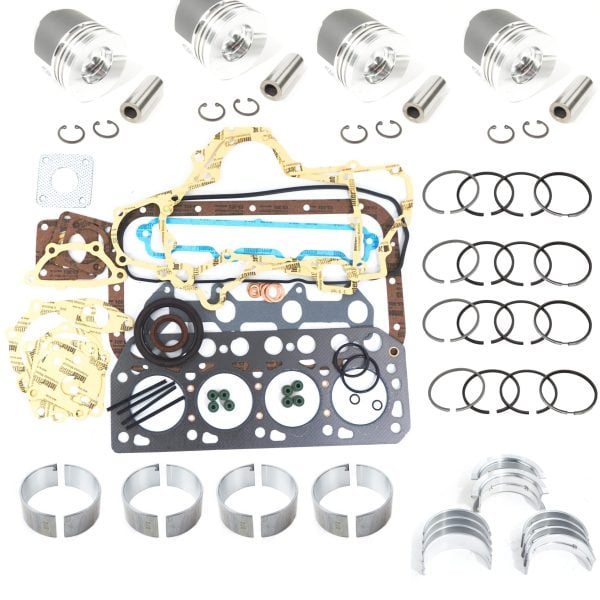

Kit contents

• 4× piston STD, bore 78 mm, direct injection, piston pin 23 mm
• 4× piston ring set
• 4× connecting rod bearing (pair)
• 1× main bearing set (complete)
• 1× complete engine gasket set with head gasket and other gaskets as shown

All bearings are supplied in standard size. Crankshaft and connecting rods must be within factory tolerance.

Compatible with the following brands and models:

Mitsubishi

• K4F-D31DS, K4F-DT, K4F-DT51WS, K4F-E1, K4F-E1T
• K4F, K4F Indirect, K4F Direct
• MT25, MT26, MT27, MT30, MT33

Deutz-Fahr

• Agrokid 35 A, Agrokid 45 A

Lamborghini

• Runner 350, Runner 450

Same

• Solaris 35

Mitsubishi Motor Grader

• WS200A-II, WS300A-II, WS200A, WS410, WS 704, WS 705, WS 706

Hanix

• S&B15W, S&BX1

OEM for reference:

• MM436-941, MM430-980
• MM408-502
• MM408-322
• MM408-235
• MM408-226
• MM408-580
• MM408-577
• MM408-552
• MM408-566
• MM407-422
• MD000-551
• MD016-490
• MD008-762
• MM40-242
• MM406-228
