Cylinder Head Kubota D1005 | JCB | Schäffer | complete + head gasket + glow plug

Description

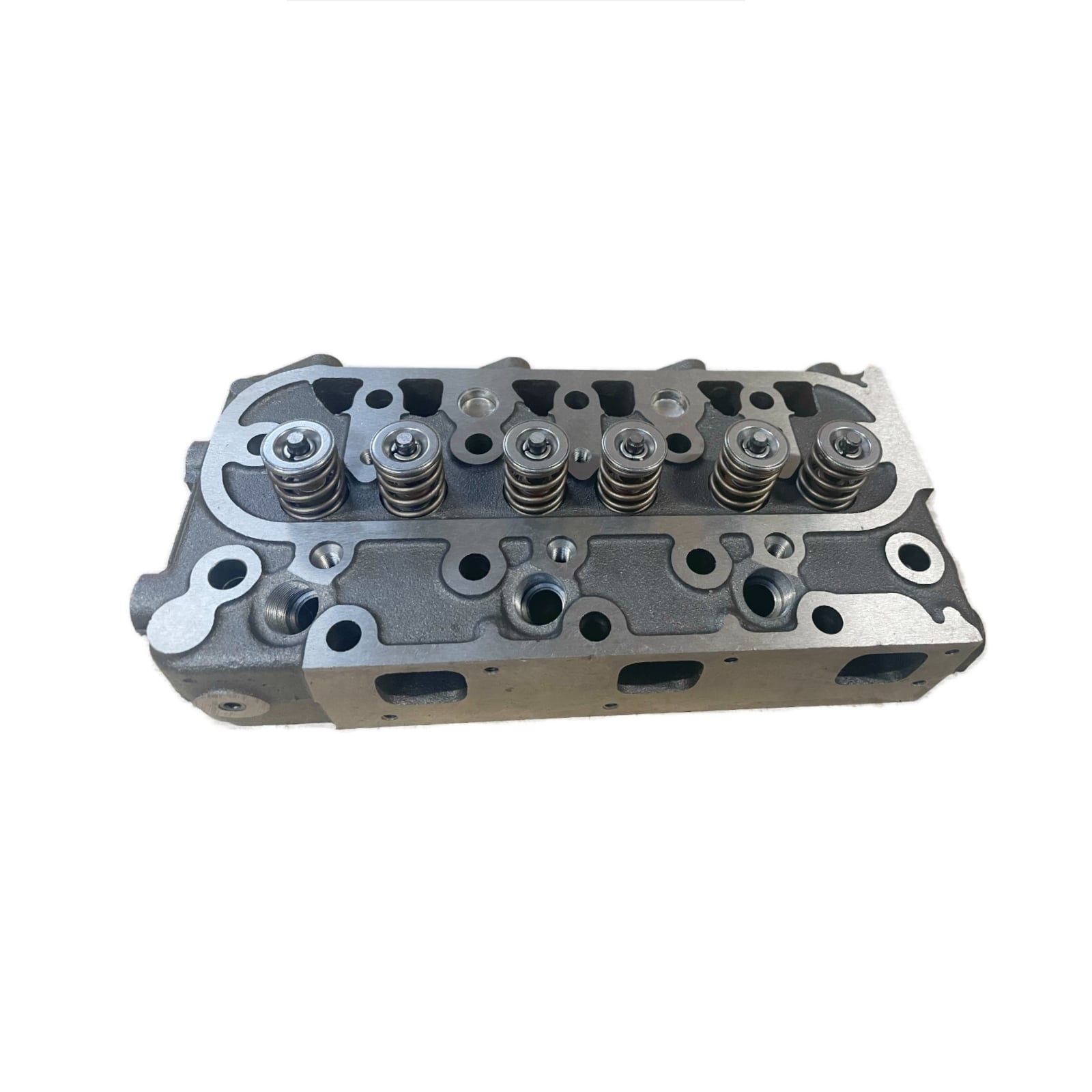

New premium cylinder head suitable for the Kubota D1005 three-cylinder diesel engine (bore 76mm). Manufactured from high-quality material, with pre-installed valve seats, valves and springs — ready to install straight away.

To simplify the repair, we have put together a complete package that ensures the repair can be done as quickly as possible. This includes:

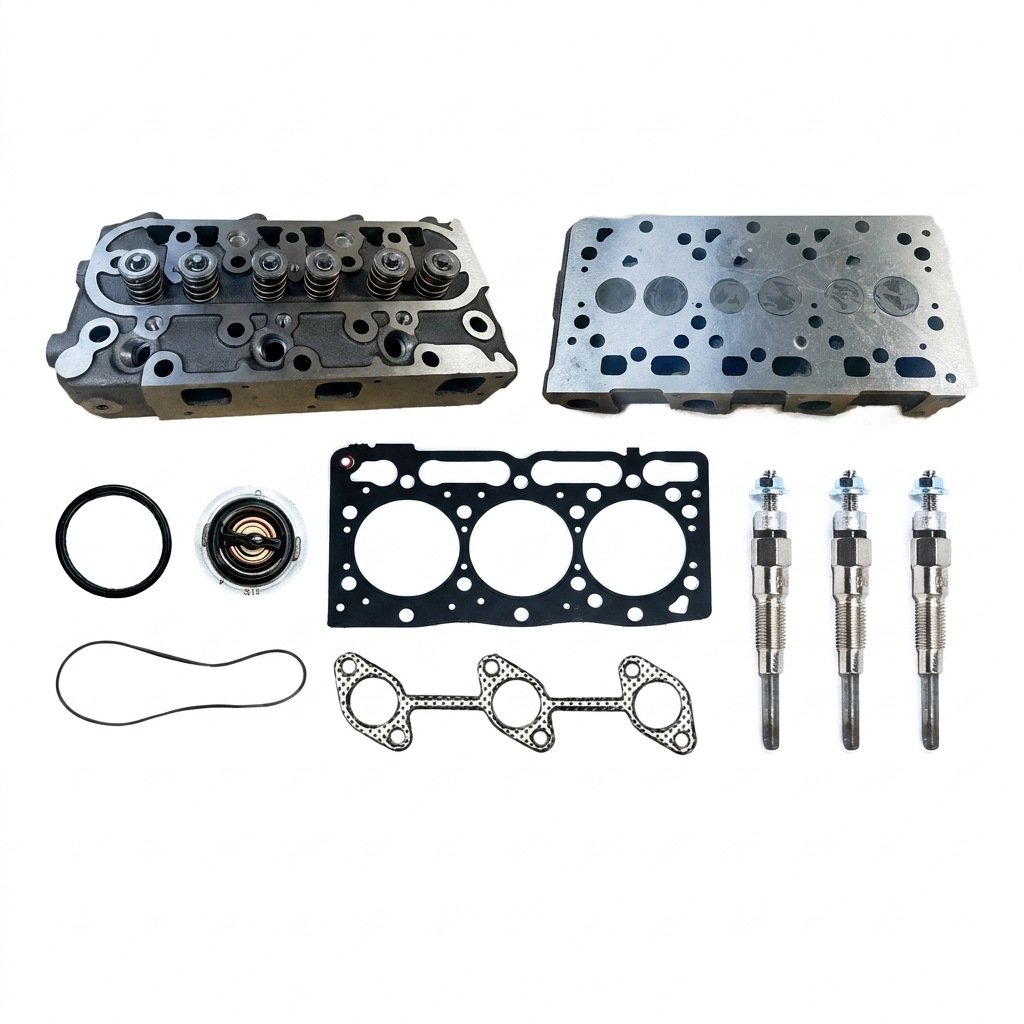

Set consisting of:

• Complete cylinder head with valves, springs, valve seats, and seals – assembled and ready for installation

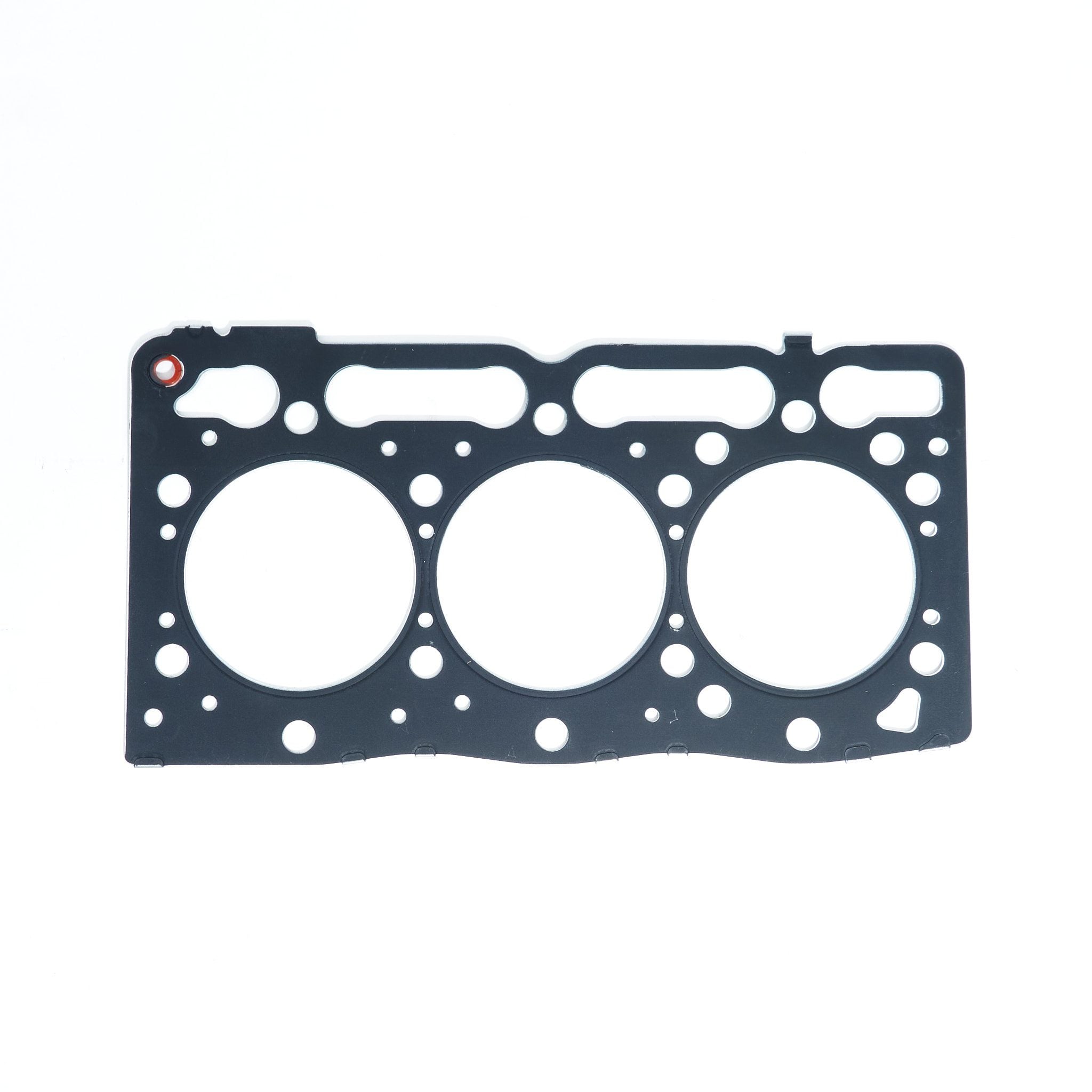

• Head gasket – premium quality from a European supplier

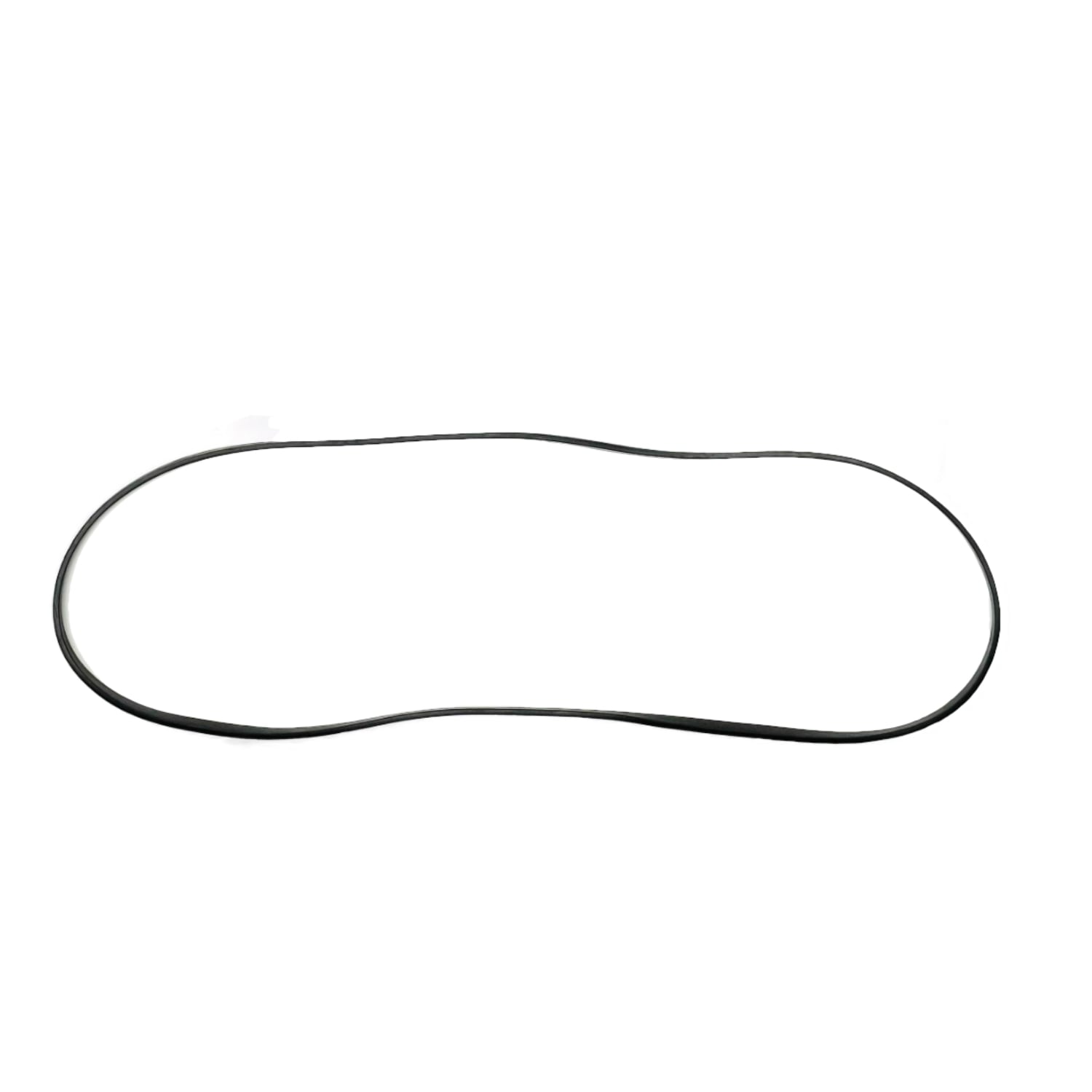

• Valve cover gasket — prevents oil leakage along the valve cover (SKU-65240)

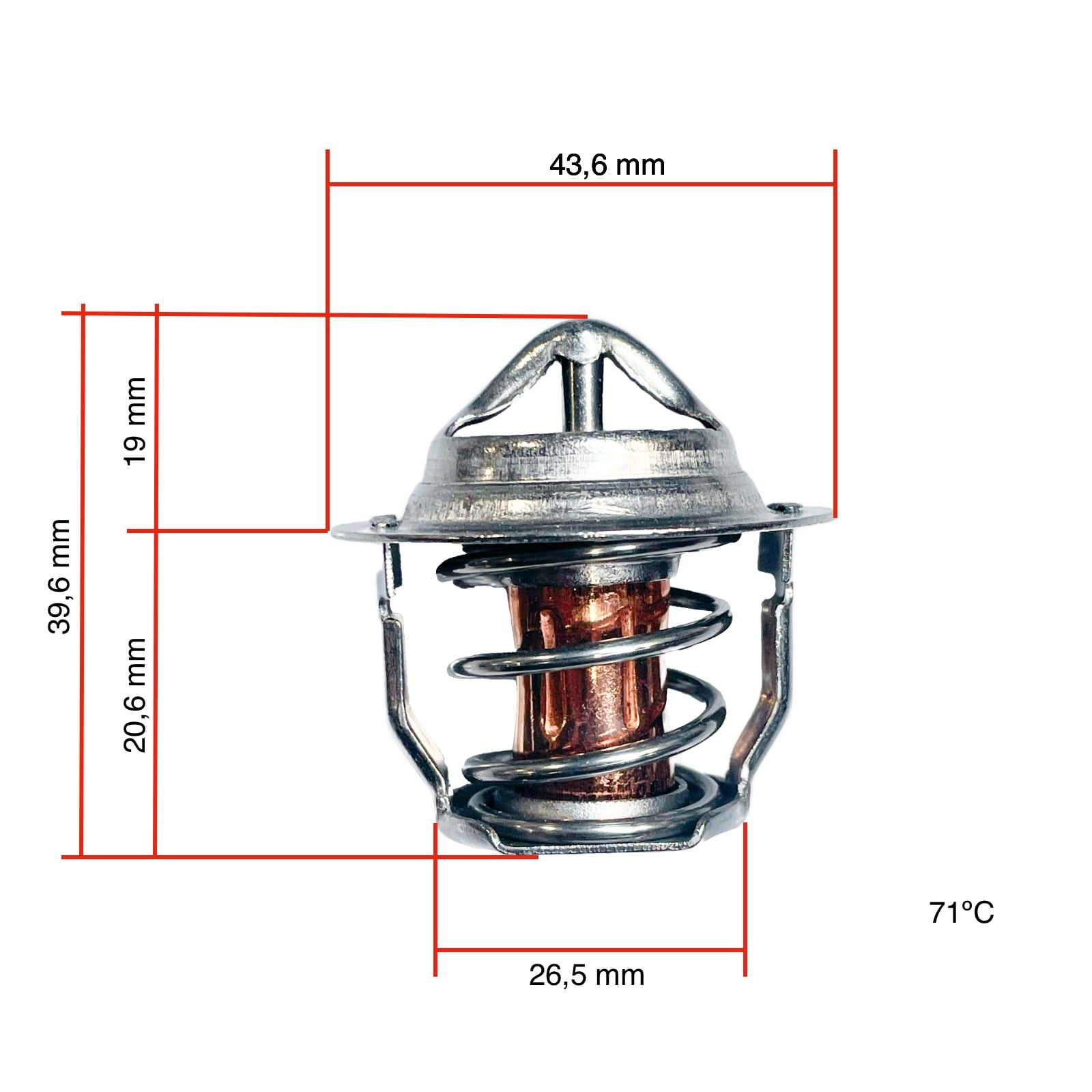

• Thermostat (44mm)

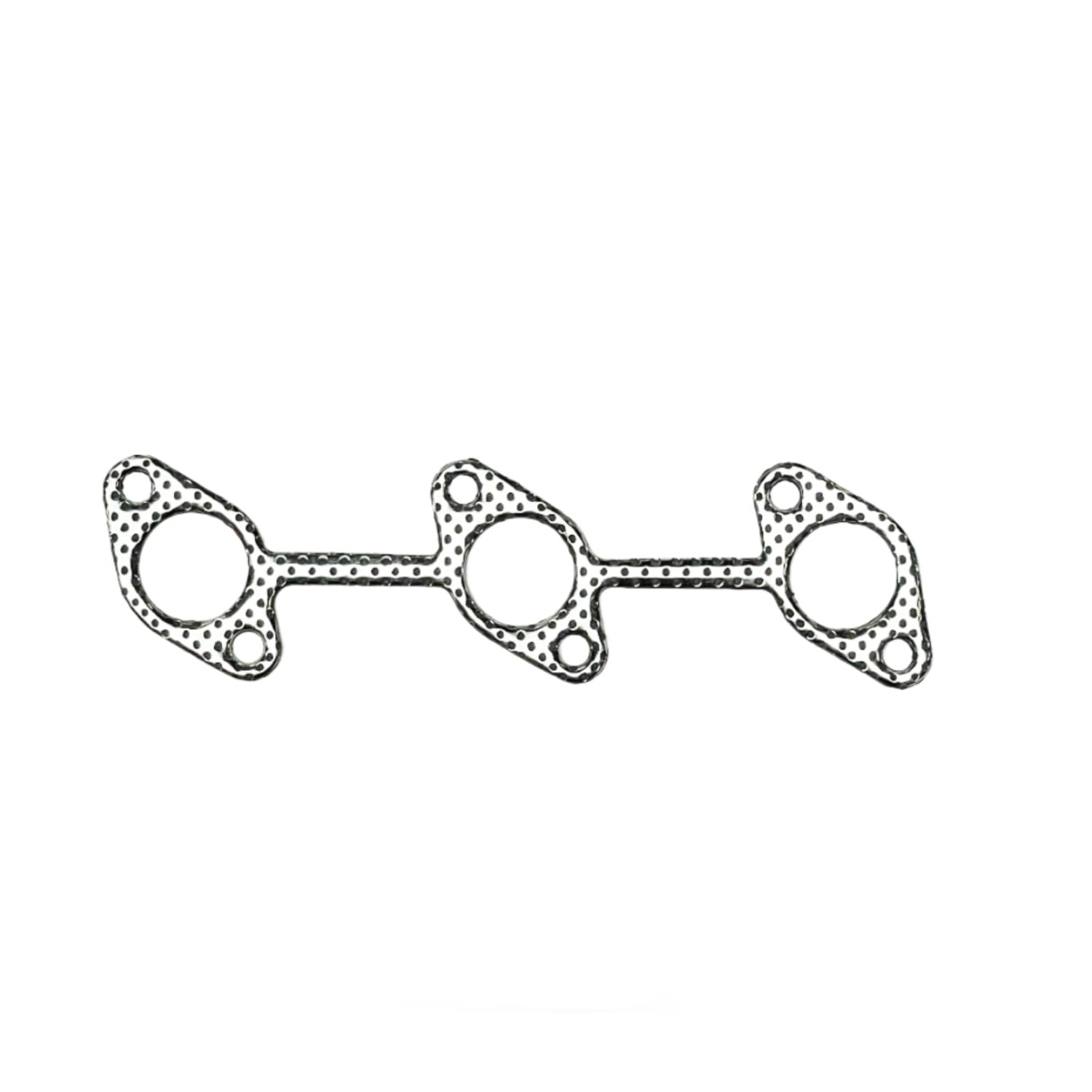

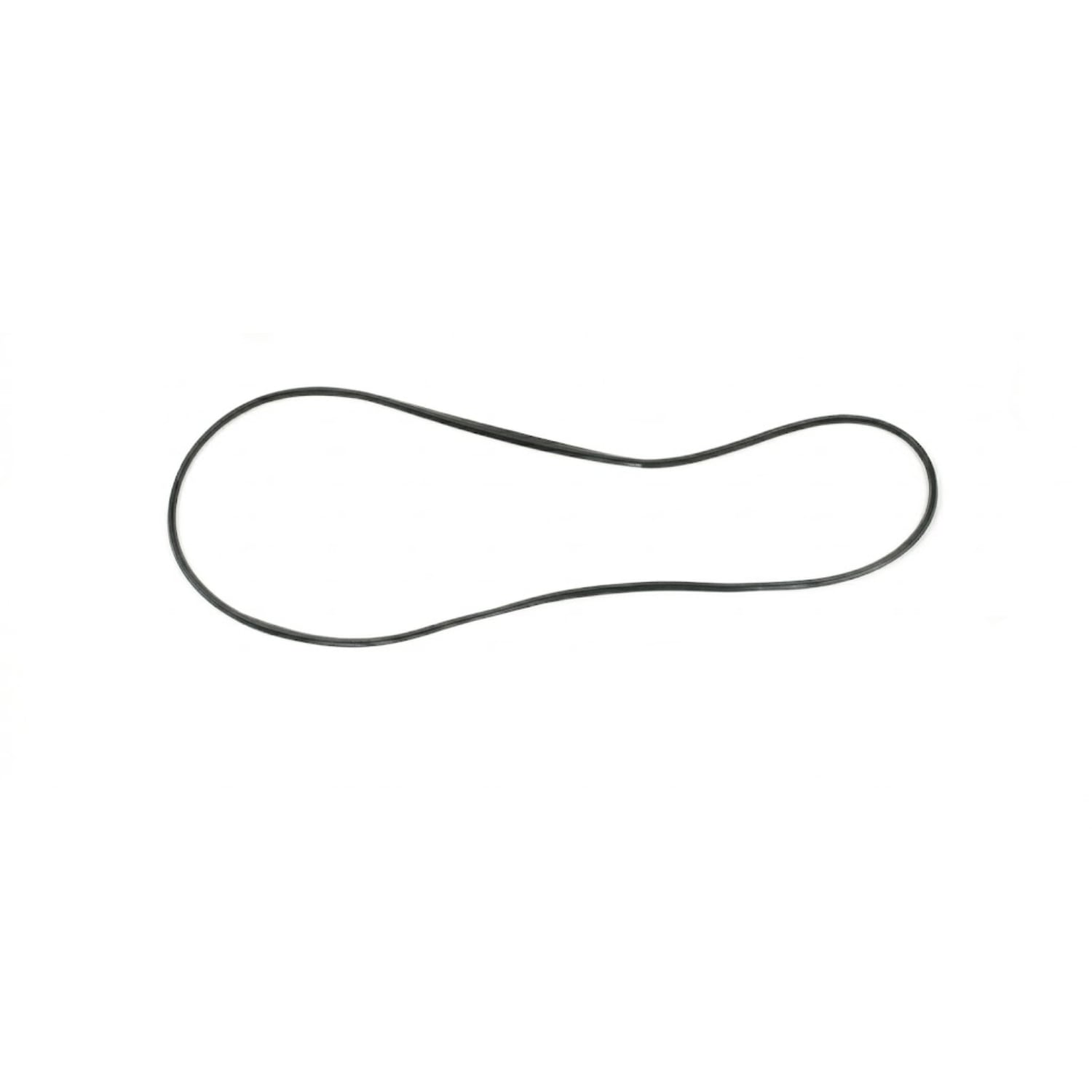

• Intake + exhaust manifold gasket

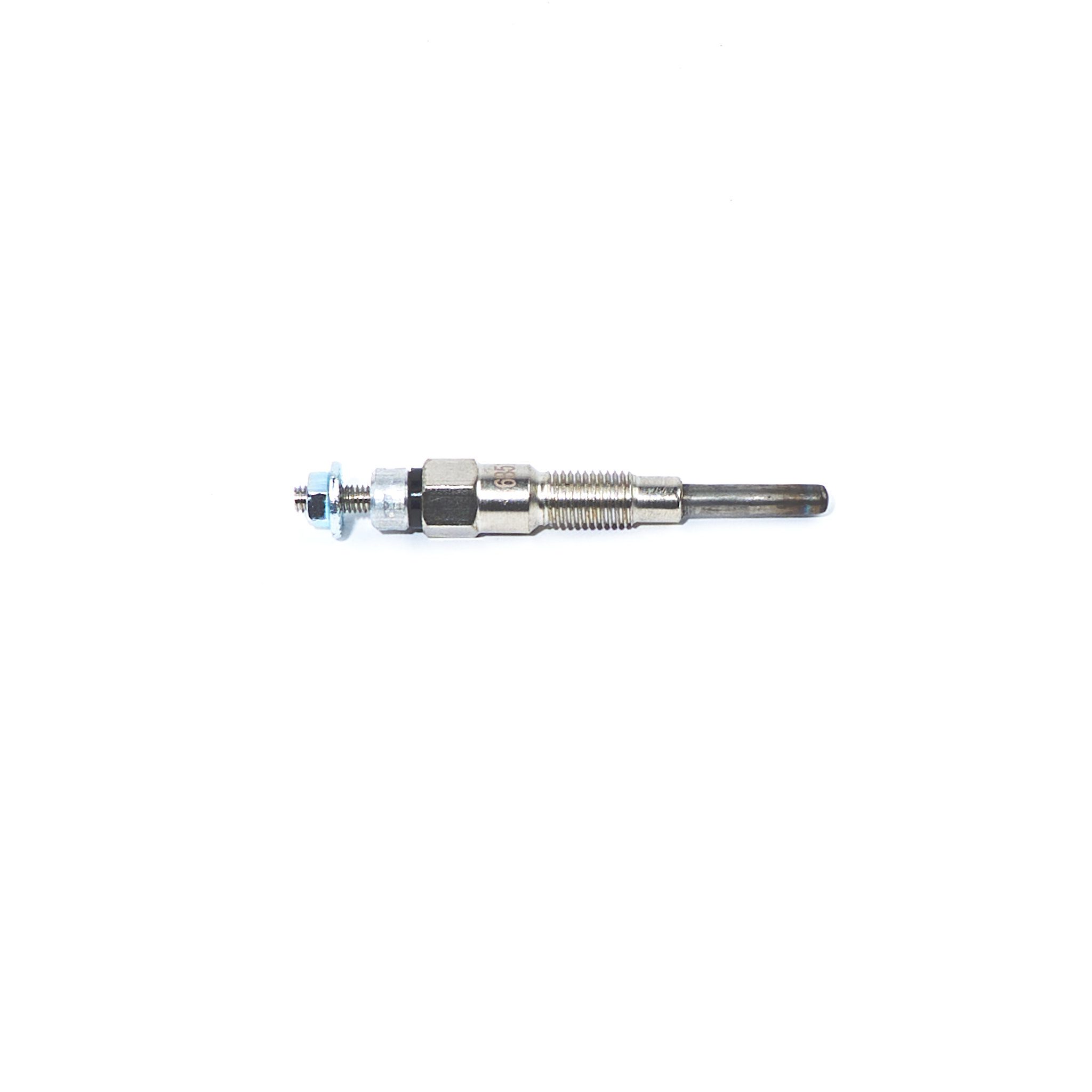

• 3x Glow plugs (M8 x 1.00) – premium quality

✔️ Fully assembled — valves, springs and seals fitted, no additional adjustment required
✔️ Complete repair kit — includes head gasket, thermostat, manifold gaskets and 3x glow plugs
✔️ Exact OEM fit — direct 1-to-1 replacement of the original

A ready-to-use solution that saves workshop time and minimizes the risk of assembly errors.

Suitable for:

Kubota engine

• D1005

Kubota

• A-17, A-175
• B2100D, B2100HSD, B2110D, B2110DB, B2110HDB, B2301HSD, B2320DT, B2320DTN-1, B2320HSD, B2320HSDN
• B7500, B7510, BX2660, BX2670D, BX2680
• J112-AUS, J112-STD, J114-SA, J114-STD, J315-AUS, J315-STD, J318-STD (generators)
• ZD326

Bobcat

• 463, 553, S70, S100

Bomag

• BMP 8500

Hamm

• HD 8, HD 8 VV, HD 10C, HD 10C VV

Ingersoll-Rand

• 7/20

JCB

• VMT160

JLG

• 260MAR

Schäffer

• 2024, 217S, 221, 222

Wacker Neuson

• LTW, LTV (light towers)

OEM ref:

Cylinder head:

• 16027-03043, 1602703043

Head gasket (bore 76mm):

• 16231-03310, 1623103310
• 16221-03310, 1622103310

Valve cover gasket:

• 16241-14520, 1624114520

Thermostat (44mm):

• 19434-73015, 1943473015
• 19434-73010, 1943473010
• 19434-73013, 1943473013
• 19434-73014, 1943473014

Intake manifold gasket:

• 16261-11820, 1626111820
• 16261-11822, 1626111822
• 16261-11823, 1626111823

Exhaust manifold gasket:

• 16261-12351, 1626112351
• 16261-12360, 1626112360

Glow plug (M8 x 1.00 — included):

• 16851-65510, 1685165510
• 16851-65512, 1685165512
• 16854-65510, 1685465510
• 16854-65512, 1685465512
• 1G790-65510, 1G79065510 • 1G790-65512, 1G79065512
• NGK: YE-01

Note – glow plug thread size: the Kubota D1005 was supplied in two versions. This set includes the M8 x 1.00 glow plug as standard (Kubota serial numbers < 489916). Does your engine have the M10 x 1.25 version (OEM 16281-65510 / 16241-65510)? Then order the M10 variant separately — always check the thread of your old glow plug.
