Starter Motor Shibaura | Perkins | Weidemann | Kioti | Case

Description

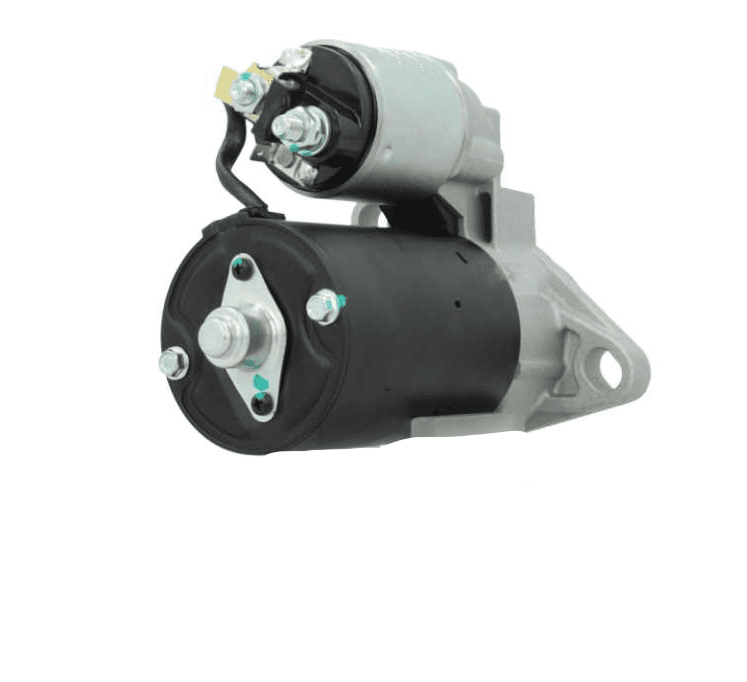

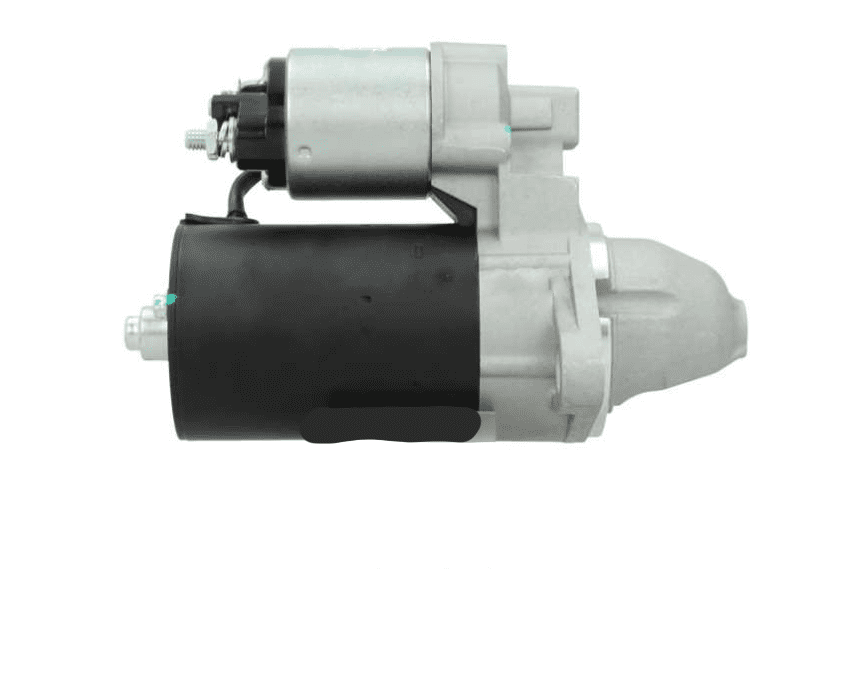

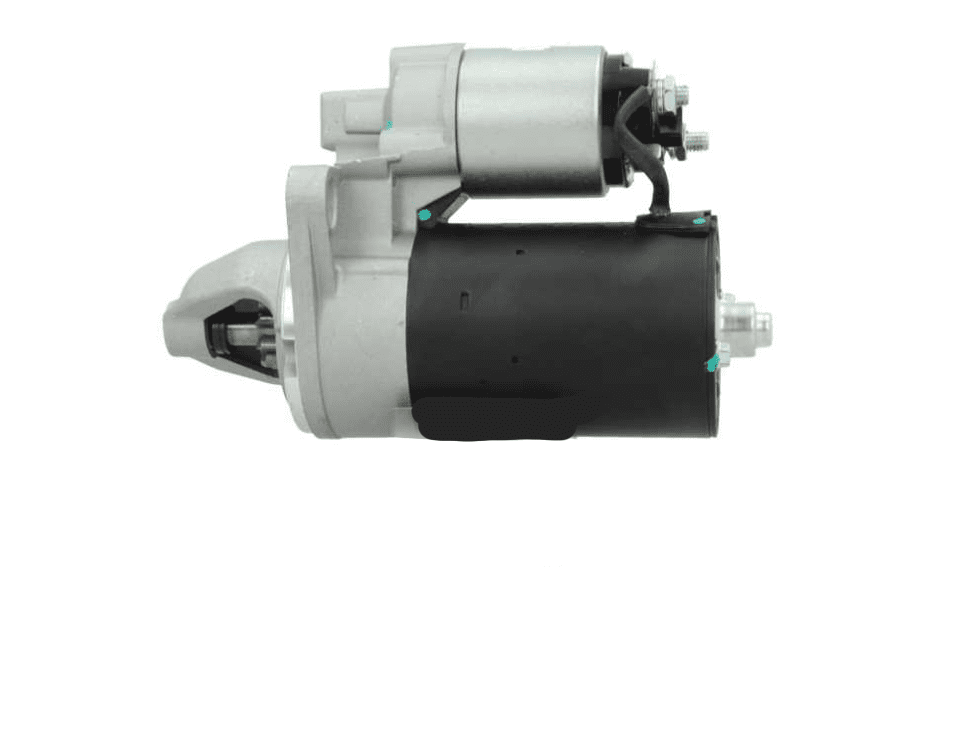

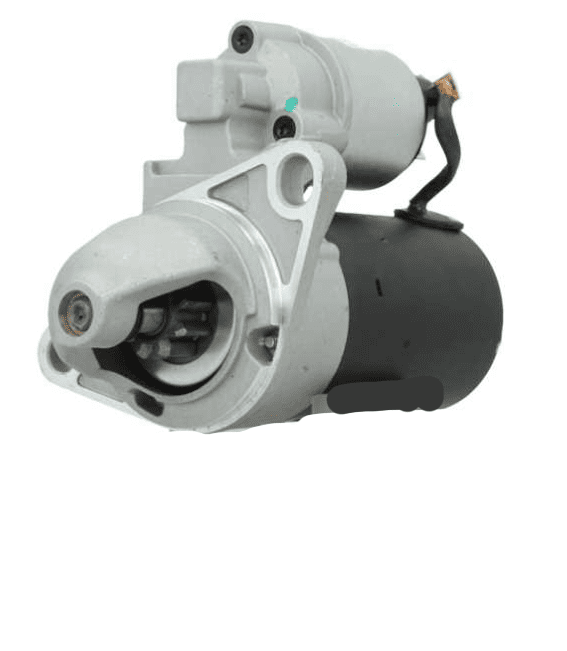

High-quality starter motor for the three-cylinder Perkins 100 and 400 series and derivative Shibaura engines. Compatible models have been compiled as thoroughly as possible.

Technical specifications

• Voltage 12 Volt
• Power 1.1 kW
• Flange diameter 73.9 mm
• Teeth 9
• Number of mounting holes 2
• Connection B+
• Rotation direction CW (clockwise)
• Weight approx. 3 kg

Kioti

• CS2510, CS2520, CS2610

Shibaura

• P15F, P17F, SP1440, SP1840, SP2140, SP1540, SP1740
• ST318, ST321, ST324
• SX24, SX25, SX26
• SL1543

Shibaura / Perkins engine

• S723, S753, S773, S773L

OEM for reference

Starter motor

• S114381, S114-381

Other machines

ACM

• ME015, ME020

Atlas

• 404

Belle

• 730, 740, 7400

Bitelli

• BB 611 C-RB 160

Case

• 15, 16, CX15, CX16

Egholm

• Park Ranger 2150

Eurocomach

• ES150.2, ES180.2

FAI

• 322 Panda

Fermec

• 114, 115

Ford

• 1310, 1510, CL25

Gehl

• KL150, MB138, MB145, MB148

Gutbrod

• 5018, 5020

Hinowa

• DM13M, VT1550, VT1650

Imef

• HE18S

JCB

• 801 (Perkins-103-10), 801 (Perkins-103-09), 801.4, 801.5 Powerplus, 801.6, 8014, 8015, 8016, 8017, 8018, Micro, Micro Plus, Mini CX

Kobelco

• SK015, SK015E

Komatsu

• PC05-6, SK04

Massey-Ferguson

• MF-114, MF-115, MF-513, MF-514

Messersi

• M 15, M 16 BV, M 18 BE

New Holland

• 1310, 1510, CL25

O&K

• RH1.1, RH1.2

Paus

• MB1.3, MB2.0

Pel Job

• ED2000, ED2500, EL451, EL451 T, ES515, ES615

Perkins Motor

• 102-05, 103-07, 103-09, 103-10, 103-11, 3011C, M25, M30

Protec

• BF 300, Sprint 20

Renders

• RME 150-P

Schaeff

• HR12

Volvo Penta

• D1-30, D1-30B, D1-30F, D2-40, D2-40B, D2-40F, MD2010A, MD2020A, MD2030A, MD2030B, MD2030C, MD2030D, MD2040A, MD2040B, MD2040C, MD2040D

Weidemann

• 912 D/P, 913 D/P, 914 D/P, 915 D/P, 1002 D/P, 1015 D/P, 1025 D/P, 1025 D/P Spezial, 1030 D/P
• 1013 P22 (Perkins-103-10), 1013 P22 (Perkins-103-11)
• 1115 P22 (Perkins-103-10), 1115 P22 (Perkins-103-11), 1115 P26 (Perkins-103-10), 1115 P26 (Perkins-103-11), 1120 P22 (Perkins-103-10), 1120 P22 (Perkins-103-11)
• 1130 CX30, 1140 CX, 1140 CX30, 1150 CX, 1150 CX30, 1230 (Perkins-403D-11), 1230 CX30, 1230 P22 (Perkins-103-10), 1230 P22 (Perkins-103-11), 1230 P26 (Perkins-103-10),
• 1230 P26 (Perkins-103-11), 1230 P27 (Perkins-103-10), 1230 P27 (Perkins-103-11), 1230 P33 (Perkins-103-10), 1230 P33 (Perkins-103-11), 1230 P34 (Perkins-103-10)
• 1230 P34 (Perkins-103-11), 1240 P26 (Perkins-103-10), 1240 P26 (Perkins-103-11), 1240 P27 (Perkins-103-10), 1240 P27 (Perkins-103-11), 1240 P33 (Perkins-103-10), 1240 P33 (Perkins-103-11)
• 1240 P34 (Perkins-103-10), 1240 P34 (Perkins-103-11), 1250

Please note:

There is a heavier version of this starter motor that looks almost identical: also 9 teeth, 74 mm flange, but 2.0 kW instead of 1.1 kW. This belongs to the four-cylinder Perkins 404 series and larger Weidemann models from the 1260 onwards. Therefore, check the number on your old starter motor:

• This 1.1 kW version: Bosch 0001107078, Perkins U5MK8259, 185086321, Hitachi S114-381.
• The 2.0 kW version: Bosch 0001109035 or 0001109509, Perkins U5MK8260 or U5MK8261. You can find it here: starter motor Perkins 403D | 404D 2.0 kW.
• The 1.2 kW version (Hitachi S114-218, JCB 714/40460, Ford SBA185086110) also has 9 teeth and a 74 mm flange, but the solenoid is at a different angle (+82° instead of +43°). This is fitted on the Ford and New Holland 1100 to 1300 and the JCB 8008 CTS and 15C-1 to 19C-1. You can find it here: starter motor Perkins 403D-07 | JCB 8008 CTS 1.2 kW.
• The 1.4 kW Denso version (Denso 428000-3570, Perkins 185086670 or 185086680) also has 9 teeth and a 74 mm flange, but the solenoid is at +50°. This is fitted on the Perkins 404C-15 and 404D-15 as well as some Kioti CS2610 and Weidemann models with Perkins 403D-11 engines. You can find it here: starter motor Perkins 404C-15 | 404D-15 1.4 kW.
• The 0.8 kW version with 8 teeth (Mitsubishi M2T47281, Perkins 185086540, Volvo Penta 3803904) is fitted on the Volvo Penta MD2010, MD2020, D1-13 and D1-20 and on some Perkins 102-05 and 103-07 engines. The MD2010A and MD2020A come with both versions: count the teeth on your old starter motor. You can find it here: starter motor Volvo Penta MD2010 | MD2020 0.8 kW 8 teeth.

Reference numbers:

Bosch

• 0001107078
• 0986022480

Delco Remy

• 8000278
• 8000423
• 8000672
• 10465437

JCB

• 02/630500
• 040848
• 71436700

Weidemann

• 1000206168
• 1000299583
• 5747001132
• 5747001133
• 5747086321
• 5747086500
• 5747086501

Caterpillar

• 1387454
• 3408308

Perkins

• 185086321
• 18508661
• 185086610
• 18508662
• 185086620
• U5MK8259
• U85086711

Volvo Penta

• 21302969
• 252094
• 3580295
• 3580472
• 3581003
• 3581727
• 3582514
• 3801350
• 3801351
• 3803439
• 3803584

Other brands

• Schaeff 5568656721, 5999999561
• Minpar 57-2498
• O&K 1447724
• Onan 185-2166
• Pel Job E185086321
• Ford SBA18508-6321
• Zeppelin 9SX9766
