Filter Set Iseki TA Landleader | TA207 – TA287F | TA317F – TA530 | TA538 – 5040

Description

✅ Filter Set | Maintenance Set for Iseki TA & Landleader tractors

The complete maintenance set for 500 operating hours – get started right away with confidence!

This set has been carefully compiled for the Iseki TA and Landleader tractors. Contains all essential filters to keep your tractor running smoothly and reliably.

Very important! This set is including sump plug copper washer. The oil sump plug washer is often forgotten, causing oil leakage. This should always be replaced!

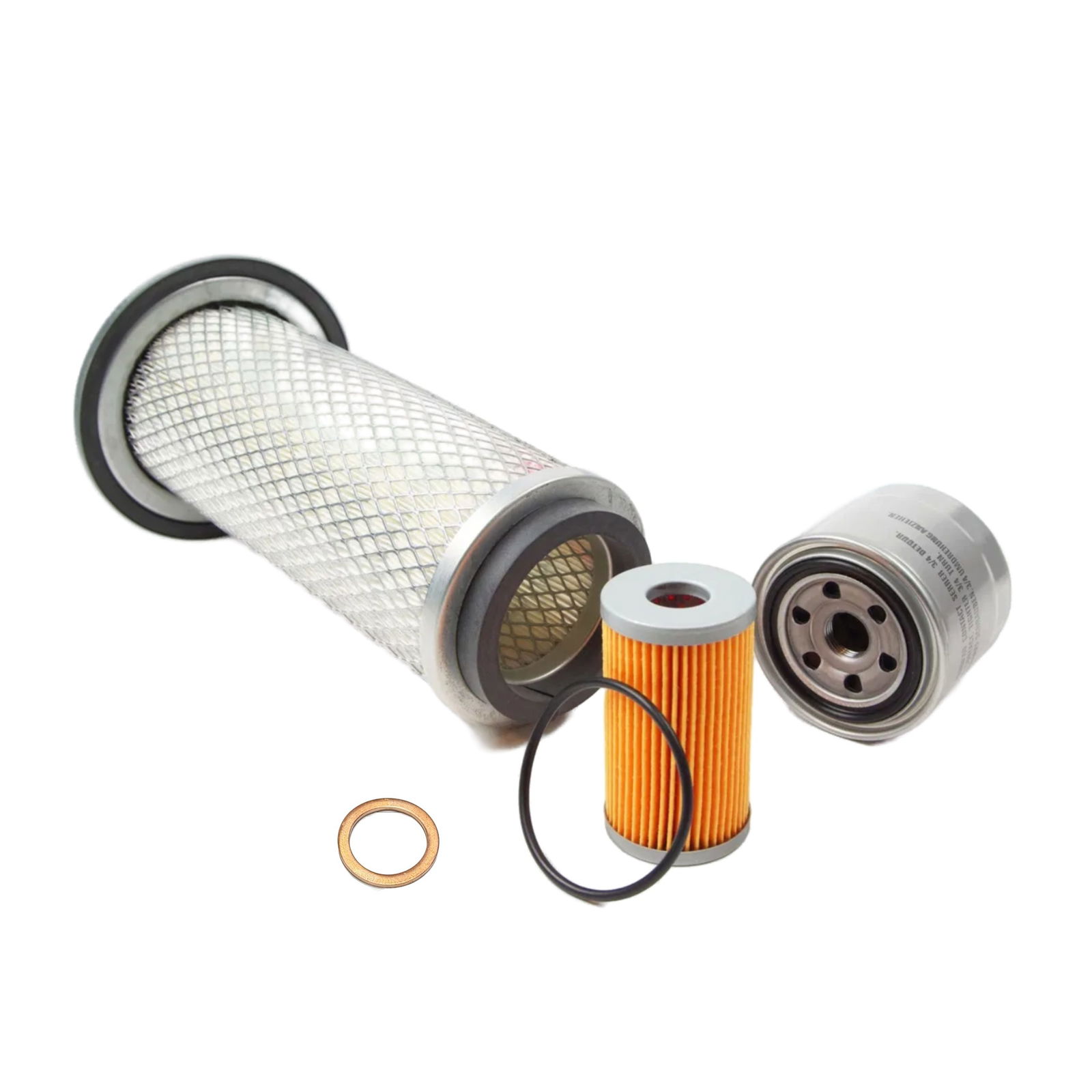

Contents of the set:

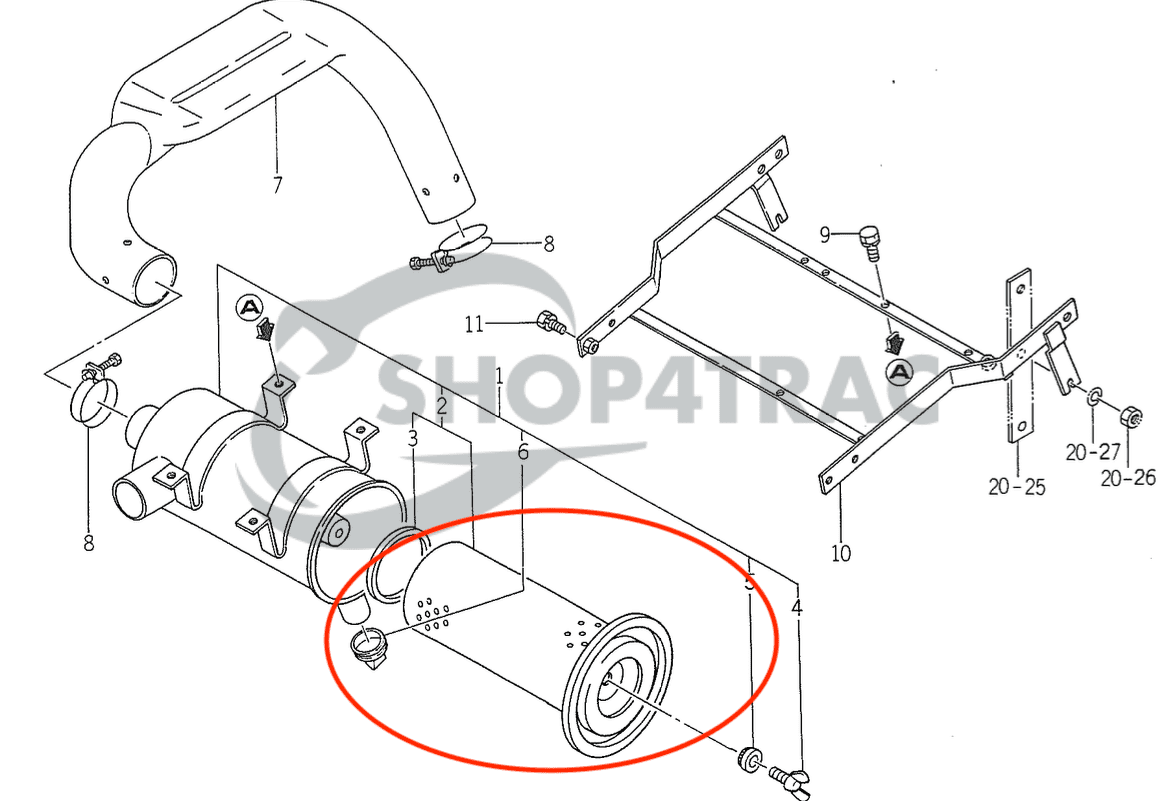

✔️ Air filter

• Outer diameter: 102 mm
• Inner diameter: 66 mm
• Metal connection (top plate): 146 mm
• Length: 260 mm

✔️ Fuel filter

• Outer diameter: 50 mm
• Inner diameter: 20 mm
• Length: 89 mm

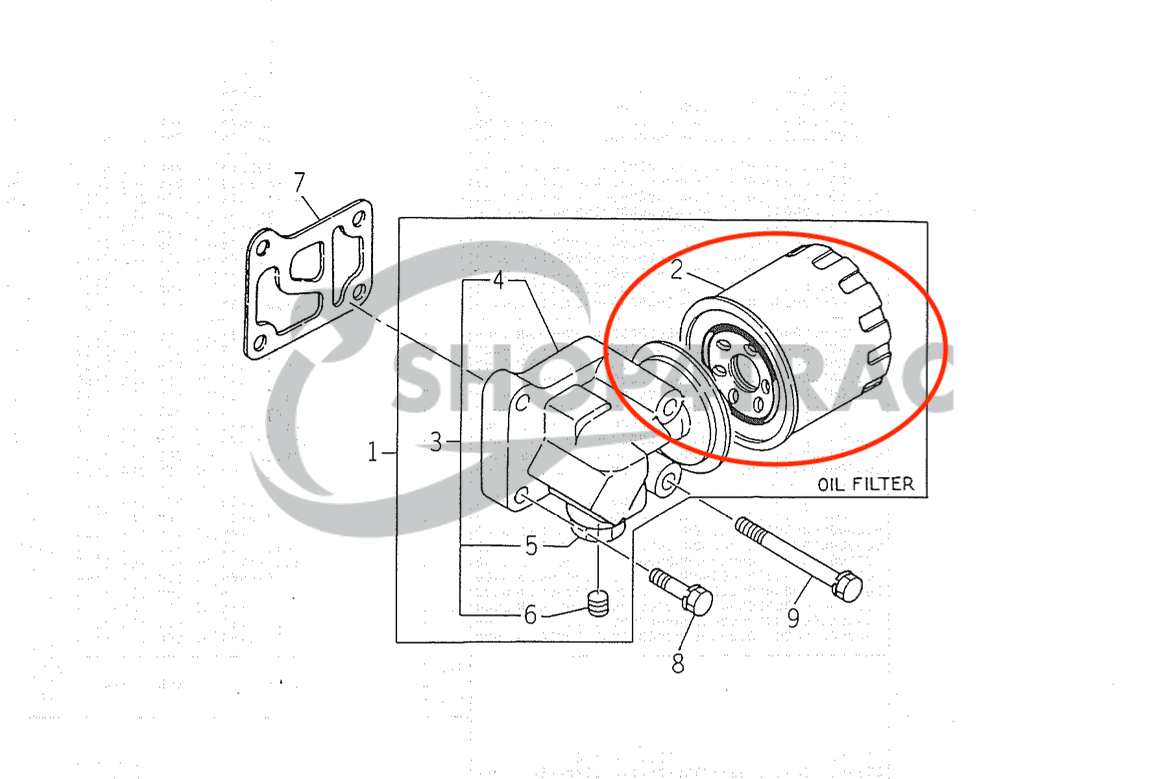

✔️ Oil filter

• (Specific model matched to the TA/Landleader series – fits perfectly!)

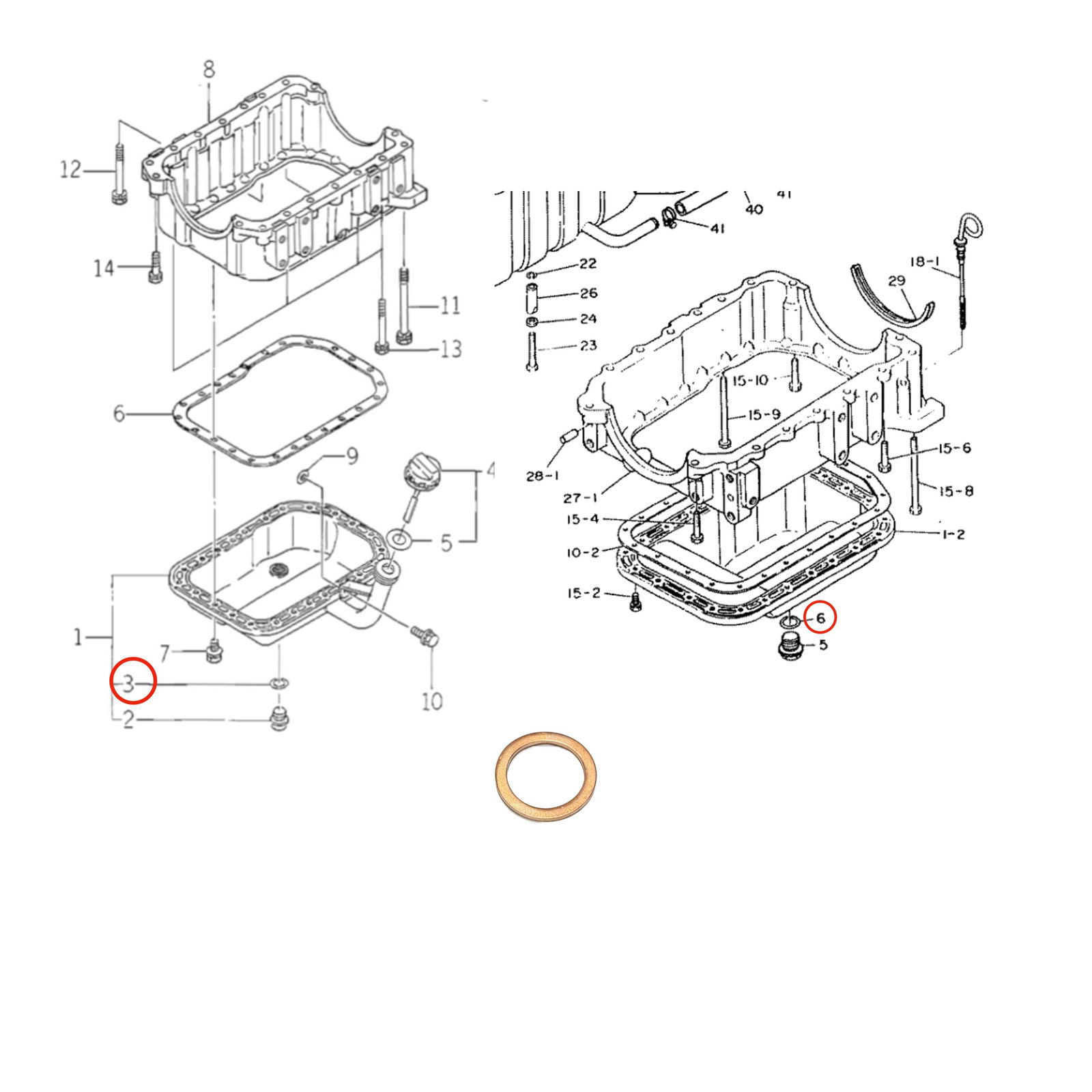

✔️ Sump plug

• Copper washer, preventing oil leakage

Suitable for the following types:

Iseki Landleader (incl. F)

• TA250, TA255, TA262, TA267, TA275, TA287, TA312, TA317, TA525, TA530
• TA207, TA210, TA215, TA227, TA230, TA235, TA247, TA250, TA255, TA262, TA267, TA270, TA287, TA317
• TA250F, TA255F, TA262F, TA267F, TA275F, TA287F, TA312F, TA317F, TA525F, TA530F
• TA207F, TA210F, TA215F, TA227F, TA230F, TA235F, TA247F, TA250F, TA255F, TA262F, TA267F, TA270F, TA287F, TA317F
• TA538 – TA 5040 (German).

Massey Ferguson

• 1250

OEM for reference

• 6213-240-001-00, 621324000100 – Oil filter
• 1513-102-329-00, 151310232900 – Fuel filter
• 1560-103-202-40, 156010320240 – Air filter

Maintenance intervals Iseki TA according to the manual

The original manual of the Iseki TA series prescribes: replace engine oil and oil filter for the first time after 50 hours, after that oil every 200 hours and the oil filter every 400 hours. Clean the fuel filter every 100 hours and replace it every 300 hours (afterwards, don't forget to bleed the system). Clean the air filter element every 100 hours and replace it after five cleanings or if damaged. With this set you can carry out the complete service in one go.

Also read our complete Iseki TA maintenance schedule and the manual for replacing the filters.

Tip: if you want to do the complete major service in one go, choose the Complete maintenance set Iseki TA | TA207 – TA317 | Landleader (VAR-100121).
