Head gasket Kubota D1503 | L2900 – L3200 | KX91 | U35 | Hamm | Schäffer

Description

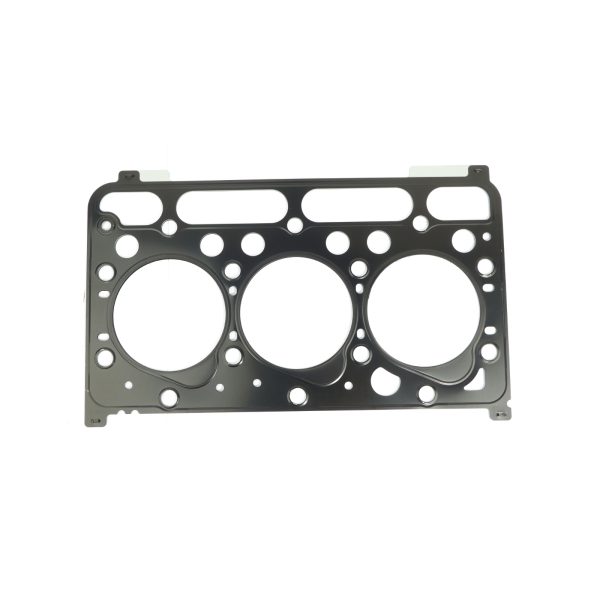

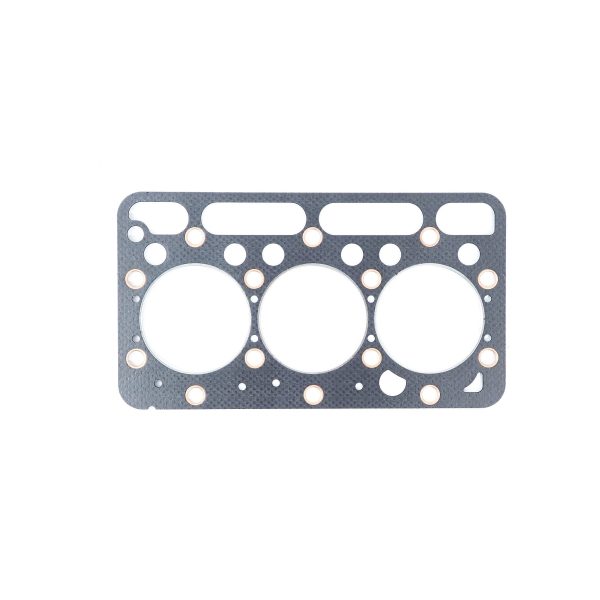

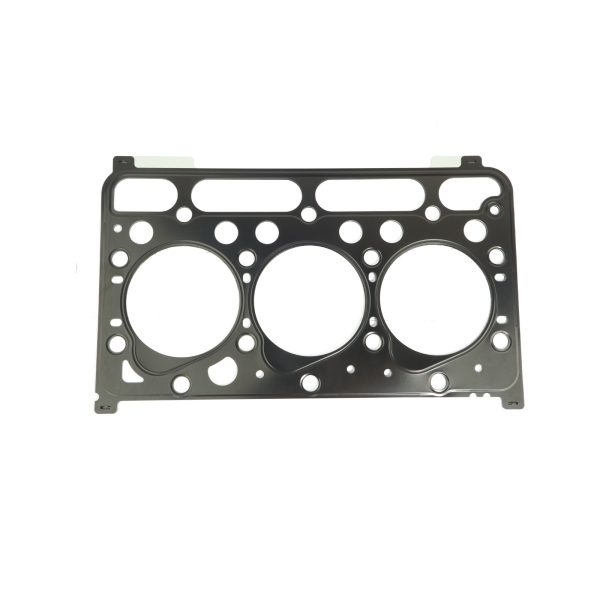

Head gasket for the Kubota D1503 three-cylinder diesel engine (1,499 cc, bore 83 mm, stroke 92.4 mm). Suitable for the variants D1503-M, D1503-M-E3, D1503-M-E2B, D1503-L-A, and D1503-T.

✔️ Exact OEM fit — 1-to-1 replacement for 1G720-03310
✔️ Suitable for all D1503 variants (D1503-M, D1503-M-E3, D1503-L-A)
✔️ Used in Kubota L/KX/U/R series, Hinomoto, Hamm, Schäffer, Bomag, and Eurocomach

Specifications

• Engine: Kubota D1503, D1503-M, D1503-M-E3, D1503-L-A
• Cylinders: 3
• Displacement: 1,499 cc
• Bore: 83 mm
• Stroke: 92.4 mm

Suitable for

Kubota

• L2900, L2900 GST, L3000, L3010, L3010 GST, L3010 HST, L3130, L3200
• KX91, KX91-3a, KX91-3a2, KX101, KX101-3a, KX101-3a2
• U30-3a2, U35-3, U35-3a, U35-3a2
• R420, R420 Alpha, R420 Alpha B, R420B, R420S
• KL27, KL30, KL33, KL36, KL43, KL225, KL245, KL270, KL300, KL330, KL360, KL430, KL2450, KL24R
• FT21, FT23, FT25, FT220, FT240
• GL26, GL27, GL29, GL32, GL35, GL260, GL261, GL268, GL277, GL280, GL281
• GL300, GL301, GL320, GL321, GL350
• GT26, GT30, KT27, KT30, KT215, KT235, KT255, KT280, KT300
• STV32

Hinomoto

• NX27, NX29, NX32, NX260, NX261, NX277, NX280, NX281
• NX300, NX301, NX320, NX321
• NZ235, NZ265, NZ305

TYM

• T290 2WD, T290 4WD, T300 2WD, T300 4WD, T330 2WD, T330 4WD

Eurocomach

• ES 28ZT, ES 28.2ZT, ES 35ZT, ES 35.2ZT, ES 300SR, ES 350ZT

Hamm

• HD 10, HD 10 VO, HD 10 VT, HD 10 VV, HD 12, HD 12 VO, HD 12 VV
• HD 30 VO, HD 30 VT, HD 30 VV, HD 35 VO, HD 35 VT, HD 35 VV

Bomag

• BW115AC-3, BW115AD-3

Airman

• SDG12S

JCB

• VMT260

Schäffer

• 2030, 2033, 2034, 2434

OEM for reference

• 1G720-03310, 1G72003310
• 16467-03310, 1646703310
