Clutch kit Kubota L2900 – L4400 | Massey Ferguson 1529 – 1643 | Agco ST34A – 240mm 19T | pilot bearing 35 × 62 × 14 mm

Description

Complete clutch kit for the Kubota L2900 series and the rebadged models from Massey Ferguson and Agco. This kit allows you to replace the entire clutch in one go — all wearing parts are included, along with the alignment tool for installation. This means the transmission only needs to be removed once.

This version features the pilot bearing 6007-2RS measuring 35 × 62 × 14 mm. This is the only difference from our other kit for these tractors; the pressure plate, clutch disc, release bearing, and alignment tool are identical.

✔️ 5-in-1 kit — pressure plate, disc, release bearing, pilot bearing, and alignment tool
✔️ Version with pilot bearing 6007-2RS (35 × 62 × 14 mm)
✔️ Exact OEM fit — 1-to-1 replacement for Kubota TA020-20600

Which version do you need?

There are two versions of this clutch in circulation, with a different pilot bearing in the flywheel. Before ordering, measure the inner diameter of the pilot bearing you remove:

• 35 mm inner diameter (35 × 62 × 14 mm, 6007-2RS) → this kit
• 40 mm inner diameter (40 × 68 × 9 mm) → view the version with pilot bearing 40 × 68 × 9 mm

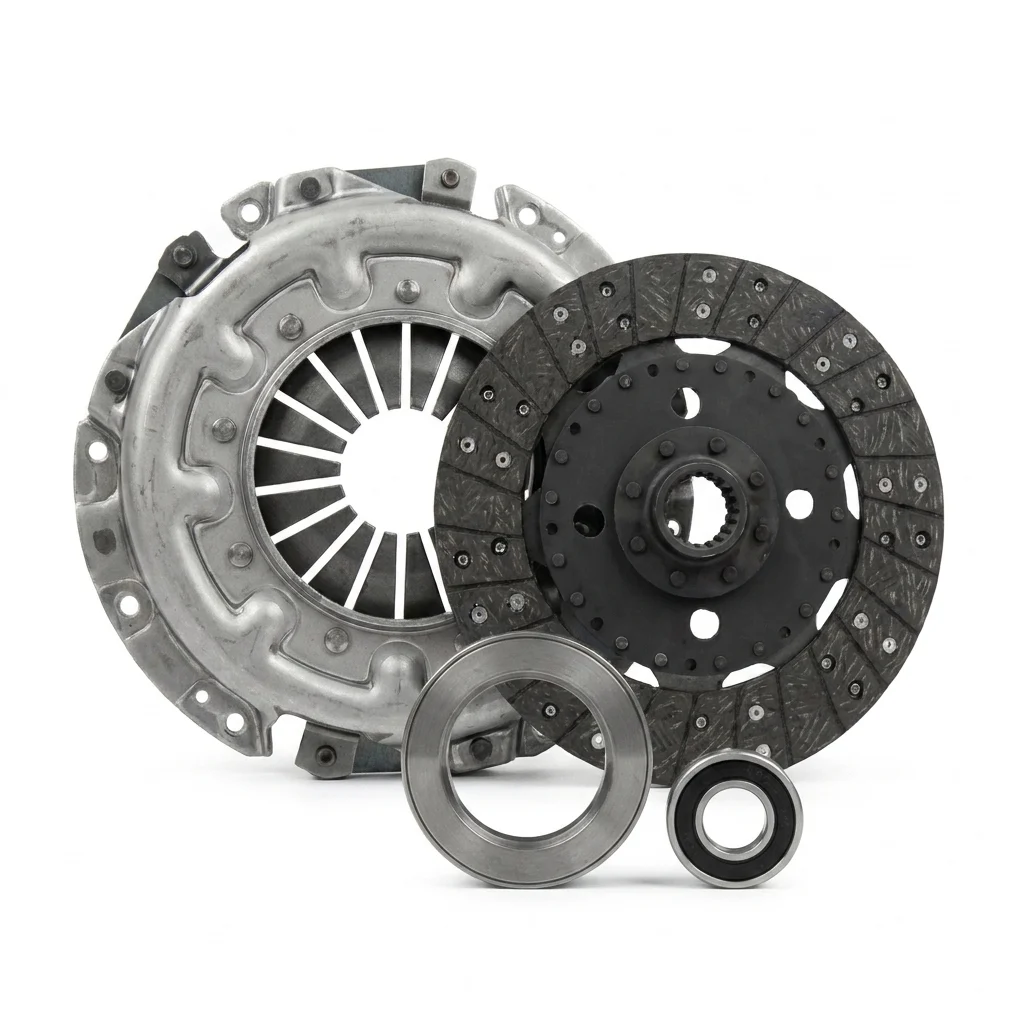

Kit contents:

• Pressure plate 240mm (9½"), diaphragm
• Clutch disc 240mm, 1 3/8" × 19 splines, solid hub
• Release bearing 55 × 88 × 22 mm
• Pilot bearing 6007-2RS (35 × 62 × 14 mm)
• Alignment tool 1 3/8" × 19 splines

Suitable for:

Kubota

• L2900, L3010, L3130, L3300, L3410, L4300, L4400

Massey Ferguson

• 1529, 1532, 1533, 1540, 1635, 1643

Agco Allis

• ST34A, ST41A

OEM for reference:

• TA020-20600, TA02020600
• KTA020-20600NU Kit, K20600N Kit
• TC403-20600, TC40320600
• 6241369M91
