Glow relay | start timer | stop timer Kubota D722 | D902 | D1005 – GL19 – GL338 | L | BX | RTV | Beta Marine | Nanni marine engine

Description

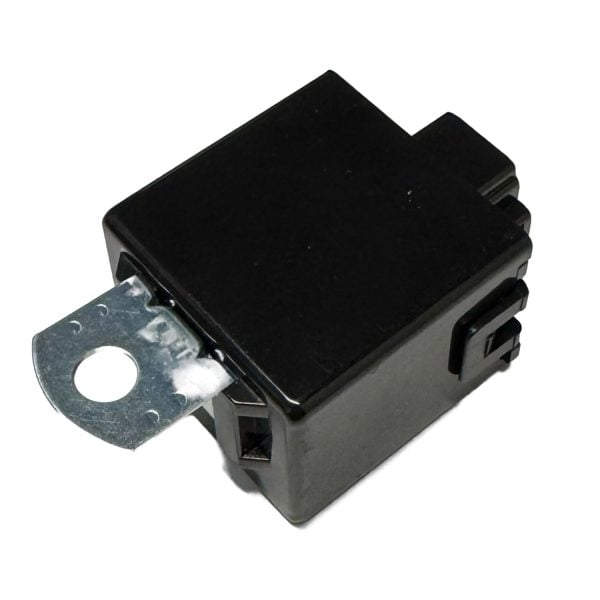

New 12V glow relay (start/stop timer, Denso-type) for the small Kubota diesel engines. This relay controls the preheat cycle of the glow plugs and ensures a reliable cold start. Used on a wide range of Kubota tractors, ride-on mowers and RTVs — and on marine engines built on a Kubota block, such as Beta Marine and Nanni Diesel.

✔️ Exact OEM fit — 1-to-1 replacement of original Denso relay
✔️ Suitable for tractor and marine engine with Kubota D722 / D902 / D1005 block
✔️ Includes mounting bracket — ready to install

Specifications:

• Voltage: 12V
• Connection: 4-pin
• Type: timer relay (preheat / start-stop)
• Includes mounting bracket

Compatible engines:

Kubota

• D722, D902, D1005

This relay is also used on many Kubota B, BX, F, G, GR, L, M and RTV series with 12V glow system. In doubt? Check the OEM number on your current relay.

Also for marine engines:

Many marine diesel engines are built on a Kubota base block. If your boat engine has a Kubota D722, D902 or D1005 block, this is the correct glow relay. Well-known examples:

Beta Marine

• Beta 14 (Kubota D722), Beta 16 (Kubota D902), Beta 20 (Kubota D1005)

Nanni Diesel

• N2.10, N2.14, N3.21 (Kubota base)

Please note: always check the OEM number on the existing relay for marine engines — marinizers sometimes use their own glow system.

Suitable for the following models:

Kubota

• GL19, GL21, GL23, GL25, GL26, GL27, GL29, GL32
• GL220, GL221, GL240, GL241, GL260, GL268, GL280, GL300, GL320, GL338
• L2900, L3100
• B1550D, B1550HST, B1750HST, B2150E, B7410D
• BX1830D, BX2200D, BX2350D, BX2370, BX2380, BX23S, BX25DLB, BX2660D, BX2670, BX2680
• BX1800D, BX1850D, BX1860, BX1870, BX1880, BX2230D, BX2360, BX24D, BX25D
• F1900, F1900E
• G18, G18HD, G2160, G21HD, TG1860AU, G21LD, G23, GR2120AU, GR1600EC2, GR2110, GR2100, GR2100EC2
• L2900DT, L3010DT, L3010F, L3300DT, L3410DT, L3600DT, L3710DT, L4200DT, L4200F, L4310DT, L4310F, L4350DT, L4610DT, L35, L4850DT, L5450DT
• RTV900G6, RTV900MG, RTV900MW, RTV900SW, RTV900W, RTV900XTG, RTV900XTR, RTV900XTW
• M4030, M4030DT, M4900DT, M5030, M5030DT, M5030SU, M5030SUMDT, M5700, M5700DH, M5700DHC, M5700DT, M5700DTN, M6800DH, M6800DHC, M6800DT, M6800S, M6800SDT, M8200DCN, M8200DH, M8200DHC, M8200DT, M8200DTN, M8200SDTN, M9000DT, M9000DTM, M9000DTMC
• ME8200DH, ME8200DHC, ME9000DH, ME9000DHC

Hinomoto

• NX19, NX21, NX23, NX25, NX26, NX27, NX29, NX32
• NX220, NX221, NX240, NX241, NX260, NX268, NX280, NX300, NX320, NX338

OEM ref:

• 061700-3770, 0617003770
• 061700-3771, 0617003771
• 061700-3760, 0617003760
• T0070-31410, T007031410
• 31351-31410, 31351-31412, 31351-31413
• 1J321-60242
