Complete overhaul kit for the Mitsubishi K3M three-cylinder diesel engine, as used in the Mitsubishi MT300, Cub Cadet 7530 and 7532, Mahindra 3015, and Bomag BW121 vibratory roller. This kit contains the parts you replace during an overhaul: new pistons, matching piston rings per cylinder, connecting rod bearings, main bearing set, and a complete gasket set for the entire engine. Select the piston size above: standard (STD) for a block with the original bore, or oversized +0.5mm for a block that has been bored out.
✔️ Pistons 84mm in standard size or oversized +0.5mm — 1-to-1 replacement for original
✔️ Includes connecting rod bearings (OEM 30H19-05010) and main bearing set (OEM 30H09-00050) in standard size
✔️ Complete gasket set included, from head gasket to oil pan gasket

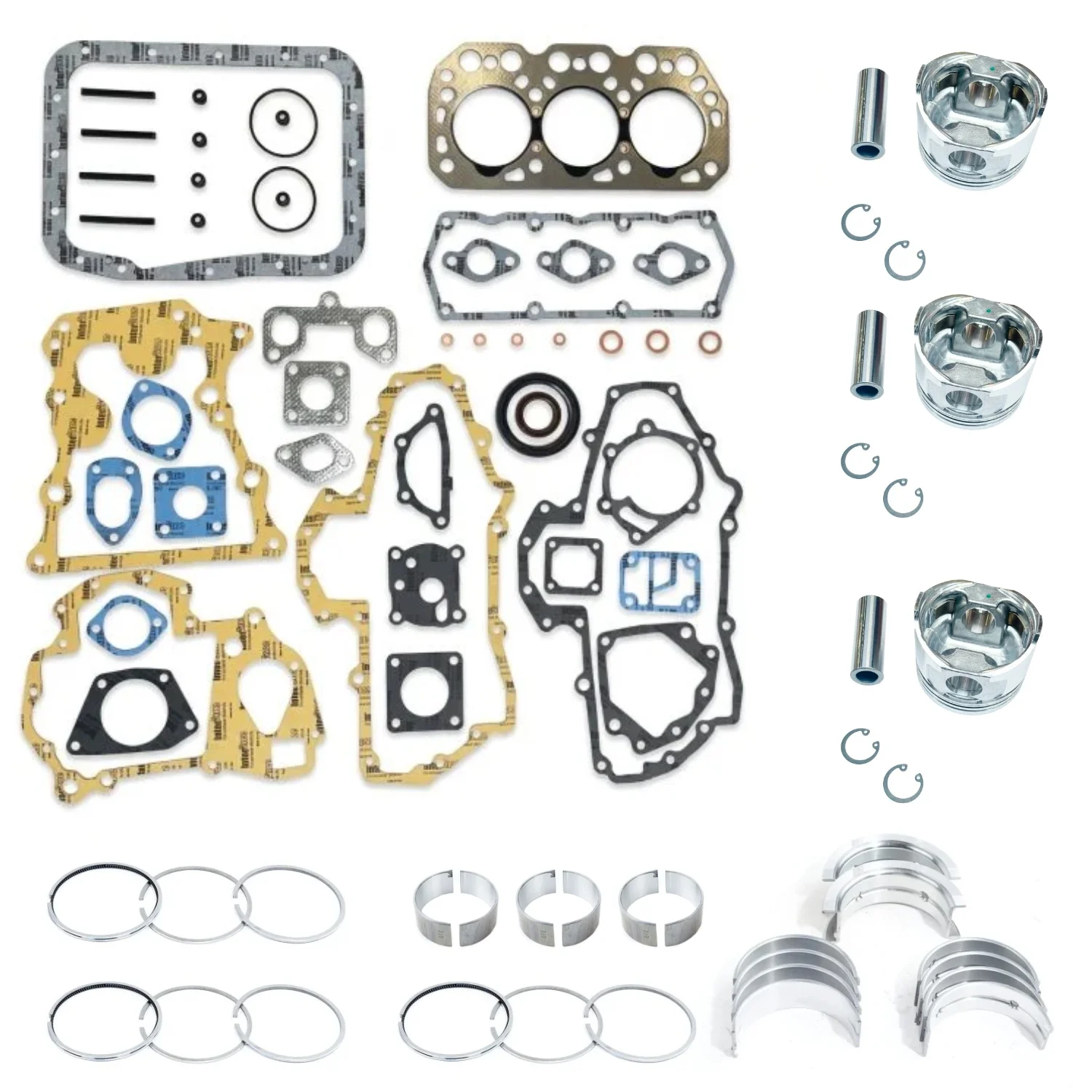

Kit contents:
- 3x Piston Mitsubishi K3M, standard size 84mm or oversized +0.5mm
- 3x Piston ring set (per cylinder), matching the selected piston size
- 3x Connecting rod bearing / bearing shell, standard size
- 1x Main bearing set Mitsubishi K3M, standard size
- 1x Complete gasket set Mitsubishi K3M
Please note: the K3M uses main bearing set OEM 30H09-00050, which differs from the K3A through K3E series. The correct set is included in this package. For the oversized variant, have the block bored out to +0.5mm first. The connecting rod bearings and main bearings are standard size; if the crankshaft has been ground, order the bearings in the corresponding undersize.
Technical specifications:
- Engine: Mitsubishi K3M, 3 cylinders
- Bore: 84mm
- Piston size: standard (STD) or oversized +0.5mm
- Connecting rod bearings and main bearings: standard size (STD)
Suitable for:
Mitsubishi
- MT300, MT300D, MT301D, WS310, WS410A
MAM (Mitsubishi Agricultural Machinery)
- GOZ24, GOZ26, GOZ28, GOZ30, GOZ32
Cub Cadet
- 7530, 7532, 7272, 7305
Case IH
- 275, 1140
Mahindra
- 3015 HST
Bomag
- BW121
Deutz-Fahr
- Agrokid 25
OEM for reference:
- MM433007 – piston STD and +0.5
- 30617-61011, MM433015 – piston rings STD
- 2026150 – piston rings +0.5
- 30H19-05010, 30H1905010 – connecting rod bearing set STD
- 30H09-00050 – main bearing set STD
- MM408438 – complete gasket set
