Cylinder Head Kubota D905 | 3D72 | D905E | D905B | complete + head gasket + glow plug

Description

New premium cylinder head suitable for the Kubota D905 three-cylinder diesel engine (72 mm bore) and all variants (3D72, D905-E, D905-B, D905-E2B/E2BG). Manufactured from high-quality material, with pre-installed valve seats, valves, and springs — ready for assembly.

To simplify the repair, we have put together a complete package that ensures the repair can be done as quickly as possible. This includes:

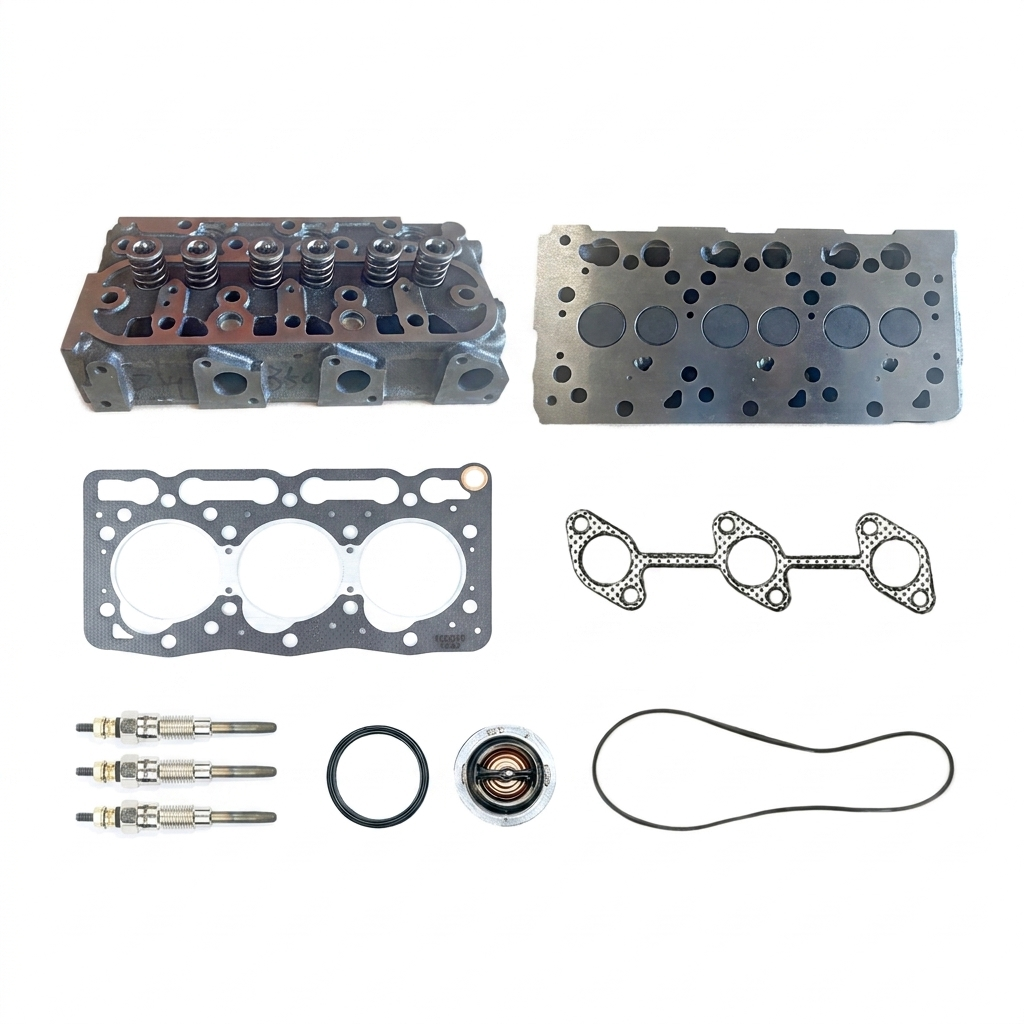

Set consisting of:

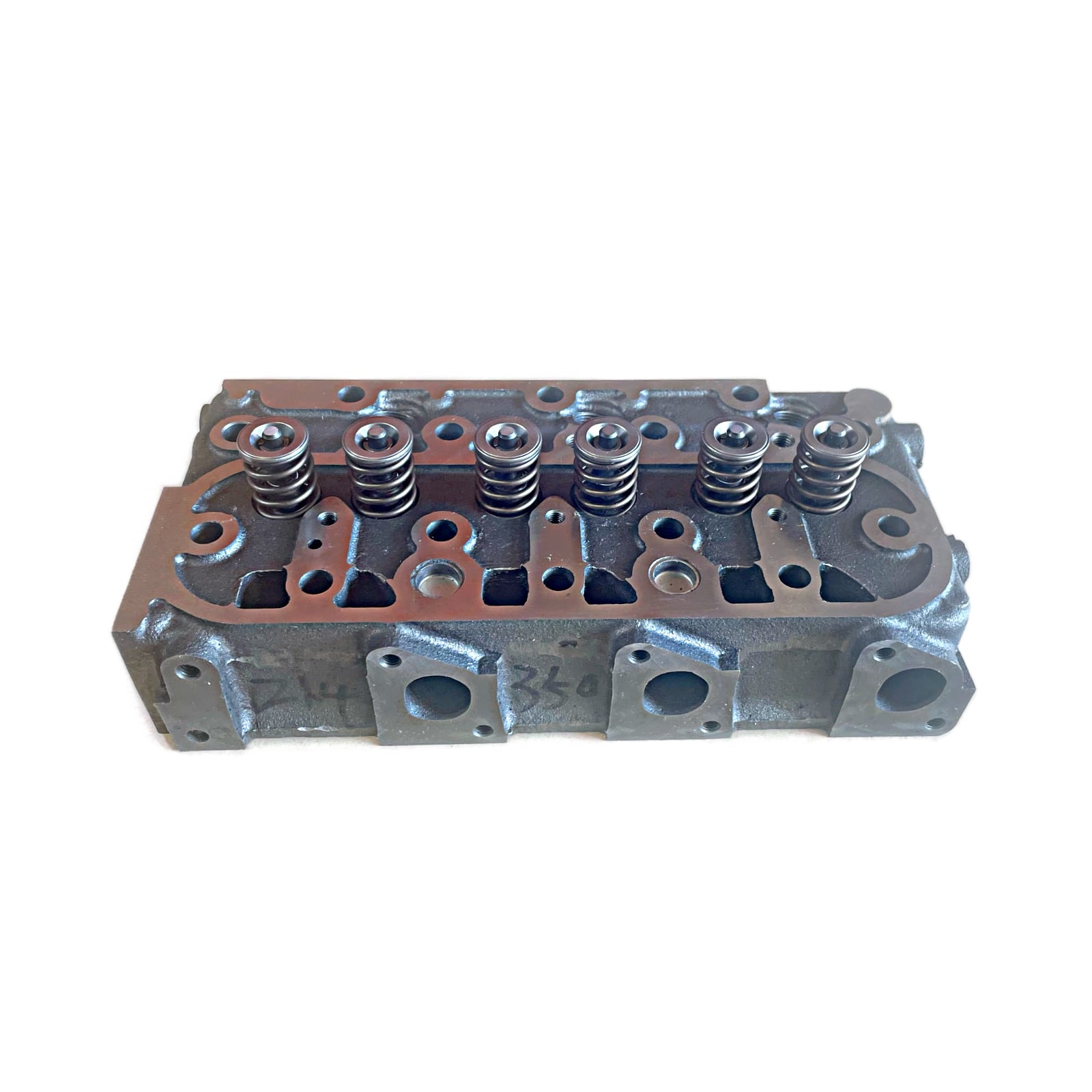

• Complete cylinder head with valves, springs, valve seats, and seals – assembled and ready for installation

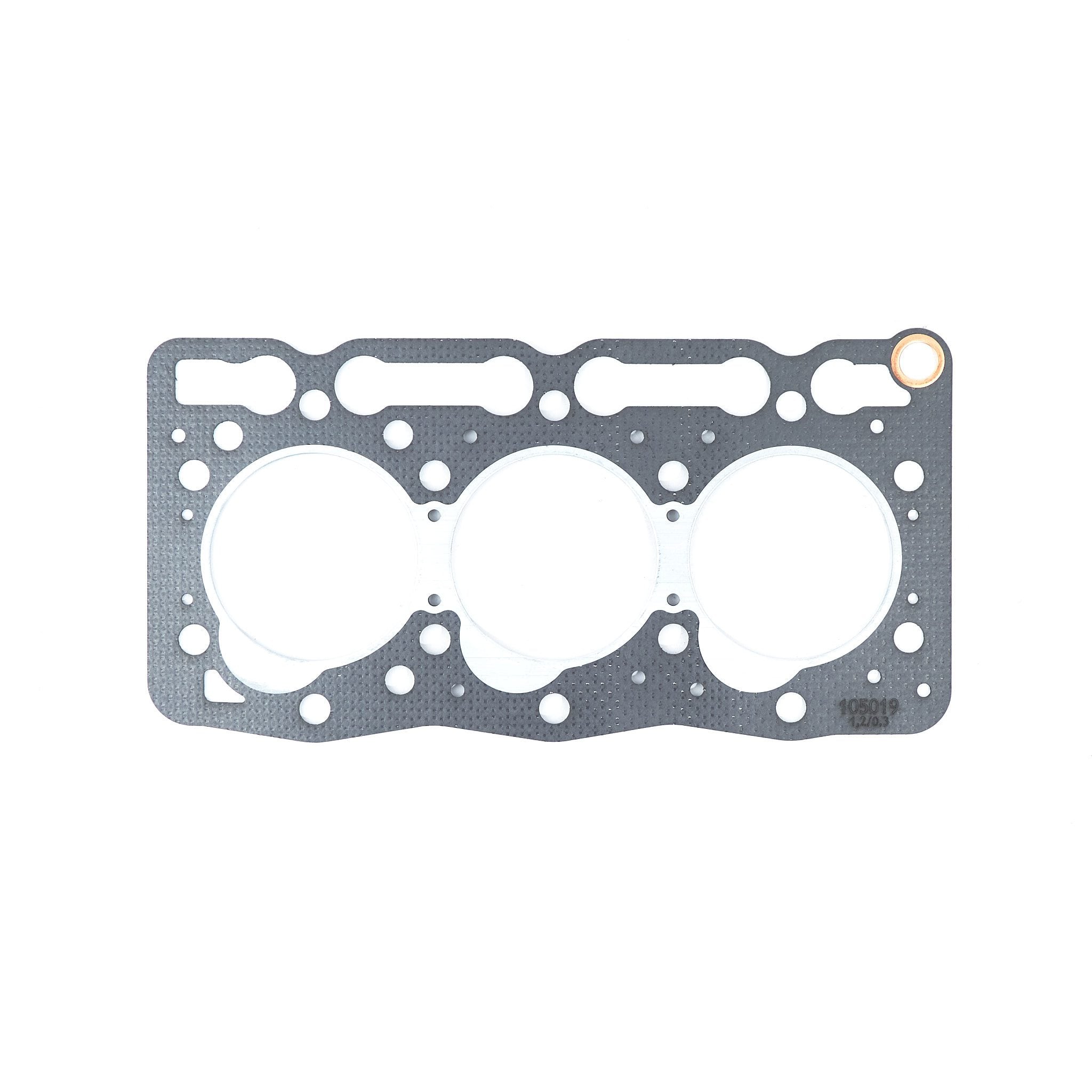

• Head gasket – premium quality from a European supplier

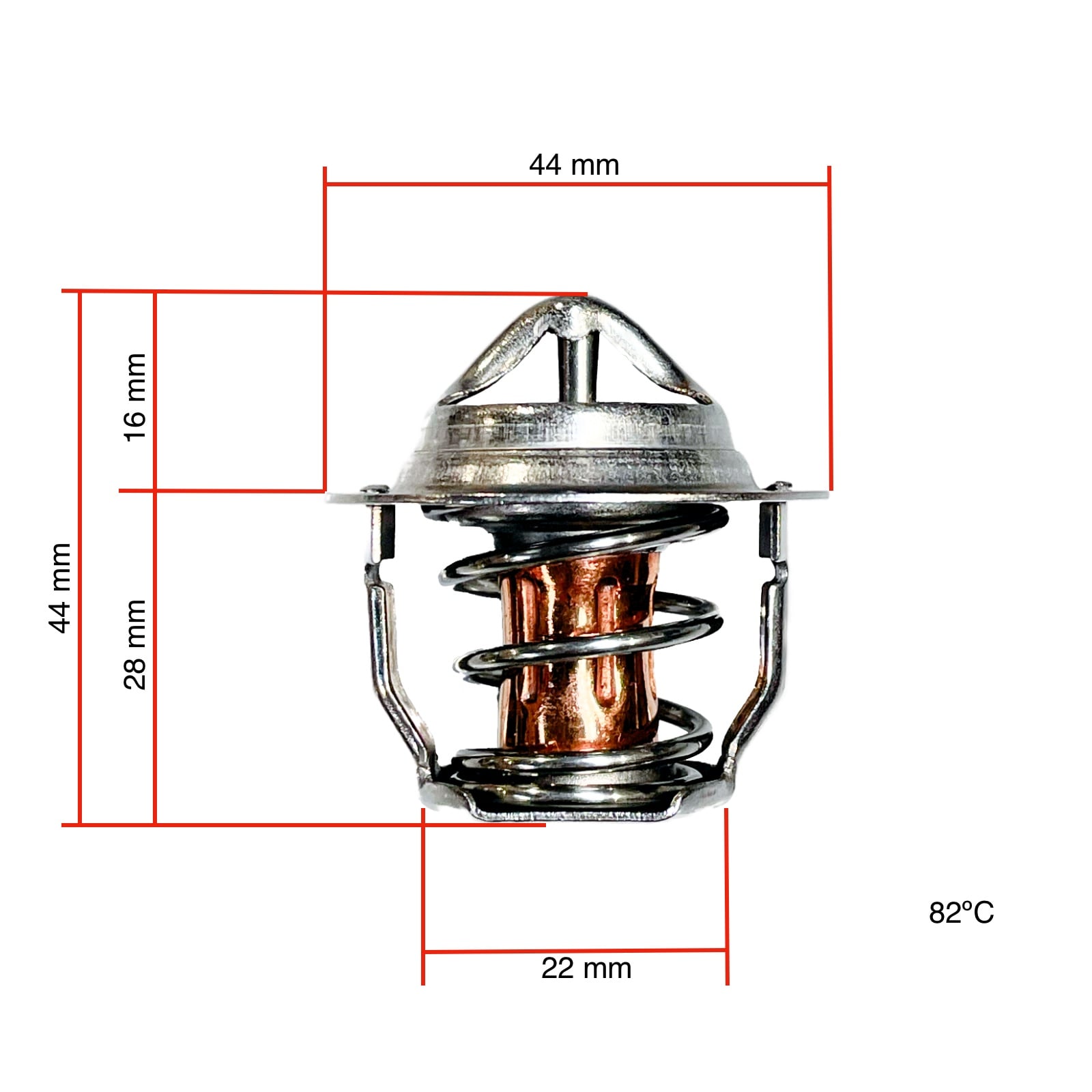

• Thermostat (44 mm, 82°C)

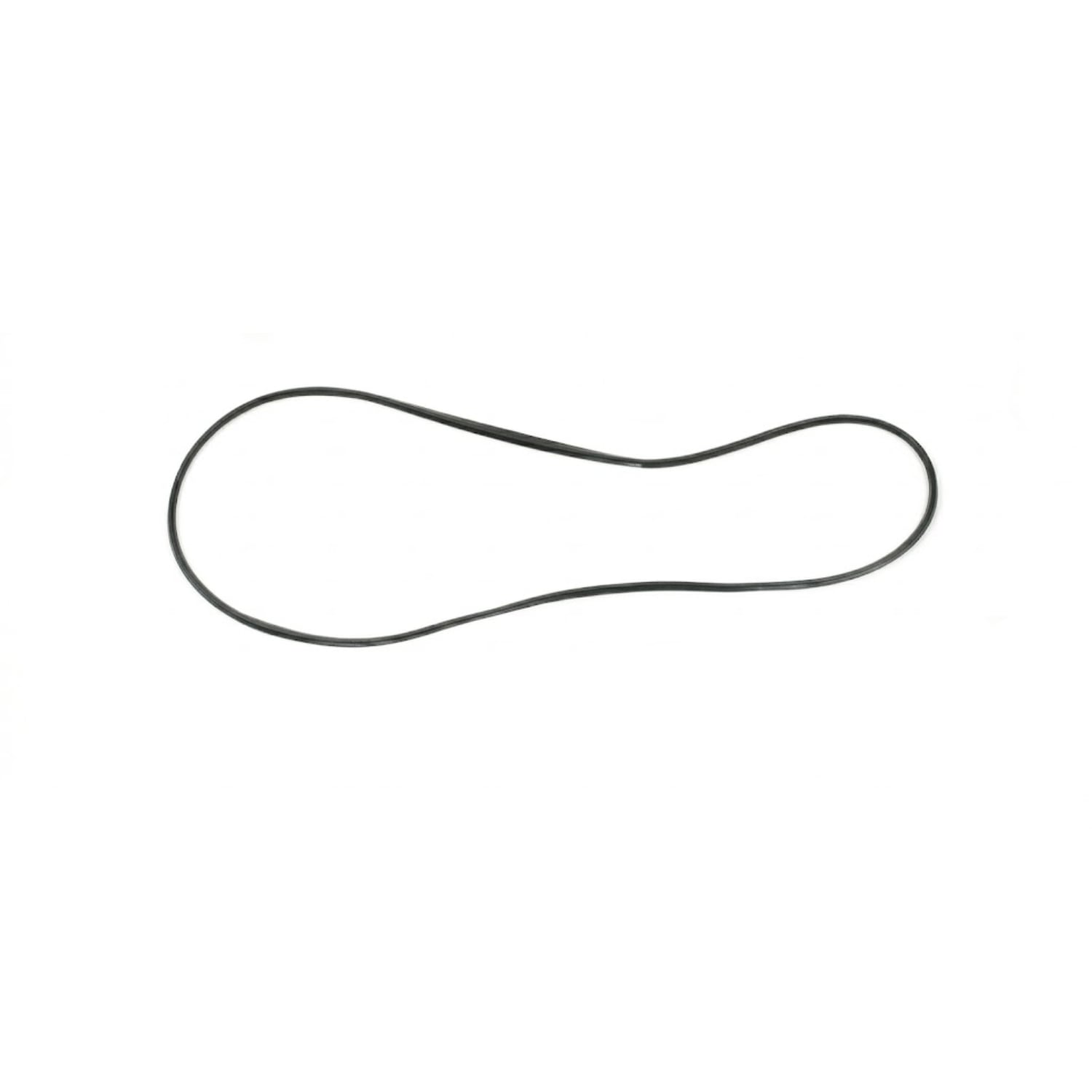

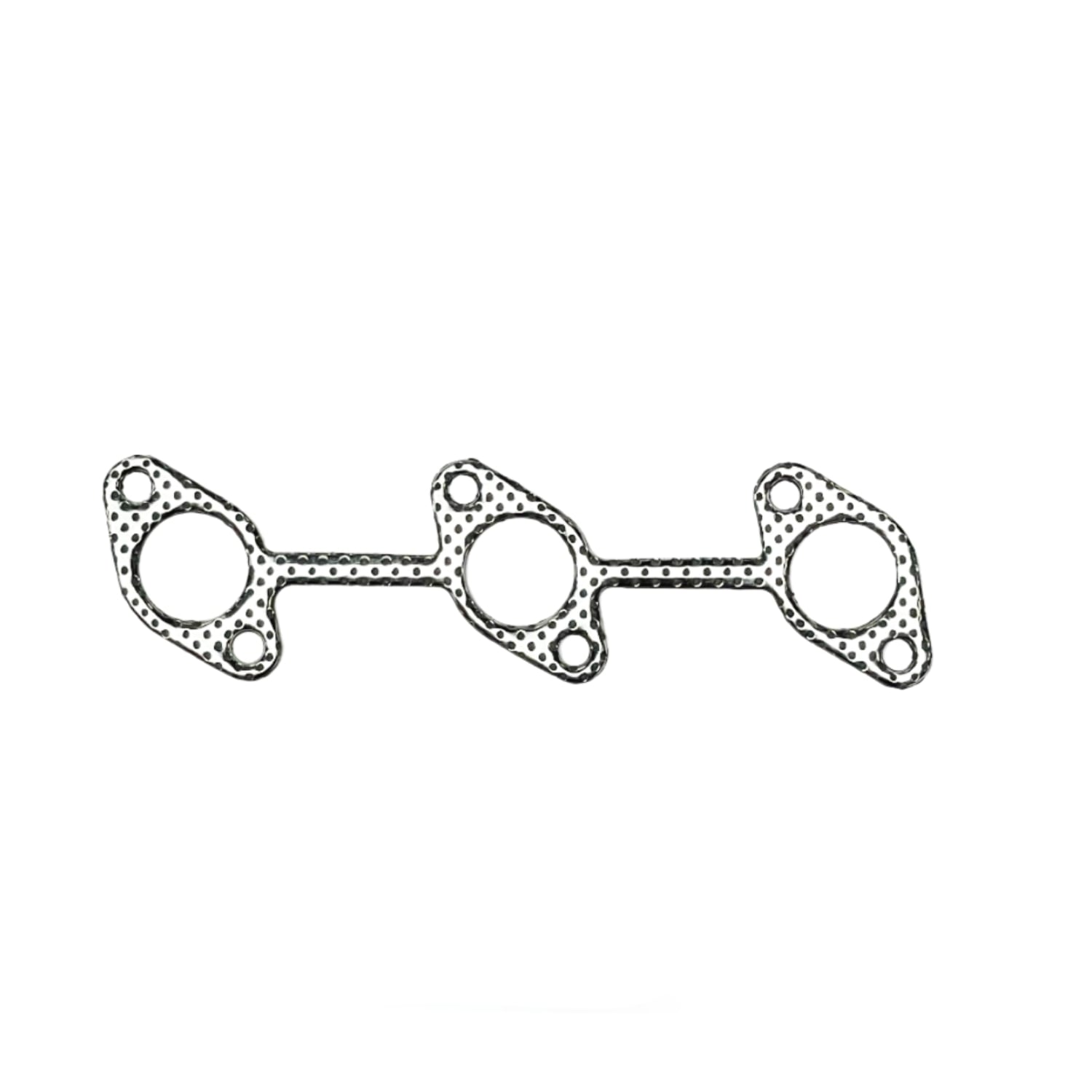

• Intake + exhaust manifold gasket

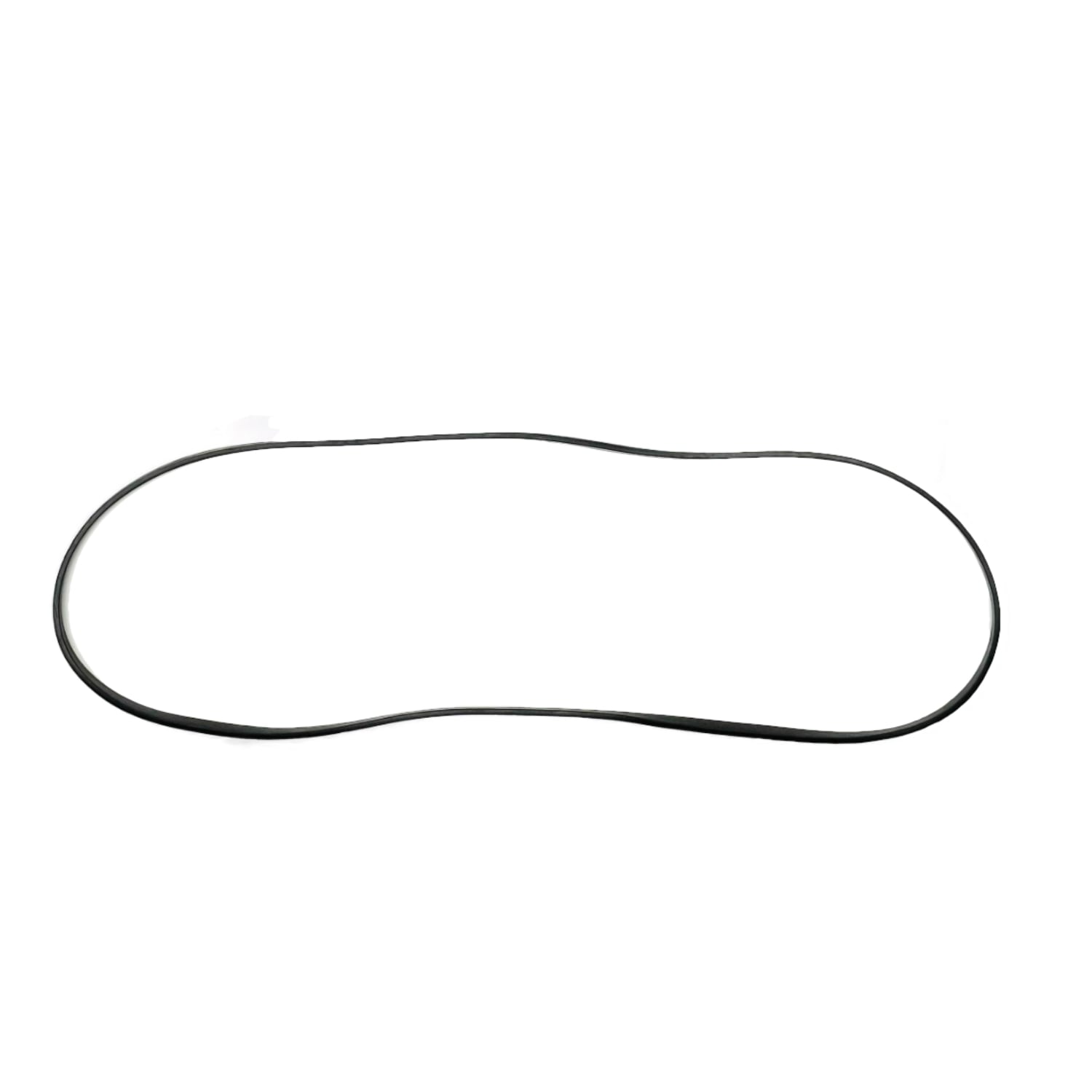

• Valve cover gasket — prevents oil leaks from the valve cover (SKU-65240)

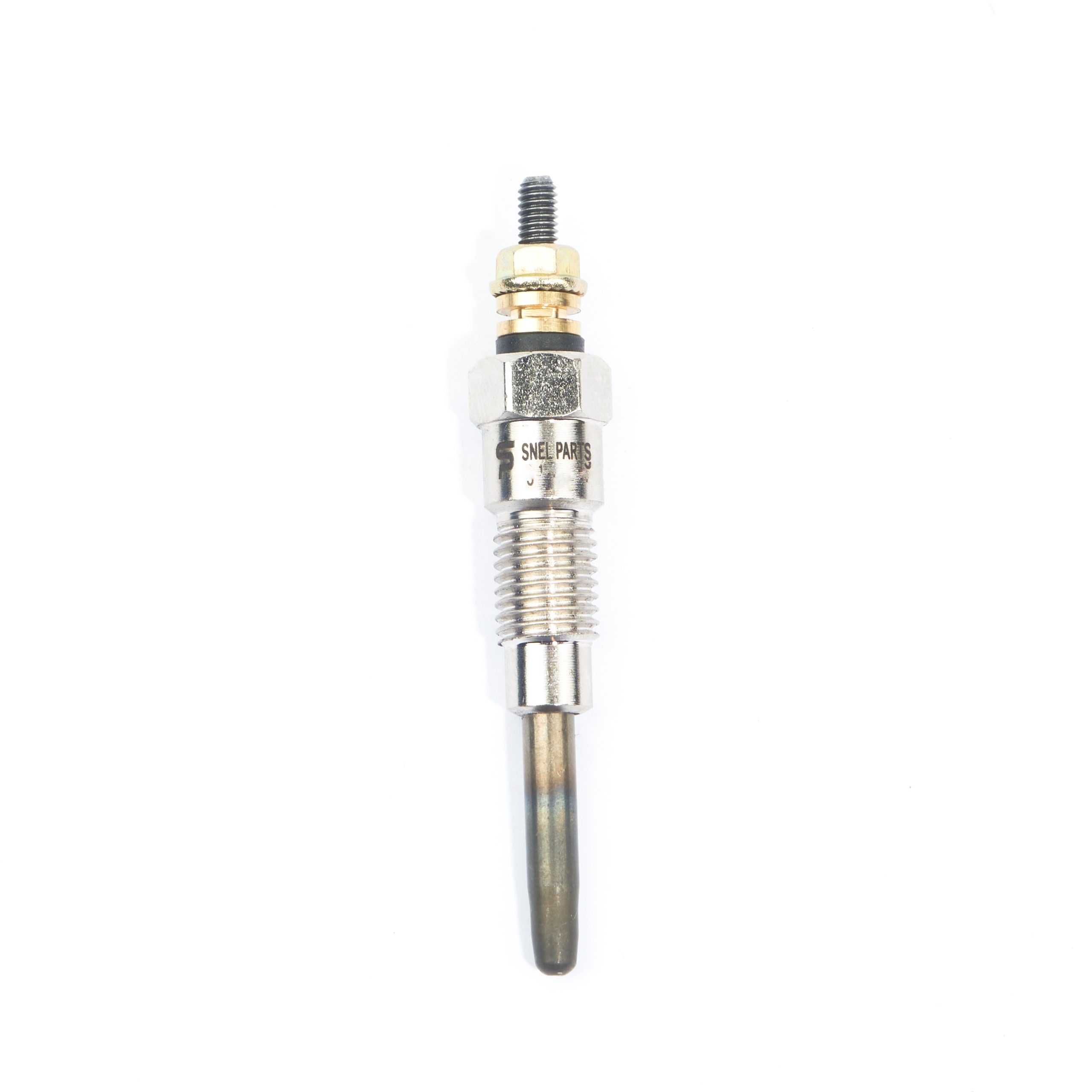

• 3X Glow Plugs D905 – premium quality (M10 version)

✔️ Fully assembled — valves, springs, and seals installed, no additional adjustment required
✔️ Complete repair kit — includes head gasket, thermostat, manifold gaskets, valve cover gasket, and 3 glow plugs
✔️ Exact OEM fit — 1-to-1 replacement of original

A ready-to-use solution that saves workshop time and minimizes the risk of assembly errors.

Specifications

• Engine: Kubota D905 (3D72, D905-E, D905-B, D905-E2B/E2BG)
• Type: 3-cylinder diesel, indirect injection (IDI)
• Bore: 72 mm
• Displacement: 898 cc

Suitable for:

Kubota engine

• D905, 3D72, D905E, D905B, D905-E2B/E2BG

Kubota

• A15, A155, B20, B72, B1700, B1700D, B1700HSD, B1710, B1710D, B1830
• BX22, BX23, BX2200, BX2660, BX2670D, BX2680
• GB15, GB16, GB150, GB155, GB160, F2100

Genie

• Z-34/22 IC, GS-2668 RT, GS-3268 RT, AL-4000D1, RL-4000D1

Giant

• D241S

Bobcat

• 553, S70, E26

Hinomoto

• CX19, NX18

JCB

• 1T-HT

JLG

• 260MAR

Schäffer

• 2022

Snorkel/Upright

• AB-46 I/C, AB46E I/C, BOOM 46, SL26RT, SL30RT, X27RT, X33RT, X40RT

Steiner

• 525

OEM ref:

Cylinder head (complete):

• 16020-03040, 1602003040

Head gasket (72 mm bore):

• 16221-03310, 1622103310
• 15576-03310, 1557603310

Thermostat (44 mm, 82°C):

• 15321-73010, 1532173010
• 15321-73011, 1532173011
• 15321-73014, 1532173014
• 15321-73015, 1532173015
• 15321-73016, 1532173016

Intake manifold gasket:

• 16261-11820, 1626111820
• 16261-11822, 1626111822
• 16261-11823, 1626111823

Exhaust manifold gasket:

• 16261-12351, 1626112351
• 16261-12360, 1626112360

Valve cover gasket:

• 16241-14520, 1624114520

Glow plug (M10 version):

• 16241-65510, 1624165510
• 16241-65512, 1624165512
• 16281-65510, 1628165510

Complete gasket set (for reference):

• 07916-29695, 0791629695
• 07916-29705, 0791629705
