Cylinder Head Complete Kubota V1505 | V1505-T | Bobcat | Giant | Schäffer

Description

Technical data:

• Bore: 78 mm
• Injection: Indirect injection (IDI)

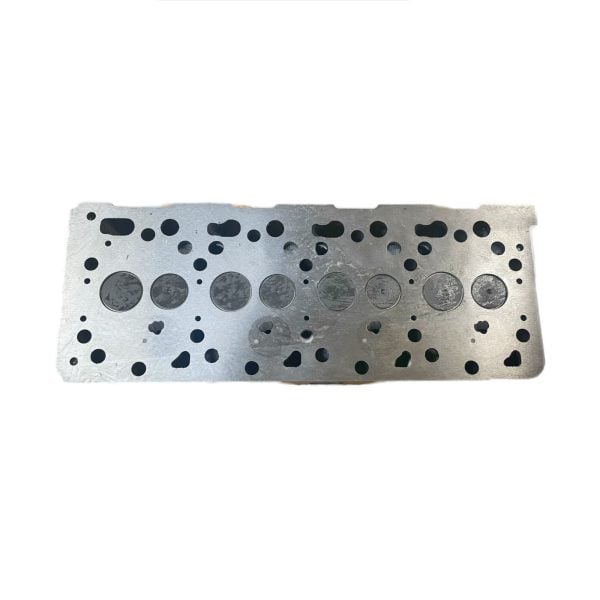

1. Complete cylinder head with valves and springs – ready for direct installation

This new cylinder head is manufactured from high-quality material and supplied complete, including pre-assembled valves and springs. Thanks to the complete assembly, no parts need to be transferred or adjusted.

✅ Fully assembled

✅ Including valves and springs

✅ No extra adjustment work required

✅ Ready for immediate installation

A ready-to-use solution that saves time in the workshop and minimizes the risk of installation errors.

This cylinder head has been carefully matched to the compatible models below.

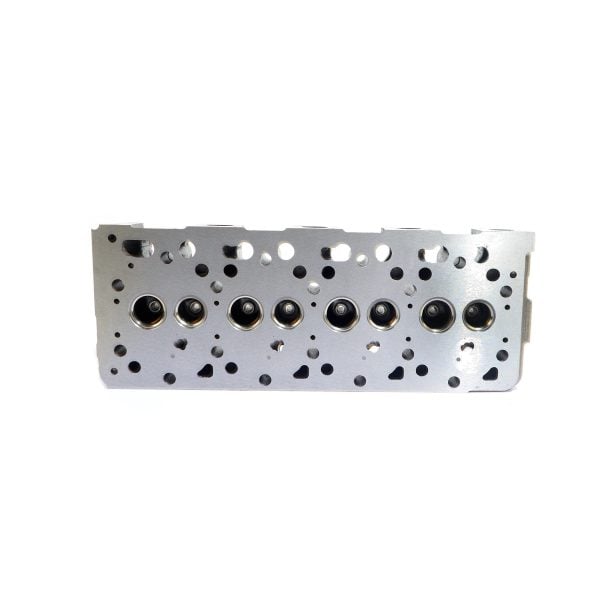

2. Bare cylinder head – with pre-assembled valve seats

This cylinder head is produced from high-quality material and supplied as a bare cylinder head with pre-assembled valve seats. The head is thus prepared for further assembly with your existing or new components.

✅ Top-quality new cylinder head

✅ Valve seats already assembled

✅ Ready for further assembly

✅ Suitable for overhaul or custom application

Ideal for those who want to maintain control over the final assembly or wish to reuse specific parts.

The cylinder head is suitable for the following models:

Kubota Engine:

• V1505, V1505-T
• V1505D, V1505-E4-BH-2, V1505-E3-BH-2, V1505-E2-BH-2, V1505-EB, V1505 stage V

Kubota:

• B2910HSD, B3000HSDCC, B3030HSD, B3150HSD, B3150HSDCC, B3150SUHSD, B3350HSD, B3350HSDC, B3350HSDCC, B3350SUHSD, B7800HSD, B2311
• GT-5, GT-8, ST-30
• KX027-4, KX030-4, KX61-3, KX71-2, KX71-2A, KX71-2G, KX71-3, KX71-3S, RT270, RT270D, RT280, RT280D
• F3890, F3680, F3990
• KX61, KX71, U35
• ZD1511

Aichi

• FR300

Avant

• R35, 635, 640

Bobcat

• 425, 428, S100, S100-BCZ

Eurotrac

• W12 K36

Giant

• V361 (S040), V361 (S068), V362, V45 Tele, V45 Tele-AS, V4501T, V4502T, V4502T Tele, V4502T X-tra, V451T ECO, V451T, V451T X-tra, V452T HD, V452T, V452T X-tra HD, V452T X-tra, 3648

Tendo

• 4548 Tendo

JCB

• 403

Schäffer

• 2336, 2336 SLT, 2345, 2345 SLT, 2436
• 2436 SLT, 2445 SLT, 2445 T, 2445, 3036, 3036e, 3036 SLT, 3038, 3038e, 3038 SLT, 3045, 3045e, 3045 SLT
• 4048, 4048e, 4050 Z, 4050 ZL, 4050 ZL T, 4050, 4050 T, 5050, 5050 T, 5060, 5060 T, 660 T, 668 T, 861 T, 963 T, 964 T.

OEM numbers

• 16060-03042, 16060-0304-2
• 1G091-03044
• 1G091-03043
• 1G091-03042
