Cylinder Head Complete Kubota D1503 | D1503-M | D1503-M-E3 | D1503-LA

Description

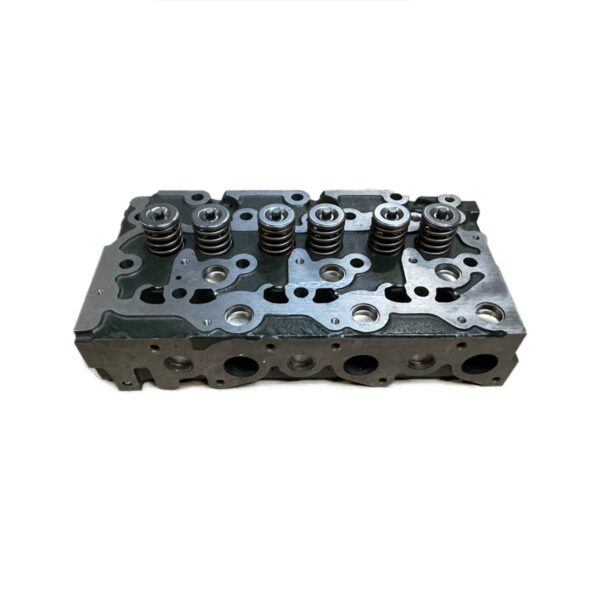

Variant 1. Complete Cylinder Head with Valves and Springs – Ready for Immediate Installation

This new cylinder head is manufactured from high-quality material and comes complete with mounted valves and springs. Thanks to the complete assembly, there’s no need to transfer parts or make adjustments.

✅ Fully assembled

✅ Including valves and springs

✅ No additional adjustment needed

✅ Ready for immediate installation

A ready-to-use solution that saves workshop time and minimizes the risk of assembly errors.

This cylinder head has been carefully matched with the compatible models listed below.

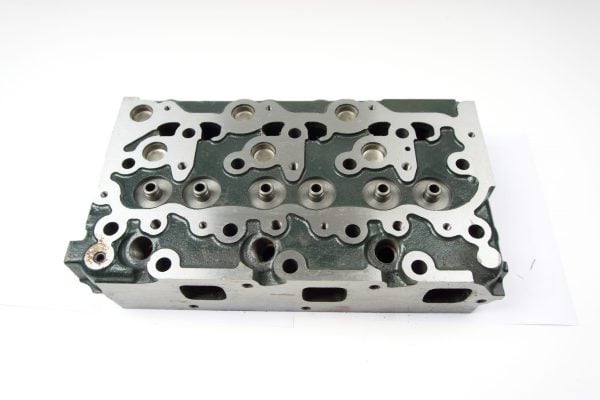

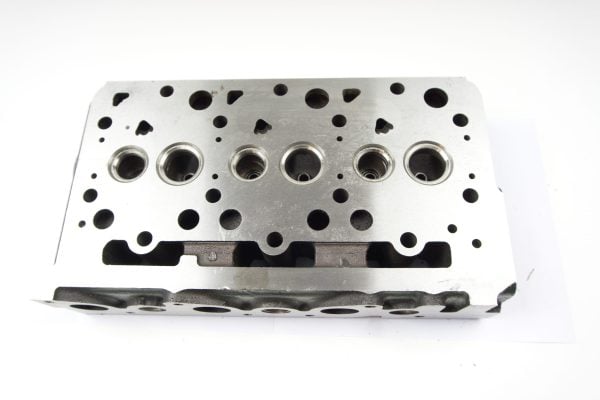

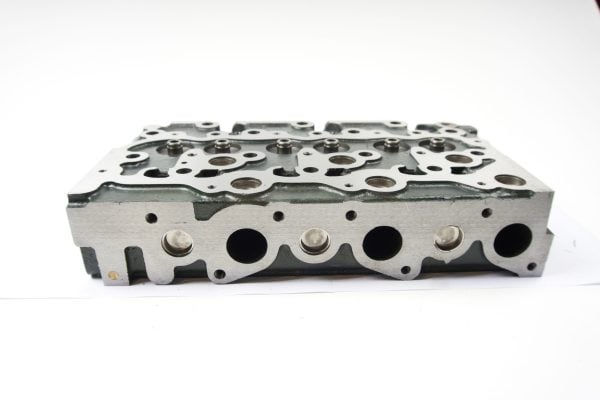

Variant 2. Bare Cylinder Head – with Pre-Mounted Valve Seats

This cylinder head is manufactured from high-quality material and is supplied as a bare cylinder head with pre-mounted valve seats. The head is thus prepared for further assembly with your existing or new components.

✅ New top-quality cylinder head

✅ Valve seats pre-mounted

✅ Ready for further assembly

✅ Suitable for overhaul or custom application

Ideal for those who want to maintain control over the final assembly or wish to reuse specific components.

The cylinder head is suitable for the following models:

Kubota Engine:

• D1503, D1503-M, D1503-M-E3, D1503-L-A

Kubota,

• L2900 GST, L2900, L3010GST, L3010 HST, L3010, L3130, L3200
• KX101-3a, KX101-3a2, KX91-3a, KX91-3a2, U30-3a2, U35-3a, U35-3a2
• R420 Alpha B, R420 Alpha, R420, R420B, R420S
• KL27, KL30, KL33, KL36, KL43, KL225, KL245, KL270, KL300, KL330, KL360, KL430, KL2450, KL24R,
• FT21, FT23, FT25, FT220, FT240
• GL26, GL27, GL29, GL32, GL260, GL261, GL268, GL277, GL280, GL281, GL300, GL301, GL320, GL321
• GT-26, GT-30
• KT27, KT30, KT215, KT235, KT255, KT280, KT300
• STV32
• KX91, KX101, U30-3a2, U35-3, U35-3a, U35-3a2

Bobcat

• 328

TYM

• T290 2WD, T290 4WD, T300 2WD, T300 4WD, T330 2WD, T330 4WD

Eurocomach

• ES 28ZT, ES 350ZT, ES 35ZT

Hamm

• HD 10, HD 10 VO, HD 10 VT, HD 10 VV, HD 12, HD 12 VO, HD 12 VV, HD 30 VO, HD 30VT
• HD 30 VV, HD 35 VO, HD 35 VT, HD 35 VV

JCB

• VMT260

Schäffer
