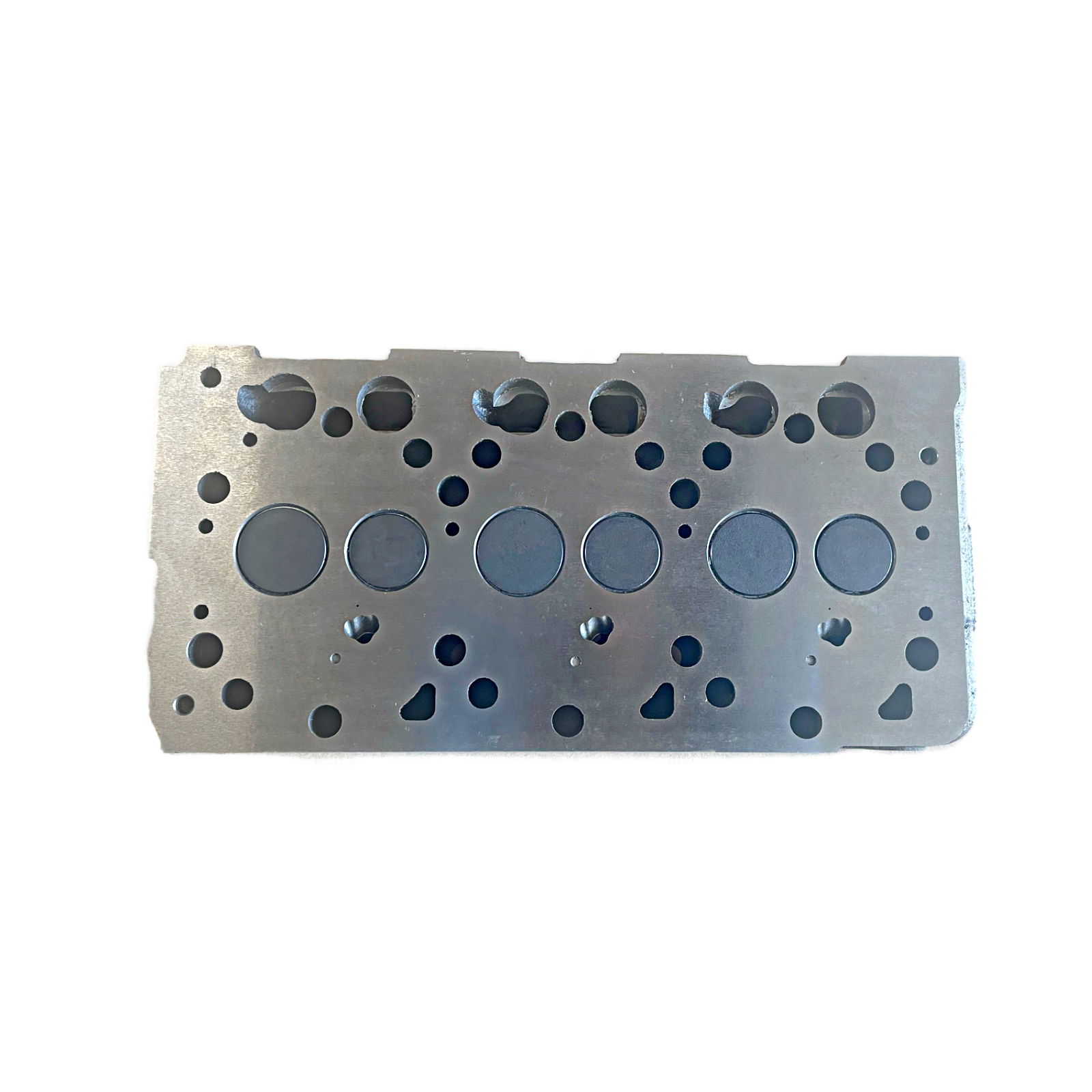

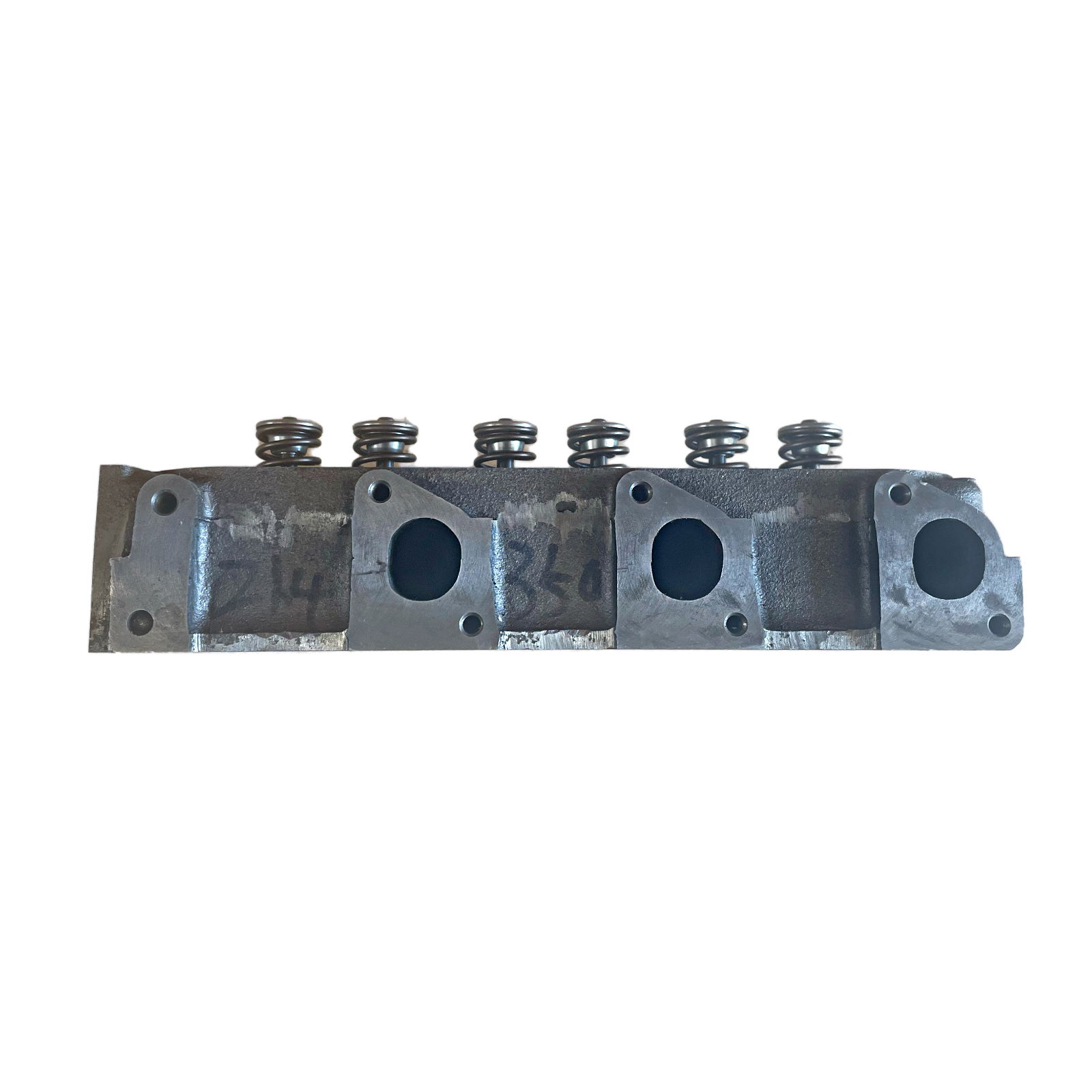

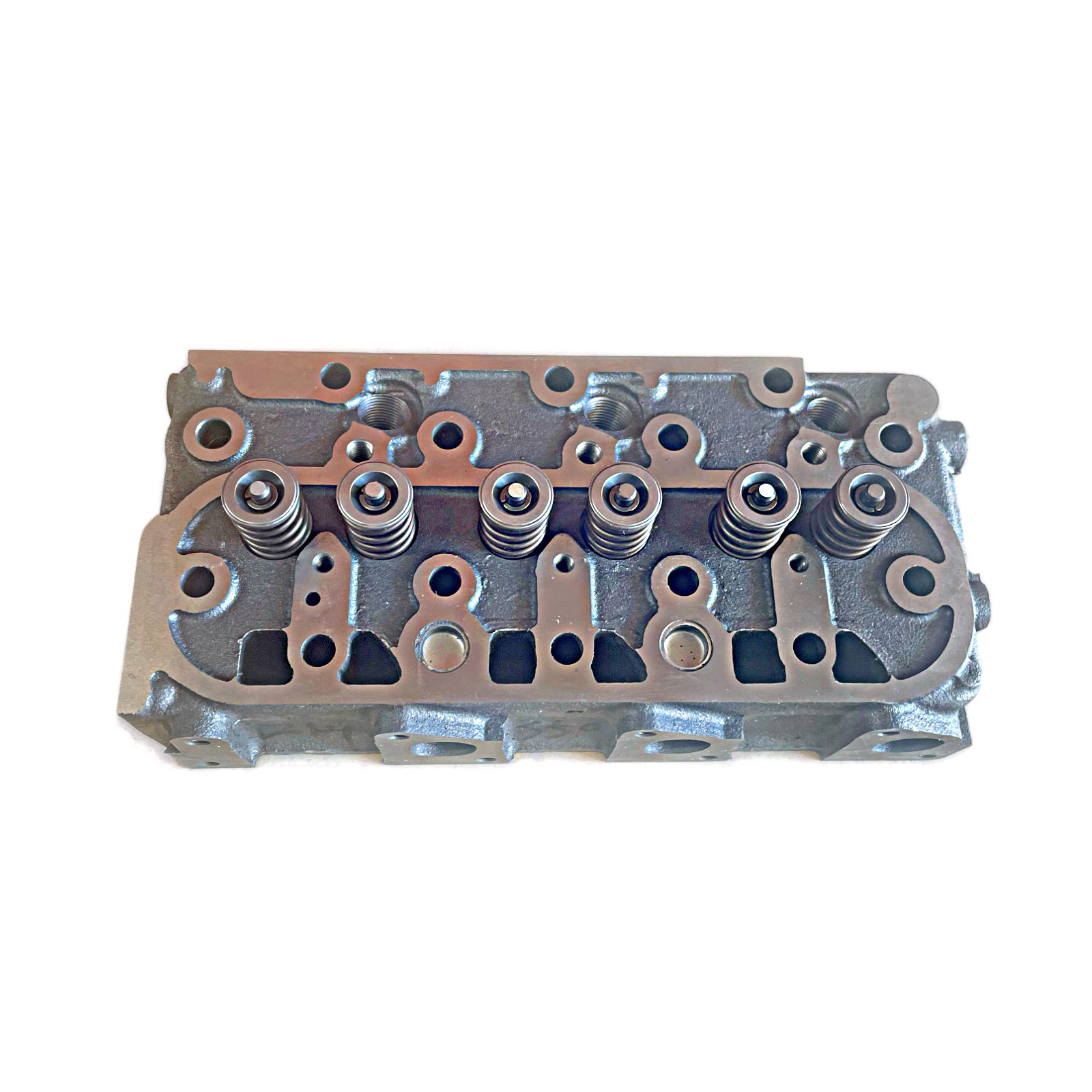

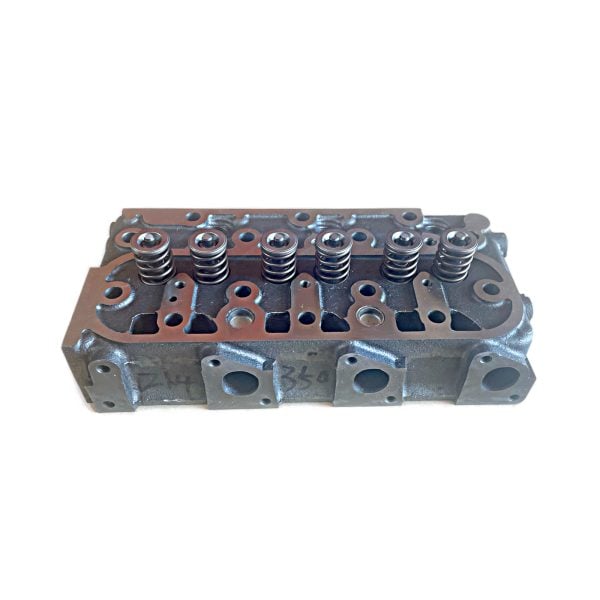

Complete cylinder head Kubota D905 | 3D72 | D905E | D905B

Description

Technical specifications:

• Bore: 72 mm
• Injection: Indirect injection (IDI)

Option 1. Complete cylinder head with valves and springs – ready for installation

This new cylinder head is manufactured from high-quality material and supplied complete, including pre-assembled valves and springs. Thanks to the complete assembly, no parts need to be transferred or adjusted.

✅ Fully assembled

✅ Including valves and springs

✅ No extra adjustment work required

✅ Directly ready for installation

A ready-to-use solution that saves time in the workshop and minimizes the risk of installation errors.

This cylinder head has been carefully matched to the compatible models below.

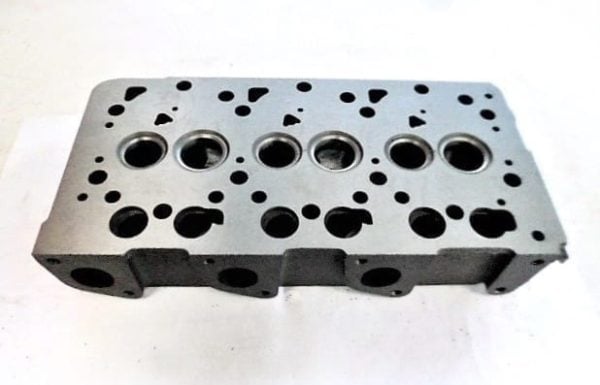

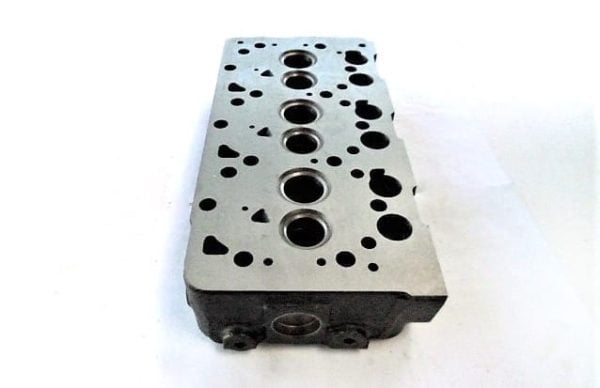

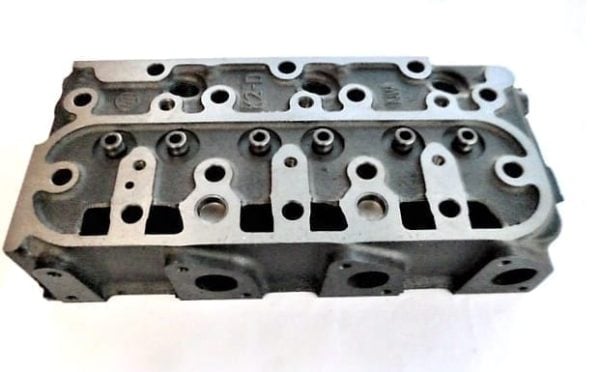

Option 2. Bare cylinder head – with pre-assembled valve seats

This cylinder head is produced from high-quality material and supplied as a bare cylinder head with valve seats already installed. The head is thus prepared for further build-up with your existing or new components.

✅ Top-quality new cylinder head

✅ Valve seats already installed

✅ Ready for further assembly

✅ Suitable for overhaul or custom application

Ideal for those who want to maintain control over the final assembly or reuse specific parts.

The cylinder head is suitable for the following models:

Kubota Engine

• D905, 3D72, D905E, D905B
• D905-E2B/E2BG

Kubota

• A15, A155
• B20, B72, B1700, B1710, B1830
• BX22, BX23, BX2200
• GB15, GB16, GB150, GB155, GB160
• F2100
• B1700D, B1700HSD, B1710D, BX2200

Genie

• Z-34/22 IC (100 -> 1186), Z-34/22 IC (1187 -> 3241), Z-34/22 IC (3242 -> 3334), Z-34/22 IC (3335 -> 4799), Z-34/22 IC (Z3406-4800 ->)
• GS-2668 RT (Tier 2, 43886 – 44770) (-2007), GS-2668 RT (101 – 41999) (-2007), GS-2668 RT (42000 – 43885) (-2007), GS-3268 RT (Tier 2, 43886 – 44770) (-2007), GS-3268 RT (Tier 2, 44771 -) (2008 and later), GS-3268 RT (101 – 41999) (-2007), GS-3268 RT (42000 – 43885) (-2007)
• AL-4000D1 (FKF-13923 ->), RL-4000D1 (FOF-15979 ->)

Giant

• D241S

JCB

• 1T-HT

JLG

• 260MRT

Schäffer

• 2022

Snorkel/Upright

• AB-46 I/C (Kubota D905 S/N 1000 ->), AB46E I/C (Kubota D905E), BOOM 46 (Kubota D905)
• SL26RT (Kubota D905), SL30RT (Kubota D905), X27RT (Kubota D905, S/N 10131 ->), X33RT (Kubota D905, S/N 10131 ->), X40RT (Kubota D905), X40RT (Kubota D905)

Hinomoto

• CX19, NX18

Steiner

• 525

OEM for reference

• 16020-03040
