Alternator Yanmar 4TNV98 | Komatsu WB93R-2 | WB97R-2 | WB140-2 | WB150-2 | Takeuchi TB175 | 12V 80A

Description

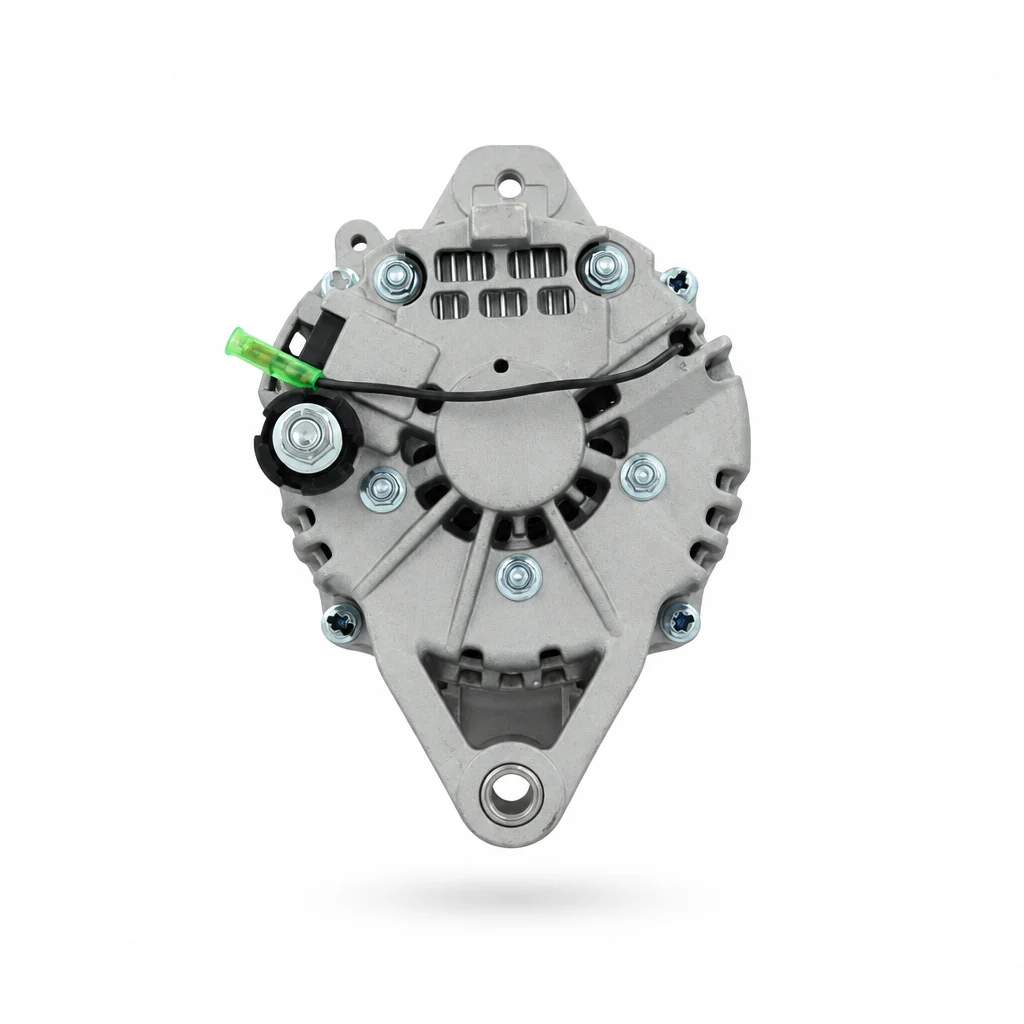

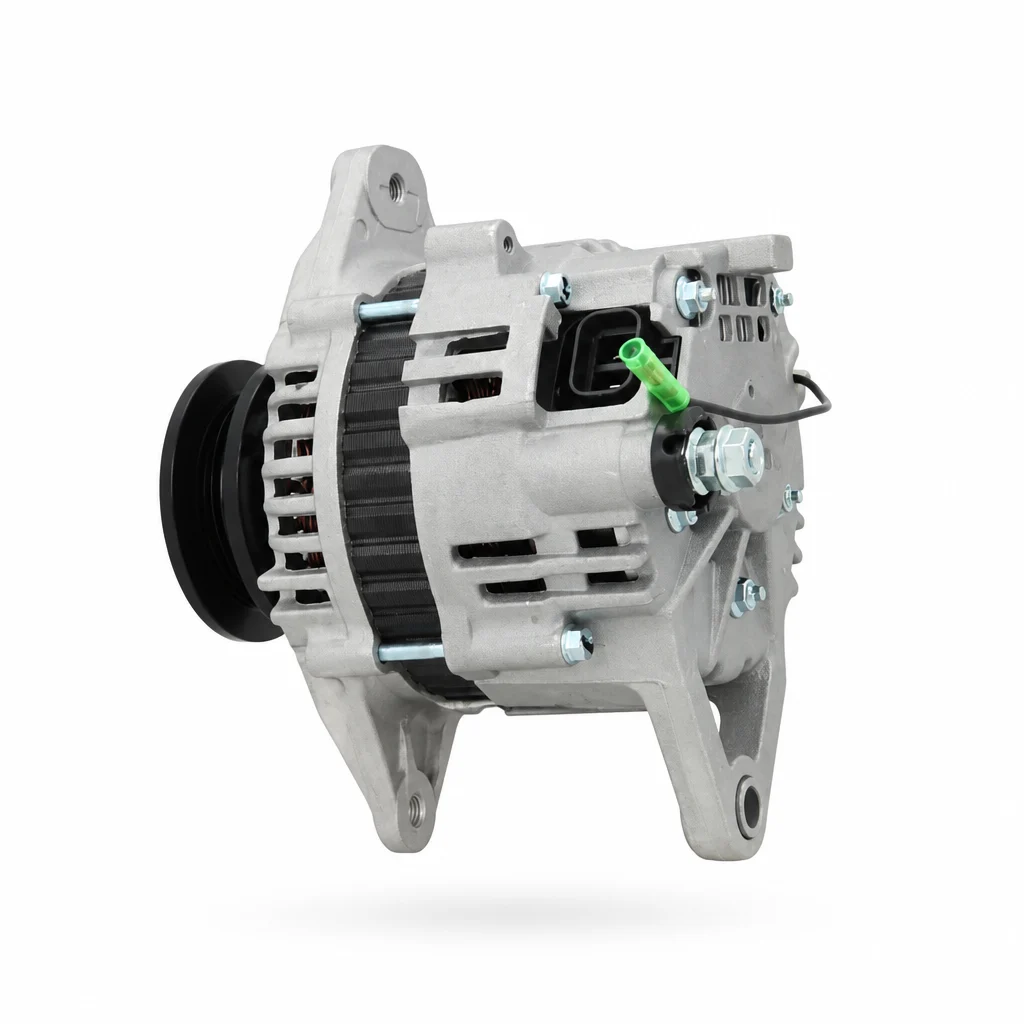

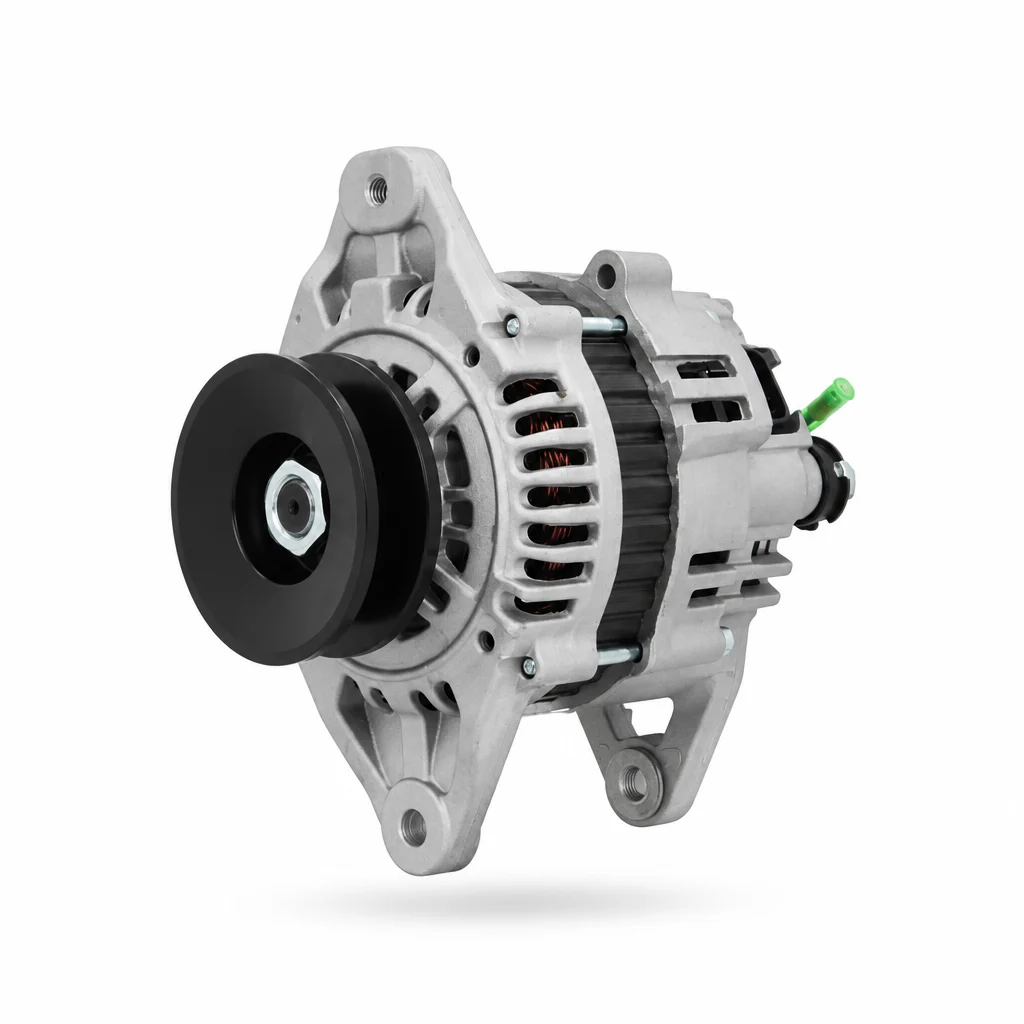

New alternator 12V 80A for the Yanmar 4TNV98 and 4TNV98T and the Komatsu S4D106 engine, as fitted in the Komatsu WB91R-2 through WB150-2 backhoe loaders, the Komatsu WA90-3, WA95-3, PC80MR-3 and PW110R-1, and the Takeuchi TB175. A direct 1-to-1 replacement for the original Hitachi LR180-763 (Yanmar 123910-77210): same pulley, same mounting, and same plug.

✔️ Exact OEM fit: pulley approx. Ø 82 mm with 1 groove, 3 mounting holes, position 0°
✔️ 80 amperes with built-in voltage regulator and L / S plug, identical to Hitachi LR180-763
✔️ Supplied brand new without requiring trade-in of your old alternator

Technical specifications

• Voltage: 12 Volt (charging voltage 14 V)
• Current: 80 A
• Pulley: approx. Ø 82 mm (81.5 mm), 1 groove (V-belt), without freewheel
• Connections: B+ and plug with L (lamp) and S (sense)
• Voltage regulator: built-in
• Number of mounting holes: 3
• Position: 0°
• Direction of rotation: clockwise (CW)
• Weight: approx. 4.7 kg
• Condition: new

Suitable for these engines

Yanmar

• 4TNV98, 4TNV98T (including 4TNV98-ZQTB)

Komatsu

• S4D106, S4D106-1FA, S4D106-2SFA, S4D106-2FSA, SD1061FA, 4D106E-1, S4D106E-1

Machines with this alternator

Komatsu backhoe loaders

• WB91R-2C, WB91R-2D, WB93R-2, WB97R-2, WB97S-2
• WB140-2, WB140-2N, WB140PS-2, WB140PS-2N
• WB150-2, WB150-2N, WB150AWS-2, WB150PS-2, WB150PS-2N, WB150WSC-2

Komatsu wheel loaders, mini excavators, and wheeled excavators

• WA90-3, WA95-3
• PC80MR-3
• PW110R-1

Takeuchi

• TB175

Please note:

Yanmar uses more than one 80A alternator on the 4TNV98 engine. Check the number on the nameplate of your old alternator:

• Bosch version 80A (Bosch F000BL0118, Yanmar 129908-77200): the newer Yanmar 4TNV98C and 4TNV98CT (common rail), as found in the ViO80-1 and SV100-2, have a more compact 80A alternator with a black plastic end cover, a 72 mm pulley, and a plug with only L. Not interchangeable with this alternator. You can find that one here: alternator Yanmar 4TNV98C ViO80-1 SV100-2 80A.
• 40A version: some Yanmar 4TNV88 and 4TNV98 engines are fitted with a lighter 40A Denso alternator (Yanmar 129423-77210). Does your nameplate state 40 A? You can find that one here: alternator Yanmar 3TNV70 – 3TNV88 | Komatsu 40A.
• Pulley: compare the pulley with your old alternator. This version has a large pulley of approx. 82 mm with 1 groove.

OEM for reference:

Yanmar / Komatsu

• 123910-77210, 12391077210, YM123910-77210
• 129612-77290, 12961277290

Hitachi

• LR180-763, LR180763, HAL180763, LR180-772, LR180772, 136162, 2506162

Other brands

• WAI 13629N
• AS-PL A2134S
• HC-Cargo 114262, F032114262
• Lucas LRA04047, LRA4047, LEA1253
• Delco Remy DRA1692, DA2802
• Wilson 90-25-1217, Wood Auto ALT32096, HITLR180763, ATK AYA104
• Casco CAL20157GS, Sando 2020157.1, Dixie A-80454, Meat & Doria 5520926, 3Effe ALTL539, Elstock 28-7656, Logistik 447051, Sidat A12HT0450A2
