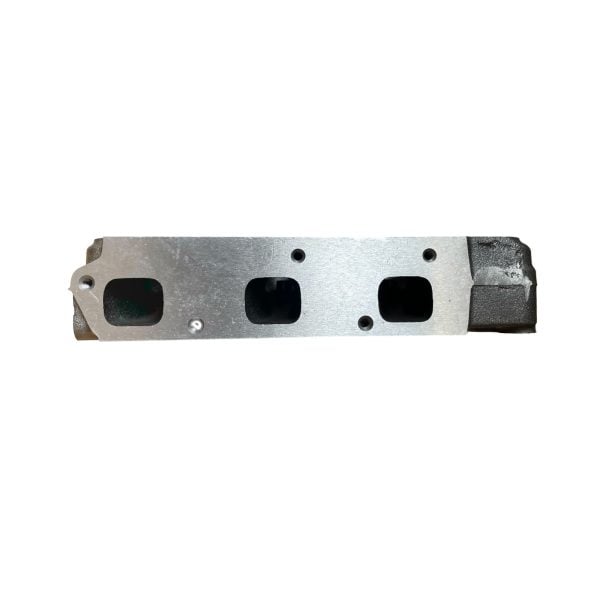

Cylinder Head Complete Kubota D722 | D782 | Kubota B1820 | KX015 – KX016-4

Description

New Cylinder Head for Kubota D722 | D782 Engine

✅ This cylinder head is a newly manufactured part, made from high-quality material.

✅ The complete cylinder head is fully assembled with valves and ready for immediate installation.

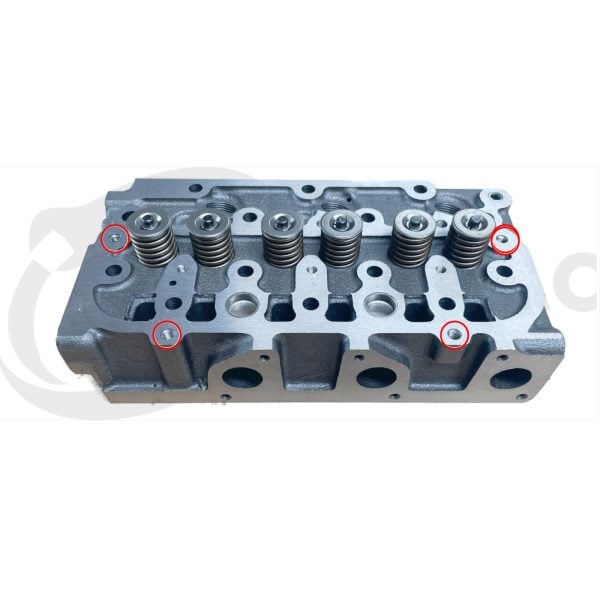

• This cylinder head is suitable for the newer Kubota D722 models. Please note: 2 extra holes on the underside are additional, if they are missing on the current cylinder head, it can still be 100% applied. So, if two holes are missing on the underside of the old cylinder head, it has no consequence.
• The old D722 model can be found via the search bar using the term: “SKU-990010-1-1”

The following models have been carefully selected and found to be compatible with this cylinder head:

Kubota

Compact tractors ride-on mowers

• B1820, B1820D, B1820 DS, B7410, B7410D
• G2160, G21HD, GR2110, GR2120, GZD21
• ZD18, ZD21F, ZD1011, ZD221, ZD321, ZG332P

Mini excavators crawler excavators

• KX015-4, KX016-4, KX018-4, KX36-3, KX41-3, U15, U17

Other models

• JB14-PC, JB15X-PC

Hanix

• H16D, H17D

Kubota Engines

• D722 (the newer models, see the image for verification)
• D782, D782-BH, D782-EKBH

OEM for reference

• 1G008-03040, 1G008-0304-0, 1G00803040
• 1E051-03040, 1E051-0304-0, 1E05103040
