Filter Set Mitsubishi GS16-GS25 & GS160-GS250 – S3L / S3L2 engine

Description

Complete maintenance set for the Mitsubishi GS series compact tractors with the Mitsubishi S3L or S3L2 three-cylinder diesel engine. This set fits two GS generations: the GS16-GS25 (production years ~2003-2005, 8+8 transmission) and its successor GS160-GS250 (~2006-2012). Both share the same S3L/S3L2 engine and therefore exactly the same filters. The set includes the three filters you need for a complete routine maintenance service: oil filter, fuel filter, and air filter. Carefully compiled based on the original part numbers from the factory manual, ensuring a 1-to-1 exact fit.

• Complete for one maintenance service, oil filter, fuel filter, and air filter in a single order
• Exact OEM fit, based on original Mitsubishi part numbers from the GS manual
• Suitable for both GS series (GS16-GS25 and GS160-GS250) with S3L/S3L2 engine
• Premium quality filters from European suppliers, tested to manufacturer specifications

Technical data:

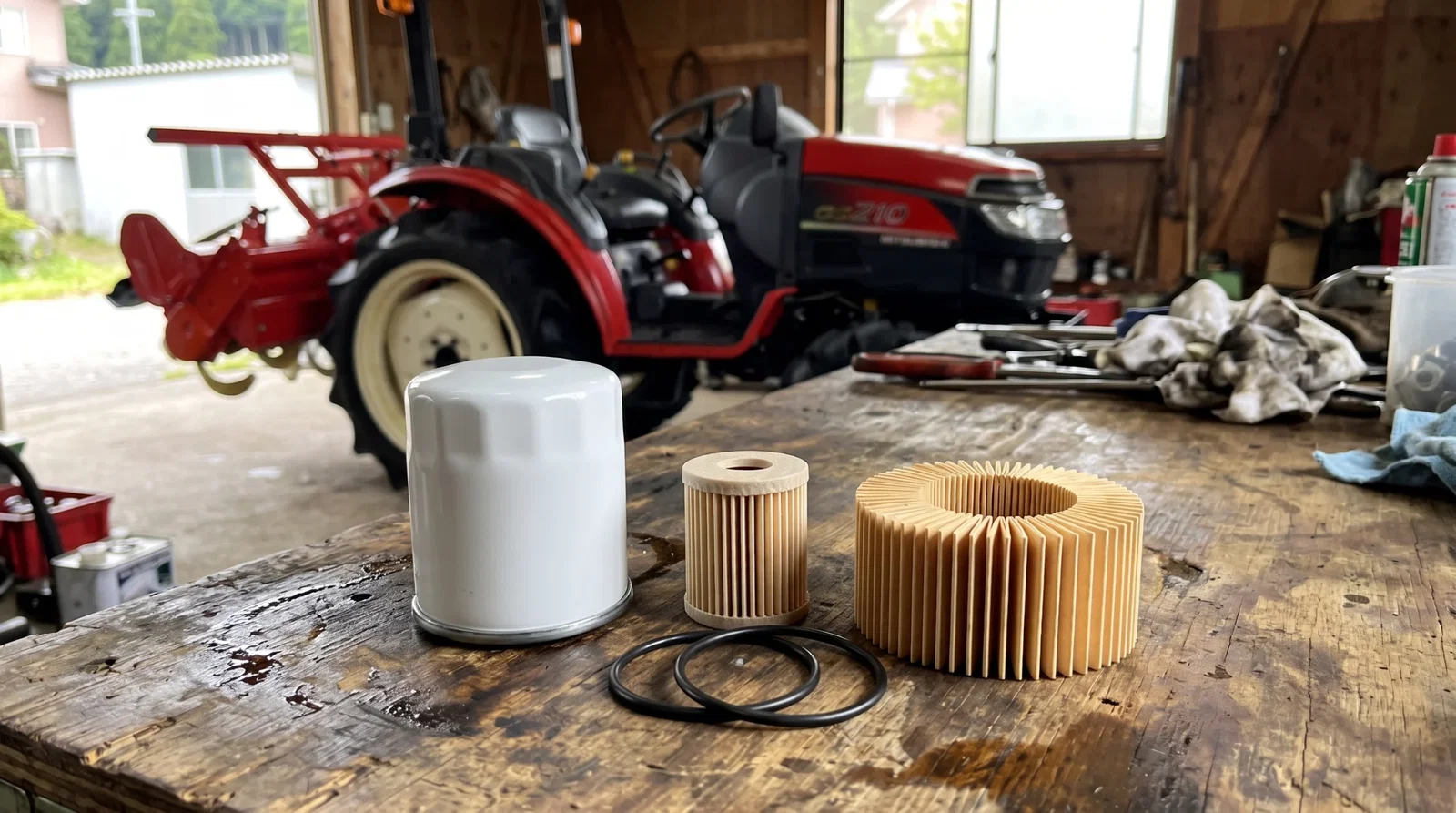

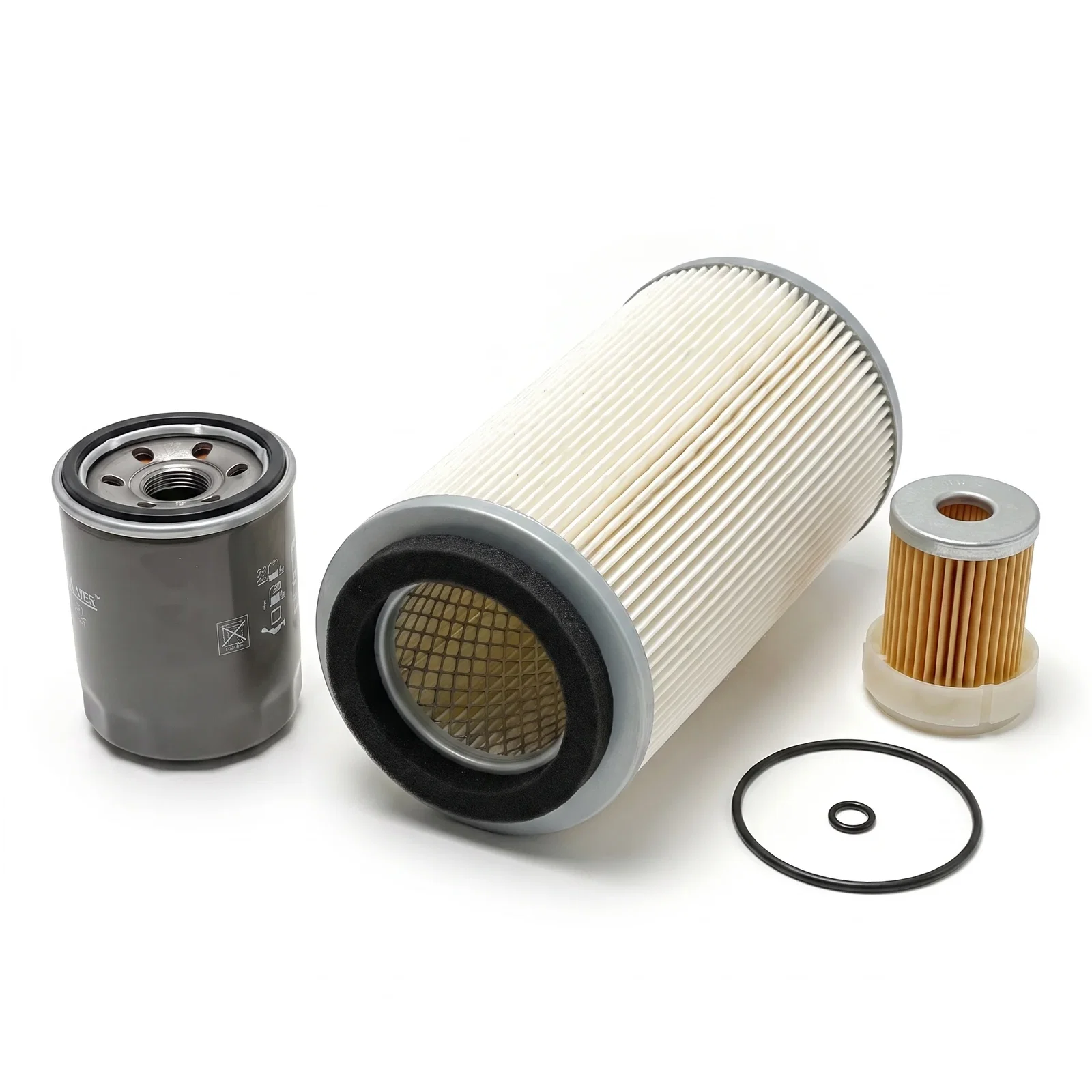

This set consists of:

Air filter

• Outer diameter: 83 mm
• Inner diameter: 45 mm
• Length: 166 mm

Fuel filter (incl. large and small O-ring)

• Outer diameter: 45 mm
• Height: 54 mm

Oil filter (spin-on)

• Thread: M20x1.5
• Height: 87 mm
• Outer diameter: 67.5 mm

Maintenance intervals according to the manual: oil filter every 100 hours (first time 50 hours), fuel filter element every 200 hours, air filter check/clean every 100 hours and replace if damaged.

Suitable for:

Mitsubishi GS16-GS25 (2003-2005, 8+8 transmission)

• GS16, GS18, GS20 (S3L, 16/18/20 hp)
• GS21, GS21S (S3L2, 21 hp)
• GS23, GS25, GS25S (S3L2, 23/25 hp)

Mitsubishi GS160-GS250 (successor, 2006-2012)

• GS160, GS160S (S3L, 16 hp)
• GS180, GS200 (S3L, 18/20 hp)
• GS210, GS210S, GS210W (S3L2, 21 hp)
• GS230, GS250, GS250S (S3L2, 23/25 hp)
• Includes PAC, JAC, and MAC versions (GS160J/M, GS210W(J/M) etc.)

Note on name confusion: the type plate of both series shows designations such as 三菱GS16, GS18, GS20, GS21, GS21S, GS23, GS25, GS25S. The GS16-GS25 is the older series with an 8+8 transmission; the GS160-GS250 is the successor with a 12+12 transmission. Unsure about your model? Compare production year, number of gears, and the type plate.

Mitsubishi engine

• S3L (1,125 cc): S3L-16A, S3L-17A, S3L-18A (GS16-GS20) · S3L-19A, S3L-20A, S3L-21A (GS160-GS200)
• S3L2 (1,318 cc): S3L2-14A, S3L2-15A, S3L2-16A (GS21-GS25) · S3L2-17A, S3L2-18A, S3L2-19A (GS210-GS250)

OEM for reference:

• Engine oil filter: 31A40-02100, 31A4002100, 30A4000100
• Fuel filter element: 31A62-00317, 31A6200317
• Fuel filter complete (assy): 31A62-00300
• Fuel filter O-rings (large / small): 31A62-00318 / 31A62-00319
• Air filter element (Mitsubishi agri): 3546-0501-800
• Air filter (alternative refs): 67980-5820, 67980-8263-0
• Fuel filter (Kubota ref): 6A320-59930

Tip: replace all three filters simultaneously during each service; a clogged fuel or air filter reduces power and increases fuel consumption. On the Mitsubishi S3L/S3L2, glow plugs are a common maintenance item, be sure to check them during the service as well. Want to know more about maintenance? Check our knowledge bases for the Mitsubishi GS16-GS25 and the Mitsubishi GS160-GS250.
