Filter Kit TYM T194 | T224 | T254 – Yanmar 3TNV70 / 3TNV74 engine
- Ordered before 4:00 PM, delivered on Friday
- Up to 2 years warranty
- Exchange possible within 14 days
Shop4Trac assurances
- We deliver to Netherlands in as little as 1 business day
- Customer review 8,9/10
-
Pay securely with among others:
Shipping costs
Based on 0,7 kgDescription
Complete maintenance kit for Korean TYM sub-compact tractors with the Yanmar 3TNV70/74 three-cylinder diesel engine. This filter kit contains the three filters you need for a complete routine service: oil filter, fuel filter, and air filter. We have carefully assembled this kit based on original TYM part numbers, ensuring a perfect 1-to-1 fit.
✔️ Complete for one maintenance service — oil filter, fuel filter, and air filter in a single order
✔️ Exact OEM fit — based on original Yanmar and TYM part numbers
✔️ Premium quality filters from European suppliers — tested to manufacturer specifications

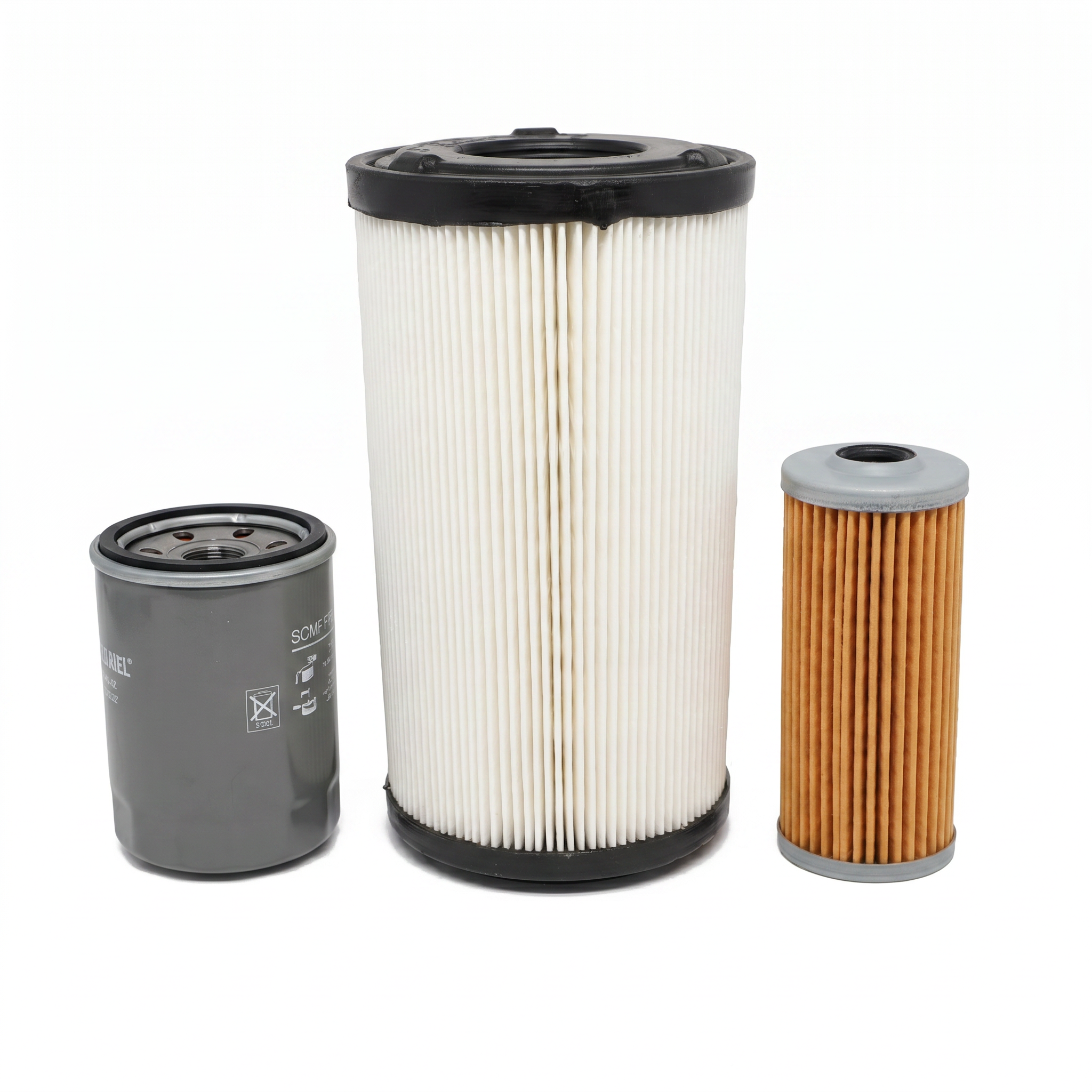

Kit contents:
Oil filter
- Thread: M20×1.5
- Diameter: 66 mm
- OEM: 119305-35170 / 119305-35150 / 119305-35151
Fuel filter
- Outer diameter: 35 mm
- Inner diameter: 11.2 mm
- Length: 90 mm
- OEM: 119810-55650 / 129053-55670 / 124550-55700
Air filter
- Outer diameter: 90 mm
- Height: 186 mm
- OEM: 119655-12560 / 11201032020 (TYM)
Suitable for:
TYM
- T194, T194H
- T224, T224H, T225
- T254, T254H
Yanmar engine
- 3TNV70, 3TNV70-NBK, 3TNV70-VBVA2
- 3TNV74F
- 3TNE74, 3TNE78A
OEM for reference:
- 119305-35170, 119305-35150, 119305-35151 – Oil filter
- 119810-55650, 11981055650 – Fuel filter
- 129053-55670, 12905355670 – Fuel filter (alternative reference)
- 124550-55700, 12455055700 – Fuel filter
- 119655-12560 – Air filter
- 11201032020 – Air filter (TYM)
Tip: during every service interval, it is wise to replace all three filters at the same time. A clogged fuel or air filter causes a loss of power and higher fuel consumption — and old oil filters let contaminants through to the engine. Don't forget to change the engine oil when replacing the oil filter!
Also changing the transmission and hydraulic oil? During a major service, also change the transmission and hydraulic oil. For this, use our GL-4 transmission oil in a 10-liter container. Prefer everything all at once? Check out the complete maintenance kit for the TYM T194, T224, and T254.
