Complete filter kit Captain Startrac 263 | Mitsubishi S3L2 | air, oil, fuel and hydraulic filter

Description

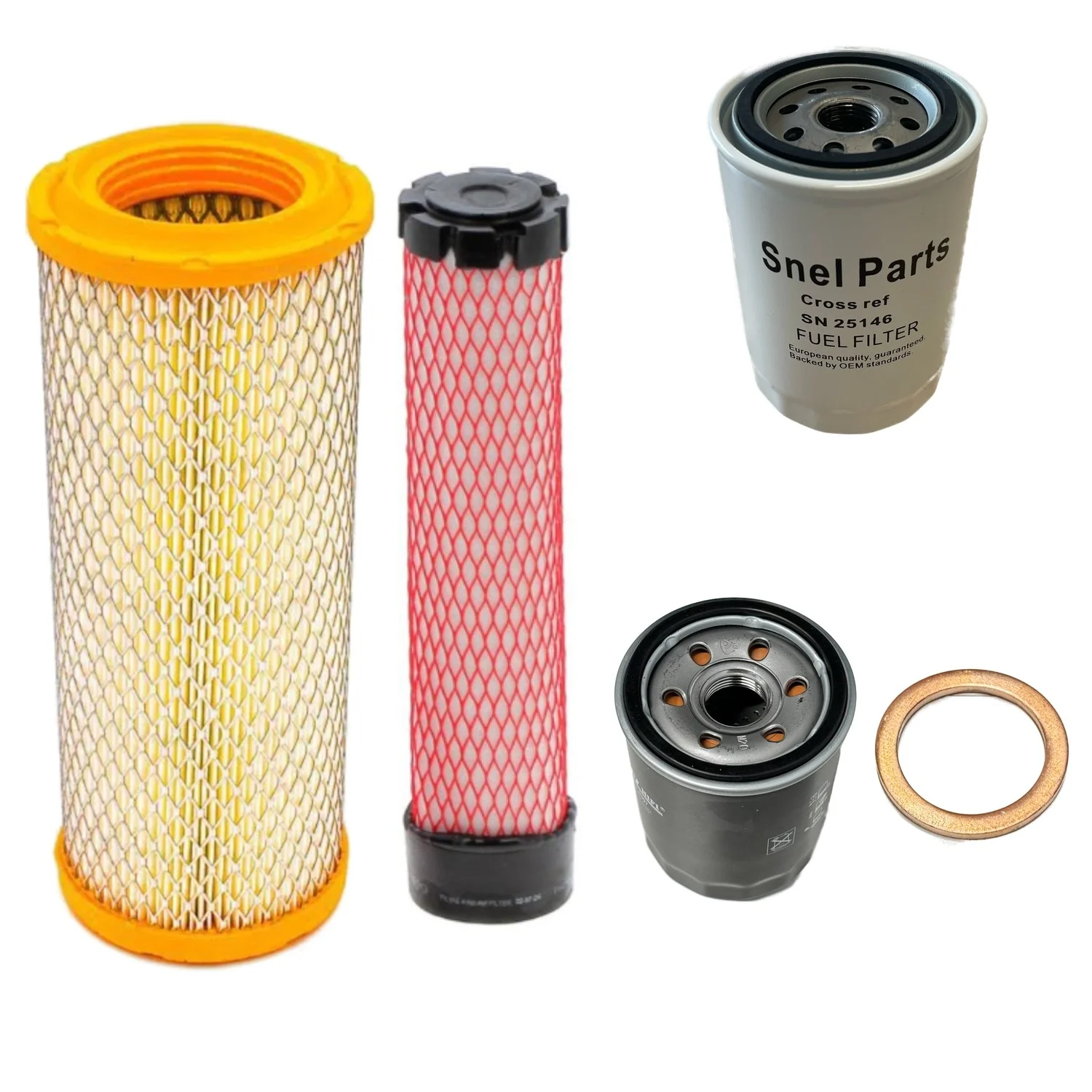

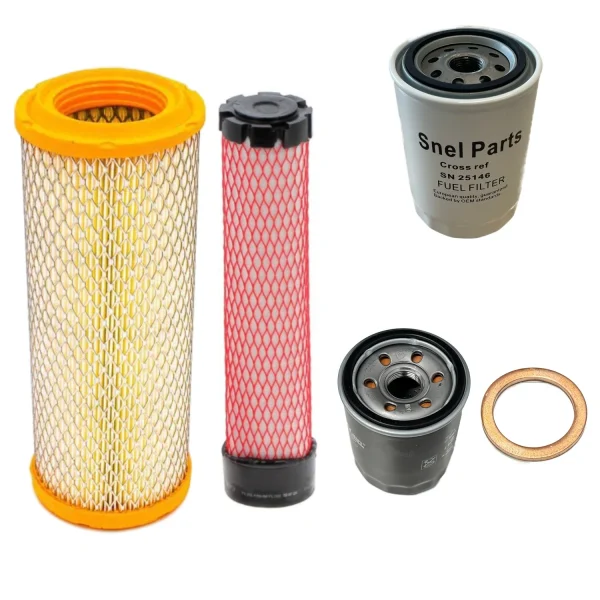

Complete filter kit for the Captain Startrac 263 with Mitsubishi S3L2 engine (MVS3L2J-ZB62CT). With this kit you replace all filters at once during major maintenance: the outer and inner air filter, engine oil filter, fuel filter, pre-fuel filter, and hydraulic filter. The copper sealing ring for the oil drain plug is also included.

• Six filters and the copper drain plug ring in one kit
• Includes the hydraulic filter for the Startrac 263 (OEM 11405481)
• More cost-effective than ordering the parts individually

Technical specifications:

This kit consists of:

Air filter (outer element)

• Outer diameter: 105 mm
• Inner diameter: 62 mm
• Length: 270 mm

Air filter (inner element)

• Outer diameter: 60 mm
• Inner diameter: 41 mm
• Length: 265 mm

Pre-fuel filter

• Outer diameter: 49 mm
• Length: 102 mm

Fuel filter

• Outer diameter: 83 mm
• Height: 105 mm
• Gasket diameter: 63 mm
• Thread: 3/4"-16 UNF

Oil filter

• Thread: M20x1.5
• Height: 87 mm
• Outer diameter: 67.5 mm

Hydraulic filter

• Height: 175 mm
• Thread: 1-3/8"-12 UNF
• Outer diameter: 94 mm
• Gasket: inner 76 mm, outer 86 mm

Copper drain plug ring

• Inner diameter: 14 mm
• Outer diameter: 20 mm
• Thickness: 1.5 mm

Please note: the hydraulic filter for the Startrac 263 and the Startrac 273 is different. For the Startrac 273 we have a separate complete filter kit.

Replace the drain plug ring at every oil change. An old ring is often the cause of oil leakage at the drain plug.

Suitable for:

Captain Tractors

• Startrac 263

Engine: Mitsubishi S3L2 (MVS3L2J-ZB62CT).

OEM for reference:

• Air filter: YM119808-12520, YA119808-12520, 129619-12520
• Inner air filter: TA040-9322-0, TA040-93220, MT40049447
• Engine oil filter: 30N4000200, 30N4000201, 30A4000103
• Fuel filter: 30N6210700
• Hydraulic filter: 11405481
• Drain plug ring: MD000312

Also changing transmission and hydraulic oil? Also change the transmission and hydraulic oil during major maintenance. For this, use our transmission oil GL-4.
