Injector Nozzle Toyota | DN4SDND90

Description

Technical specifications:

• Type: Throttle Type (SDND)
• Engine code: Toyota L (2.2 Liter Diesel)
• Application: Toyota Commercial Vehicles & Pick-ups (1980s)
• Opening pressure: approx. 105 – 115 Bar (Check factory specifications)
• Injection: Indirect Injection (IDI)
• Injector type: Pintle nozzle
• Spray angle: 4°

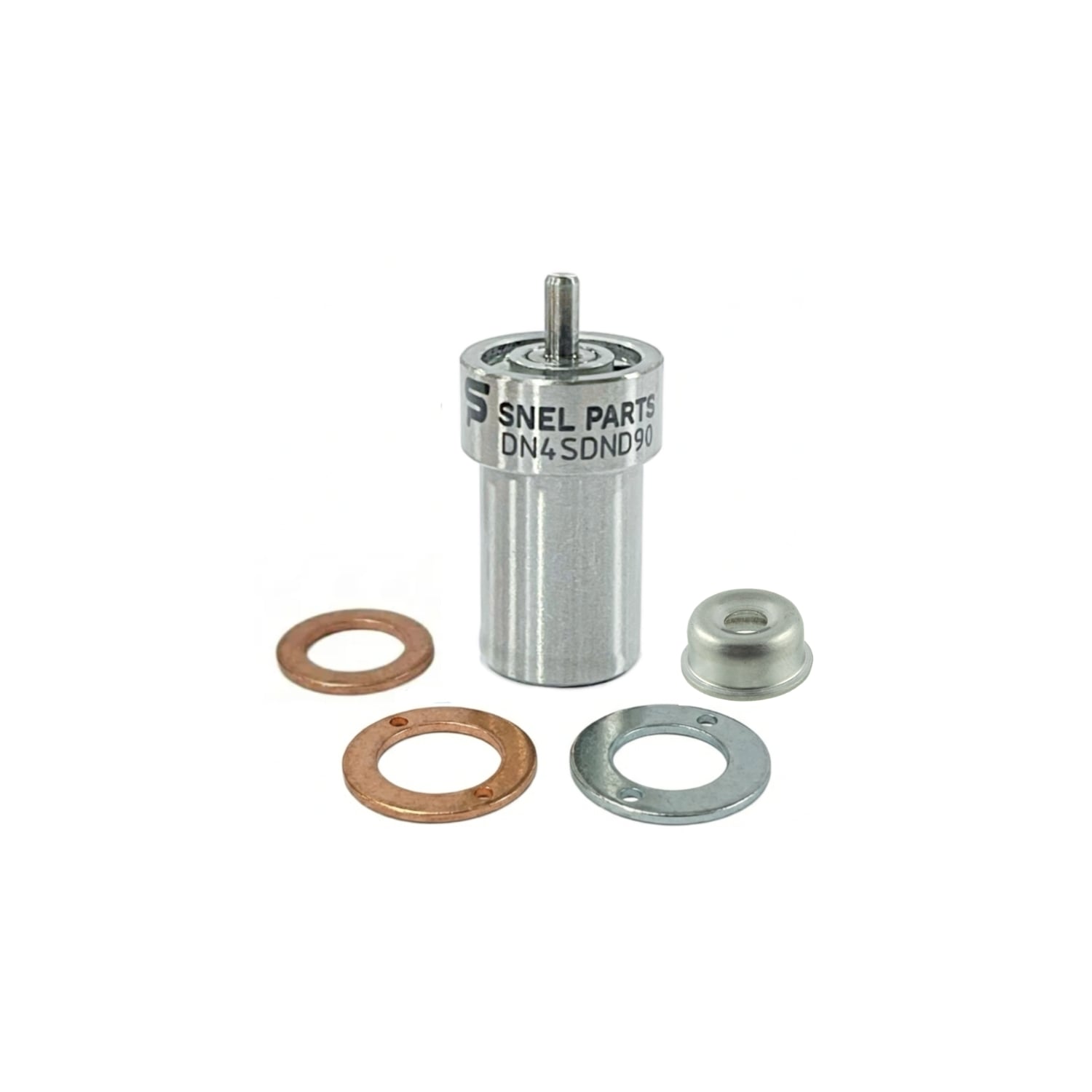

Exclusive from our own production line: a high-quality injector nozzle, specifically developed for classic Toyota diesel engines. This ‘Snelparts‘ injector tip meets the exact Denso specifications for the L-series engines.

We guarantee a perfect spray pattern and an exact seal, essential for maintaining power in these legendary Toyota workhorses.

Advice from experience: Always replace the heat shields and return washers on these engines. A worn nozzle in an L-engine can lead to severe piston damage and power loss.

• A new heat shield (fire ring) against extreme heat and soot buildup.
• A copper seal for the injector for 100% compression retention.
• A return line seal to prevent fuel leakage.

suitable for the models below:

toyota

• Blizzard (LD10)

• Chaser (LX40, LX60)

• Cressida (LX30, LX60, LX70)

• Crown (LS110, LS120)

• Dyna (LH80, LY20, LY30, LY50, LY60)

• Hiace (LH11, LH20, LH30, LH50, LH60, LH70)

• Hilux (LN30, LN36, LN40, LN46, LN50, LN55, LN60, LN65)

• Land Cruiser (LJ70, LJ73 – Please note: Atmospheric 2.2 L engine only!)

• Toyoace (LY20, LY30)

OEM for reference:

• Toyota: 23620-54020, 23620-59015. Denso: 093400-0900. Zexel: 105000-1930. Bosch: 9 432 610 031. Nozzle: DN4SDND90 (ND-DN4SDND90).
