Head gasket Yanmar 3TNE84 – John Deere 790 | 4300 | Kobelco SK030 | Takeuchi TB035 | Komatsu PC30

Description

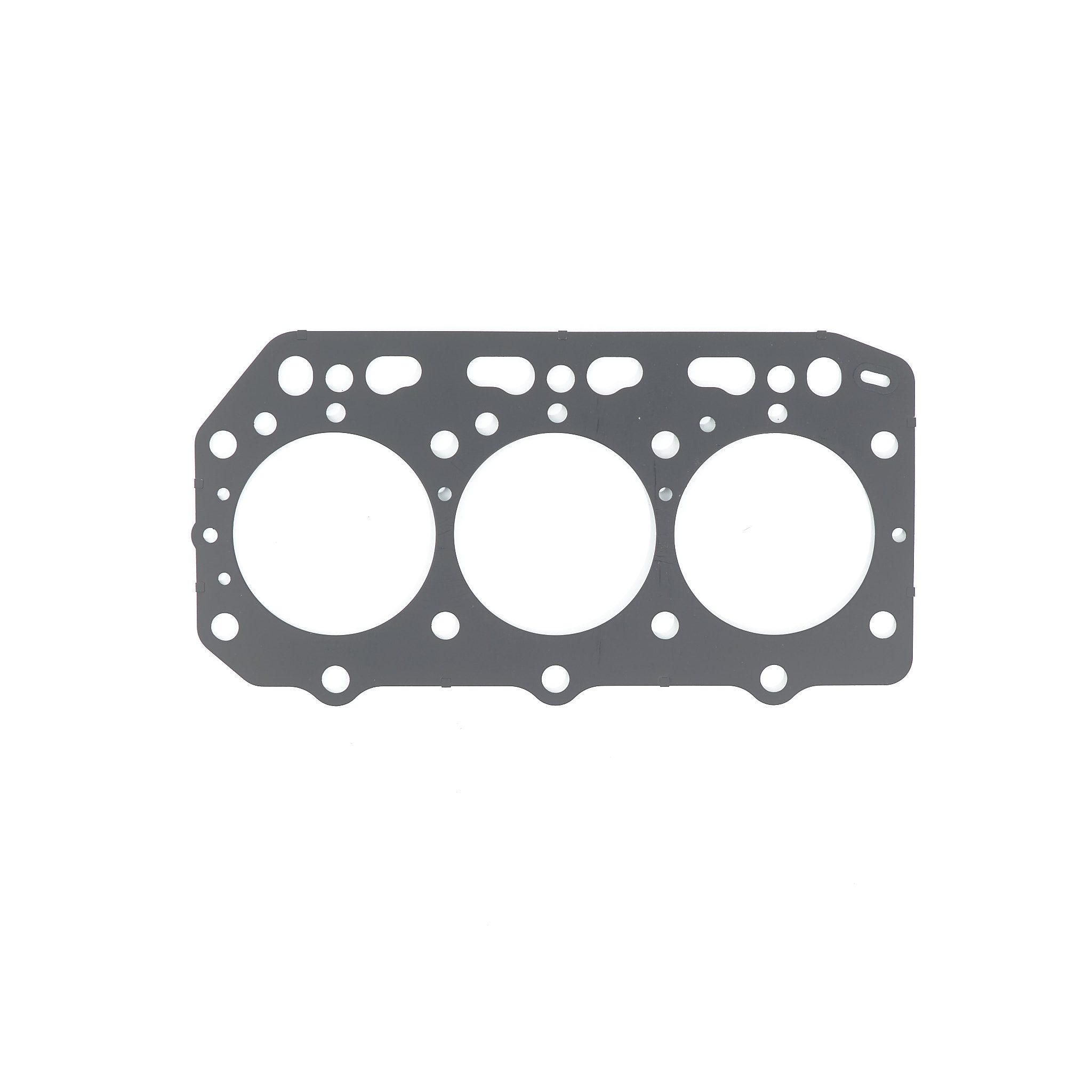

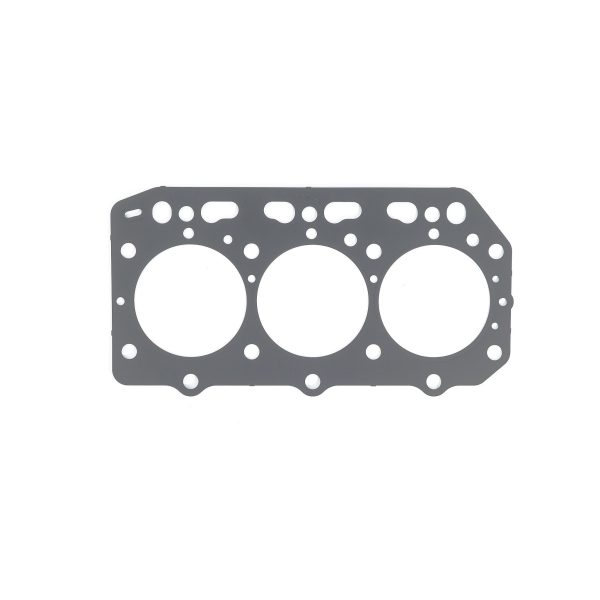

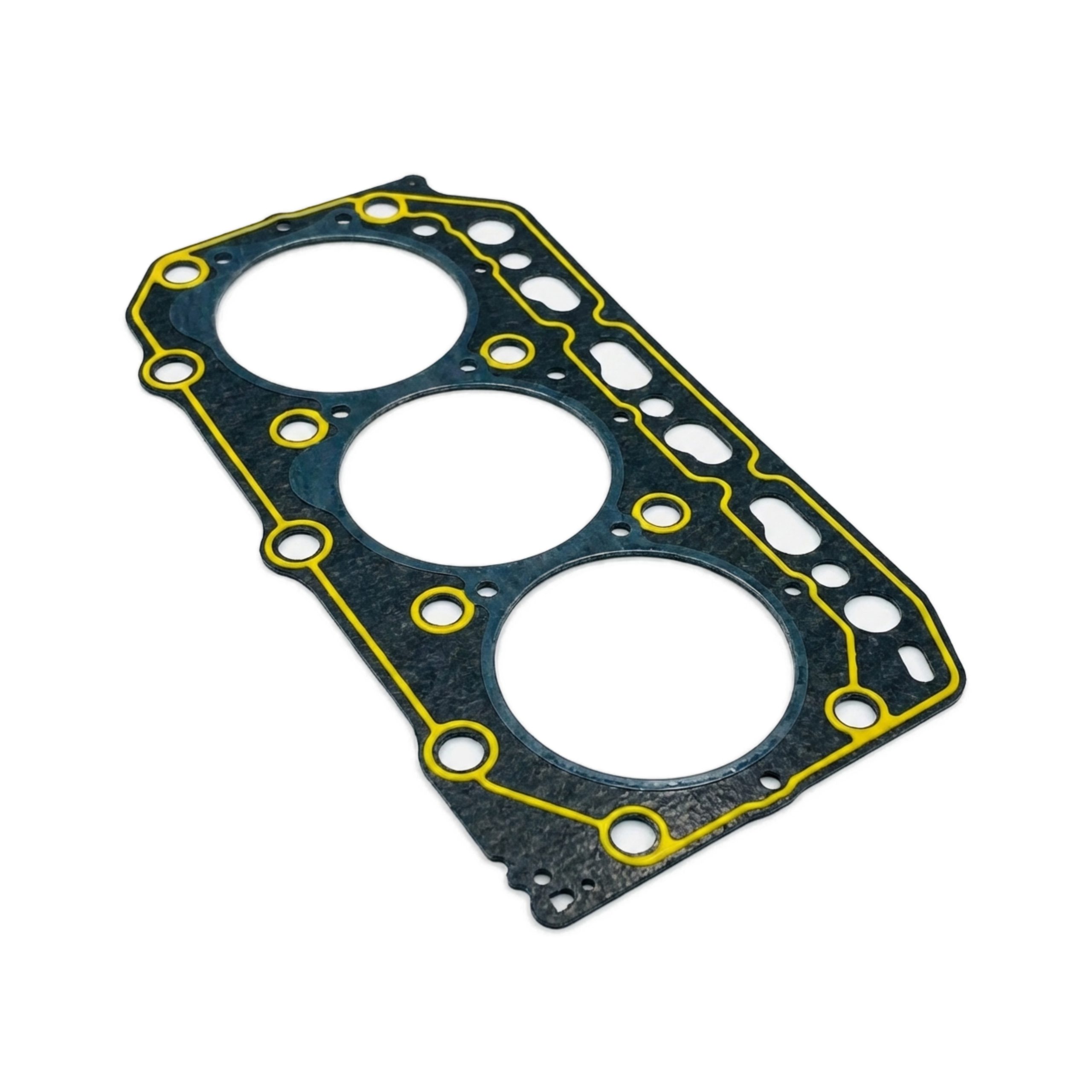

Head gasket suitable for Yanmar 3TNE84 and Komatsu 3D84E three-cylinder diesel engines. This head gasket is available in two versions — choose the correct version when ordering:

✔️ Metal version — Multi-layer steel head gasket (MLS). Robust and durable, ideal for heavier loads.
✔️ Graphite version — Composite head gasket with graphite layer. Flexible and sealing well, suitable for standard use.
✔️ Exact OEM fit — 1-to-1 replacement of the original

Please note when ordering:

Check which type of head gasket is currently in your engine before ordering. The metal and graphite versions are not interchangeable without adjusting the torque. Are you in doubt? Contact us — we are happy to help.

Technical specifications

• Bore: 84 mm
• Diameter: 85 mm
• Thickness: 1.2 mm
• Dimensions: 380 x 190 mm

Suitable for:

John Deere

• 790, 4300, 4310, 3235, 3235A, 3235B, 3225B, 4475

Yanmar

• AF326, AF328, AF330, AF333
• Yanmar Marine: 3JH3CE, 3JH3E

Kobelco

• SK027, SK030-2, SK032

Takeuchi

• TB030, TB035

Komatsu

• PC20-6, PC25-1, PC30-6, PC30-7, PC30MR-1, PC30UU, PC30UU-3, PC35R-8, PC38UU-1, PC38UU-2
• WA30-2, WA40-3, WA50-3
• SK05J-2, SK07-2

Engine

• Yanmar: 3TNE84, 3TNE84T, 3TNV84, 3TNV84T
• Komatsu: 3D84E, 3D84N, S3D84E, 3D84E-3B, S3D84E-3B, 3D84E-1FB, 3D84E-2FB, 3D84E-3A, 3D84E-3F, 3D84E-3K, 3D84E-3LN, 3D84E-FX-AB, 3D84E-5X-AB, 3D84N-2AA, S3D84E-3C, S3D84E-3A

OEM for reference:

• 129002-01331 (YM129002-01331) – Graphite version
• 12900201331
