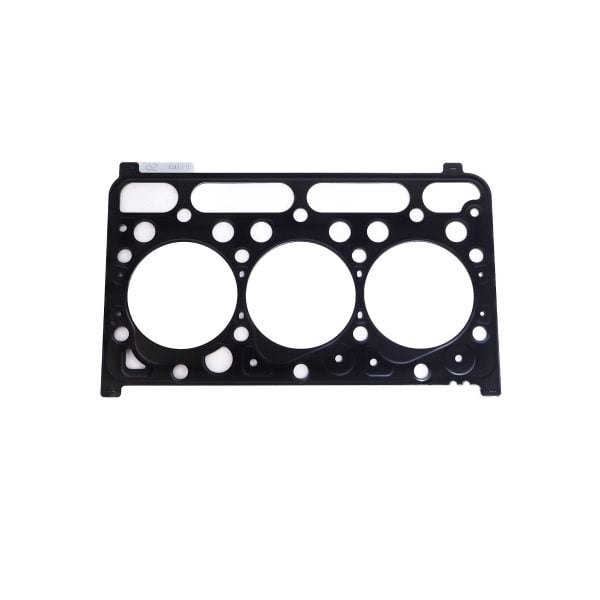

Head Gasket Kubota D1703 M-DI | Kubota D1803 M-DI

Description

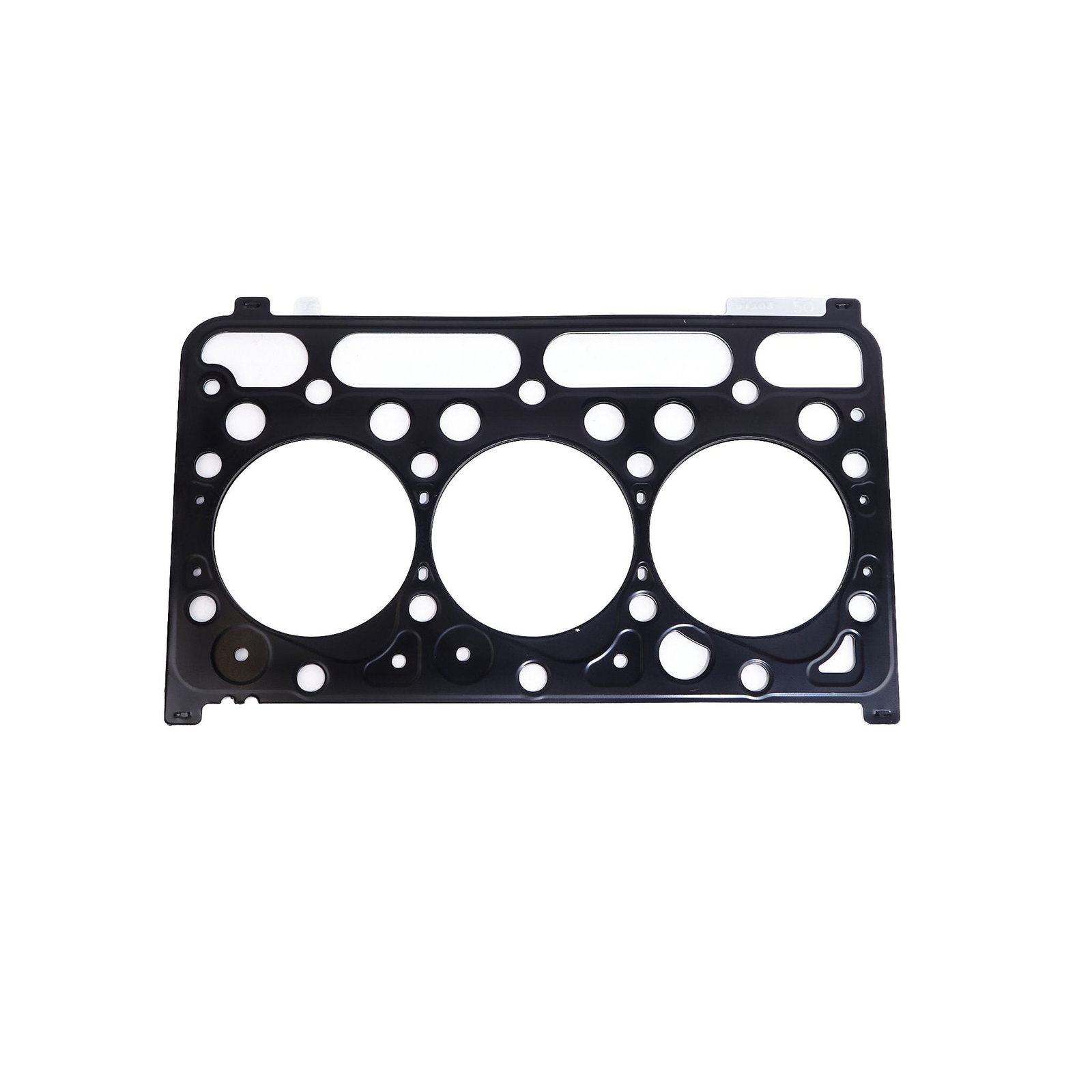

Head gasket for the Kubota D1703 M-DI and D1803 M-DI direct injection engines (bore 87 mm). Available in two versions: Metal and Graphite. Both variants are a direct OEM replacement and offer a 1-to-1 fit.

✔️ Two versions available — Metal or Graphite
✔️ Exact OEM fit — 1-to-1 replacement for 1G750-03602
✔️ For the M-DI version (direct injection) — bore 87 mm

Specifications

• Engine: Kubota D1703 M-DI, D1803 M-DI
• Cylinders: 3
• Bore: 87 mm

Suitable for

Kubota engine

• D1703 M-DI, D1803 M-DI (incl. CR common-rail variants)

Kubota tractors

• L1361, L2501, L2501HST, L2502
• L3240, L3301, L3400, L3408, L3430
• L3540, L3560, L3800, L3830, L3901

Kubota excavators/other

• KX033, KX033-4, KX037-4, KX040, KX040-4, KX042-4, KX91-3S2, KX101-3a3, KX101-3a4
• U30-5, U30-6, U35-3S2, U35-3a3, U35-4, U36-4
• R430, RT270-2, RT280-2
• KL26R, KL265, KL27R, KL2750, KL280, KL285, KL2850, KL28, KL31, KL315, KL340, KL345, KL310, KL3150, KL3450, KL31R, KL31Z, KL34, KL34R, KL34Z
• FT28, FT30, FT300, GL33, GL337, GL338, KT285, KT305
• STA-35, STV36, STV40, STW-34, STW-37, STW-40

Bobcat

• E32, E34, E35

Bomag

• BW100AC-5, BW100AD-5, BW100SL-5, BW120AC-5, BW120AD-5, BW120SL-5

Eurocomach

• ES 40ZT, ES 400ZT

OEM for reference

• 1G750-03602, 1G75003602
• 1G750-03312, 1G75003312
• 1G750-03632, 1G75003632

Please note: always use new head bolts when replacing a head gasket and follow Kubota's tightening torques. Check the flatness of both the engine block and cylinder head before installation.
