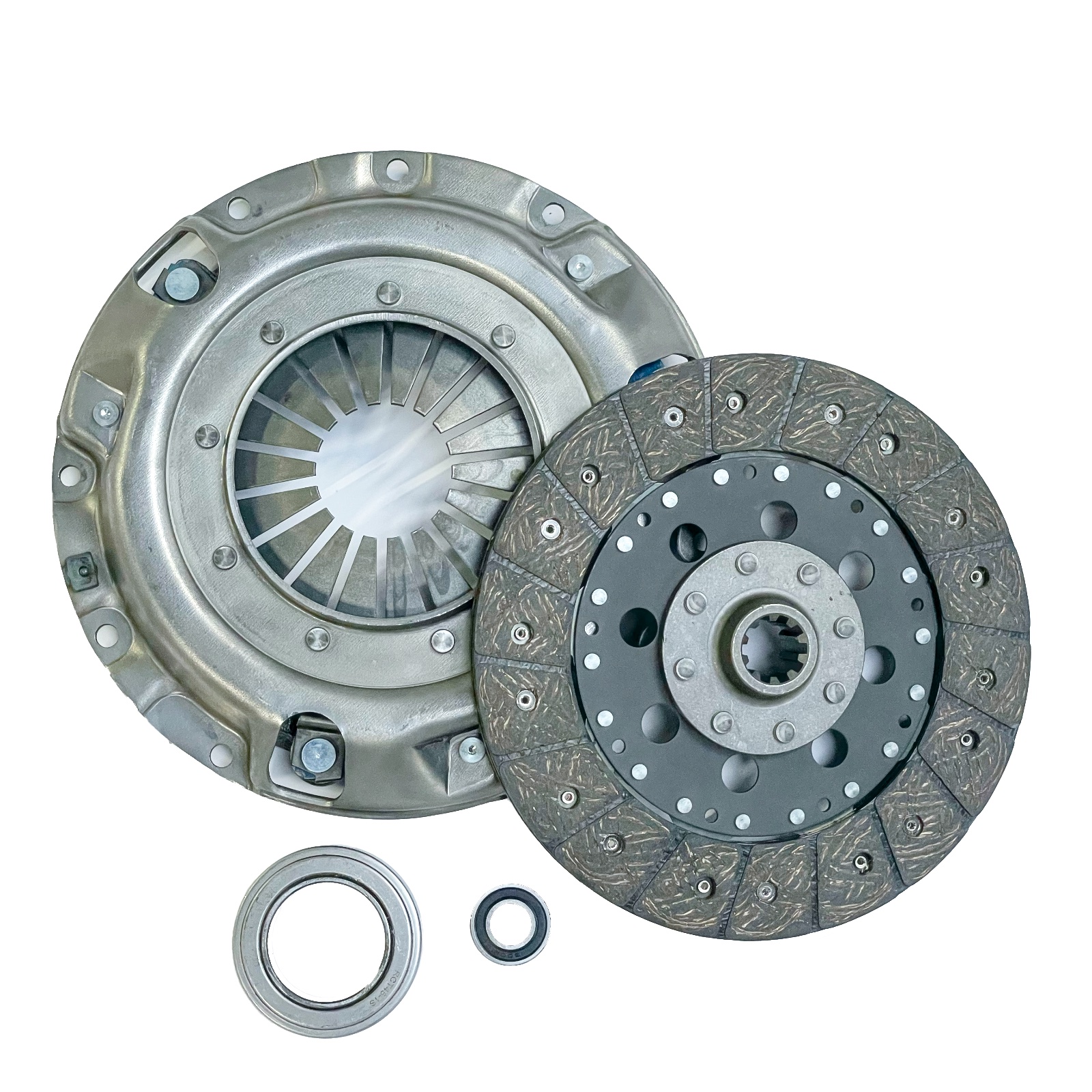

Clutch Kit Kubota L2850 – L3650 | GL320 – GL418 | GL35 – GL40

Description

Clutch Kit – High-quality and Perfect Fit

This complete clutch set is designed for reliable performance under all conditions. Thanks to the robust pressure plate and durable clutch plate with woven friction material, this set offers smooth and powerful power transmission. Suitable for various tractors and agricultural machines with 10-spline connection.

✅ Complete set with pressure plate and disc

✅ Wear-resistant, woven friction layer

✅ Strong, solid core construction

✅ Ready for Direct Installation

⚙️

Technical Specifications

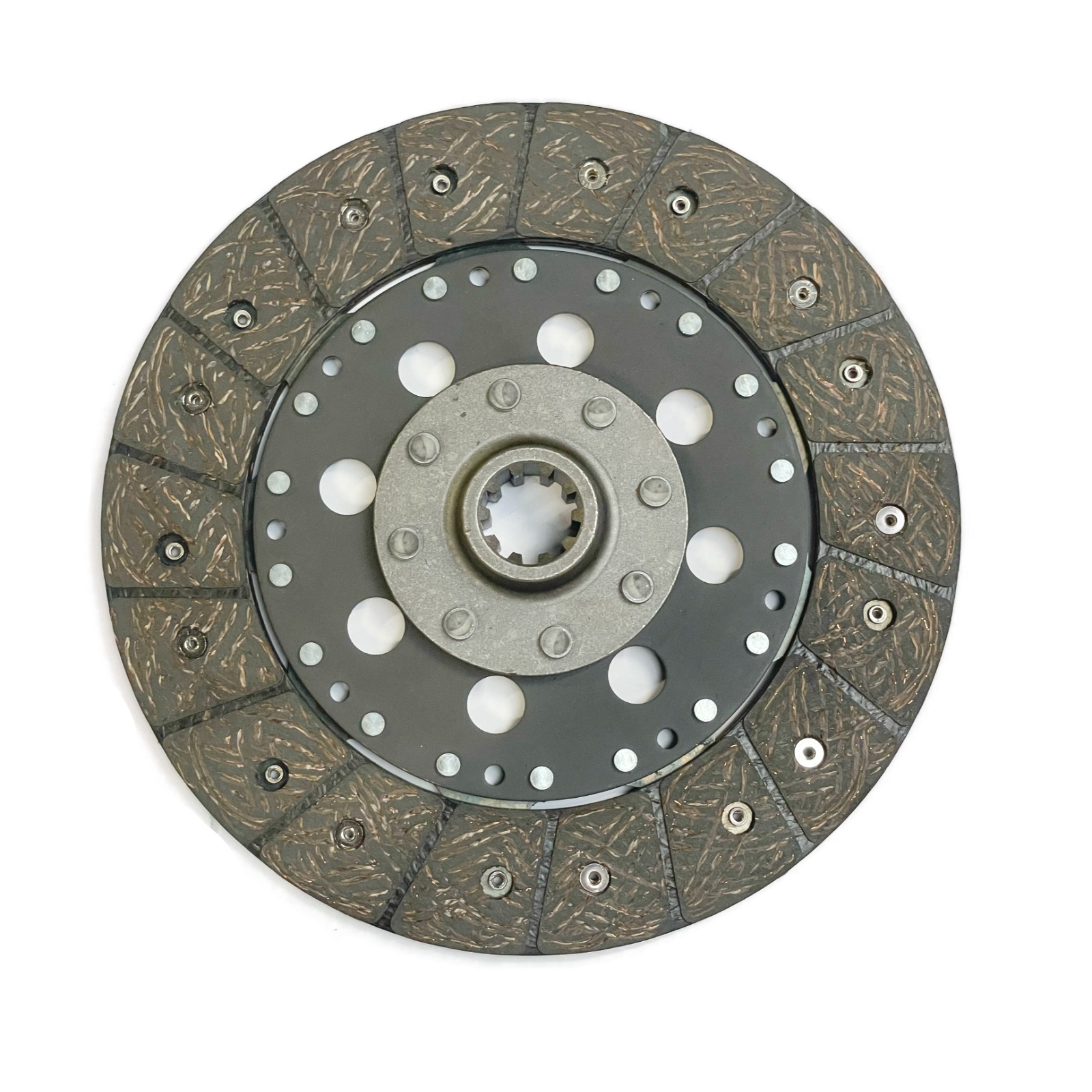

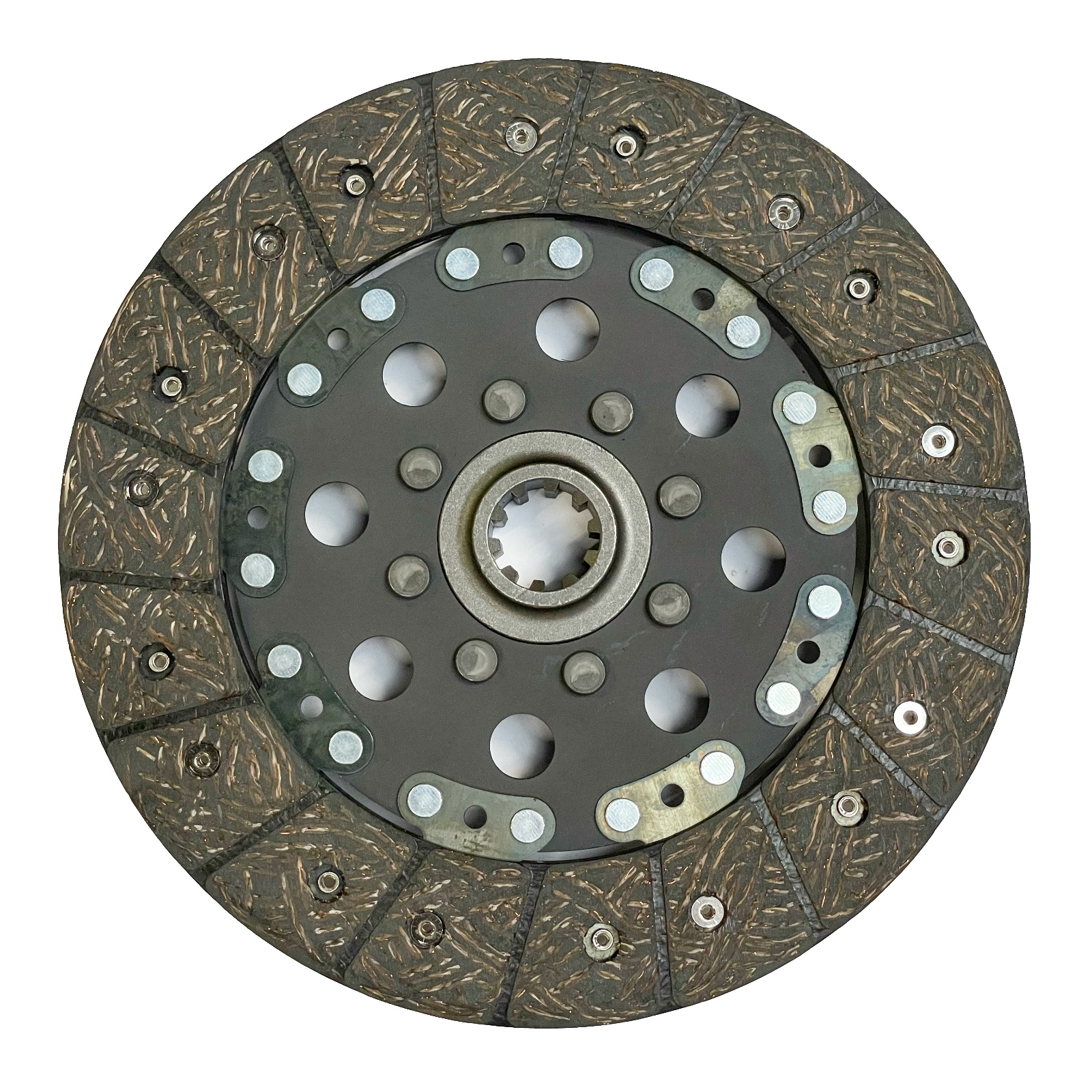

Clutch Plate

• Diameter: 9” (225 mm)
• Hub Diameter: 1” (25.4 mm)
• Number of splines: 10
• Core: Solid
• Friction type: Woven

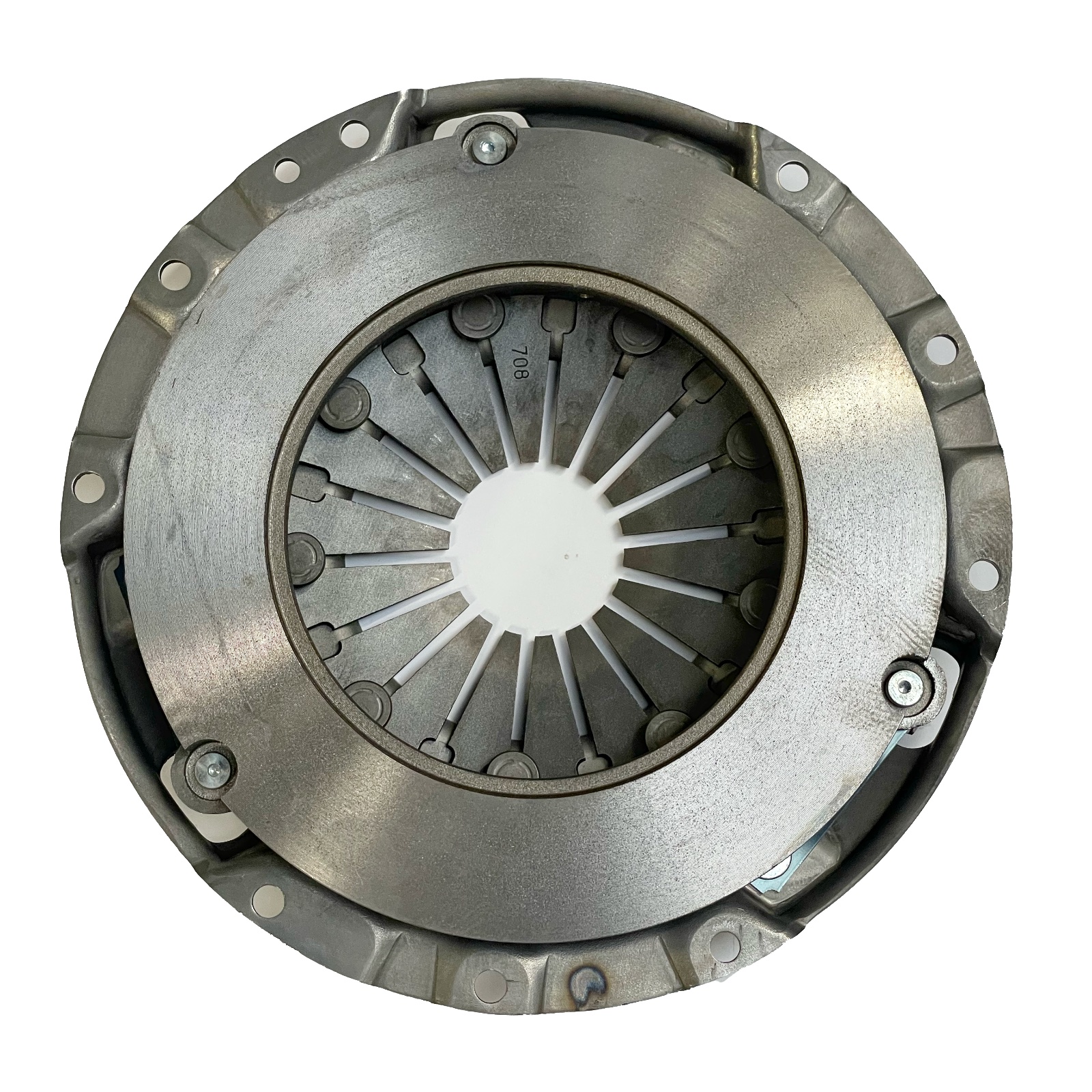

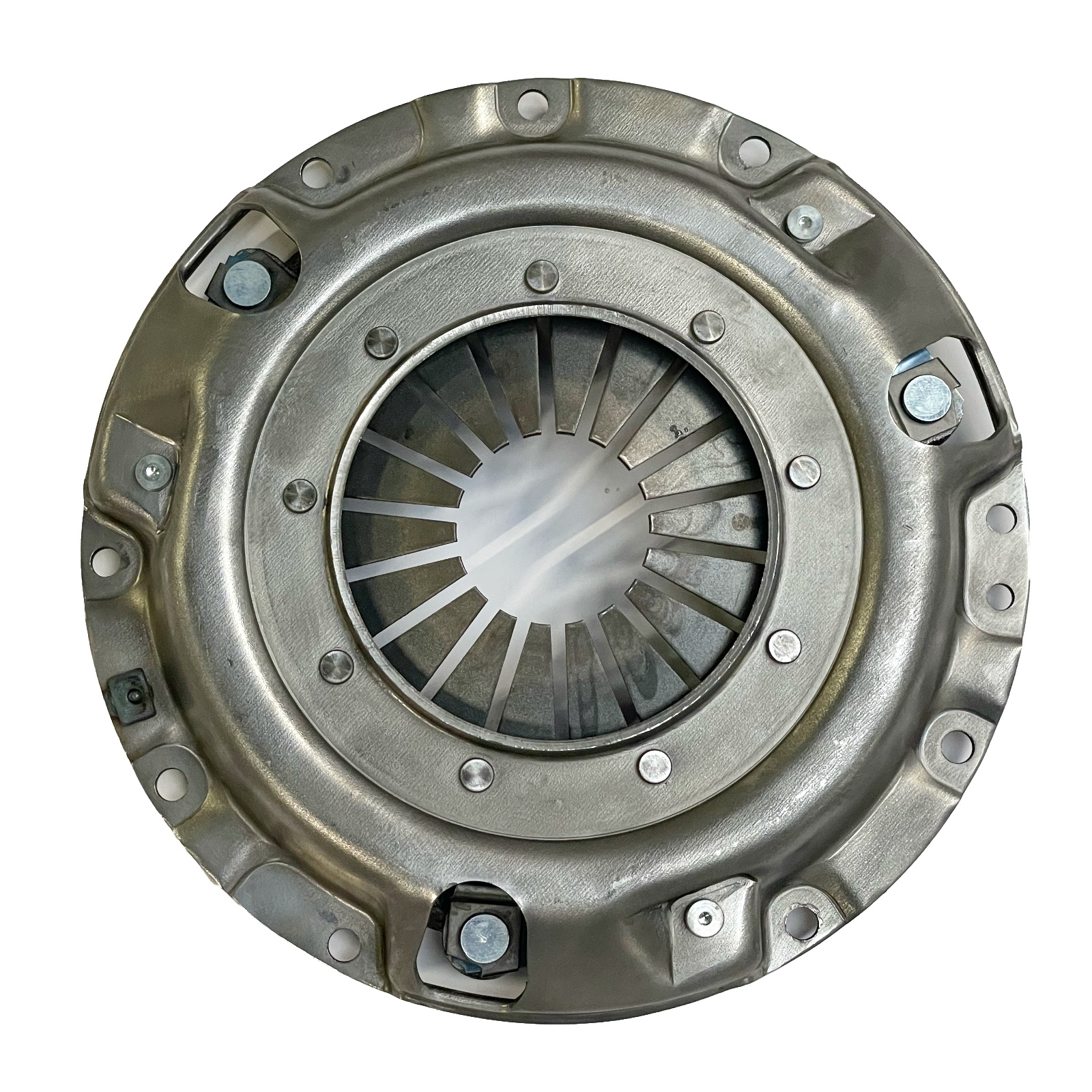

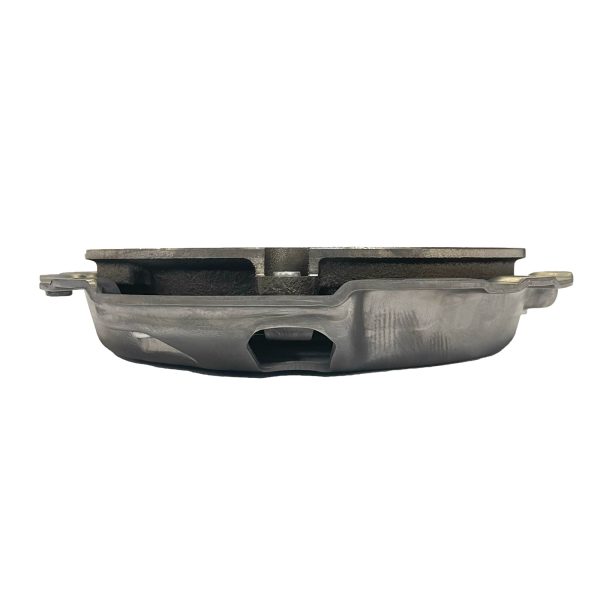

Pressure plate

• Pressure Plate Diameter: 9” (229 mm)
• OEM reference: 32430-14500

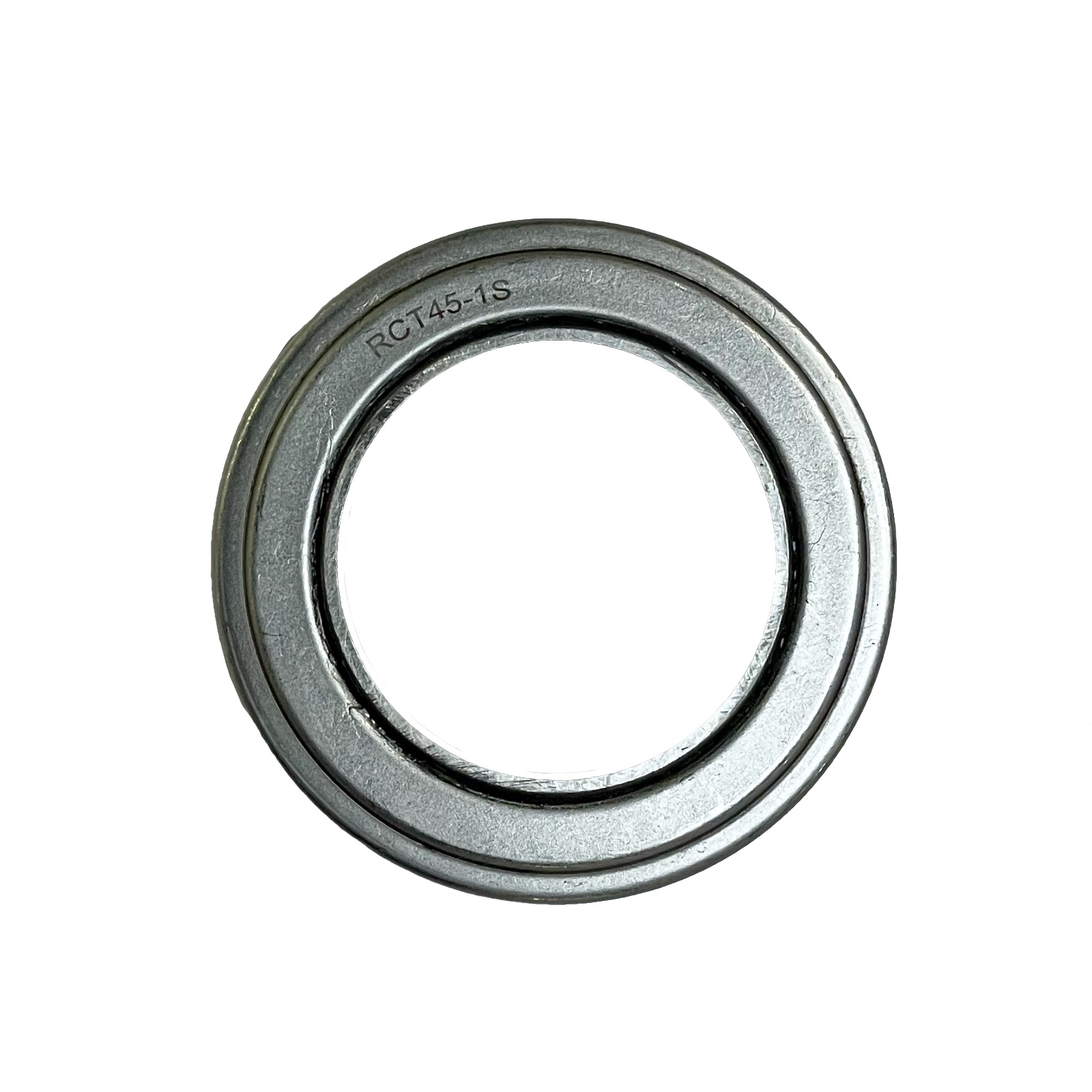

Release bearing

• Dimensions – measurements – 74x45x18mm – I.D.: 2.166″ – O.D.: 3.310″ – Width: .630″
• Weight: 0.35 kg

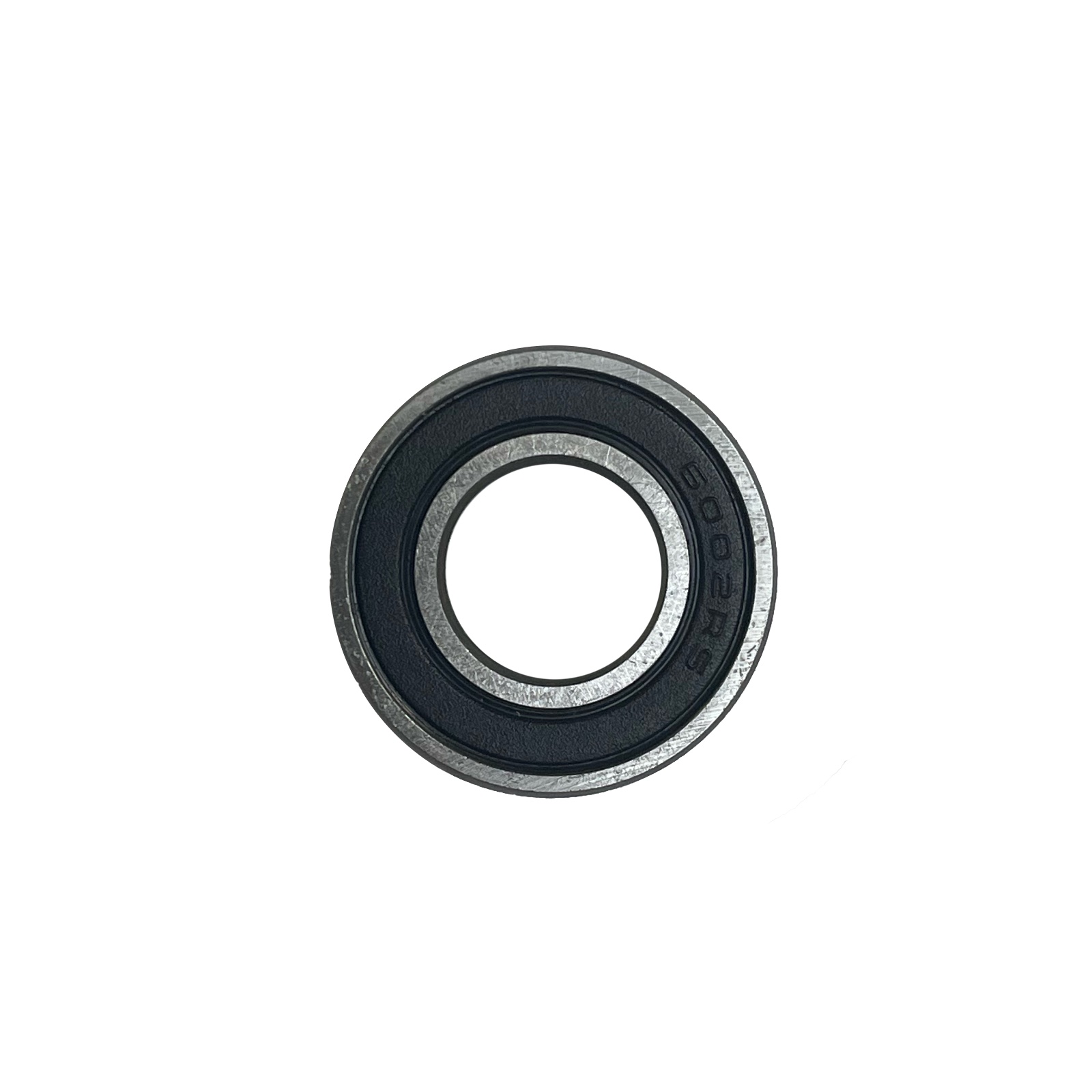

Pilot bearing

• Inner Diameter (Bore): 0.5906” (15.001 mm)
• Outer Diameter: 1.2598” (31.998 mm)
• Width: 0.354” (8.991 mm)
• 15x32x9

Models with – single clutch –

Kubota

• L2850, L2950, L3450, L3650
• L2850DT, L2850DT-GST, L2850F, L2950DT-GST, L3450DT-GST, L35, L3650DT-GST
• L35
• GL320, GL368, GL418
• GL35, GL40

OEM for reference

• 32430-14500, 66438-14210, 66419-13400
• 08490-00001
• 32425-14300
