V-belt Iseki Landhope & Kubota B Series | SPZ925

Description

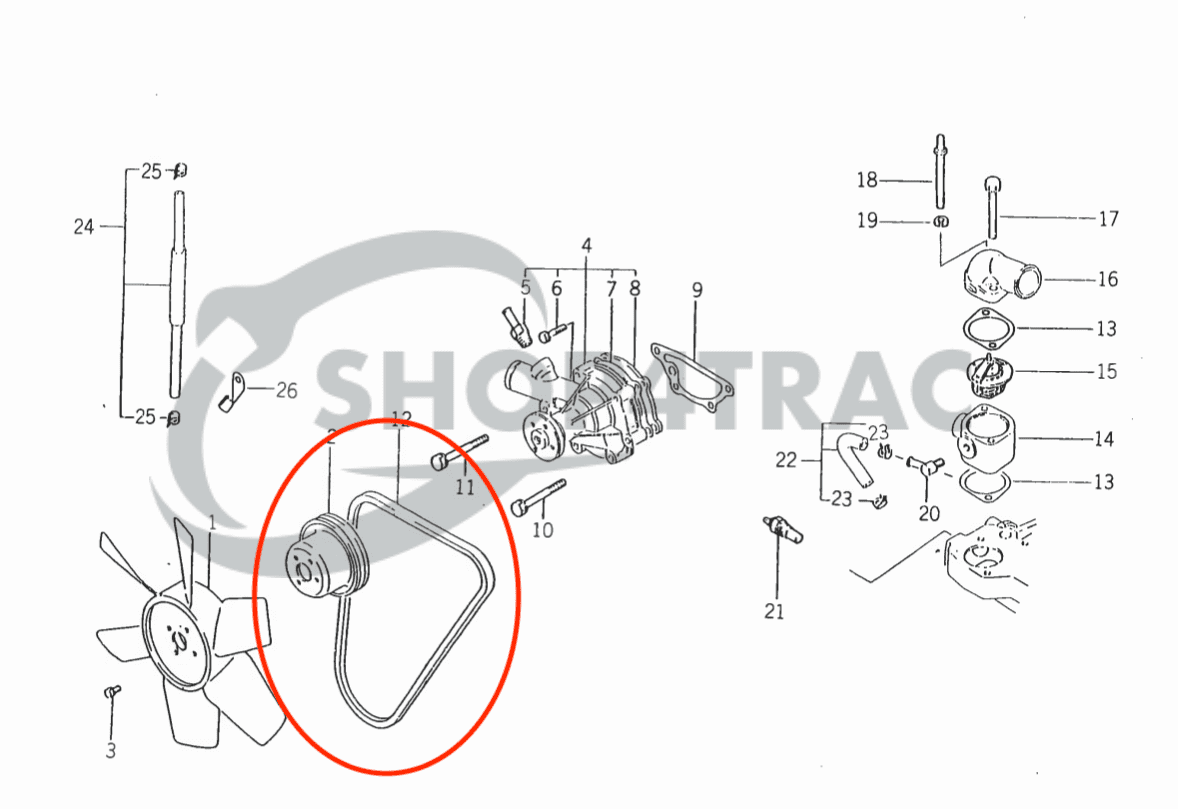

This V-belt with designation SPZ925 is a narrow profile belt for compact tractors from Iseki Landhope, Kubota and Mitsubishi among others. The belt transfers engine power from the engine pulley to the driven pulley. Replace it if you see cracks, fraying or slipping.

✔️ Exact fit for the OEM version, main number 15531-72530
✔️ SPZ narrow profile 9.7 x 8 mm with pitch length (Lw) 925 mm and outside length (La) 938 mm
✔️ Very broad application on the Iseki Landhope series and the Kubota B series, plus Zen-noh, Hinomoto and Mitsubishi

Dimensions

• Designation: SPZ925
• Profile: SPZ (narrow profile), 9.7 x 8 mm
• Pitch length (Lw): 925 mm
• Outside length (La): 938 mm

Note the length type: Li is the inside circumference, Lw/Ld the pitch length and La the outside circumference. Not sure? Measure the old belt or order by OEM number.

Fits:

Iseki Landhope

• TU145, TU155, TU167, TU175, TU177, TU1400, TU1500, TU1601
• TX145, TX155, TX1410, TX1510, TX2160

Kubota

• B1600, B1702, B1902, B1550, B1750, B2150
• B5200, B6200, B7200, B8200, B9200, A15

Zen-noh

• ZB1600, ZB1702

Hinomoto

• E14, E15

Mitsubishi

• D1350, MT180, MT185, MT210

OEM for reference:

• 15531-72530, 1553172530
• 5663-007-528-00, 566300752800
• 5650-040-930-50, 565004093050
• MD007528
• MD409305
