Engine overhaul kit Mitsubishi S3L | S3L2 incl. cylinder liners – Caterpillar | Pel Job | Weidemann | Mahindra | Vetus | Solé – Standard (STD)

Description

Technical specifications:

• Bore: 78 mm
• Engine: Mitsubishi S3L, S3L2, 3 cylinders
• Piston size: standard (STD)
• Bearings: standard size (STD)
• Cylinder liners: unfinished
• Injection: Indirect injection (IDI)

The most complete overhaul kit we supply for the Mitsubishi S3L and S3L2 three-cylinder: in addition to pistons, rings, bearings and gasket set, this also includes three new cylinder liners. This brings a worn or bored-out engine block back to standard size without reboring — you press out the old liners and press in the new ones.

✔️ Includes 3 cylinder liners — block back to standard size without reboring
✔️ Complete with main bearing set and connecting rod bearings, nothing extra to order
✔️ Complete gasket set for the entire engine, from head gasket to oil pan gasket

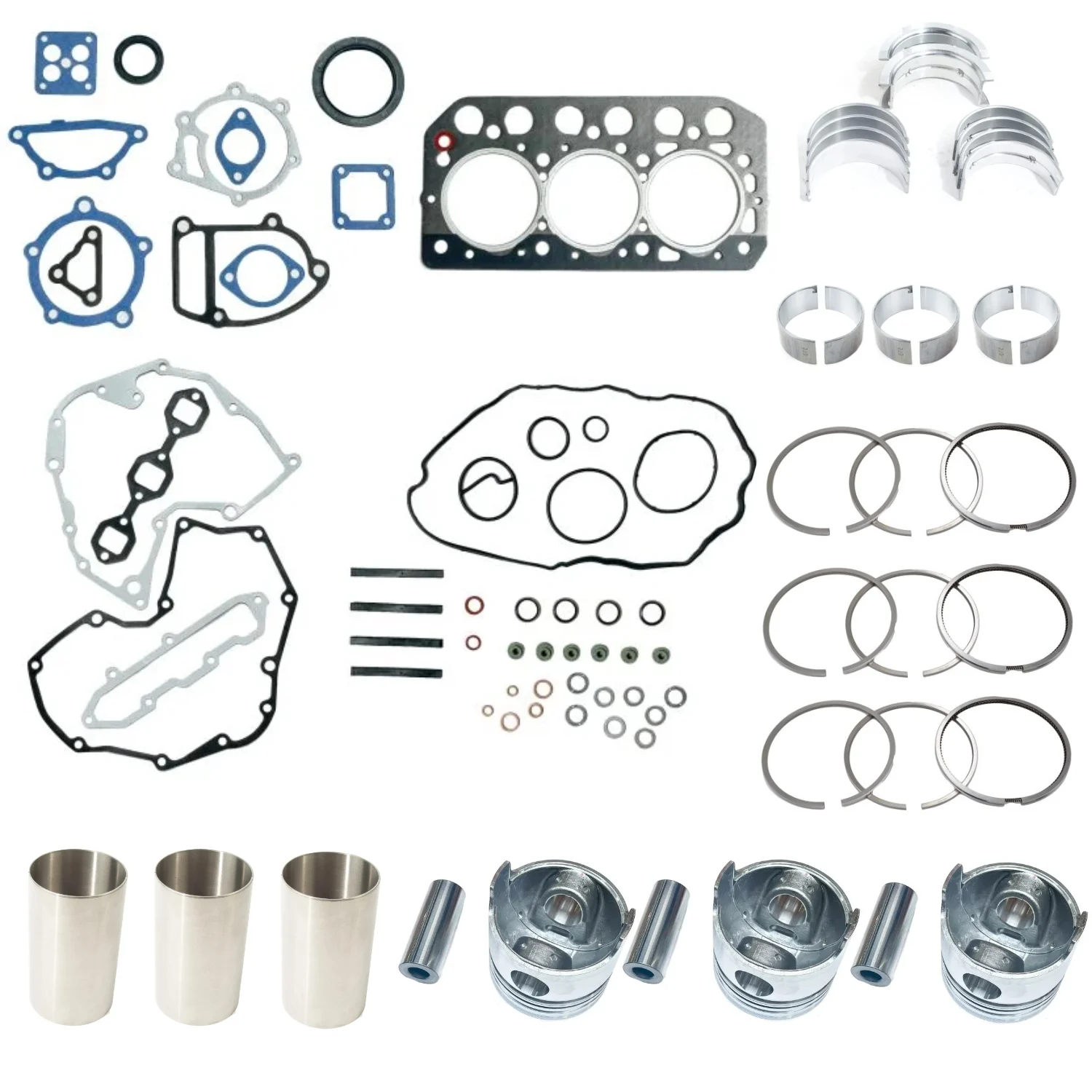

Contents of the kit:

• 3x Cylinder liner Mitsubishi S3L
• 3x Piston Mitsubishi S3L, standard size
• 3x Piston ring set (per cylinder)
• 3x Connecting rod bearing, standard size
• 1x Main bearing set Mitsubishi S3L | S3L2
• 1x Complete gasket set Mitsubishi S3L | S3L2

Why standard size pistons: with new cylinder liners the block returns to standard size, so standard size pistons belong in it. Oversized pistons are only needed when existing liners have been bored out.

Suitable for:

Mitsubishi

• S3L, S3L2

Caterpillar

• 302.5C, 303CR, 303SR

Mahindra

• 2015, 2216, 2516, 2615, Max22

Weidemann

• 1050D/M, 1055D/M, 1504D/M

Other brands

• Pel Job, Vetus, Solé, Deutz-Fahr, Atlas, Solis 26

OEM for reference:

• 31A17-08400, 31A1708400 – piston STD
• MM437295, MM433921 – piston rings STD
• MM400690, MM400-690, 5650-040-0690-0 – connecting rod bearing STD
• MM408160, MM437880, 5650-040-816-00 – main bearing set STD
• 31B94-26020, 31B9426020 – complete gasket set
• 31B94-01060, 31B94-01080, 31B94-01090 – complete gasket set, alternative versions
• 31B01-23200 – head gasket
