Engine Overhaul Kit Kubota V2203DI | V2403DI (direct injection)

Description

Engine Overhaul Kit Kubota V2203DI / V2403DI

Complete overhaul kit for the Kubota V2203DI and V2403DI 4-cylinder diesel engine with direct injection (DI) and an 87 mm bore. Suitable for a complete overhaul in case of oil consumption, loss of power, or loss of compression. All parts are matched and available directly from stock.

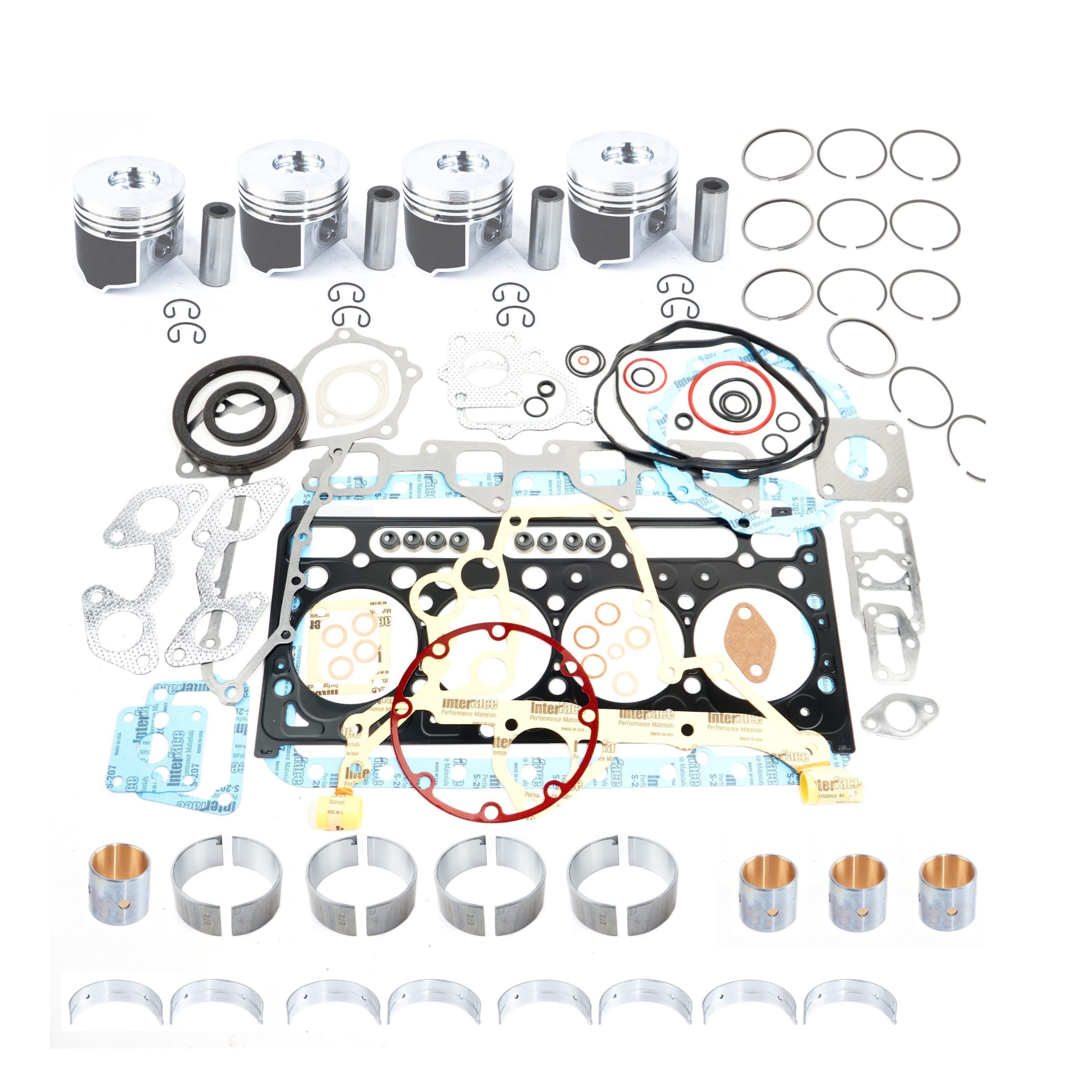

Kit contents

• 4× piston (STD)
• 4× piston ring set
• 4× connecting rod bearing (pair)

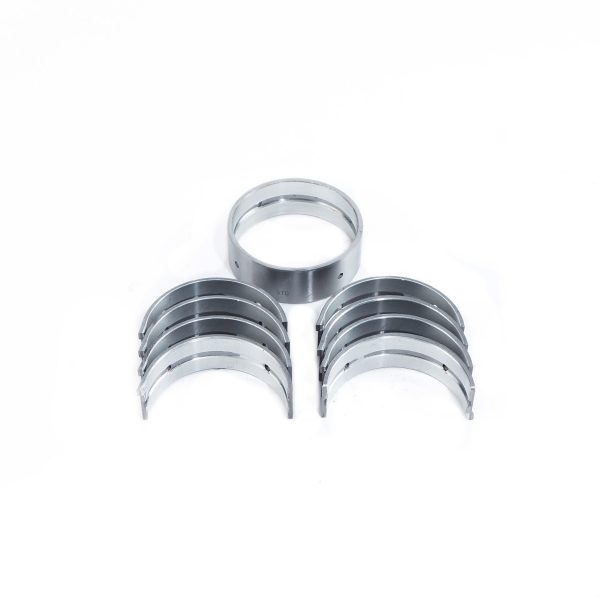

• 4× main bearing (pair)
• 1× main bearing bushing
• 4× piston pin bushing (connecting rod bushing)
• 1× thrust washer set (thrust washers)
• 1× complete engine gasket set with cylinder head gasket, front and rear crankshaft oil seals, valve stem seals, and other gaskets as shown

All bearings are supplied in standard size. Crankshaft and connecting rods must be within factory tolerance.

Compatible with the following brands and models:

Kubota engine

• V2203-M-DI-E2B, V2203-M-DI-E2B-BC-3
• V2403-M-DI-E3B, V2403-M-DI, V2403-M-DI-T, V2403-M-DI-TE2B, V2403-M-D1-TE3B

Kubota

• R510, R520, KX161-2, KX121, U45-S

Bobcat

• S130, S150, S160, S175, S185, S205, S450, S510, S530
• E45, E50, E55
• T110, T140, T180, T180 H, T190, T190 H
• 5600, 5610

Case

• 560, 1838

OEM for reference:

• 1A09123482, 1A091-23482, 1A091-23480, 1A091-26482
• 1G790-2105-3, 1G790-21053
• 1A021-21110
• 1G796-21111, 1G861-21131
