Engine overhaul kit Kubota D902

Description

Technical specifications:

• Bore: 72 mm

Engine overhaul kit Kubota D902

Complete overhaul kit for the Kubota D902 3-cylinder diesel engine. Suitable for a complete overhaul in case of oil consumption, loss of power, or loss of compression. All parts are matched to each other and available directly from stock.

Choose the piston size below: Standard (STD) for a bore of 72 mm, or +0.5 mm oversized for a bored block of 72.5 mm.

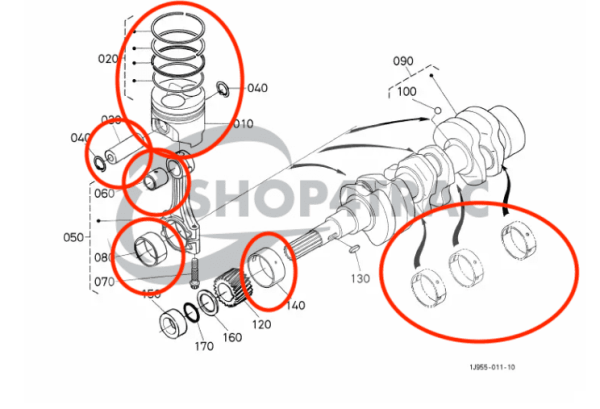

Kit contents

• 3× piston (STD or +0.5 mm)
• 3× piston ring set (STD or +0.5 mm)
• 3× connecting rod bearing (pair)
• 1× main bearing set
• 1× main bearing bush
• 1× thrust washer set (thrust washers)
• 1× complete engine gasket set with head gasket, front and rear crankshaft oil seals, valve stem seals, and other gaskets as shown

All bearings are supplied in standard size. Crankshaft and connecting rods must be within factory tolerance.

Compatible with the following brands and models:

Kubota engine

• D902, D902EBH

Kubota

• KX41-3, KX018-4, KX019-04, KX41-3 Excavator
• RTV900, RTV900G, RTV900G9, RTV900R, RTV-900XT, RTV-X900
• ZD323
• BX25, BX24, BX2360, BX2350, BX2230D, BX2230

Ausa

• D150RM 4X2, D150RM 4X4, D150RMA 4X2, D150RMA 4X4, D150RMG 4X2, D150RMG 4X4, D175RMS 4X2, D175RMS 4X4

Avant

• 423, 523

Beta Marine

• Beta 25

Bobcat

• MT55

Giant

• D202S, D254SW, D254SW Tele

Hyundai

• R17Z-9A

Knikmops

• KM85 (Kubota D902)

Schäffer

• 2020S

Toro

• TX525

Vimek

• 608, 608.2

Wacker Neuson

• DT15

OEM for reference:

• 1G962-03313
• 1J091-21110
• 1J091-21050
• 16851-21982
• 15861-22314
• 1G460-23922
• 16871-21310
