Cylinder head Kubota Z482 | Avant | Mariner | complete + head gasket + glow plug

Description

Technical specifications:

• Bore: 67 mm

New premium cylinder head suitable for the Kubota Z482 two-cylinder diesel engine. Manufactured from high-quality material, with pre-assembled valve seats, valves, and springs — ready for immediate installation.

To simplify repairs, we have put together a complete kit that ensures the repair can be done as quickly as possible. This includes:

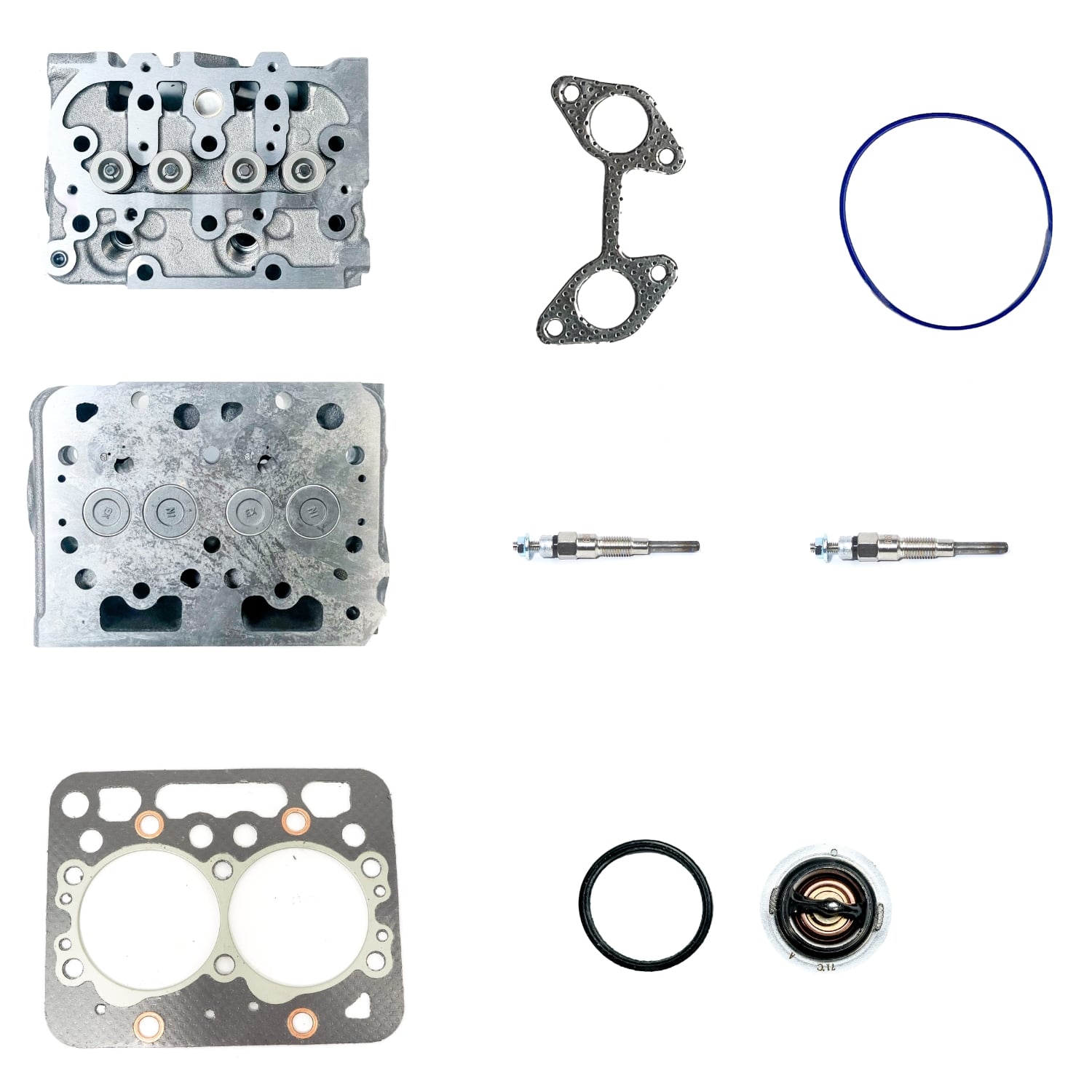

Set consisting of:

• Cylinder head complete with valves, springs, valve seats, and seals – assembled and ready for installation
• Head gasket – premium quality from European supplier
• Thermostat (44mm)
• Inlet + exhaust manifold gasket

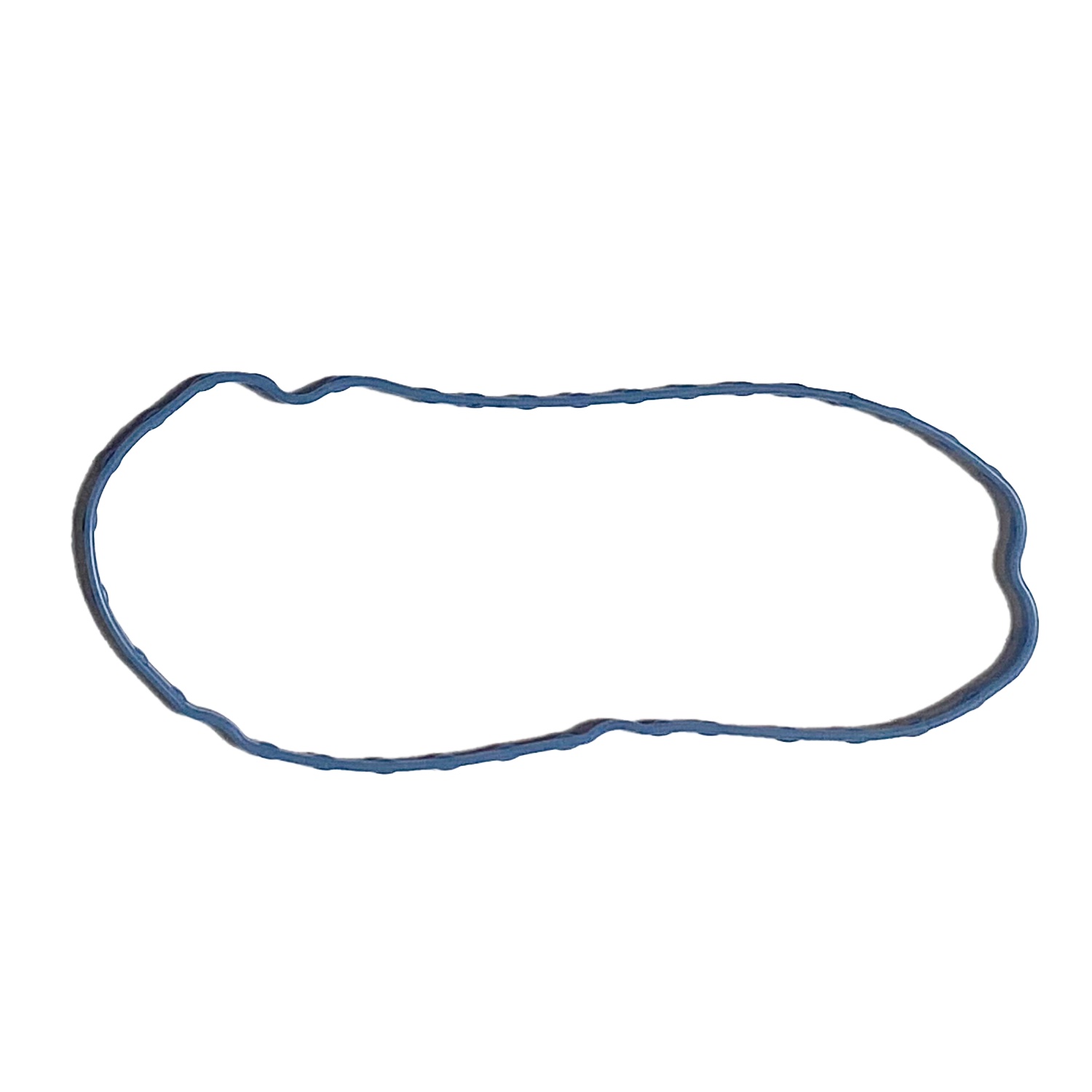

• Valve cover gasket — prevents oil leakage along the valve cover (SKU-65205)
• 2X Glow plugs Z482 – premium quality

✔️ Fully assembled — valves, springs, and seals installed, no extra adjustment needed
✔️ Complete repair kit — including head gasket, thermostat, manifold gaskets, and glow plugs
✔️ Exact OEM fit — 1-to-1 replacement for original

A ready-to-use solution that saves time in the workshop and minimizes the risk of installation errors.

Suitable for:

Kubota engine

• Z482-E2-GX, Z482-E, Z482-D25, Z482-B-SEC, Z482 – 60Hz

Kubota

• B1121, B1220, GB110, GB115
• GR1600EC2, GL6000-STD, GL7000-AUS, GL7000-STD, GL7000-USA, GL7000-USA-TM
• J106-AUS, J106-STD, J107-SA, J107-STD
• T1600H, JB11, JB11X

Avant

• 314, 314S, 514

Mariner

• 560(B), 710(B), IS7.1

OEM for reference:

Cylinder head:

• 1E127-0304-0, 1E12703040, 1E127-03040
• 16853-03040, 1685303040
• 16851-03047, 1685103047
• 16851-03043, 1685103043
• 1G957-03040, 1G957-03043

Head gasket (bore 67mm):

• 16851-03310

Thermostat (44mm):

• 19434-73015, 19434-73010, 19434-73013, 19434-73014

Glow plug (M8):

• 16851-65510, 16851-65512
• 16854-65510, 16854-65512
• NGK: YE-01

Inlet manifold gasket:

• 15841-11820, 15841-1182-0

Exhaust manifold gasket:

• 15841-12350, 15841-12361
