Cylinder Head Kubota V2003 | V2203 | V2403 | Bobcat | Giant | Model 2 complete + head gasket + glow plug
- Ordered before 4:00 PM, delivered on Thursday
- Up to 2 years warranty
- Exchange possible within 14 days
Get notified when this product is back in stock
Leave your email address. We will send you a one-time notification as soon as the product can be ordered again.
Shop4Trac assurances
- We deliver to Netherlands in as little as 1 business day
- Customer review 8,9/10
-
Pay securely with among others:
Shipping costs
Based on 15 kgDescription

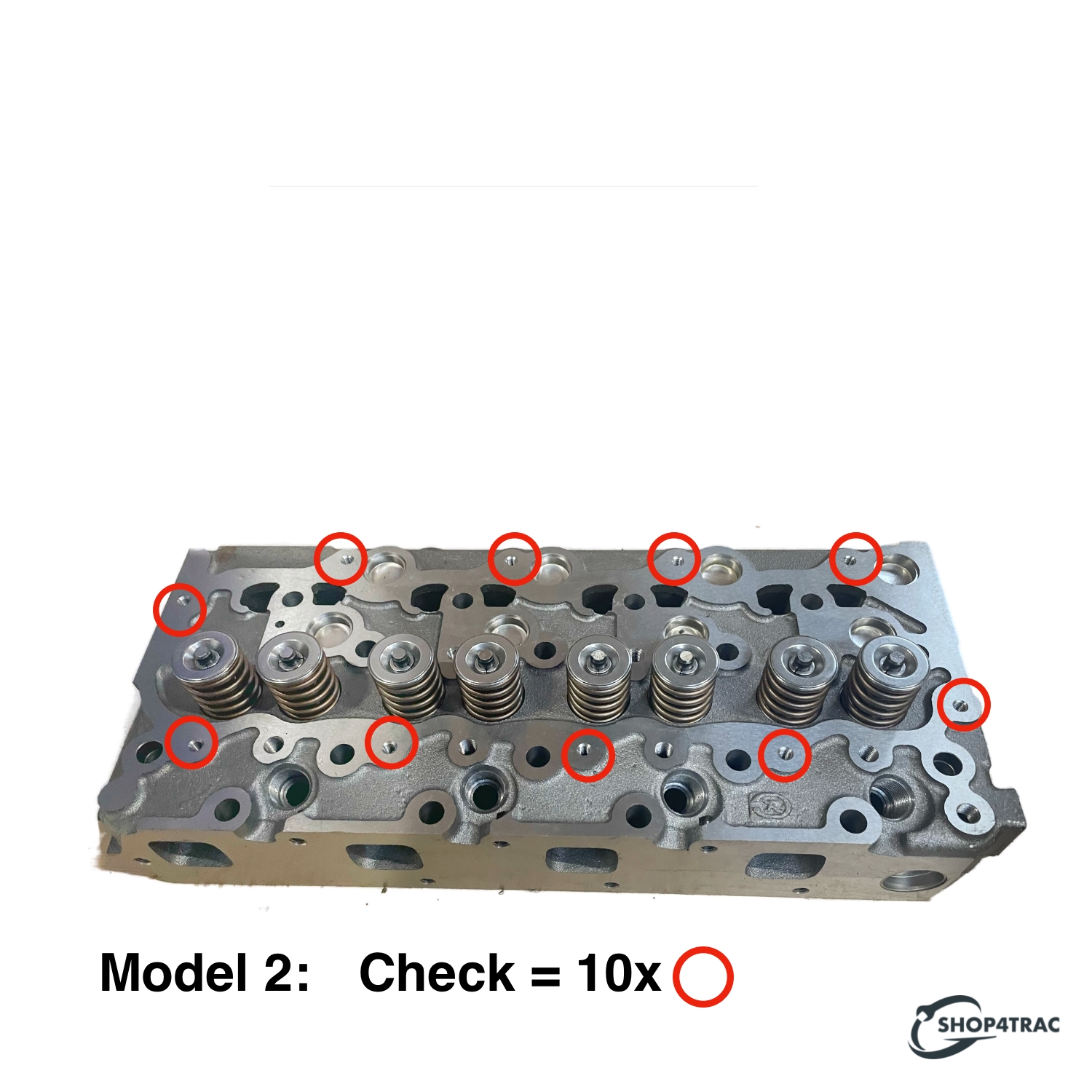

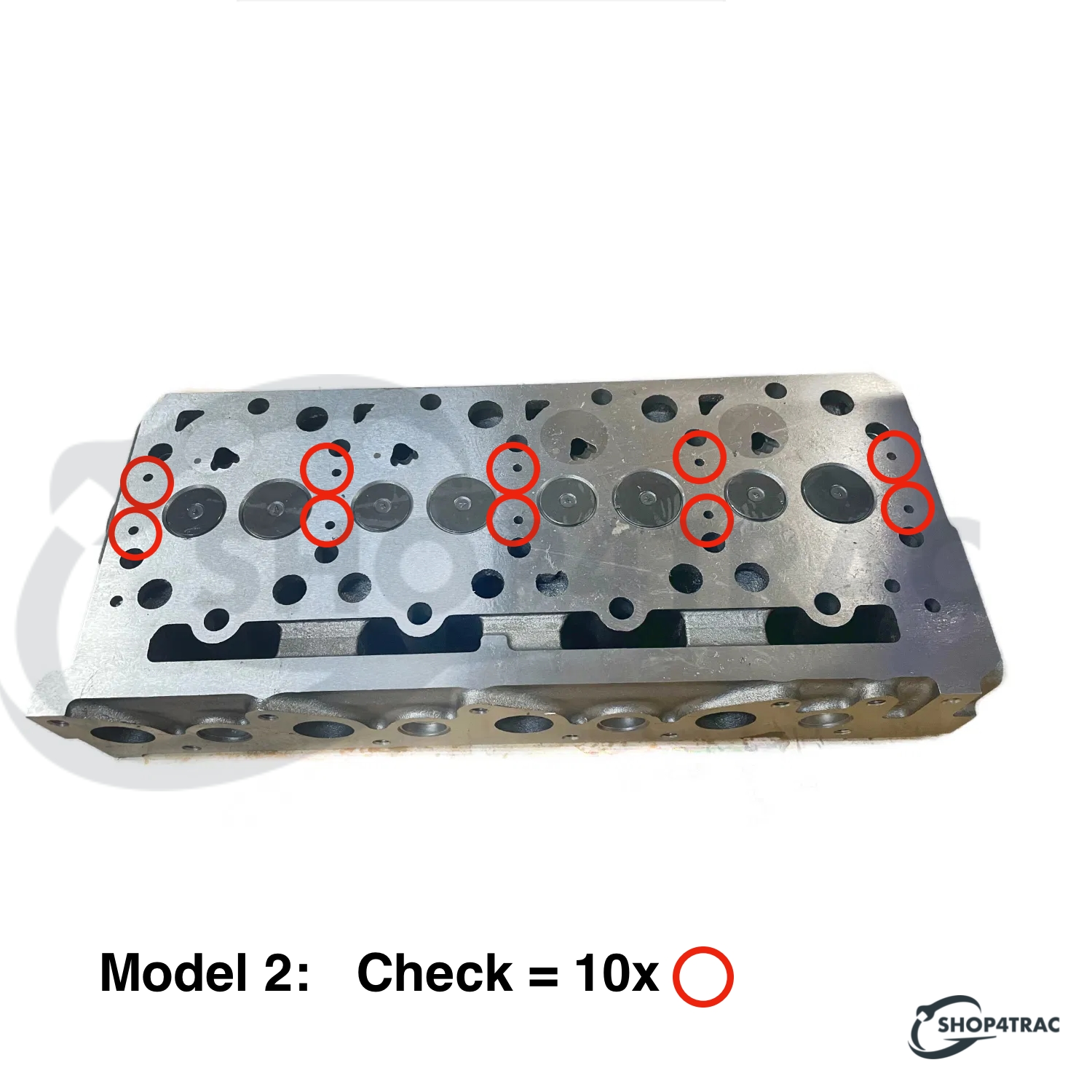

New premium cylinder head suitable for the Kubota V2003, V2203, and V2403 four-cylinder diesel engine (Model 2 version). Manufactured from high-quality material, with pre-installed valve seats, valves, and springs — ready for immediate installation.
To simplify the repair, we have put together a complete package that ensures the repair can be done as quickly as possible. This includes:
Set consisting of:
- Complete cylinder head with valves, springs, valve seats, and seals – assembled and ready for installation

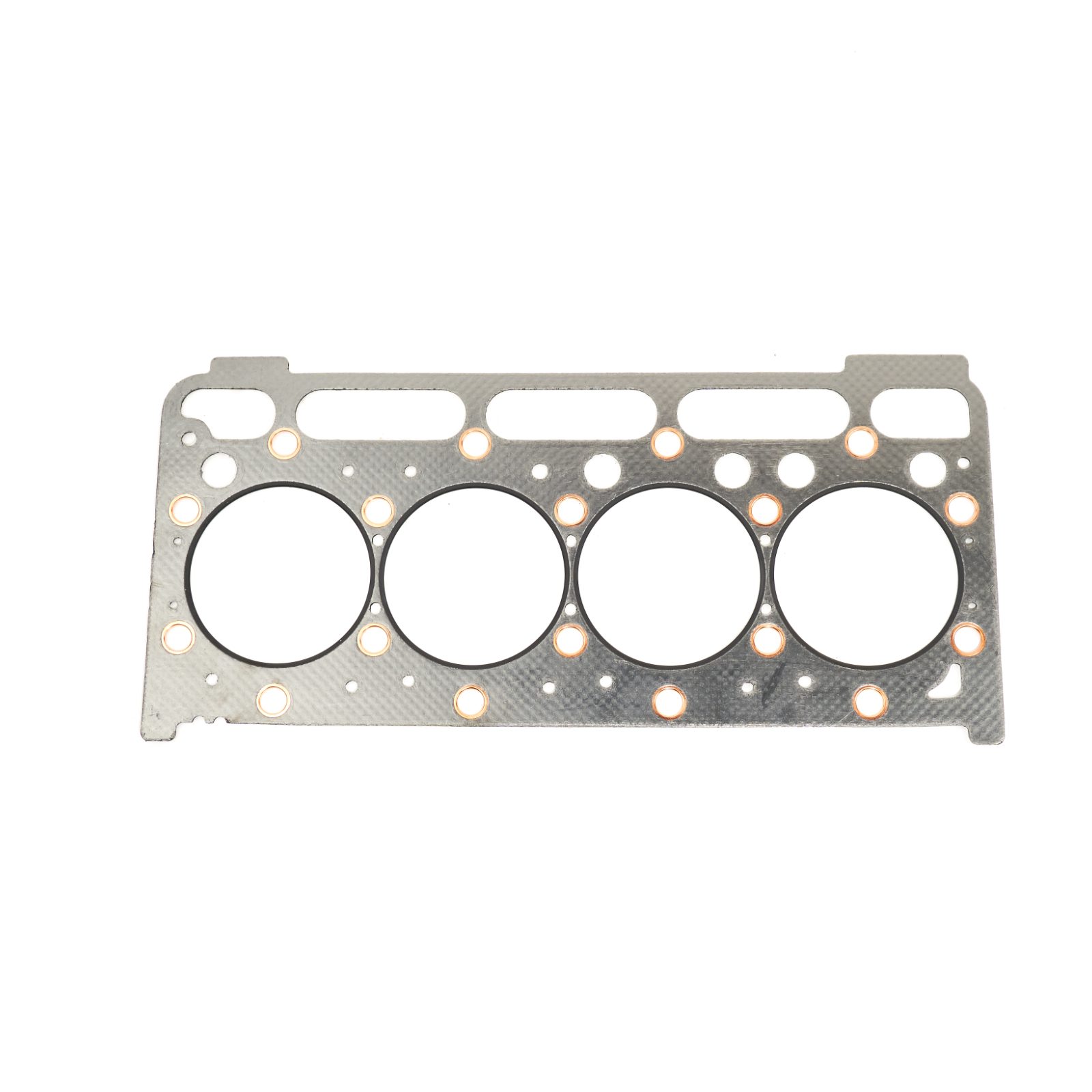

- Head gasket — choice of graphite or metal (select above)

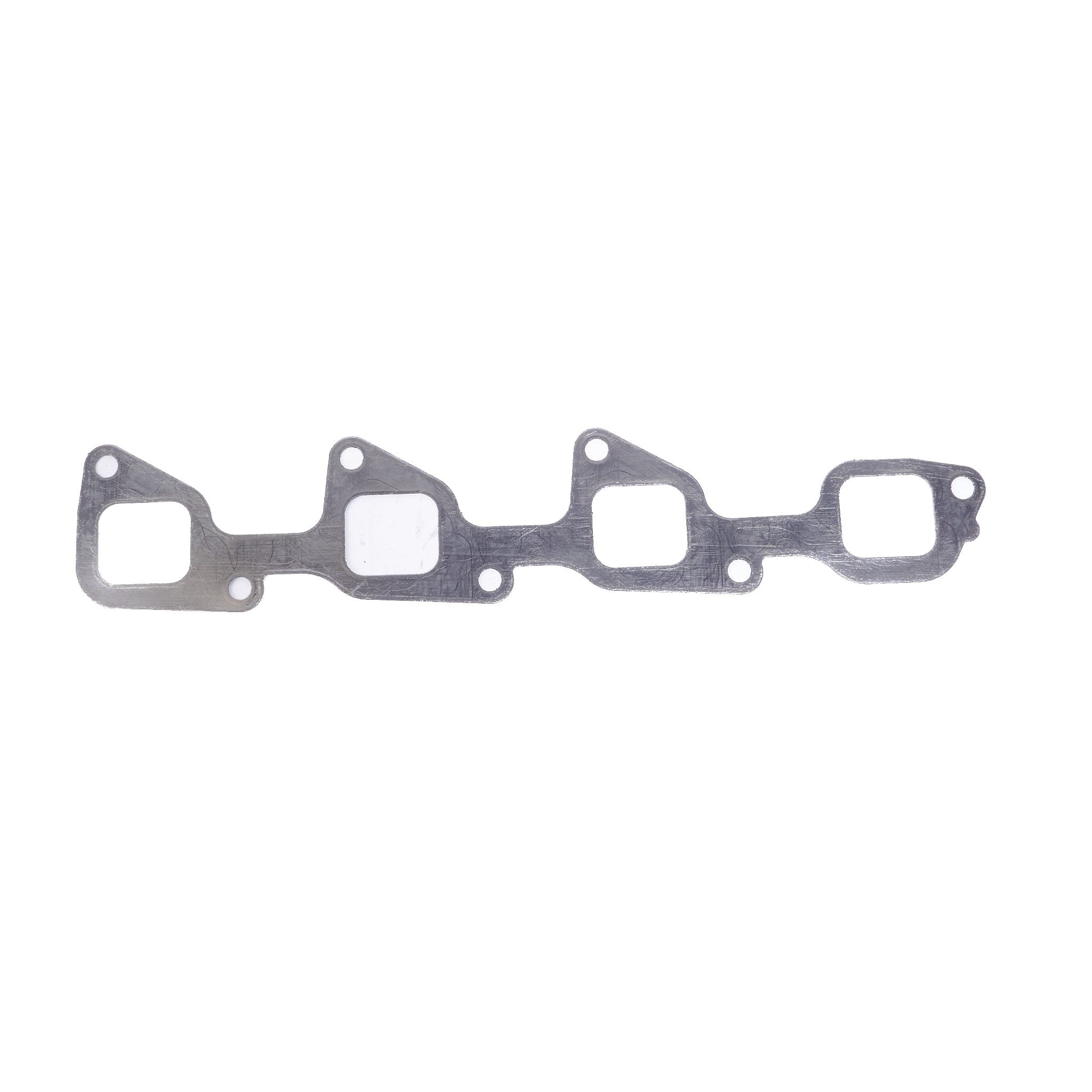

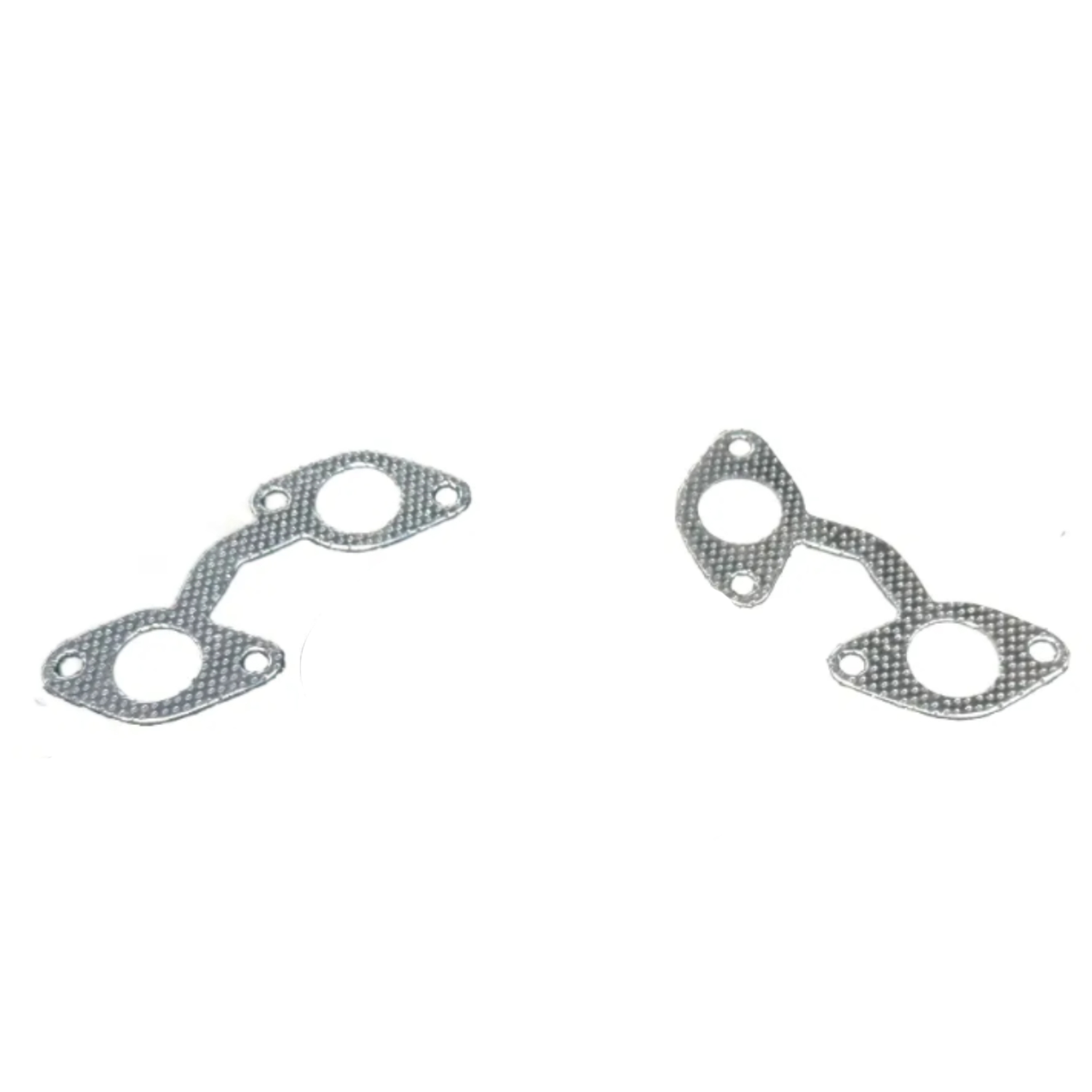

- Intake + exhaust manifold gasket
- Valve cover gasket — prevents oil leakage from the valve cover (SKU-65244)

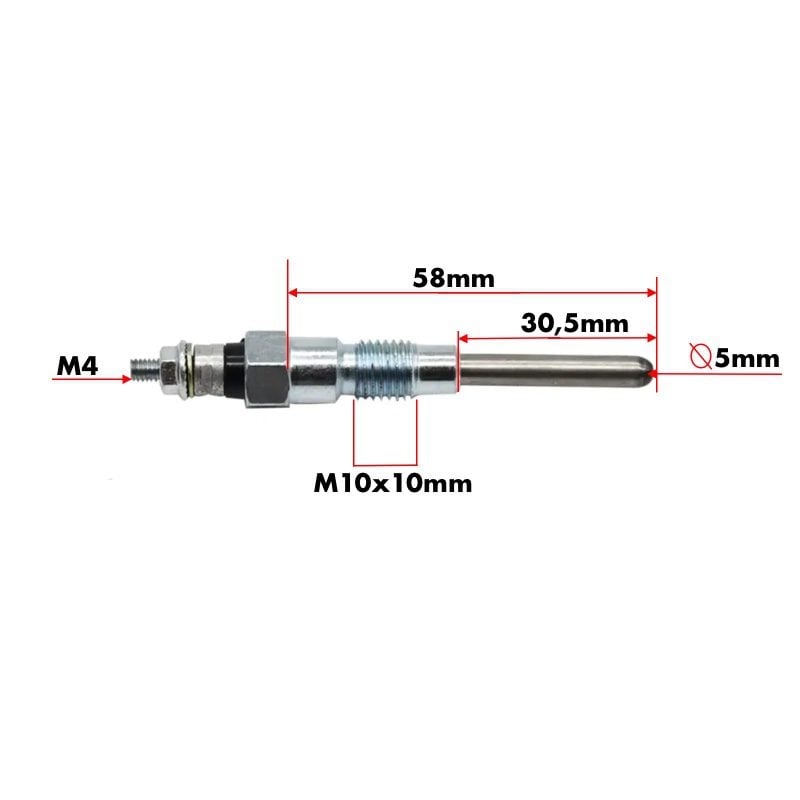

- 4X Glow plugs – premium quality
✔️ Fully assembled — valves, springs, and seals installed, no extra adjustment needed
✔️ Complete repair kit — includes head gasket, manifold gaskets, and glow plugs
✔️ Exact OEM fit — 1-to-1 replacement of original
A ready-to-use solution that saves workshop time and minimizes the risk of assembly errors.
Suitable for:
Kubota engine
- V2003, V2203, V2203T, V2203E, V2203B, V2203-M
- V2403, V2403-M, V2403E, V2403 CR, V2403MA
Example machines
Bobcat
- 331, 334, 337, 341, 753, 763, 773, S150, S160, S175, S185, B300, BL370
Kubota
- L4240, L4310, L4400, L4630, L4060, L4701, L4740, L5030, L5040, KX121-3, KX161-3, U45-3, U50-3, MX4800, MX5200
Giant
- V5001, V5001T, V5002, V5003, V5003T, V6001T, V6004T
Other brands
- Jungheinrich DFG316-DFG435, TYM T430/T450, Ausa D250-D400, Dynapac CC1300, Doosan D15G/D18G, Hamm HD13/HD14, Hyundai HSL600T/HSL800T, Hitachi ZW40/ZW50, JCB 3T, Schäffer 3033S-5050Z, Volvo DD24-DD34, Wacker Neuson DHK6002H/DHK7002H
OEM ref:
Cylinder head:
- 1J854-03040, 1J85403040
- 19077-03048, 1907703048
- 1G916-03040, 1G91603040
- 1G851-03043, 1G851-0304-3
Head gasket:
- 19077-03310, 1907703310
- 1G790-03312, 1G790-0331-2
Intake manifold gasket:
- 1A091-11822, 1A091-1182-2
Exhaust manifold gasket:
- 1A091-12350, 1A091-1235-0
Glow plug (4x):
- 16415-65510, 16415-65511, 16415-65512
- 19077-65510, 19077-65511, 19077-65512, 19077-65513
- 1J860-65510, 1J860-65512
- Ref: Y-716RS
Specifications
