Cylinder Head Kit Kubota D1105 | D1305 Version 2 complete + gasket set + thermostat + glow plugs – A-19 | A-195 | GB20 | B2650 | Bobcat E26 | KX41-2 | Giant

Description

New premium cylinder head for the Kubota D1105 and D1305 three-cylinder diesel engine, in the Version 2. Manufactured from high-grade material, with pre-assembled valve seats, valves, and springs — ready for immediate installation.

Please note: there are two versions

The D1105 and D1305 were supplied with two cylinder heads that look very similar from the outside. The difference lies in the number of valve cover mounting holes, not in the engine code — both versions occur on E2B, E3B, and E4B engines.

• Version 2 — this item. Valve cover with the extra mounting holes. OEM 1J062-03020.
• Version 1. Valve cover without those extra holes. OEM 16030-03044 / 16022-03040. You can find that set under SKU-990021.

Always compare the mounting holes of your own valve cover before ordering. In doubt? Send us a photo of the top of the head and the casting number, and we will figure it out for you.

✔️ Head supplied complete — valves, valve springs, valve seats, and seals assembled, no adjustment required

✔️ Complete gasket set included — head gasket, front and rear crankshaft oil seals, valve stem seals, intake and exhaust gaskets, seals, and other gaskets

✔️ Thermostat, temperature switch, and 3x glow plug included — the components that need to be removed during a head repair anyway

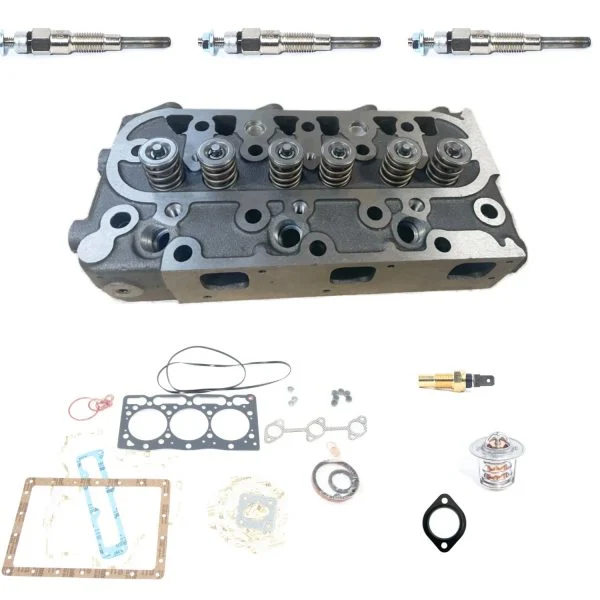

Kit contents:

• 1x complete cylinder head Kubota D1105 / D1305 Version 2 — with valves, valve springs, valve seats, and seals
• 1x complete gasket set (metal) — head gasket, front and rear crankshaft oil seal, valve stem seals, intake gasket, exhaust gasket, seals, and other gaskets
• 1x thermostat 44 mm, opening 71 °C
• 1x temperature switch
• 3x glow plug M8x1.00, total length 69 mm, 11V

Not included: cylinder head bolts. Kubota head bolts are stretch bolts and must always be replaced during installation — these are available separately.

Specifications

• Engine: Kubota D1105, D1105-E2B, D1105-E3B, D1105-E4B, D1105T, D1305
• Type: Version 2 — valve cover with extra mounting holes
• Number of cylinders: 3
• Injection: indirect (E-TVCS)

Suitable for:

Kubota engine

• D1105, D1105-E2B, D1105-E3B, D1105-E4B, D1105T, D1105-Turbo
• D1305, D1305-E3-D22, D1305-E4-D26-Q, D1305-E4-D26-R

Kubota

• A-19, A-195, GB20
• B2400, B2400HST-D, B2400HST-E, B2410, B2410HSD, B2410HSDB, B2410HSE, B26, B2620, B2630, B2650, B2650HSD, B2650HSDC, B2650HST, B2920HSD, B3150HST, B7610, B7610HSD
• F2400, F2560, F2680, F2880, F2880E, F2690E, FZ2400
• KB225, KB23X
• KX41-2, KX41-2S, KX41H, KX61-2, KX61-2S
• U20-3a, U25S, U-27-4H
• RTV1100, RTV1100CW9, RTV1100RW9, RTV1140CPX
• RT140, RT140D, RT150, RT150-2, RT150D, RT160-2, RT210, RT210-2, RT210D, RT220-2
• ZD1211, ZD28
• J116-AUS, J116-STD, J119-SA, J119-STD, J320-AUS, J320-STD, J324-STD

Bobcat

• 553, E26

Giant

• G1500, G1500X-tra, G2200, G2200X-tra
• D242S, D261, D261S, D262S, D262SW, D263S, D263SW, D331ST, D331SWT, D331T, D332ST, D332SWT, D335T

Hyundai

• R25Z-9AK, R30Z-9AK

Hitachi

• EX15-2

Schäffer

• 2030, 2030SLT

Avant

• R28, 528, 630

Ausa

• D85, D100, D120, D150

Eurotrac

• W11K26, W11K33

Manitou

• TMT20.17

Steiner

• 230, 525

Knikmops

• KM100 (Kubota D1105)

OEM for reference:

• 1J062-03020 – cylinder head Version 2
• 31351-3283-0 – temperature switch
• 16261-0304-0, 16221-0331-0, 16231-0331-0, 15321-9626-0 – gaskets
