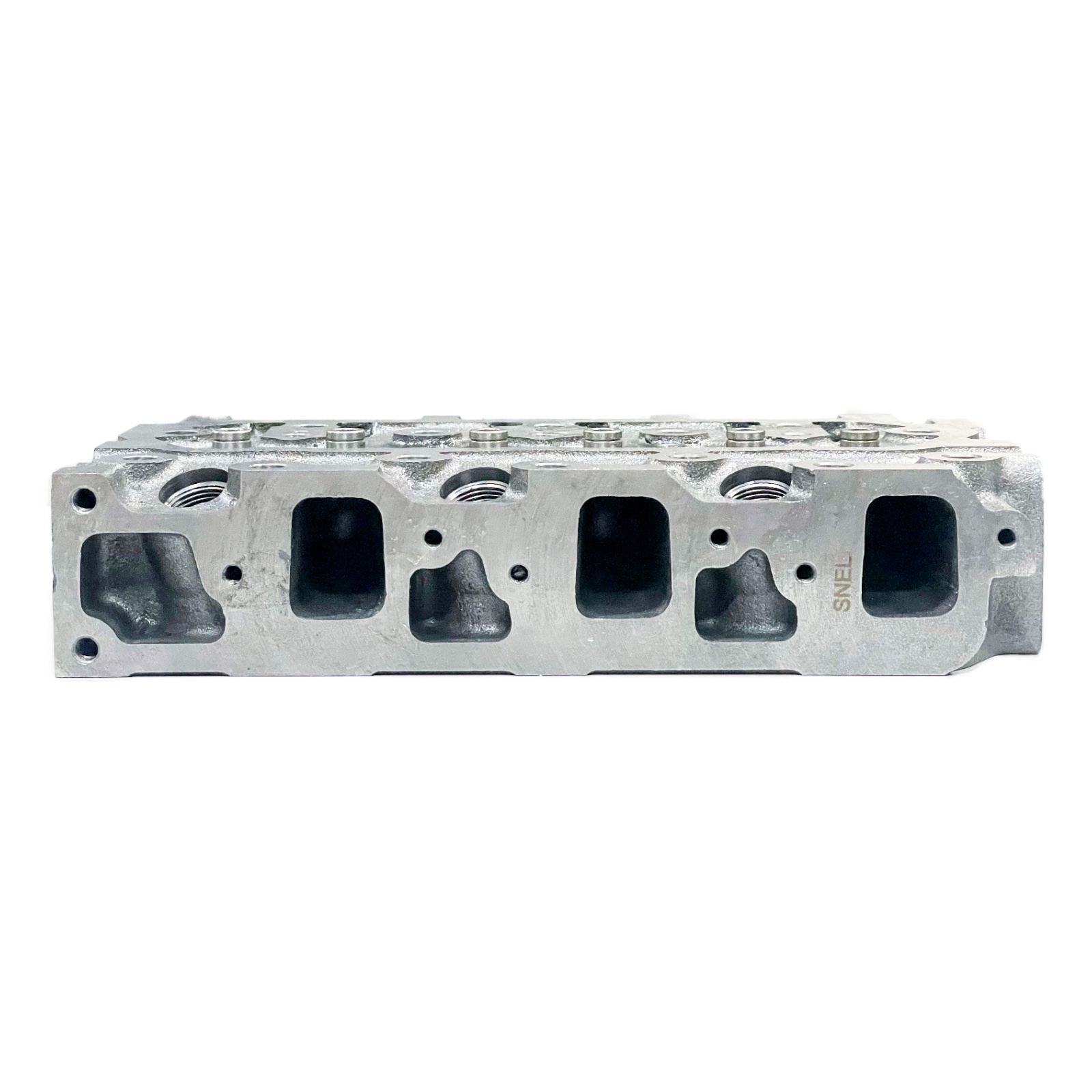

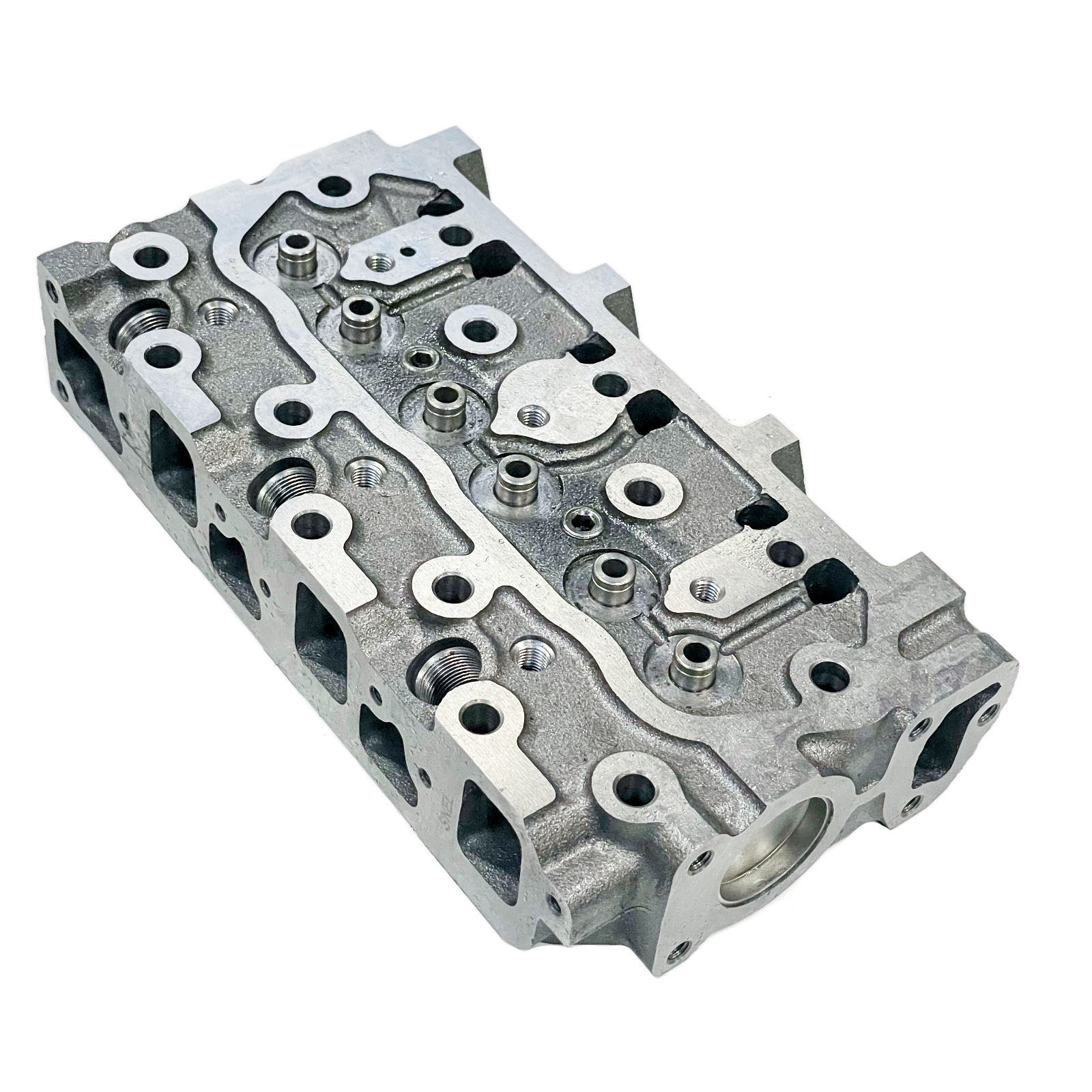

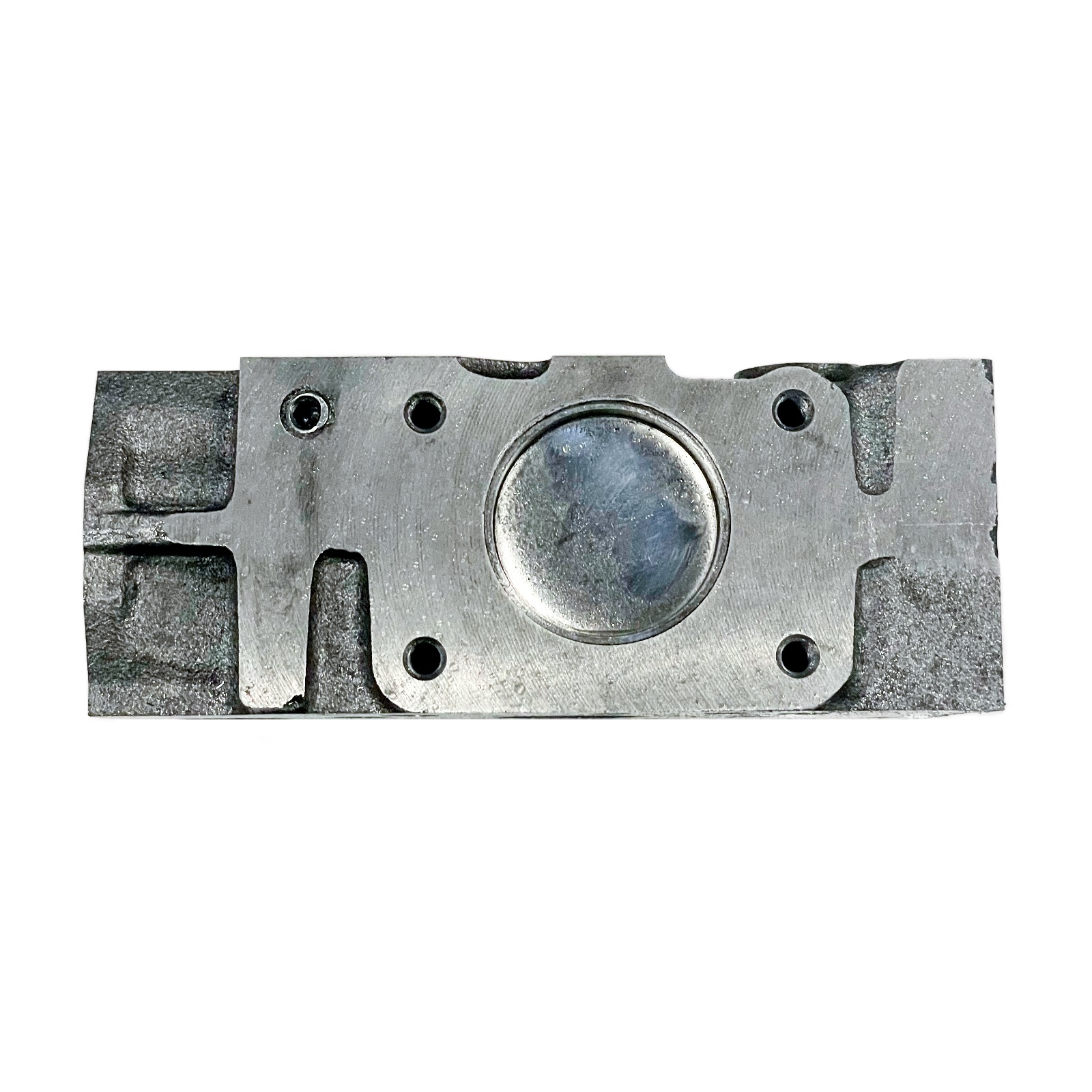

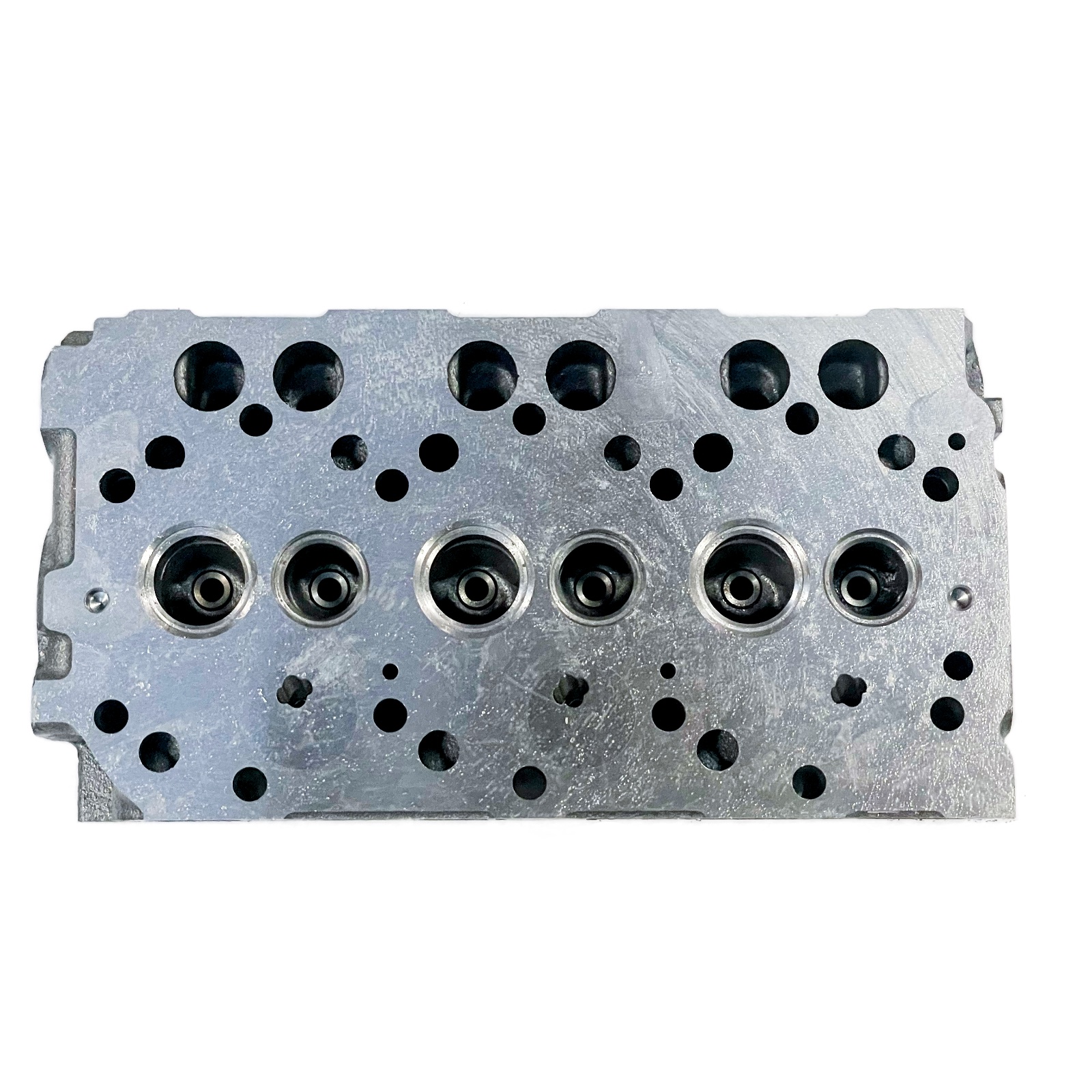

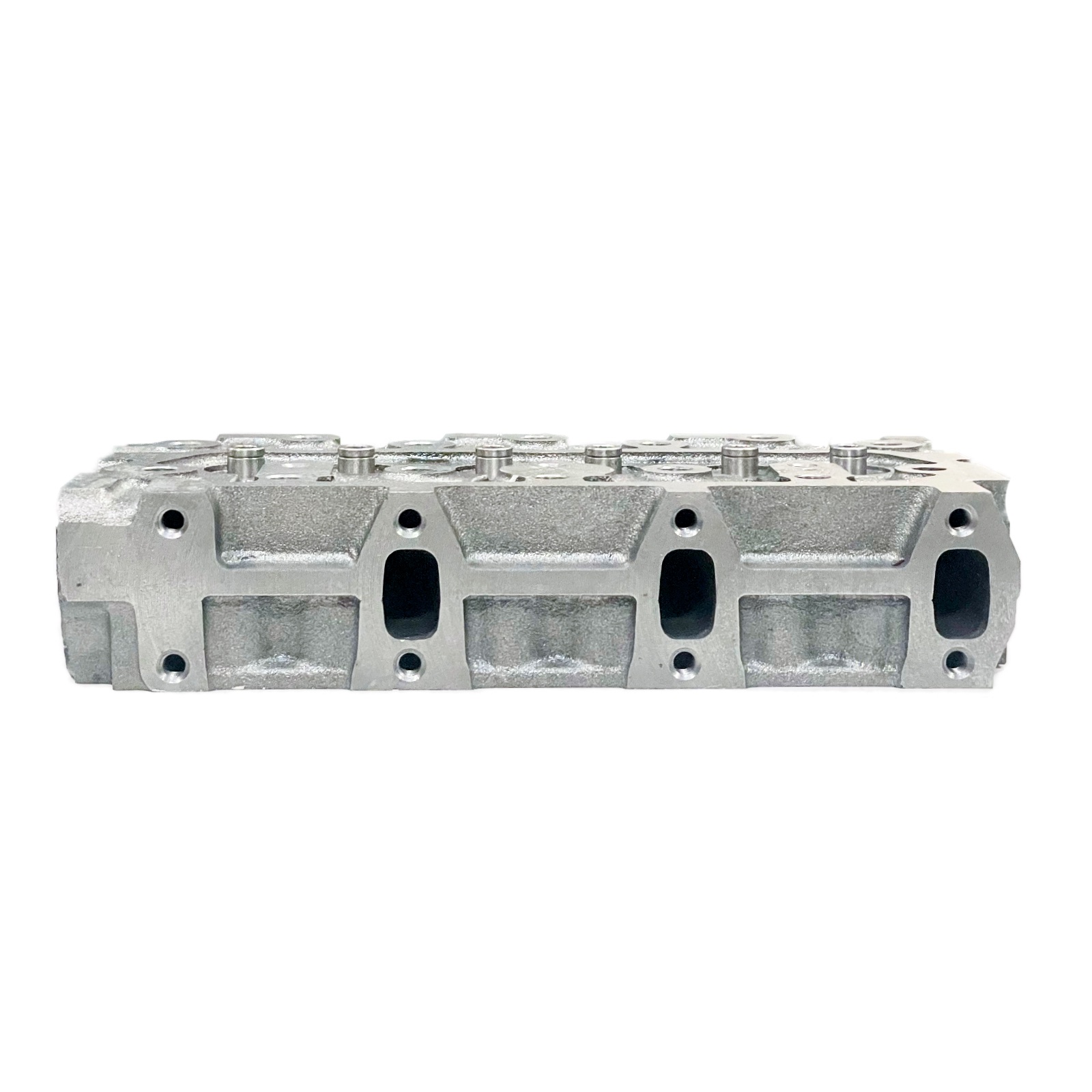

Cylinder Head Yanmar 3TNA72 | 3TNE72 | F13 – F15D | YM169 – YM186 | YM1401 – YM1510D

Description

Exclusive from our own production line: a brand new cylinder head, manufactured from high-quality cast iron. This ‘Snelparts‘ cylinder head is the definitive solution for cracked or worn heads on older Yanmar machines.

Variant 1: 3TNA72

Variant 2: 3TNE72

advice from experience:

• Check your engine code: This is the head for the 3TNA72.

• Do you have a 3TNE72? (Often in machines after 1995). Then this head does not fit! The channels and bolt holes do not match.

• Assembly: This head is delivered “bare”, but includes mounted valve guides and valve seats. You need to transfer your old valves, springs and rocker arms (or order new ones).

• Always replace: The head gasket and cylinder head bolts. Old bolts are “stretch bolts” and can break when reused.

technical specifications

• Condition: New (Cast Iron)

• Configuration: Bare (Including seats & guides)

• Engine code: Yanmar 3TNA72 / 3TNA72L

• Number of cylinders: 3

• System: Indirect Injection (Pre-chamber)

suitable for the following models:

yanmar (excavators) (The older square models from the ’80s/’90s)

• B-Series: B12, B12-1, B12-2, B14, B14-1, B15, B15-3, B17, B17-1, B17-2

• YB-Series: YB10-2, YB121, YB121-2, YB151, YB151-2

yanmar (tractors)

• F13, F13D, F14, F14D, F15, F15D

• YM169, YM169D, YM180, YM180D, YM186, YM186D
• YM1401, YM1401D, YM1502, YM1502D, YM1510, YM1510D, F15, F15D

• KE-Series: KE-2, KE-3 (Check engine code, sometimes TNE!)

yanmar (dumpers)

• C6, C6R, C8R, C10R, C12R

yanmar engine

• 3TNA72

• 3TNA72L

• 3TNA72-U1C, 3TNA72-U3C

• 3TNA72-UN

takeuchi

• TB15, TB015 (The first generation with Yanmar engine)

• TB10S, TB12

OEM for reference

• 119629-11700
