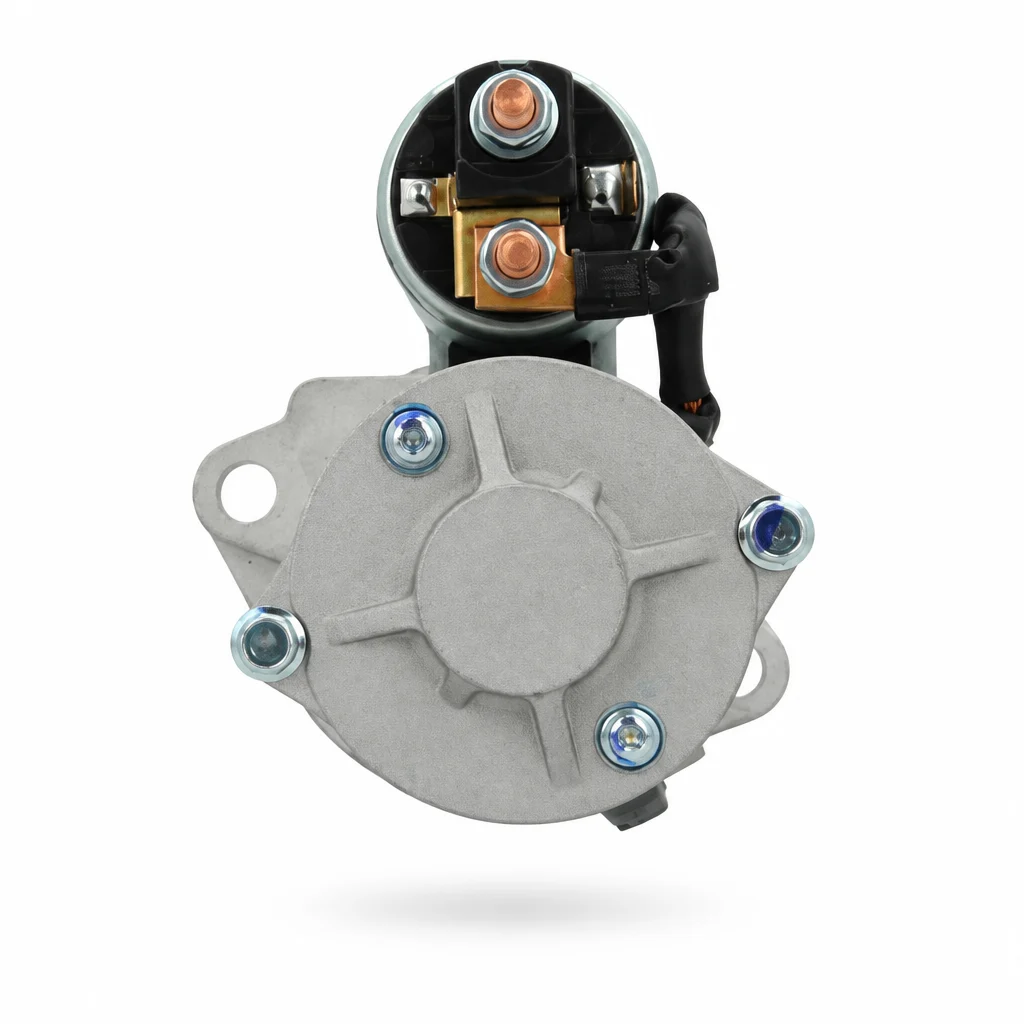

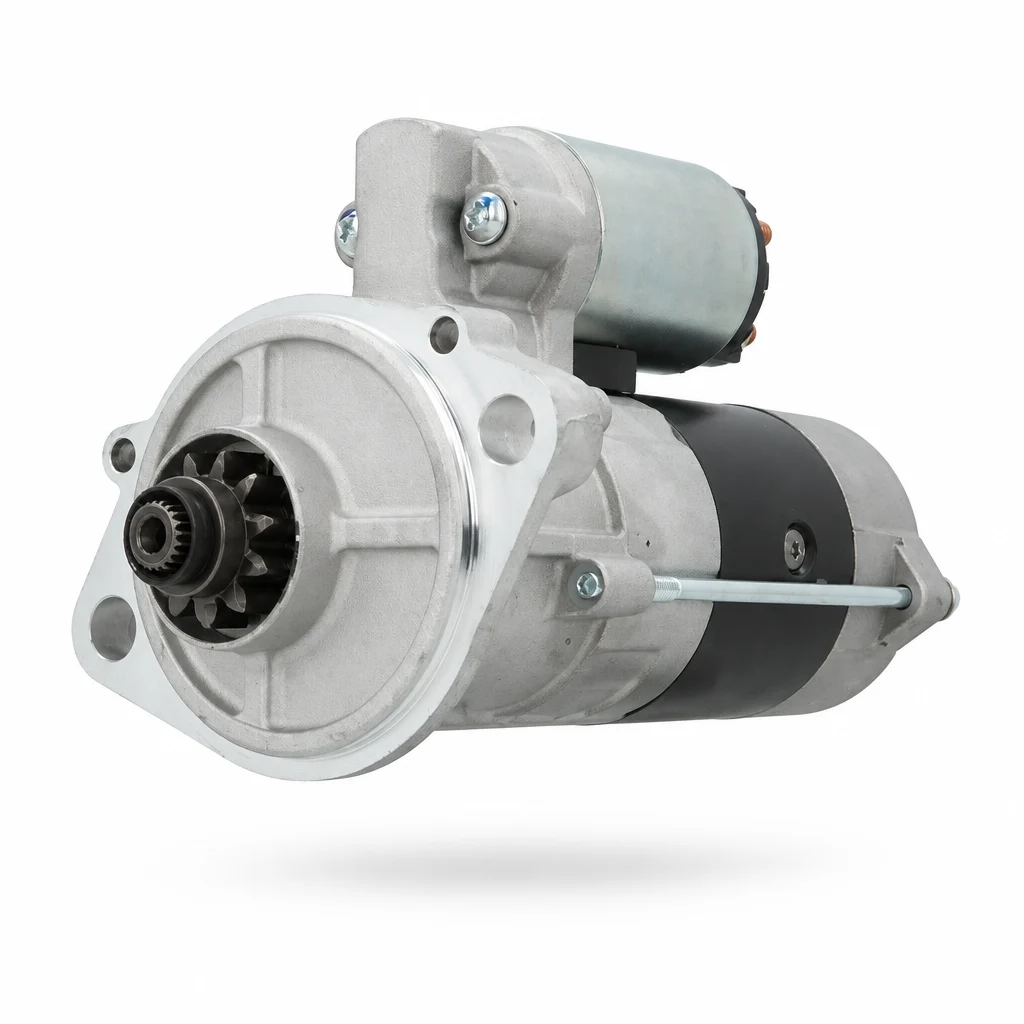

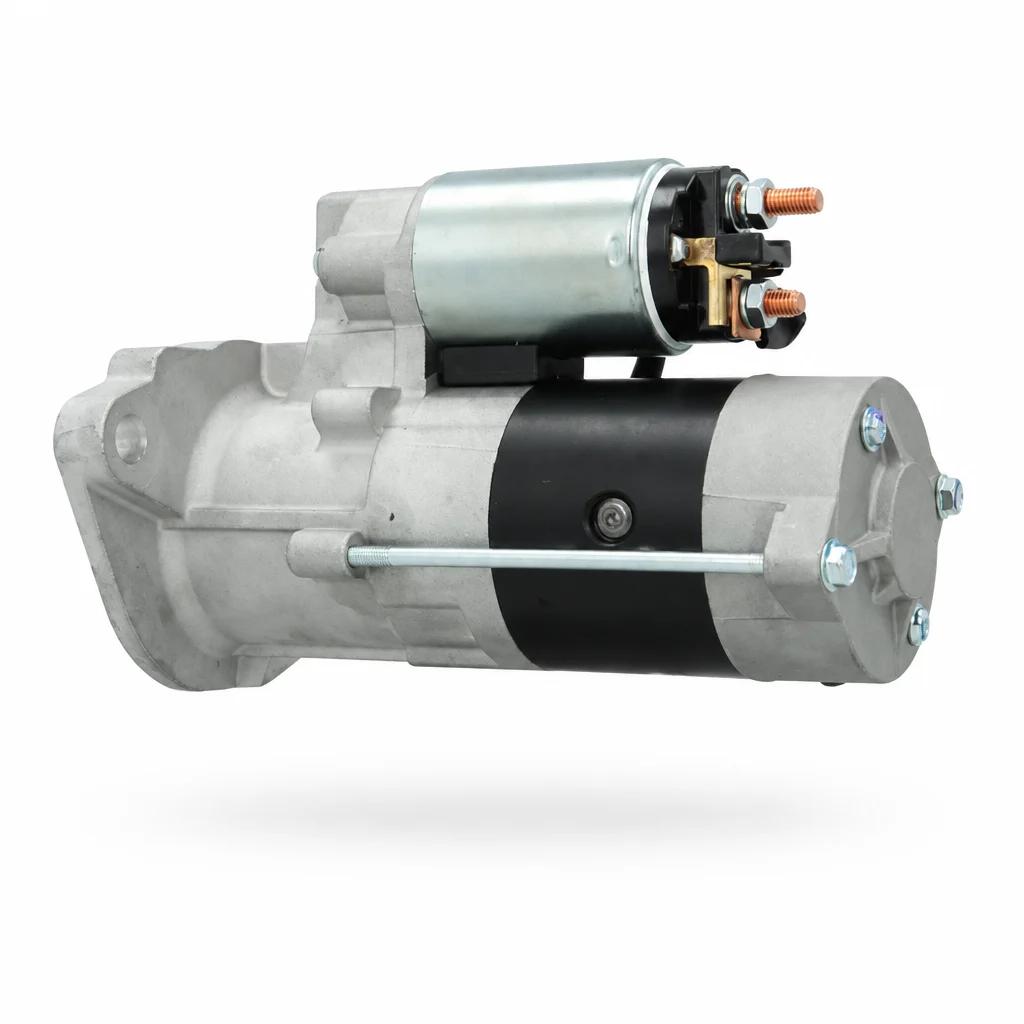

Starter motor Isuzu 4JB1 | 4JG1 | Kobelco SK60 | SK70 | SK80CS | John Deere 75C | 80C | JCB JZ70 | 24V 3.2 kW 11 teeth

Description

New 24V starter motor for older Isuzu 4JB1 and 4JG1 engines, as found in Kobelco SK60, SK70 and SK80CS, John Deere 75C and 80C, and JCB JZ70. A direct 1-to-1 replacement for Isuzu 8-97137-478 (Mitsubishi M8T80373): same mounting flange, 11 teeth, and same pinion position.

✔️ Exact OEM fit: mounting flange 95 mm, 2 mounting holes, pinion base position 20 mm
✔️ 24 Volt, 3.2 kW reduction starter motor with 11 teeth, clockwise rotation
✔️ Supplied new without the need to trade in your old starter motor

Technical specifications

• Voltage: 24 Volt
• Power: 3.2 kW
• Number of teeth: 11
• Mounting flange: 95 mm
• Number of mounting holes: 2
• Rotation direction: clockwise (CW)
• B+ terminal: M8
• Drive gear base position: 20 mm
• Position: +55°
• Total length: 259 mm
• Condition: new

Suitable for these engines

Isuzu

• 4JB1, 4JG1 (24V version)

Machines with this starter motor

Kobelco

• SK60, SK70, SK70SR-1E, SK80CS

John Deere

• 75C, 80C

JCB

• JZ70

Please note:

Check the part number and voltage of your old starter motor. There are versions that look very similar:

• The newer Isuzu 8-98072-315 (Mitsubishi M8T81571) for Isuzu 4LE2 and 4LE2X from approx. 2007 (Hitachi ZX70-3 to ZX85USB-3, John Deere 75D and 85D, New Holland E70B and E80B) is also 24V 3.2 kW with 11 teeth and a 95 mm mounting flange, but the pinion is at a different base position (21.5 mm instead of 20 mm). Not interchangeable. You can find it here: starter motor Isuzu 4LE2 24V 3.2 kW 11 teeth (8-98072-315).
• Kobelco SK70SR-2 and SK80CS-2 with Isuzu 4LE2X (from approx. 2010) usually feature the newer 8-98072-315 according to the catalogs. Please compare the number on your old starter motor.
• 12V version: the same Isuzu 4JB1 and 4JG1 engines are also used in machines with a 12V system, such as the JCB 8056, 8060, and 8080, the Case CX75SR, and the Gehl CTL70. These require a 12V 2.2 kW starter motor (Mitsubishi M8T77071). You can find it here: starter motor Isuzu 4JG1 / 4LE2 JCB 12V 2.2 kW 11 teeth.
• Need an alternator? The 24V 30A Mitsubishi alternator (Isuzu 8-97182-289) for the same Kobelco and John Deere machines can be found here: alternator Isuzu 4JB1 / 4JG1 24V 30A.

OEM for reference:

Isuzu

• 8-97137-478-0, 8-97137-478-1, 8-97137-478-2, 8971374780, 8971374781, 8971374782
• 8-97204-719-0, 8972047190

Mitsubishi

• M8T80371, M8T80372, M8T80373, M8T80374, M8T80373AM
• M008T80371, M008T80372, M008T80373, M008T80374, M008T80373AM

JCB

• 714/34500, 71434500

Other brands

• WAI 30027N
• AS-PL S5203
• HC-Cargo 114185, F032114185
• Lucas LRS01962, Delco Remy DRS0393, ATK AUS129
• Wood Auto STR71012, Lester 19544, Arrowhead SMT0383
