Piston Iseki E3CF / E3CF-B – TG23 | TG25 | TG233 | TG253 | TK25 | TK527 | TF243 | Massey Ferguson 1230 | Challenger MT255

Description

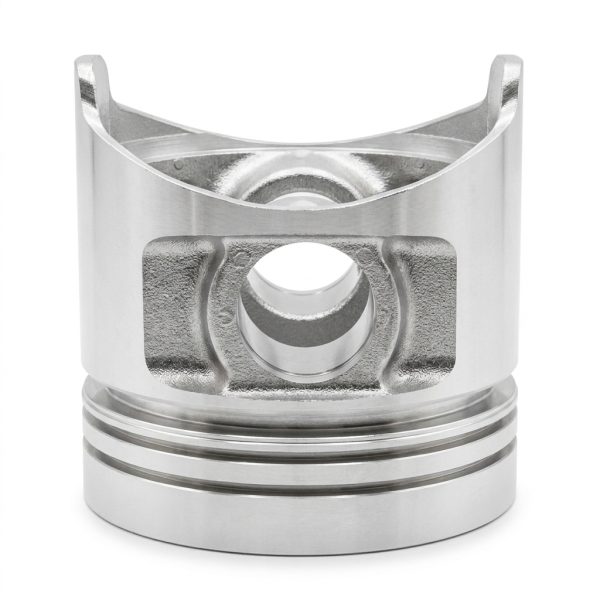

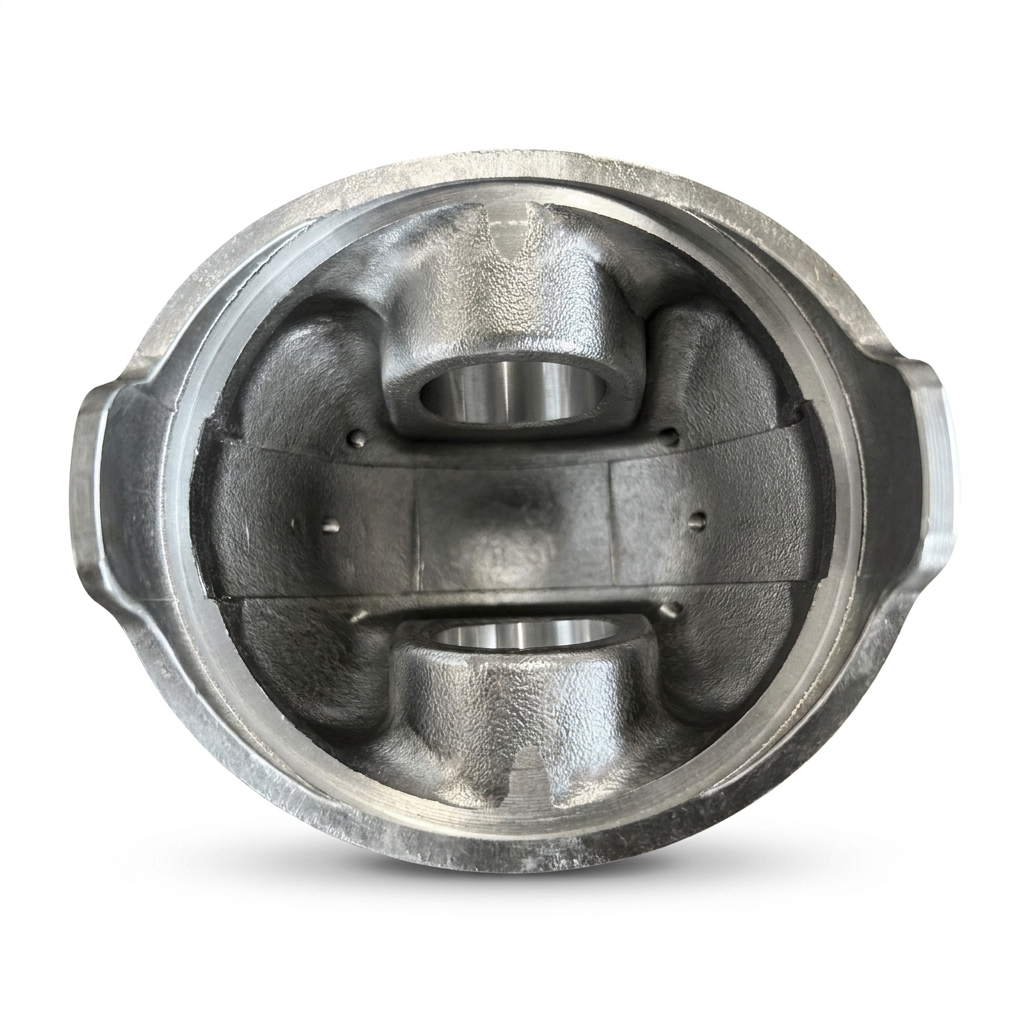

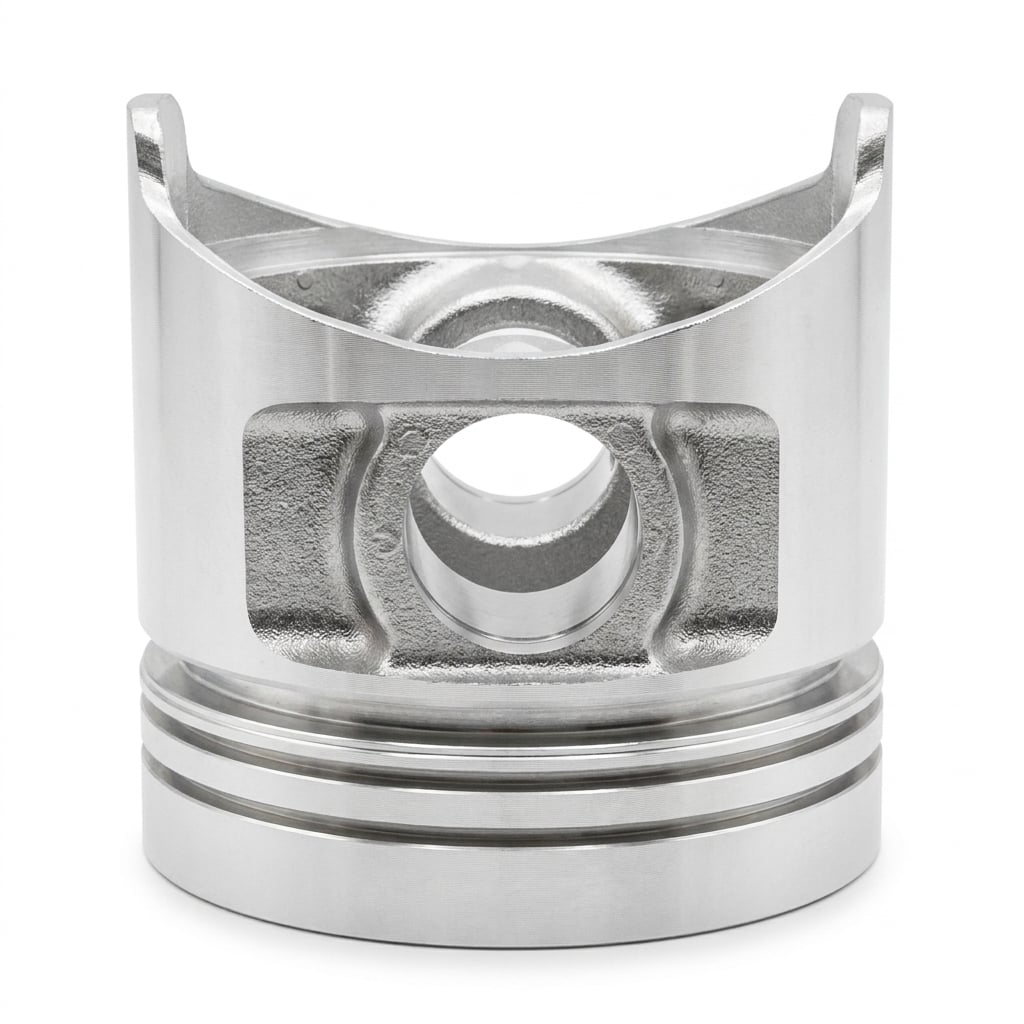

New piston with piston pin for the Iseki E3CF / E3CF-B (Isuzu) three-cylinder diesel engine. This piston has a standard bore of Ø86 mm and is an exact 1-to-1 replacement for the original. Note: the E3CF shares many parts with the E3CD and E3CE, but the piston is bore-specific — use only the E3CF piston (Ø86 mm) for this engine.

✔️ Exact OEM fit for the E3CF / E3CF-B — bore Ø86 mm (STD), piston pin Ø25 mm

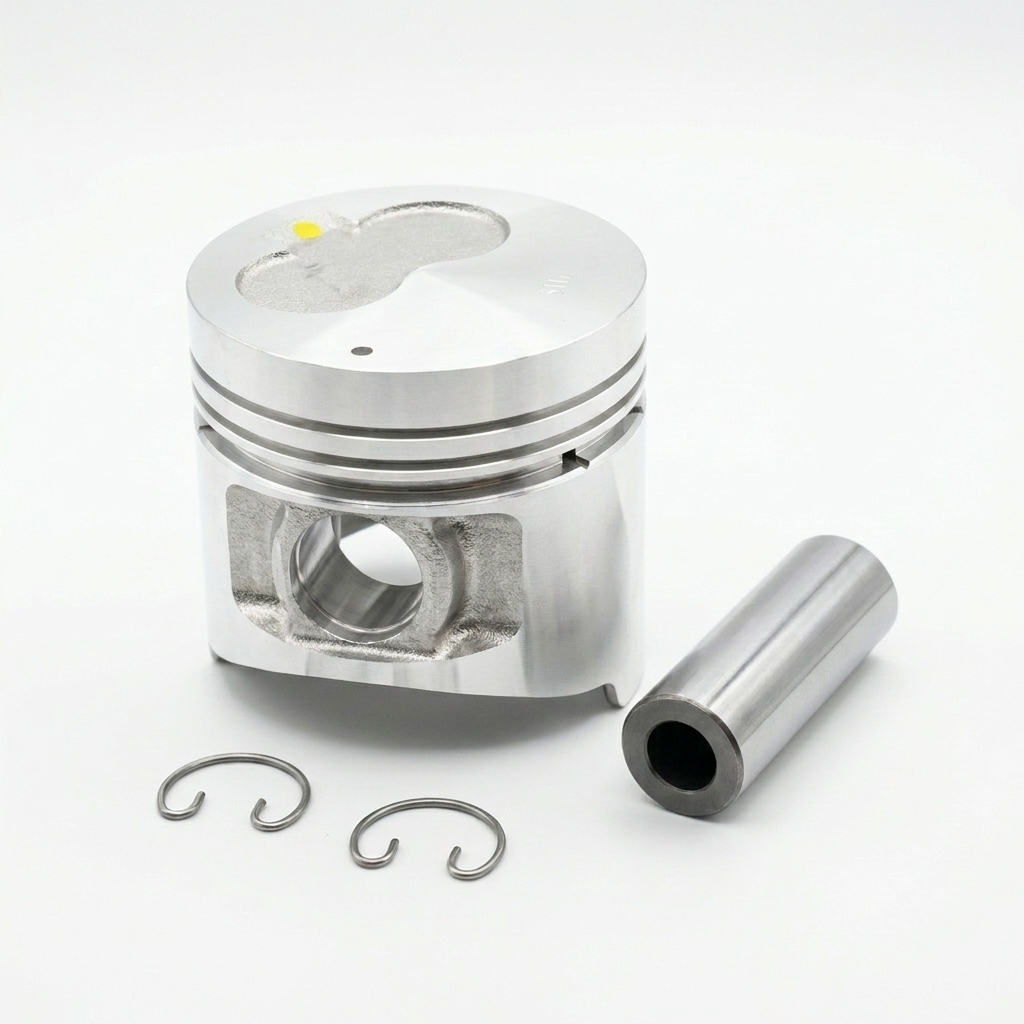

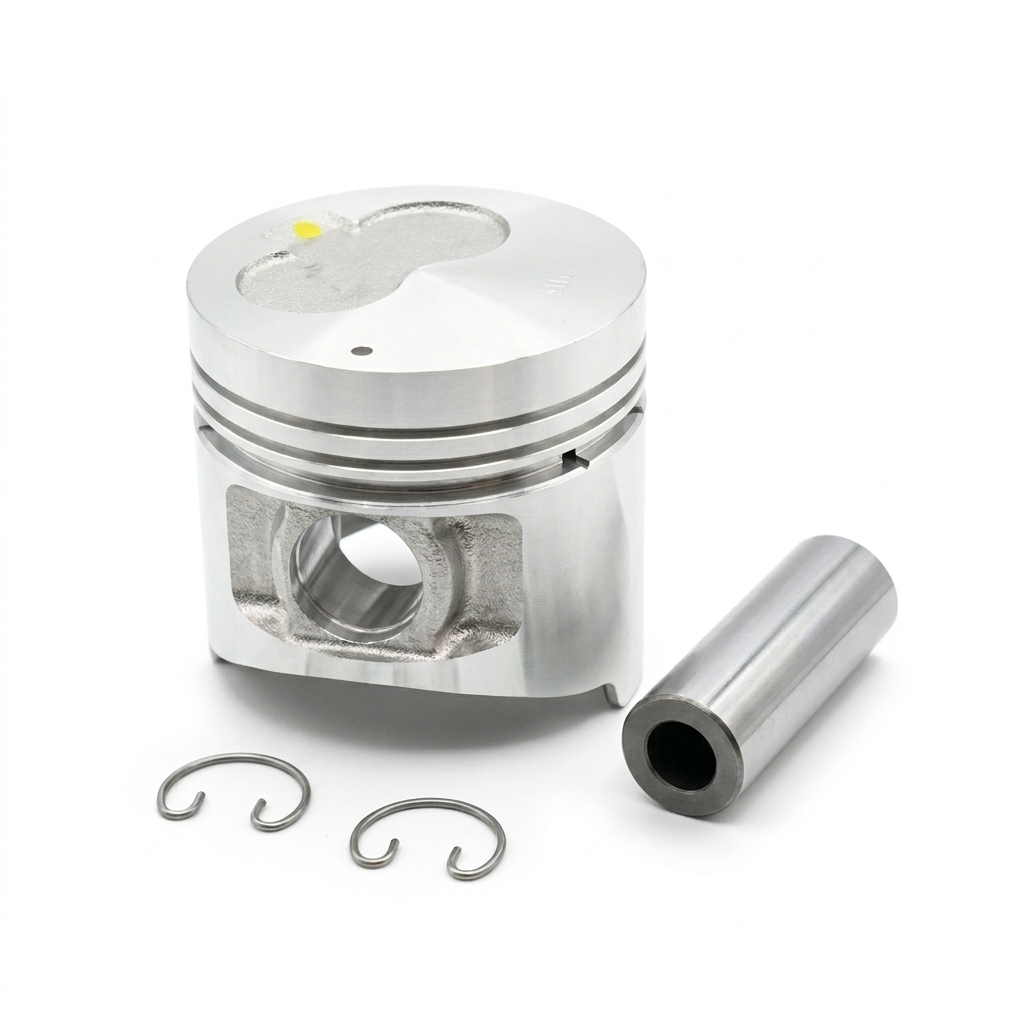

✔️ Supplied complete with piston pin and circlips
✔️ New and according to manufacturer specifications — direct replacement for overhauls

Technical specifications:

• Bore (STD): Ø86 mm
• Piston pin: Ø25 mm
• Version: sold individually, including pin + circlips
• Sizing: STD, +0.50 mm (Ø86.5 mm) and +1.00 mm (Ø87 mm) on request

Suitable for:

Iseki

• TG23, TG25, TG233, TG253
• TK25, TK527
• TF243

Massey Ferguson

• 1230, 1240HST

Challenger

• MT255

Mitsubishi

• GSK24

OEM ref:

• 6212-111-061-10, 6212111061, 6212-111-061
• 6212-111-061-50
