Piston Kubota D905 | V1205 – A-15 | B1700 | B1710 | BX2200 | BX23 | Bobcat 553 | Giant

Description

New premium-quality piston for the Kubota D905 and the four-cylinder V1205 diesel engine (bore 72 mm). Supplied complete with piston pin and circlips. Choose the correct size above: standard (STD) or oversize +0,5 mm.

✔️ Exact OEM fit — 1-to-1 replacement of the original (ref. 16224-21110)

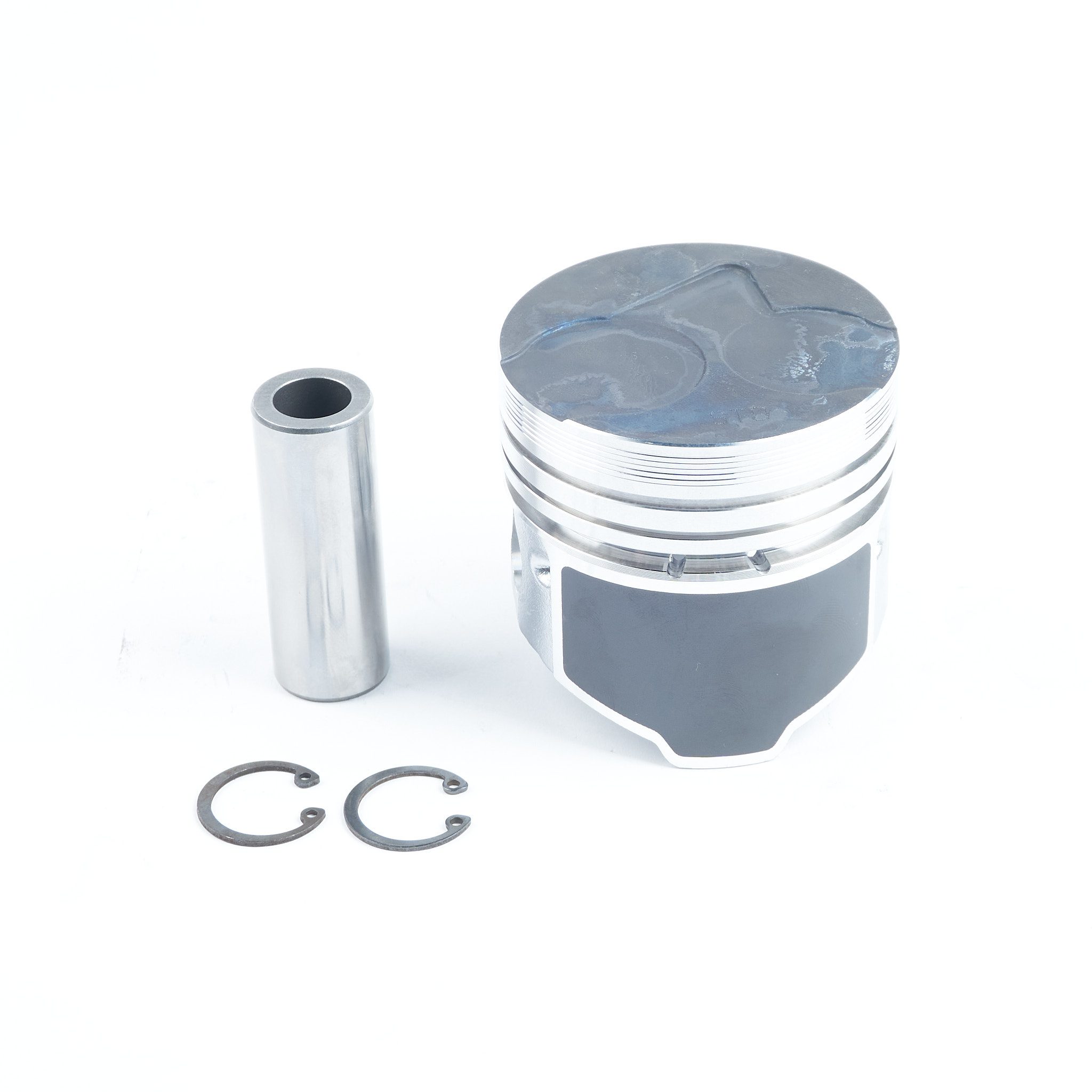

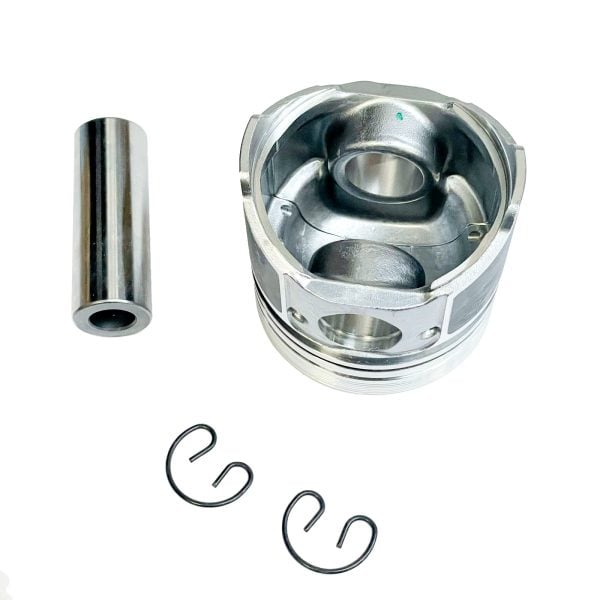

✔️ Including piston pin and circlips — ready to install
✔️ Available in STD and +0,5 oversize (after boring/honing the cylinder liner)

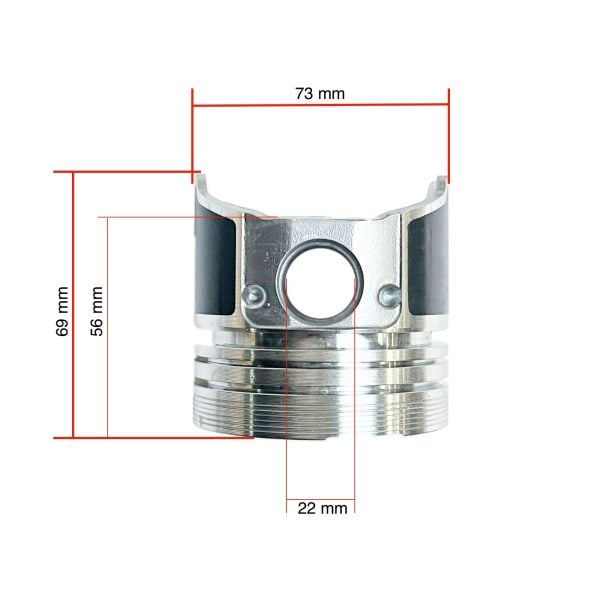

Technical specifications

• Bore: 72 mm (STD) / 72,5 mm (+0,5)
• Piston pin: 23 mm
• Engine: Kubota D905, D905E, D905B, D905H, V1205

Suitable for:

Kubota engine

• D905, 3D72, D905E, D905B, D905-E2B/E2BG, D905H, V1205

Kubota

• A15, A155, B20, B72, B1700, B1700D, B1700HSD, B1710, B1710D, B1830
• BX22, BX23, BX2200, BX2660, BX2670D, BX2680
• GB15, GB16, GB150, GB155, GB160, F2100

Bobcat

• 553, S70, E26

Genie

• Z-34/22 IC, GS-2668 RT, GS-3268 RT, AL-4000D1, RL-4000D1

Giant

• D241S

JCB

• 1T-HT

JLG

• 260MRT

Schäffer

• 2022

Snorkel/Upright

• AB-46 I/C, AB46E I/C, BOOM 46, SL26RT, SL30RT, X27RT, X33RT, X40RT

Hinomoto

• CX19, NX18

Other machines

• Aichi FR300 · Ausa D85, D100, D120, D150 · Avant 528, 630, R28 · Eurotrac K33, W11, W11K26 · Manitou TMT20.17 · Hitachi EX15-2 · Hyundai HSL500T, R25Z-9AK, R30Z-9AK · Steiner 525 · Bomag BMP8500 · Hamm HD8, HD10C · Ingersoll-Rand 7/20 · Tendo 4548

OEM reference:

• 16224-21110, 1622421110, 16224-2111-0 — STD
• 16224-21910, 1622421910, 16224-2191-0 — +0,5 oversize
• 16304-21110 — alternative reference
• 15901-21050 — piston rings (sold separately)
