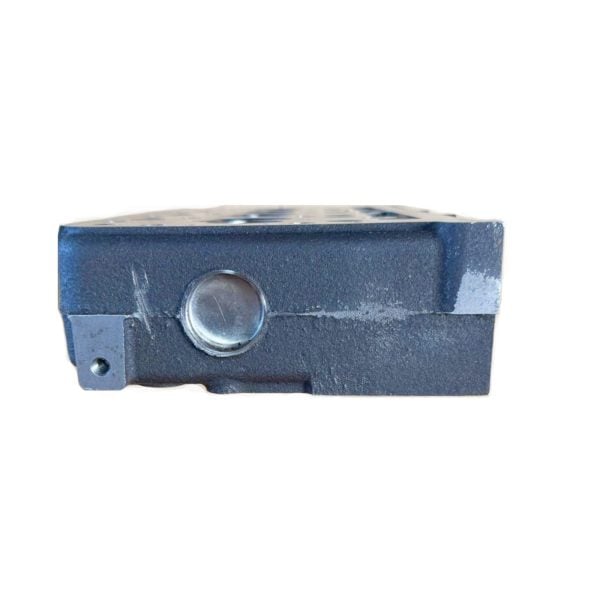

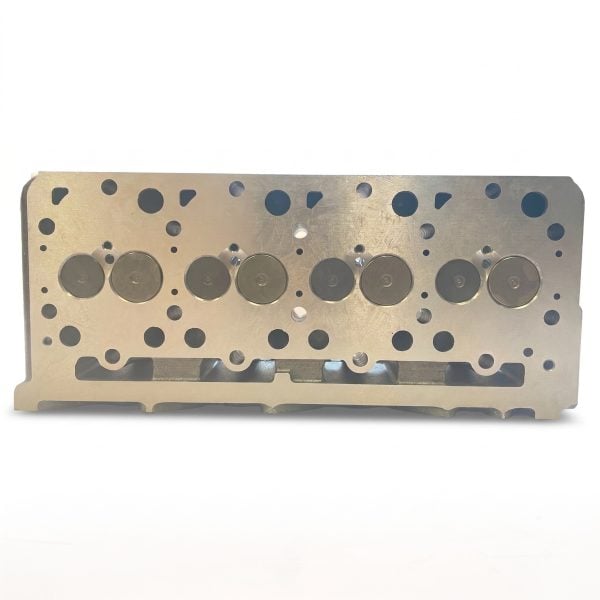

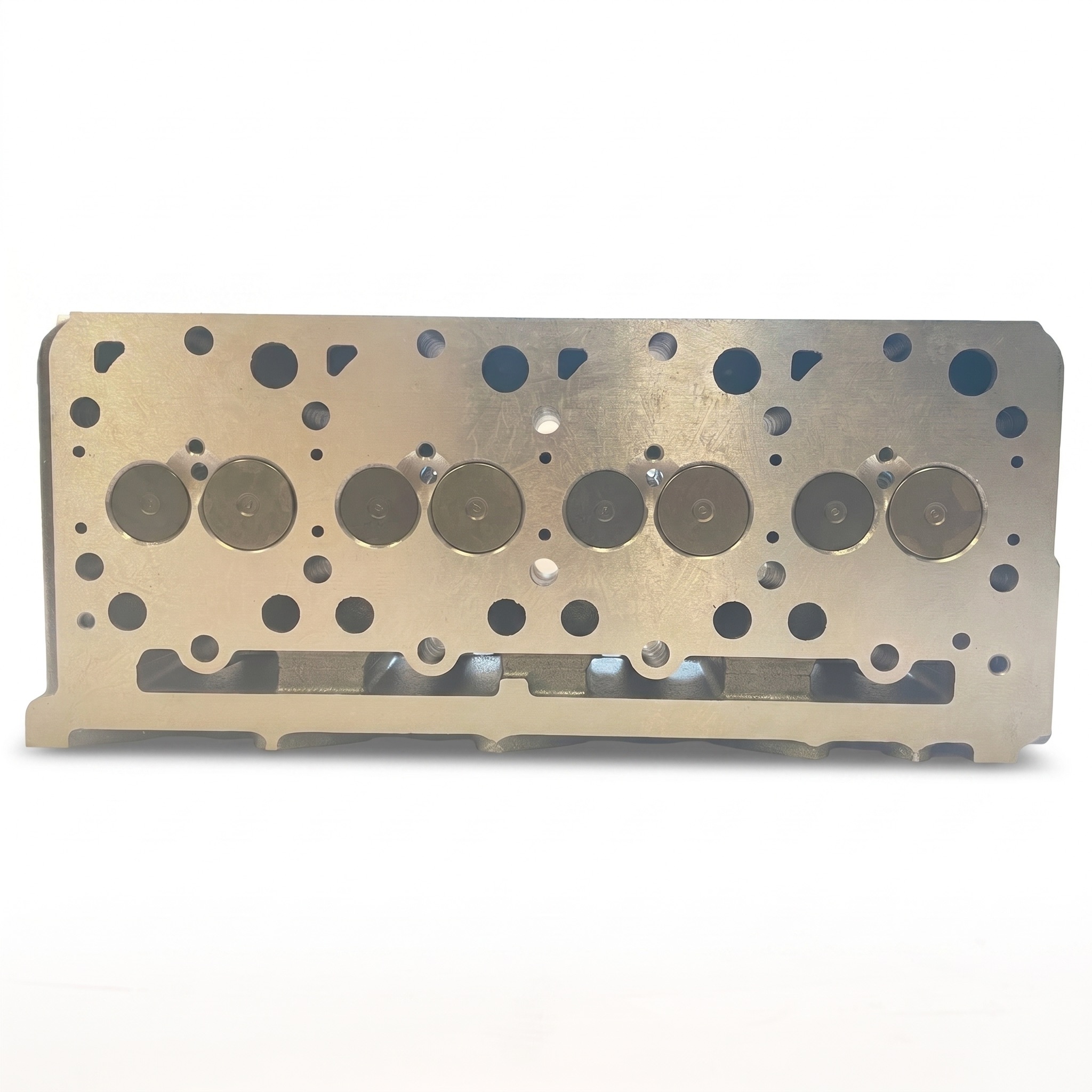

Cylinder head Kubota V2403 engine

Description

PLEASE NOTE — this is the DI version only (Direct Injection). This cylinder head fits only the newer Kubota 03-series engines with direct injection and is not interchangeable with the older indirect (pre-chamber / IDI) version. Not sure which one you have? A DI engine uses thin pencil injectors and a rocker cover with 10 bolts. In doubt? Just email us your engine number and we’ll check it for you.

Brand-new cylinder head, made from high-grade castings and precision-machined for an exact OEM fit. Available in two versions — make your choice above between complete or bare.

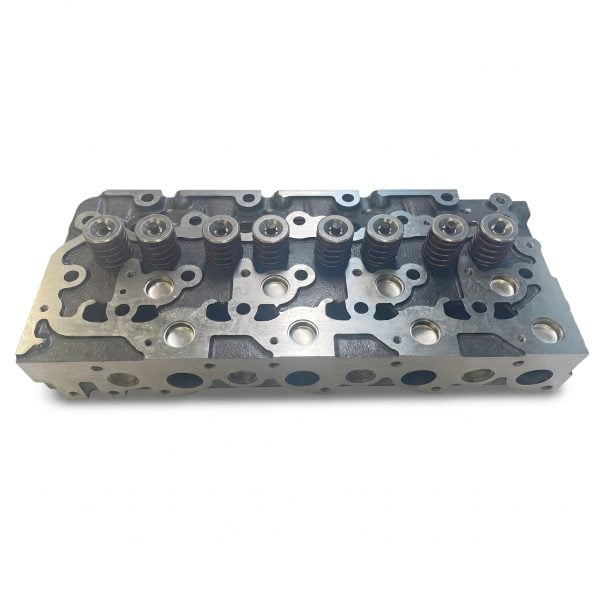

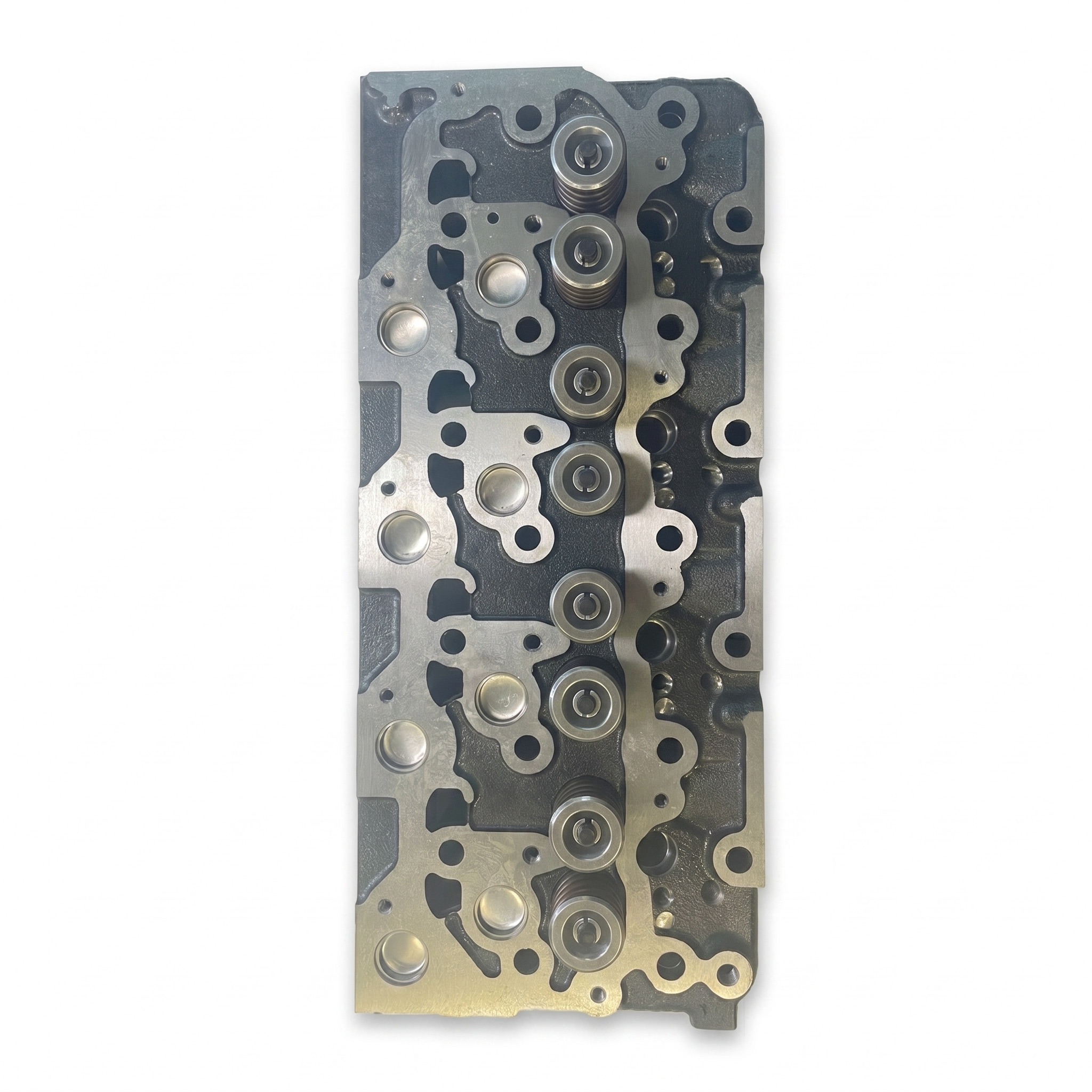

Version 1 — Complete with valves and springs, ready to fit

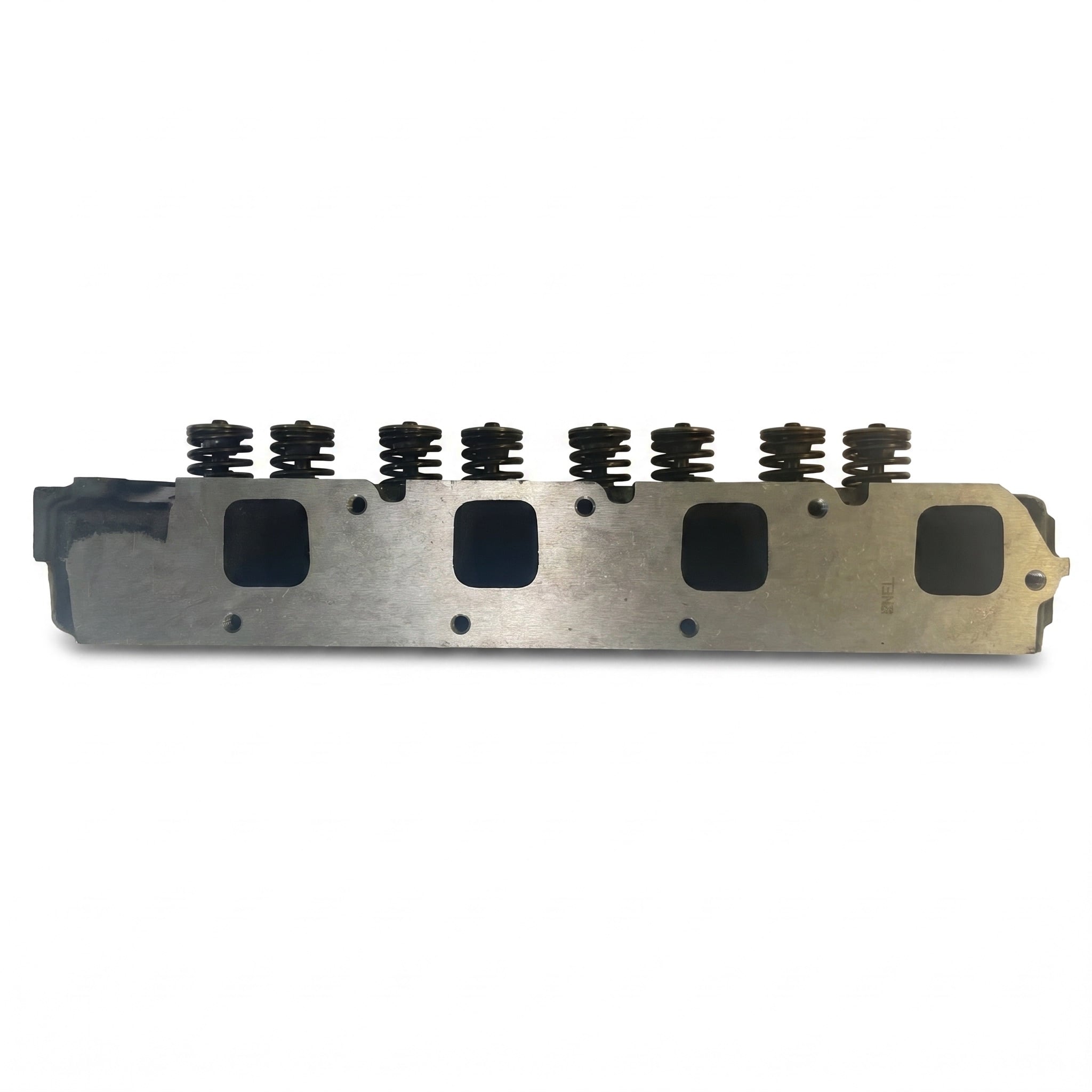

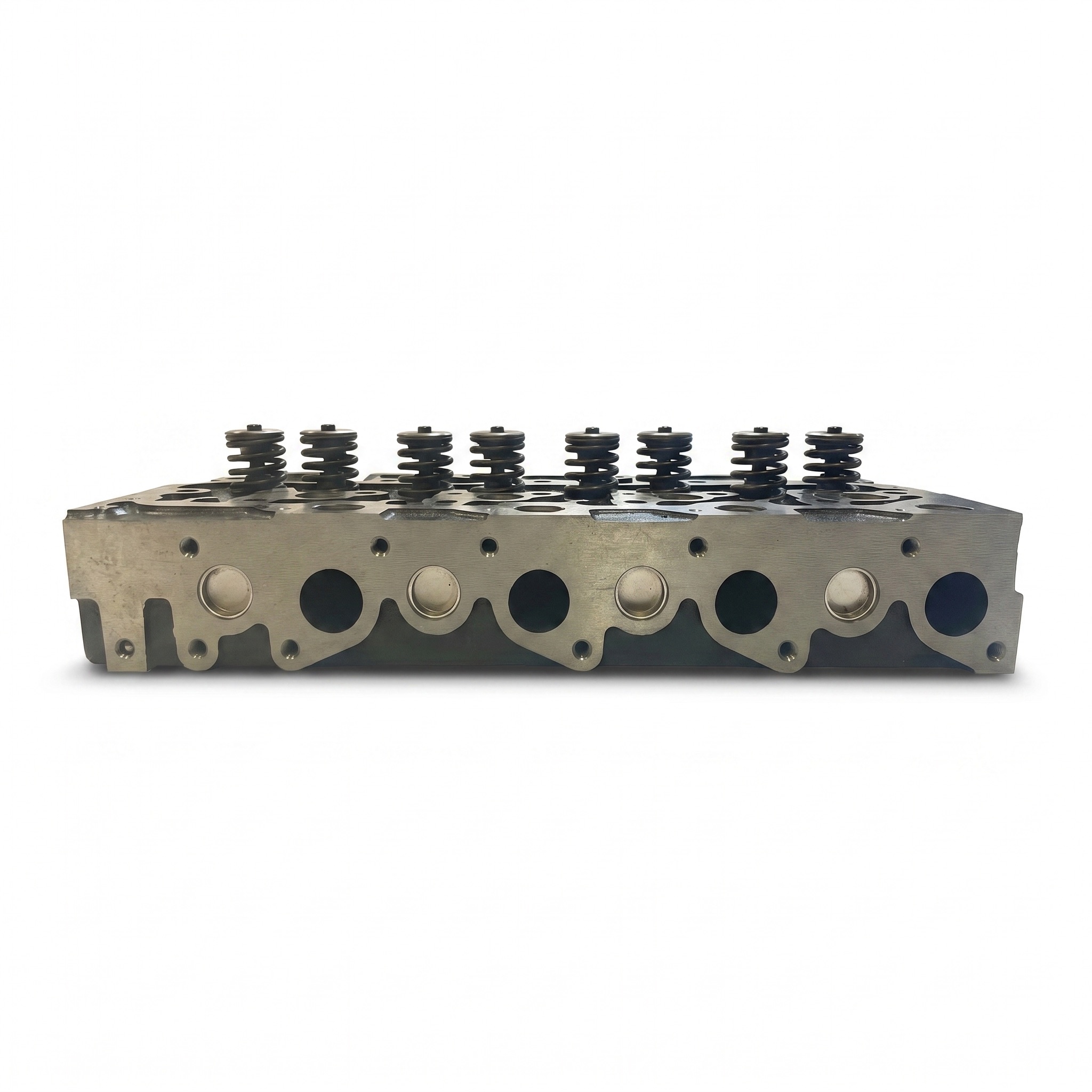

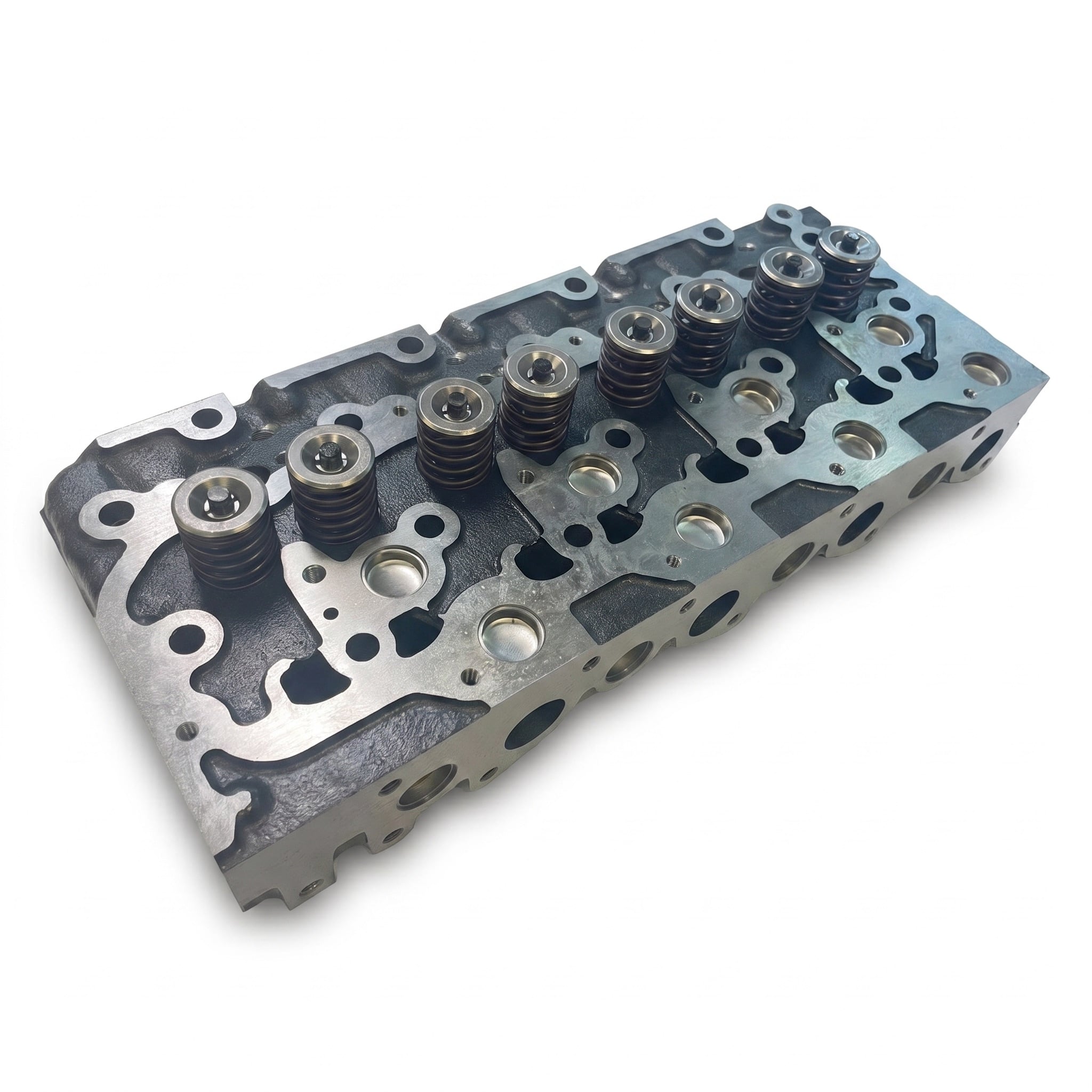

This cylinder head is supplied fully assembled, including fitted valves and valve springs. No need to transfer parts or make adjustments: straight out of the box and onto the engine.

✔️ Fully assembled — valves and springs already fitted
✔️ No extra adjustment or build-up work needed
✔️ Ready to fit — saves workshop time
✔️ Lower risk of assembly errors

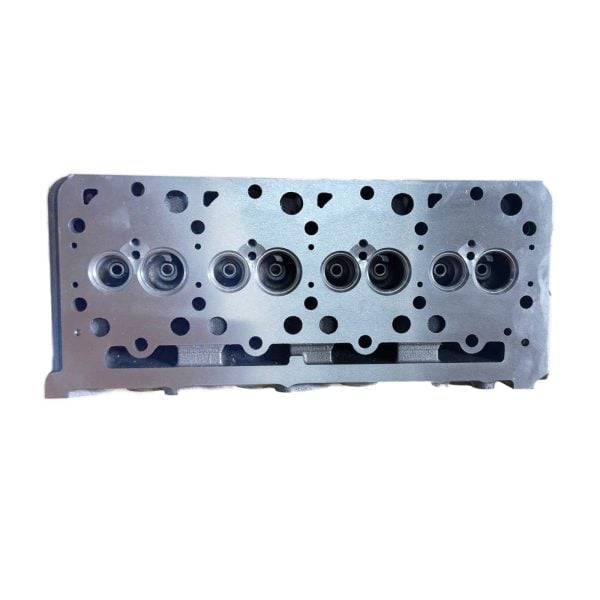

Version 2 — Bare (cylinder head only) with pre-fitted valve seats

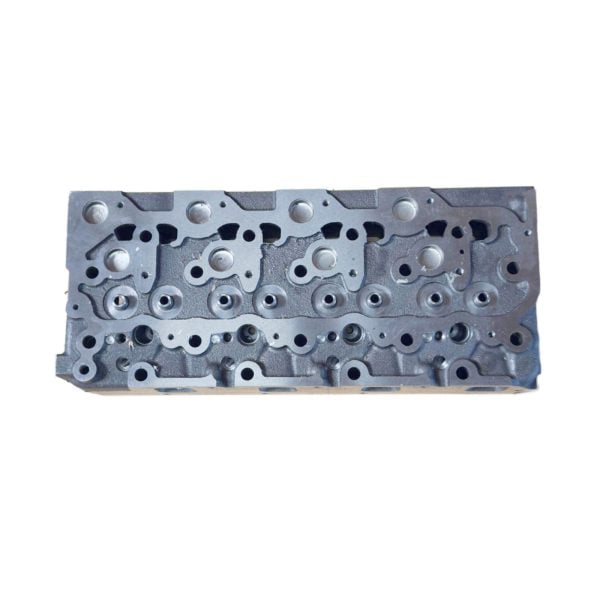

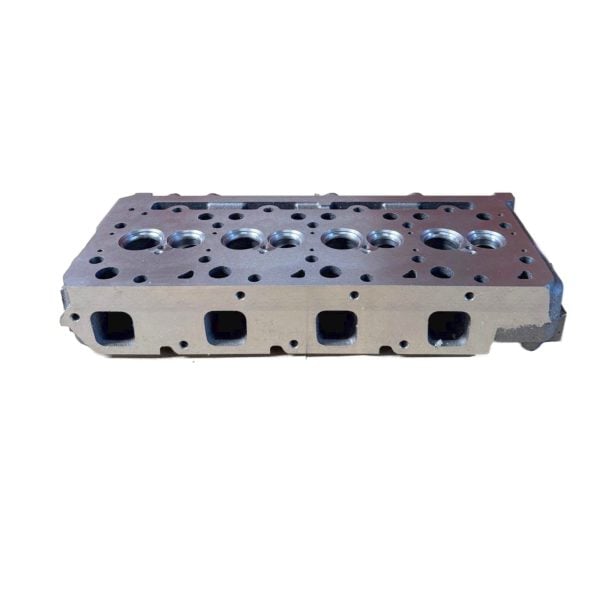

This bare cylinder head is supplied with valve seats already fitted, ready to be built up with your own or new components.

✔️ Brand-new top-quality cylinder head
✔️ Valve seats already fitted
✔️ Ready for further assembly
✔️ Ideal for overhaul or custom builds where you want to reuse parts

The difference between the two versions

Choose Complete if you want a ready-to-fit head without transferring valves/springs. Choose Bare if you do the final assembly yourself or want to reuse existing components. Both versions are the same DI head — the difference is purely in what’s already fitted.

Technical details

• 4-cylinder diesel engine, Kubota 03-series
• Injection: direct injection (DI)
• Rocker cover with 10 bolts
• Exact OEM fit — 1-to-1 replacement of the original

Suitable for

Kubota engine (DI only)

• V2003-DI
• V2203-DI, V2203-M-DI-E2B, V2203-M-DI-E2B-BC-3
• V2403-DI, V2403-M-DI, V2403-M-DI-E3B, V2403-M-DI-T, V2403-M-DI-TE2B, V2403-M-DI-TE3B

Kubota

• R510, R520, KX121, KX161-2, U45-S

Bobcat

• S130, S150, S160, S175, S185, S205, S450, S510, S530
• E45, E50, E55, T110, T140, T180, T180 H, T190, T190 H
• 5600, 5610

Case

• 560, 1838

OEM reference

• 1G796-03040, 1G79603040
• 6685503 — Bobcat
• 6684755, 6684755REM — Bobcat
