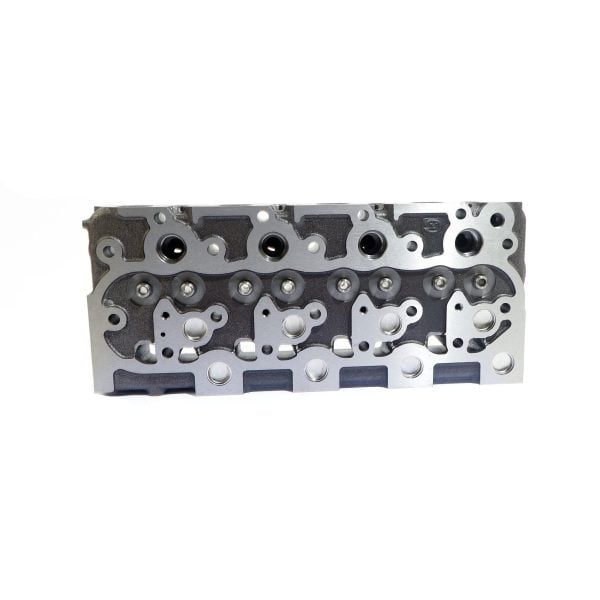

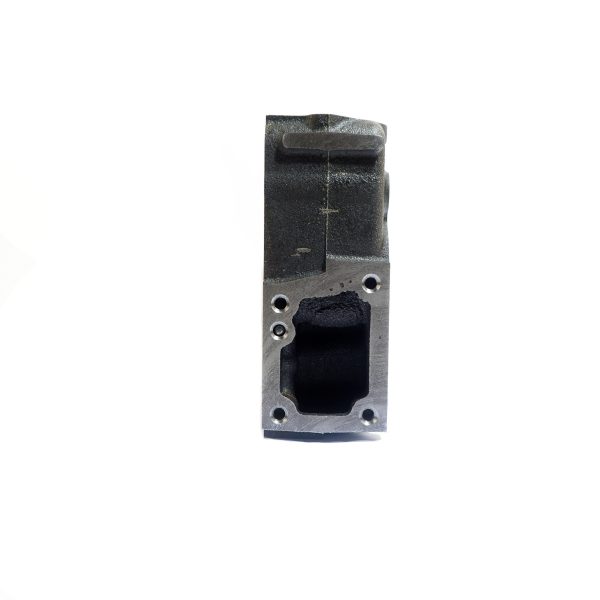

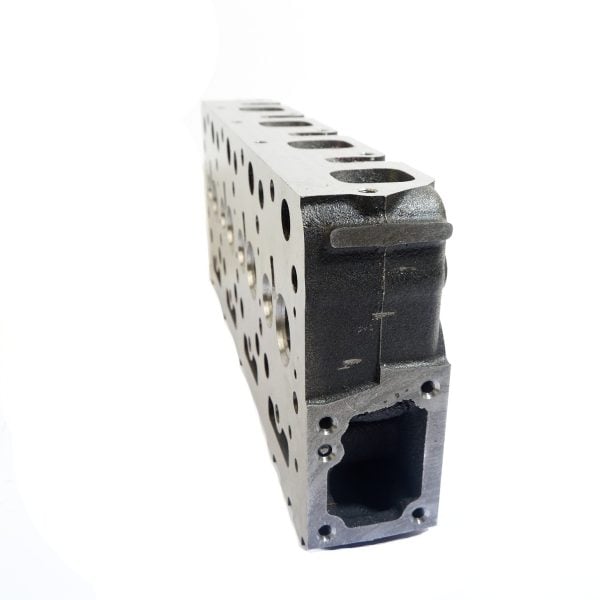

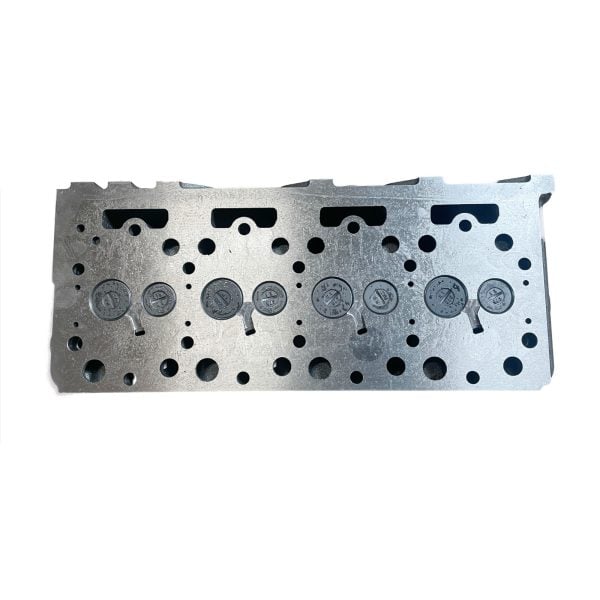

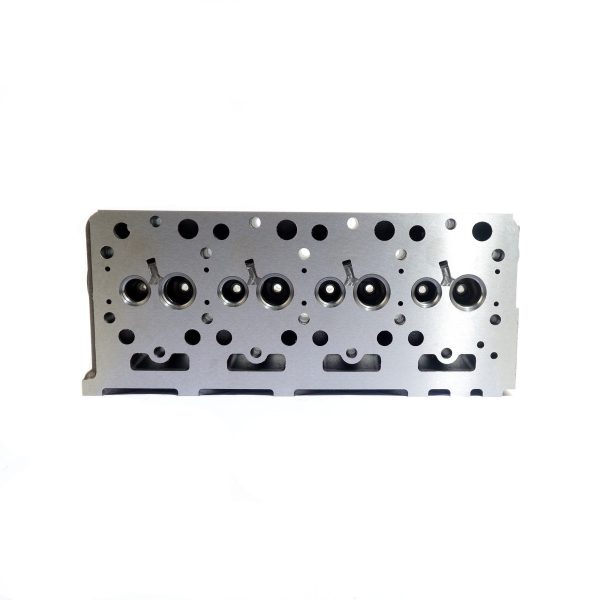

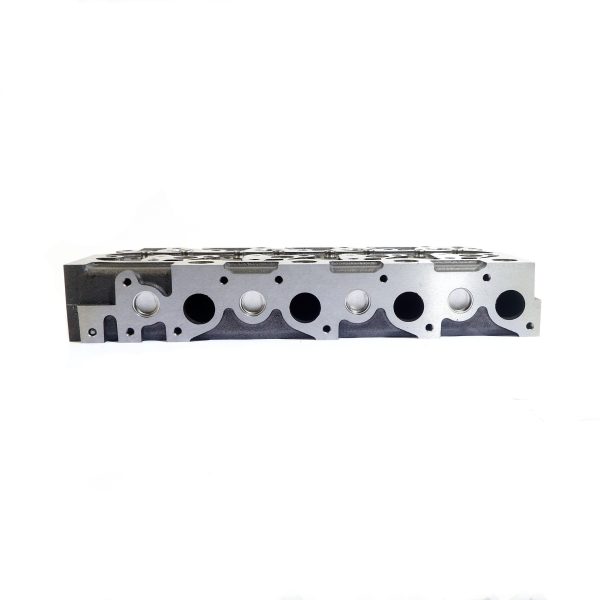

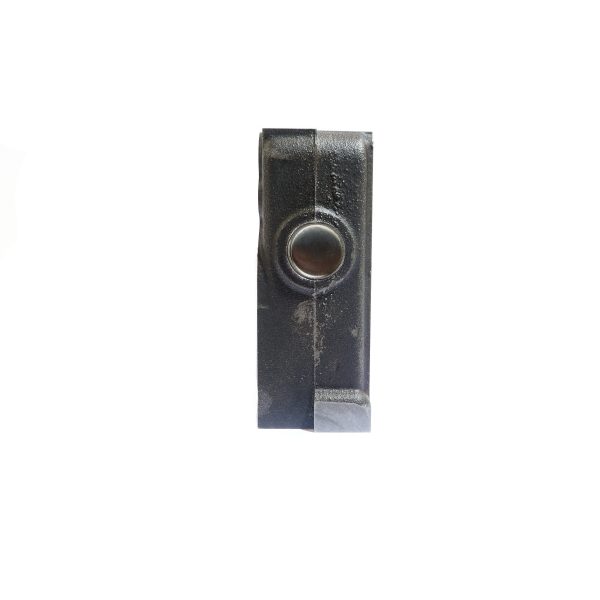

Cylinder Head Complete Kubota V1702E | V1702DI | V1902 | V1902E | V1902DI engine

Description

Technical specifications:

• Bore V1702: 82 mm
• Bore V1902: 85 mm

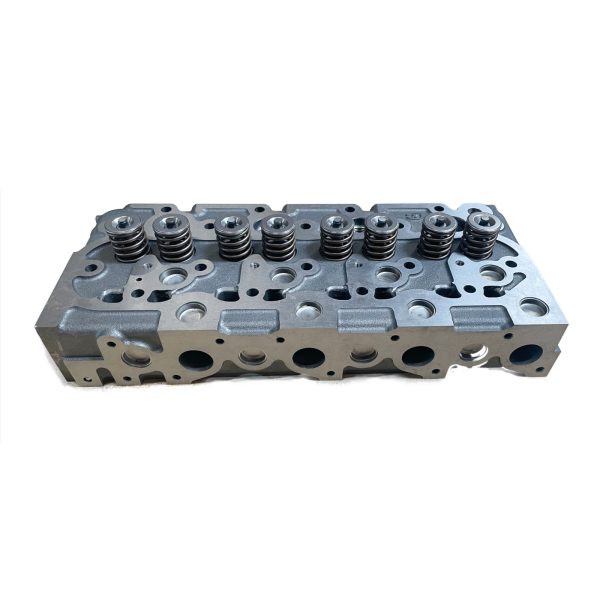

Variant 1. Complete cylinder head with valves and springs – ready for immediate installation

This new cylinder head is manufactured from high-quality material and is supplied complete, including pre-assembled valves and springs. Thanks to the complete assembly, you do not need to transfer or adjust any parts.

✅ Fully assembled

✅ Including valves and springs

✅ No extra adjustment work required

✅ Ready for immediate installation

A ready-to-use solution that saves time in the workshop and minimizes the risk of installation errors.

This cylinder head has been carefully matched to the compatible models below.

Variant 2. Bare cylinder head – with pre-assembled valve seats

This cylinder head is produced from high-quality material and is supplied as a bare cylinder head with pre-assembled valve seats. The head is thus prepared for further build-up with your existing or new components.

✅ Top-quality new cylinder head

✅ Valve seats already assembled

✅ Ready for further assembly

✅ Suitable for overhaul or custom application

Ideal for those who want to maintain control over the final assembly or reuse specific parts.

The cylinder head is suitable for the following models:

Kubota

• L3450GST, L3450, L3650GST, L3650, L355DTSS
• KH101, KH101-H, KH151, KH151-H, R410, R410B, KX101, KH20, KH151, KH90

Bobcat

• 231, 743, 743, 733, 1600, 3023 Trencher

New Holland

• L555, L553

Scat Trak

• S1350, 1300HD, 1650

JLG

• 60HA

Thomas

• T133

Genie

• Z45/22

Engine

• V1902, V1902T, V1902E, V1902B, V1702, V1702T, V1702E, V1702B

OEM for reference

• 15476-03040, 15476-03112, 15476-03043
