Hydraulic filter Iseki SF370 | JCB JS | Case CX | Hitachi Zaxis | Kobelco

Description

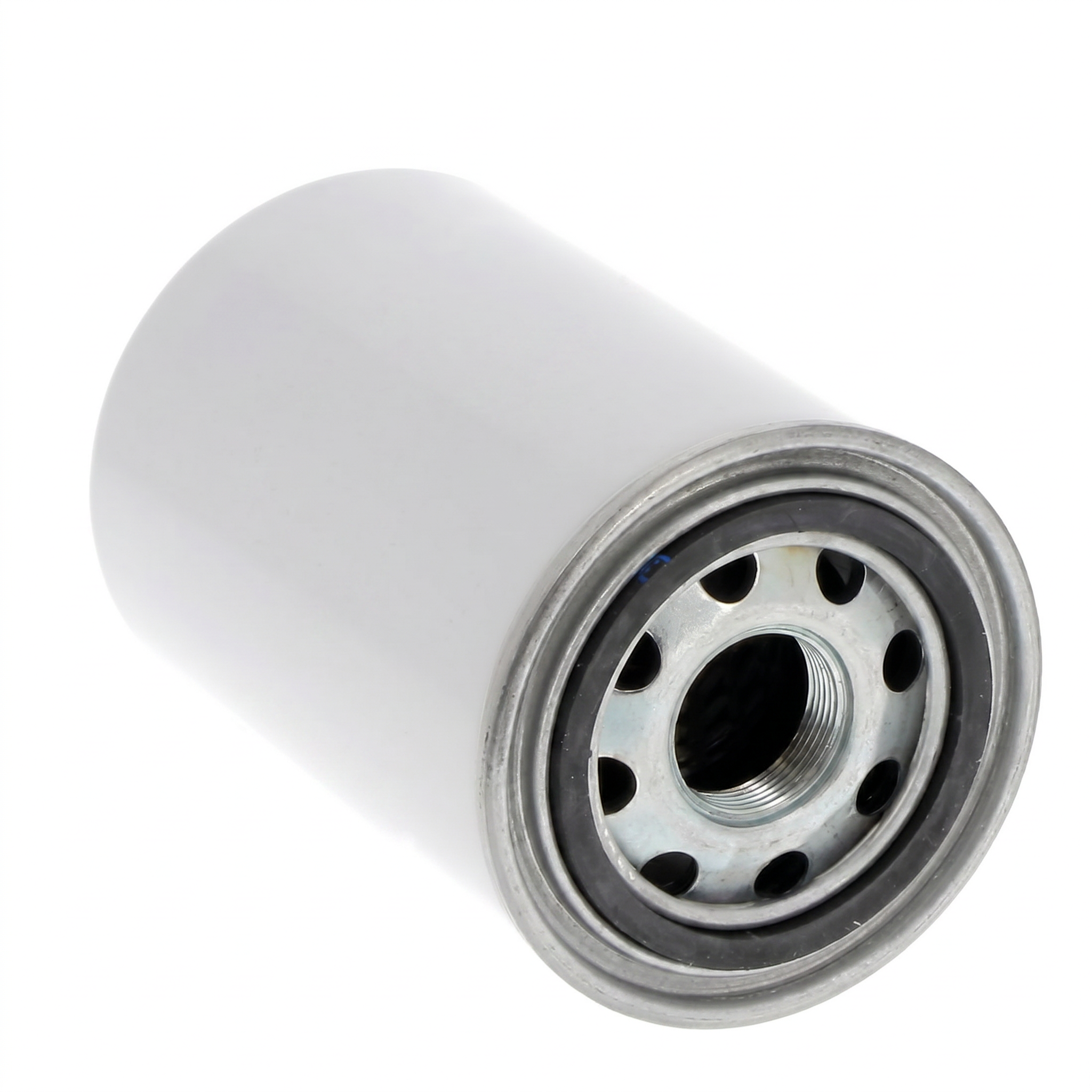

High-quality hydraulic filter from Hifi (reference SH60120) — a trusted 1-to-1 replacement for the original filter in the Iseki SF370 and a wide range of compact excavators, wheel loaders, and rollers. This is a “spin-on” filter with 1″1/8-16UNF internal thread: you simply spin off the old filter, lubricate the new seal with clean hydraulic oil, and hand-tighten the new filter.

✔️ Hifi quality — manufactured to manufacturer specifications and tested against ISO standards
✔️ Exact OEM fit — 1″1/8-16UNF connection, 141 mm high × 91 mm diameter
✔️ Universal application — fits dozens of Iseki, JCB, Case, Hitachi, Kobelco, and Yanmar machines

Technical specifications:

• Height: 141 mm
• Outer diameter: 91 mm
• Gasket outer diameter: 93.5 mm
• Gasket inner diameter: 71 mm
• Connection / thread: 1″1/8-16UNF
• Weight: approx. 0.62 kg
• Type: spin-on hydraulic return filter (without bypass)

Suitable for:

Iseki

• SF370 (E3100 engine)

JCB – excavators

• JS150LC, JS150W, JS160, JS160NC, JS160LC, JS160SC, JS160SLP, JS160W, JS175W, JS180, JS180W, JS190LC, JS200, JS200LC, JS200W, JS210LC, JS220

Case – excavators

• CX130B Tier 3, CX135SR Tier 3, CX210, CX210LC/N, CX230, CX240
• Poclain 9013, 9021, 9033, 9046

Hitachi – Zaxis excavators

• ZX450, ZX470, ZX500, ZX520, ZX650, ZX670, ZX850, ZX870

Kobelco

• SK series (various models, check OEM)

Hyundai – Robex excavators

• R130LC, R130LC-3, R130W-3, R15-7, R16-7

Komatsu, Sumitomo, Yanmar, IHI, Antonio Carraro — various compact excavators and construction machinery

Dynapac – road construction

• VD15, VD25, VD251, VD35, VD351

AUSA

• MH25

⚠️ Please note: this filter is used on many different machines. Always compare the OEM number or the dimensions of your old filter (141 mm × 91 mm, 1″1/8-16UNF thread) before ordering. In doubt? Send us a photo of the old one and we will help you further.

OEM ref:

• 1646-516-6920-0, 164651669200 – Iseki
• 332/B1489, 332B1489 – JCB
• KNJ 0288, KNJ 0288 A – Case / New Holland
• P17-8303, P 17-8303, P178303 – Donaldson cross-reference
• HF7955, HF28916 – Fleetguard cross-reference
• 50/005302
• 2446U141S2, 2446-U-141-S2
• Z76-66-11330, 3ED-66-11330 – Hyundai
• R1411-6386-0
• 56201500, 562-01500, 562-01500-1, 562015001 – Komatsu
• 4.4524.021, 44524014, 44524018, 44524021, 44524022 – Liebherr/Atlas
• 150794A1 – Case
• XJDH-01241, XJDH-01242 – Hyundai
• 31E3-0126
• SH60120 – Hifi (universal reference)
