Piston Iseki E3CD | E3CD-T – TK532 | TK538 | TG5390 | TG6400 | Massey Ferguson 1433 | Challenger MT265

Description

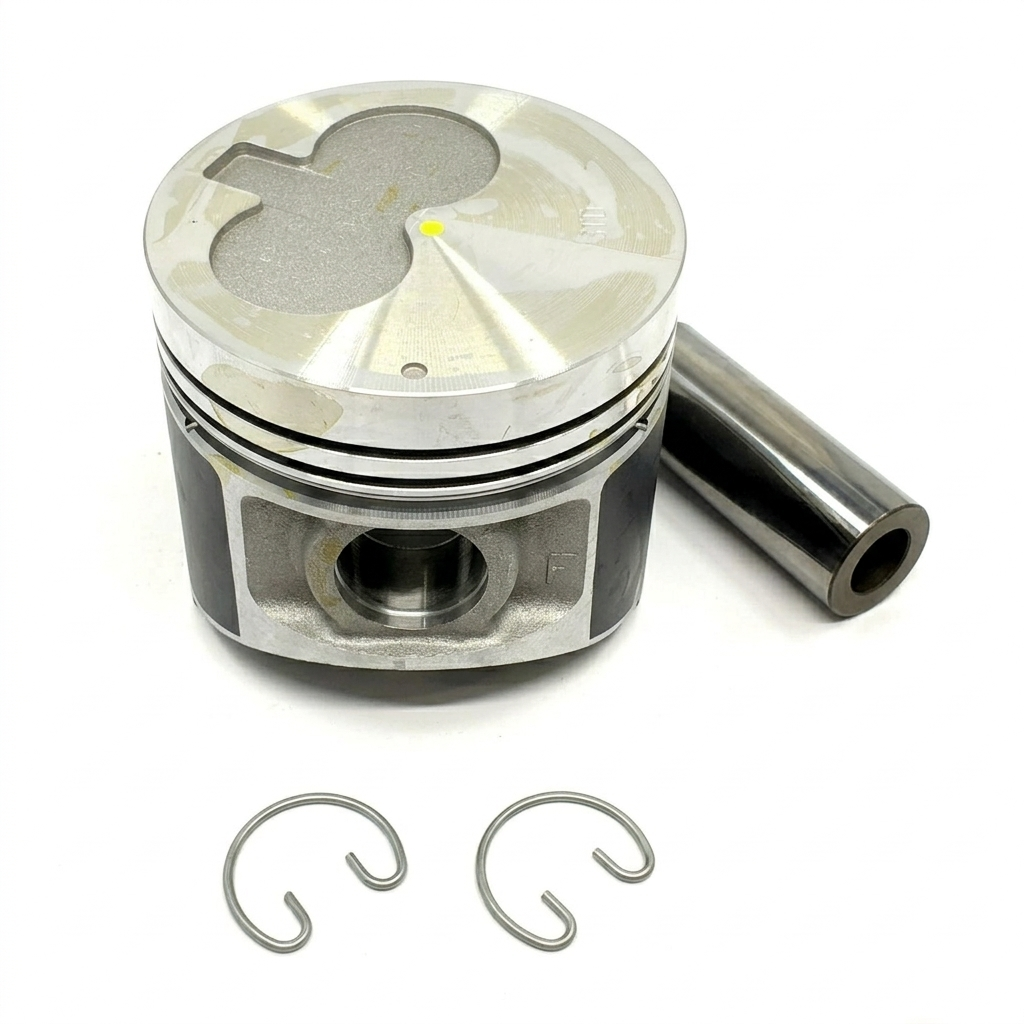

New high-quality piston suitable for Iseki E3CD and E3CD-T three-cylinder diesel engines. This piston is a direct replacement for the original and ensures optimal compression and engine performance.

✔️ Bore 87mm STD — exact OEM fit for the E3CD engine series
✔️ Suitable for all E3CD and E3CD-T variants
✔️ Premium quality — manufactured to manufacturer specifications

Technical specifications

• Bore: 87 mm
• Stroke: 84mm
• Engine: 3-cylinder, water-cooled, 1.5L diesel
• Weight: 1.5 kg

Mechanic's tip: When replacing the piston, we always recommend ordering new piston rings as well. Worn rings in combination with a new piston can cause oil consumption and a loss of compression. Don't forget to replace the head gasket as well!

Suitable for:

Iseki

• TK532, TK538, TG5330, TG5390, TG6400/H/S, TG6405, TH4295, TH4335, TLE3400, TM3267, 5140T

Massey Ferguson

• 1235, 1250, 1433, 1440, 1529, 1532, 1533

Mitsubishi

• GSK256

Agco

• ST35, ST35H, ST35X, ST40, ST40H, ST40X

Challenger

• MT265, MT265Hydro, MT265B, MT265H, MT275, MT275B, MT275H, MT285

Engine

• E3CD, E3CD-T (E3CDB07)

OEM for reference:

• 6212-111-039-20, 621211103920 – Piston (STD 87mm)
• 6212-121-013-10, 621212101310 – Piston ring set (STD 87mm)
• 6212-126-013-10, 621212601310 – Piston ring set oversize (88.0mm)
• 6512-211-018-00, 651221101800 – Piston pin
• 6212-230-005-00, 621223000500 – Connecting rod assy

Please note: the E3CE (85 mm, including Massey Ferguson 1230) and the E3CF (86 mm, including Iseki TF243) have a different bore; this piston will not fit them.
