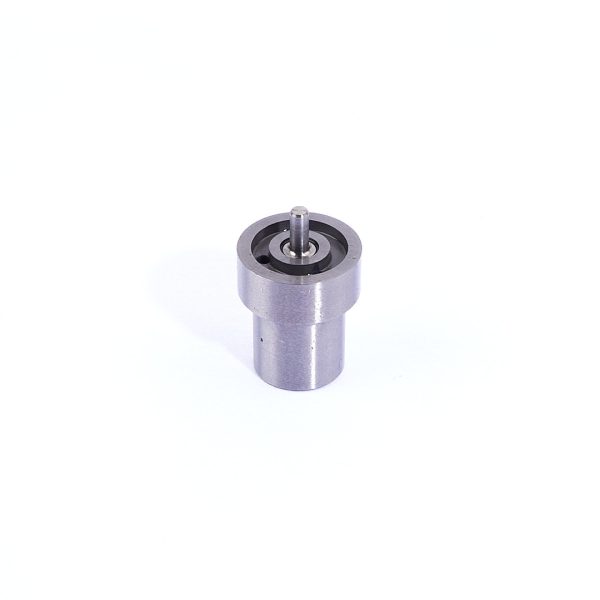

Injector nozzle Yanmar L70 | L100 | 2TNE68 | 3TNA72 | 3TNE68 | 3TNE74 | 3TN66 | DN0PD2

Description

Technical specifications:

• Type: Injector Nozzle / Injector tip (Pintle nozzle / Throttle type)
• Application: Suitable for generators, vibratory plates, mini excavators and vans (including Yanmar and Komatsu drives)
• Injector type: Pintle nozzle
• Spray angle: 0°
• Injection: Indirect injection (IDI)

Injector Nozzle including sealing kit (DN0PD2 / 119620-53000)

Exclusively from our own production line: a high-quality injector nozzle (tip) that meets the strictest tolerances. This 'Snelparts' pintle nozzle has been developed as the superior alternative to standard aftermarket parts and is perfect for overhauling your current injector in numerous Yanmar (L-series and TNE-series), Komatsu and Doosan compact engines.

We guarantee a perfect spray pattern and an exact seal, resulting in a smoother-running engine and cleaner combustion. Advice from experience: do not go for cheaper alternatives. Extensive research has been done into OEM quality, comparable to the well-known brands in this industry!

• Perfect spray pattern (Throttle pintle nozzle / Pintle type)
• Manufactured according to the strictest OEM tolerances
• Results in cleaner combustion and a smoother-running engine

Supplied including complete sealing set for direct installation! We supply this nozzle as standard with all necessary new copper washers. This allows you to place the injector safely and leak-free back into the engine block immediately after installation. The included set consists of: • A new heat shield (fire ring) against extreme heat and soot buildup. • A copper seal for the injector for 100% compression retention. • A leak-off line seal to prevent fuel leakage.

Yanmar (Engines)

• L70, L100 (Air-cooled) • 2TNE68, 3TNA72, 3TNE68, 3TNE74, 3TN66, 2V78
• Yanmar AF-15
• Yanmar AF114

Komatsu (Engines)

• 2D68E-3, 3D68E-3, 3D72-2, 3D74E-3

Komatsu (Mini excavators & Skid steer loaders)

• PC12R-8, PC15R-8, SK04J-2

Doosan / Develon

• Solar010

Fiat / Iveco / Renault (Vans)

• Various 2.5D and 2.8D engines (Ducato, Daily, Master)

OEM for reference:

• DN0PD2 • 119620-53000 • 119620-53001 • 0434150006 / 0 434 150 006 (Bosch reference) • 9432612000 (Bosch) • DN0PDN172

John Deere:

• F935
• 670, 755
