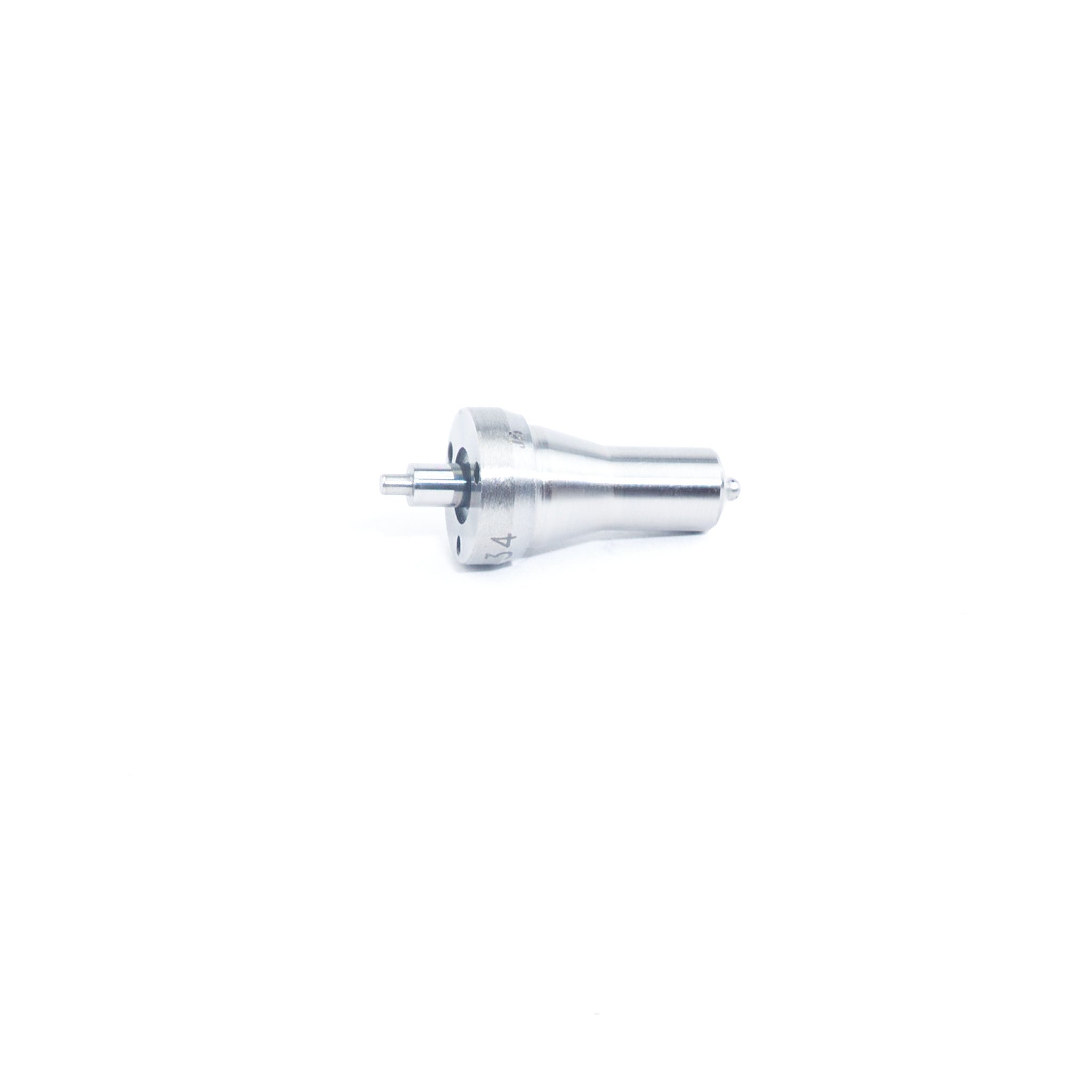

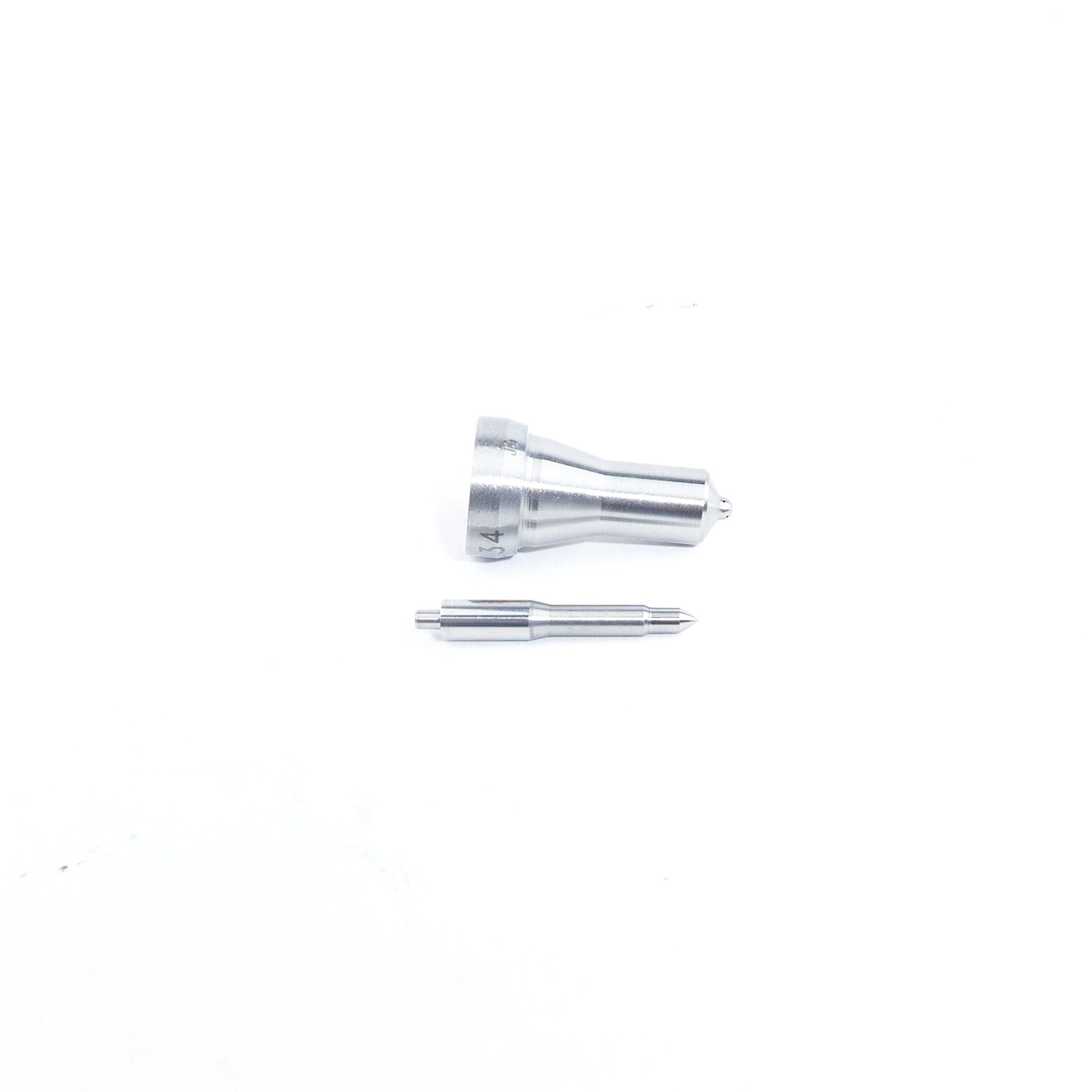

Fuel Injector nozzle Yanmar | JD | 3TNE82 | 3TNE84 | 4TNE84

Description

Exclusively from our own production line: a high-quality fuel injector nozzle that meets the strictest tolerances. This ‘Snelparts‘ injector tip is developed as the superior alternative to standard aftermarket parts.

• We guarantee a perfect spray pattern and an exact seal, resulting in a smoother running engine and cleaner combustion.
• Advice from experience; don’t go for cheaper alternatives. Extensive research has been done into OEM quality such as well-known brands in this industry!

Opening pressure (Injection pressure)

This is the pressure at which the needle must “release” and the atomization begins.

• Standard setting (New): 19.6 MPa (+1.0 / -0)

• In Bar: 196 Bar (up to approx. 206 Bar)

• In kg/cm²: 200 kg/cm² (up to 210 kg/cm²)

• 40 – 45 Nm (4.0 – 4.5 kgf·m) Fuel Injector tightening torque!

John Deere

• 670, 770, 870, 970, 1070
• 570, 575, 675, 675B

Mustang

• 940E

Yanmar Engine:

• 3TNE84, 3TN82E
• 4TNE84, 4TNE86, 486, 486E

OEM ref:

• 129102-53000
• AM875412 11-9046
• DLLA150P234
• DLLA 150 P 234
