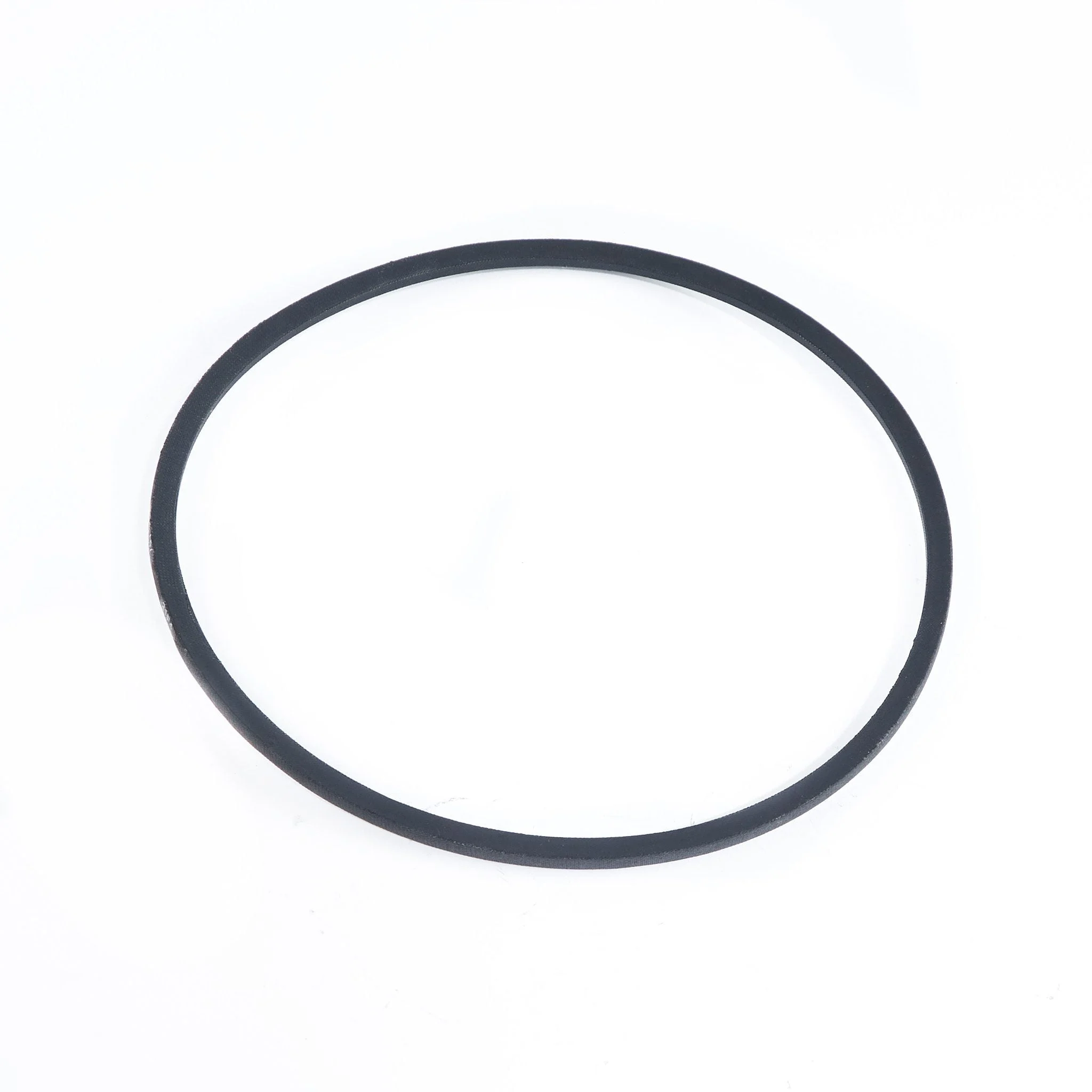

V-belt Yanmar YM180 | YM1301 | YM1401 | YM1502 | YM1601 | 906 mm working length | 12 x 8.5 mm
- Ordered before 4:00 PM, delivered on Tuesday
- Up to 2 years warranty
- Exchange possible within 14 days
Shop4Trac assurances
- We deliver to Netherlands in as little as 1 business day
- Customer review 8,9/10
-
Pay securely with among others:
Shipping costs
Based on 0,2 kgDescription
V-belt with a working length of 906 mm in the narrow profile used on Japanese compact tractors. The inner dimension is 876 mm, which corresponds to size A34.5. This length belongs to the belt series of smaller and medium-sized Yanmar YM models.
✔️ Exact size: 876 mm inner dimension and 906 mm working length
✔️ Width 12 mm and thickness 8.5 mm, narrower than the European 13 mm version
✔️ Available individually, directly from stock
Dimensions
- Working length (Ld): 906 mm
- Inner dimension (Li): 876 mm, corresponds to size A34.5
- Top width: 12 mm
- Thickness: 8.5 mm
Suitable for:
Yanmar
- YM180, YM1301, YM1401, YM1502, YM1601, YM2002
Always measure your old belt before ordering. These models were built with different belt lengths. Lay your old belt flat and measure the inside circumference. If you get 876 mm, this is the correct belt. If you measure 864 mm or 889 mm, you need a different size, which we also supply.
Pay attention to the length type. Li is the inner circumference, La is the outer circumference, and Ld or Lw is the working length, which lies in between.
OEM for reference:
- 25112-003400, 25112003400
- 25112-003501, 25132-003500
Specifications
