In-frame overhaul kit Mitsubishi S3L – S3L | S3L2 | Mitsubishi MT | Mahindra 2015-3015 | Solis 26

Description

With this in-frame overhaul kit, you can replace the wear-sensitive parts of the Mitsubishi S3L 3-cylinder diesel engine without a full engine rebuild. An affordable alternative to a full overhaul kit, intended for engines where the cylinders are still within tolerance. Since the cylinder head must be removed to take out the pistons, a complete gasket set is included so you can seal the engine up properly and leak-free.

✔️ Cost-effective alternative to the full overhaul kit
✔️ Includes complete gasket set — the head gasket is always required
✔️ For cylinders within tolerance; honing recommended

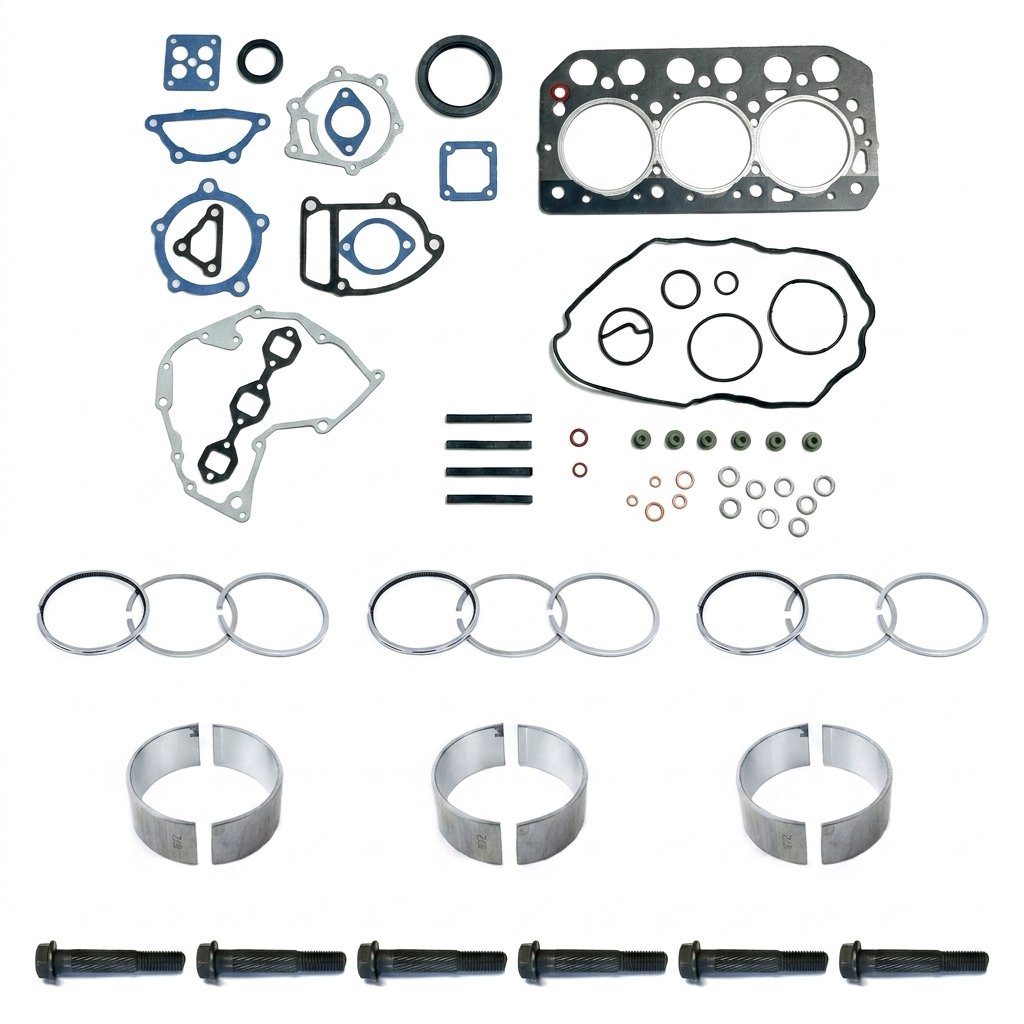

Kit Contents:

• 3× piston ring set
• 3× connecting rod bearing
• 1× complete gasket set
• 6× connecting rod bolt
• 1× rear crankshaft seal

Please note: not suitable for scratched or worn cylinders or after overheating. In that case, choose the full overhaul kit.

Suitable for:

AMI

• GS0009M32S

Bredenoord

• BRMI10

Broadcrown

• BCM8-50SP E2, BCM11-50 E2, BCM11-60, BCM11-60SP, BCM11-60SP T4

Captain

• 263

Caterpillar

• 302.5C, 303CR, 303SR

Doosan

• G10 (1Ph), G10 (3Ph)

Eisemann

• P11000DE, P11001DE, T11000DE

Fogo

• FM10

Geko

• DH/S10, DH/S10 MF

Giese

• HB5-10, HB7.5-15

Hanix

• H22A, H24A, H26C, H36C, H36CR

Hyundai

• R25Z-9A, R27Z-9, R28-7, R36N-7, Robex 28-7, Robex 35-7, Robex 36N-7, Robex 55-7

Ingersoll Rand

• G11, G12

Mahindra

• 1526 HST, 1526 Shuttle, 1626 HST, 1626 Shuttle, 2815G, 2815 HST, 2816G, 3016G 4WD, 3016 HST 4WD, 3215G, 3215 HST, Max 24 HST 4WD, Max 26XL HST 4WD, Max 26XL Shuttle 4WD, Max 28XL HST 4WD, Max 28XL Shuttle 4WD

Mam

• GS160, GS180, GS200, GS210, GS230, GS250

McCormick

• Intl CTJ23

Mitsubishi

• MM25T, MM30CR, MM30CR2, MM30SR, MM30T, MT200, MT231, MT240, MT251, MTZ23, GS232, TU73D, TU73E, TU73EX

Nagano

• NA90A, NA90ZA, NA120A, NB30, NS25-3, NS35R-3, NUL120-3, NUZ090D, CX26-3

Nilfisk-Alto

• Contractor Silent

Optimess

• Tiger 8/16 PPN

Pel Job

• EB250, EB25.4, EB30.4, EB306

Schaeff-Terex / Terex

• TC25

Solé Diesel

• G-10M-15, G-10T-15, Mini 33

• TC25

• 26

Technogen

• MI12/4SX, MI12T/4SX

Teksan Generator

• TJ9MS, TJ11MS, TJ20MS

Toro

• Reelmaster 5300-D

TYM

• T293

Volvo

• EC25, EC30

Weidemann

• 1050D/M, 1055D/M, 1504D/M, 2015

OEM ref:

• 31B94-26020, 31B9426020 — Complete gasket set
• 31B94-01060, 31B9401060 — Complete gasket set
• 31B94-01080, 31B9401080 — Complete gasket set
• 31B94-01090, 31B9401090 — Complete gasket set
• 31B01-23200, 31B0123200 — Head gasket
• 199-2180, 1992180 — Valve cover gasket
• 199-2258, 1992258 — Intake manifold gasket
• 31B30-00900, 31B3000900 — Intake manifold gasket
• 30A13-02100, 30A1302100 — Oil pan gasket
• 31B13-00800, 31B1300800 — Oil pan gasket
• MM408321 — Oil pan gasket
• 31N11-00800, 31N1100800 — Timing cover gasket
