Engine Overhaul Kit Yanmar 3TNE68 | 3TNA68 incl. cylinder liners – B15 | B17-2 | B19 | Komatsu PC15R-8 | Wacker Neuson 1502RD | Takeuchi TB15FR

Description

The most complete overhaul kit we supply for the Yanmar 3TNE68 and 3TNA68 three-cylinder engines: in addition to pistons, rings, bearings, and a gasket set, this also includes three new cylinder liners. This brings a worn or bored-out engine block back to standard size without reboring — you press out the old liners and press in the new ones.

✔️ Includes 3 cylinder liners — engine block back to standard size without reboring
✔️ Available with cloverleaf or flat piston — choose the version that is in your engine
✔️ Complete with main bearings, connecting rod bearings, and a complete gasket set with graphite head gasket

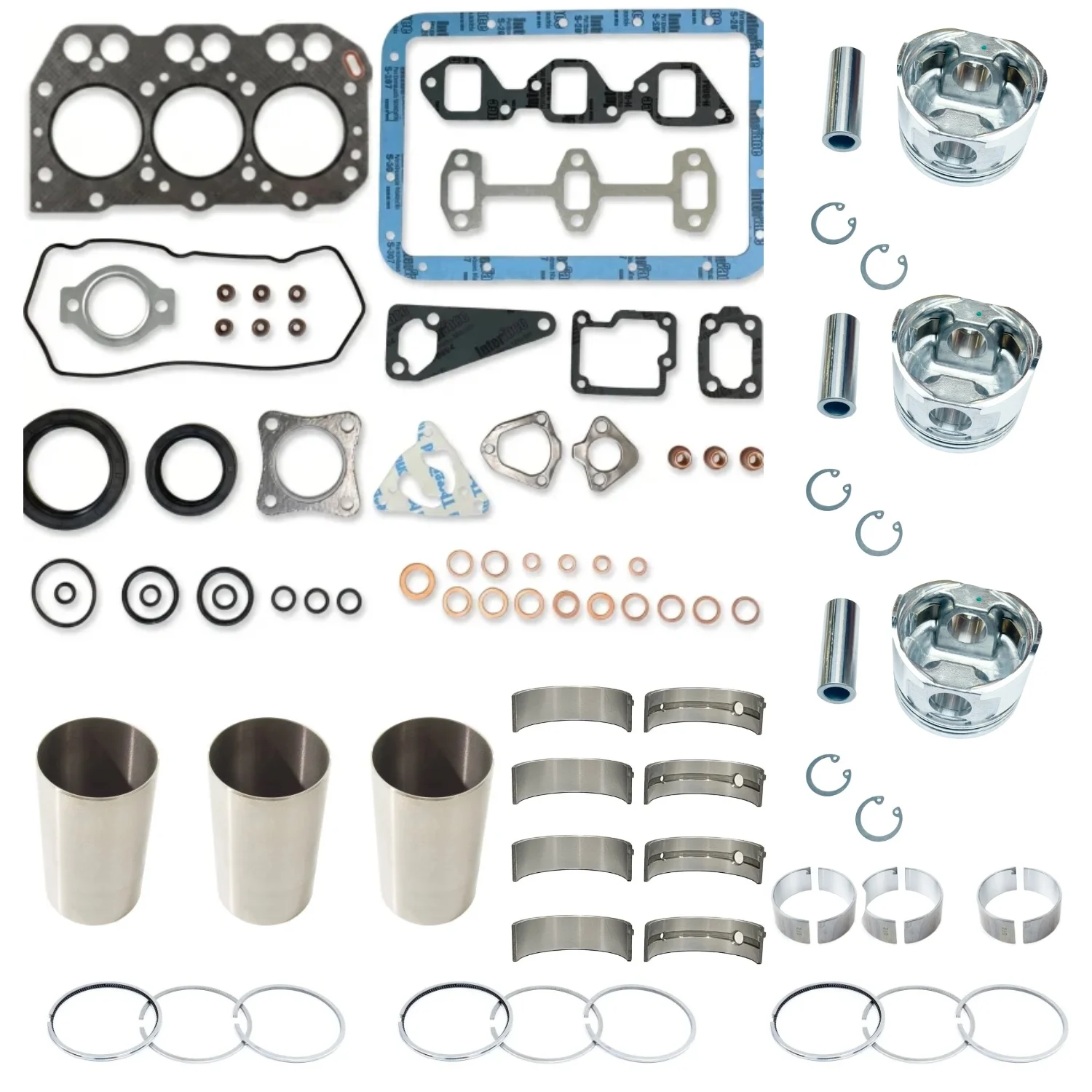

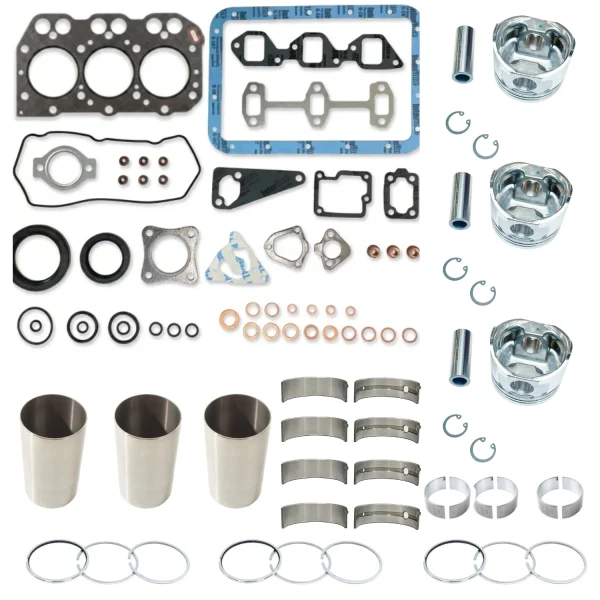

Kit contents:

• 3x Cylinder liner Yanmar 3TNA68 | 3TNE68 (unfinished)
• 3x Piston Yanmar 3TNE68, standard size — cloverleaf or flat, choice of
• 3x Piston ring set (per cylinder)
• 3x Connecting rod bearing / bearing shell, standard size
• 4x Main bearing, standard size

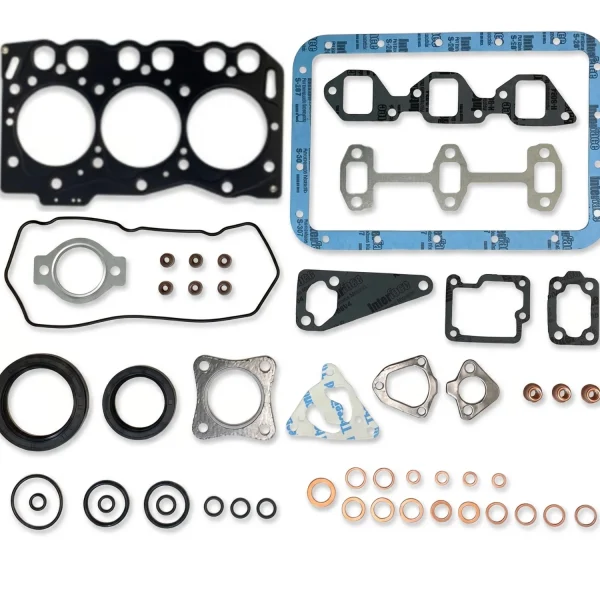

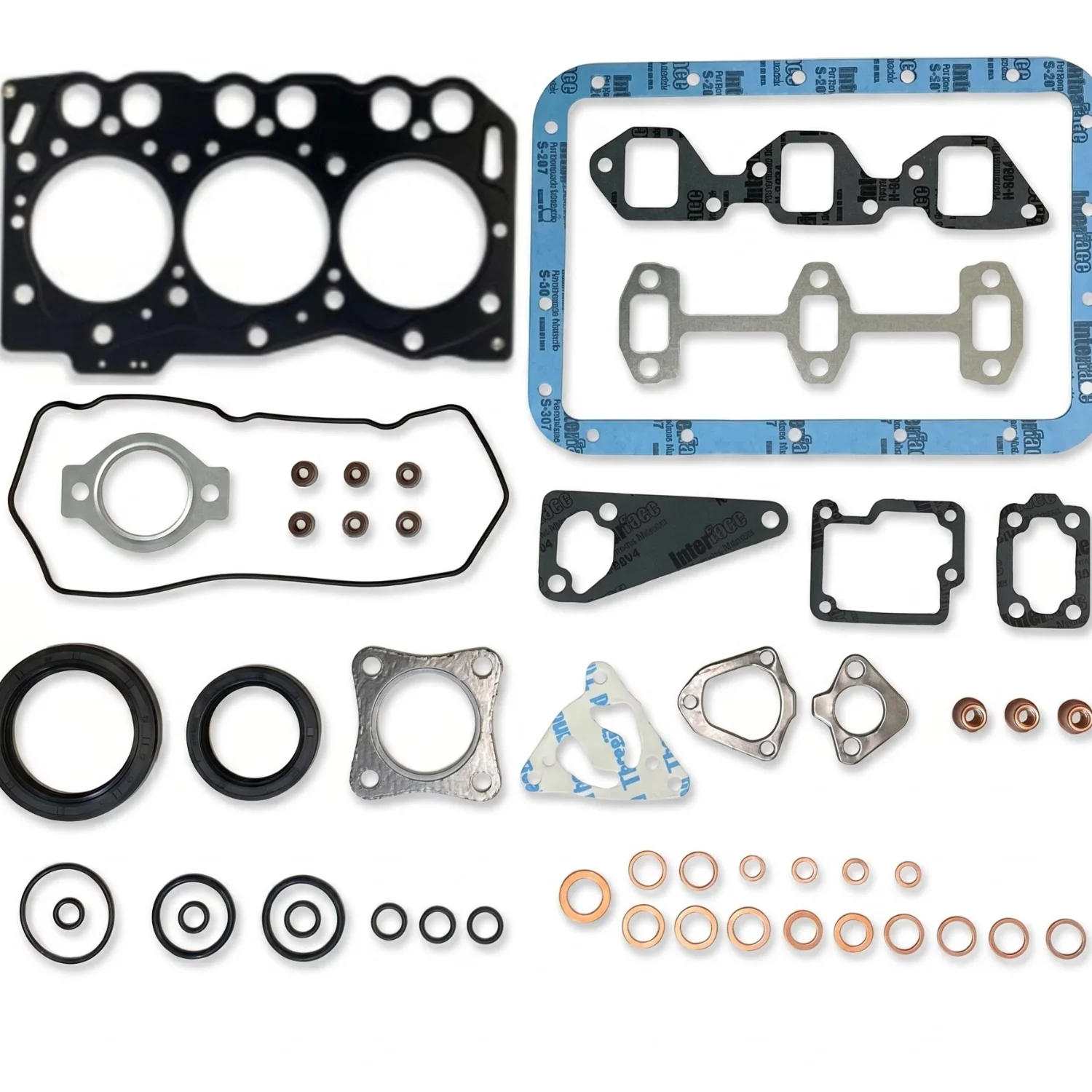

• 1x Complete gasket set Yanmar 3TNA68 | 3TN68 | 3TNE68 | 3TNV68 — graphite

Cloverleaf or flat piston: the 3TNE68 comes with two piston crowns. Take out one piston and look at the crown: a milled cloverleaf shape in the piston head or a flat crown. Select the correct version at the top — if in doubt, send us a photo of the piston crown and we will gladly check it with you.

Please note — the liners are unfinished: the cylinder liners are supplied as semi-finished products and must be bored and honed to size after pressing in. Please factor this into your overhaul planning.

Why standard size pistons: with new cylinder liners, the block returns to standard size, so standard size pistons belong in it. Oversized pistons are only necessary when the existing liners are bored out.

Technical specifications:

• Engine: Yanmar 3TNE68 / 3TNA68 / 3TN68 / 3TNV68, 3 cylinders
• Bore: 68 mm — indirect injection (IDI)
• Piston: standard size (STD), cloverleaf or flat
• Bearings: standard size (STD)
• Cylinder liner: unfinished, inner diameter 67 mm, outer diameter 70.5 mm, length 125 mm
• Head gasket: graphite

Suitable for:

Yanmar engine

• 3TNE68, 3TNA68, 3TN68, 3TNV68, Komatsu 3D68E

Yanmar

• B15, B15-3, B17-2, B18-3, B19

Wacker Neuson

• 1402RD Primus, 1402RD, 1403, 1502RD, 1503

Komatsu

• PC15R-8

Takeuchi

• TB15FR

JCB

• Workmax 800D

JLG

• 40ic, 45ic, 26MRT, 410C, 451C

Kobelco

• SK16MSR

IHI / Menzi Muck

• 12VXE, Menzi IHI 12VXE

John Deere

• 4010

OEM for reference:

• 119265-22601, 11926522601, 129265-22601, 12926522601 – piston STD
• 119265-22500, 11926522500, 719600-22502 – piston rings STD
• 719260-23600, 71926023600 – connecting rod bearing (bearing, crank pin) STD
• 719260-02800, 71926002800 – main bearing (bearing, main) STD
• 119651-01340, 11965101340 – head gasket (graphite)
• 719265-92690, 71926592690 – complete gasket set, reference
• 129901-22091, 12990122091 – overhaul reference
